Craftsman
Front-Engine Lawn Tractor

Model # 917253745 Official Craftsman gt/18 twin 6-speed garden tractor

Here are the diagrams and repair parts for Official Craftsman 917253745 gt/18 twin 6-speed garden tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

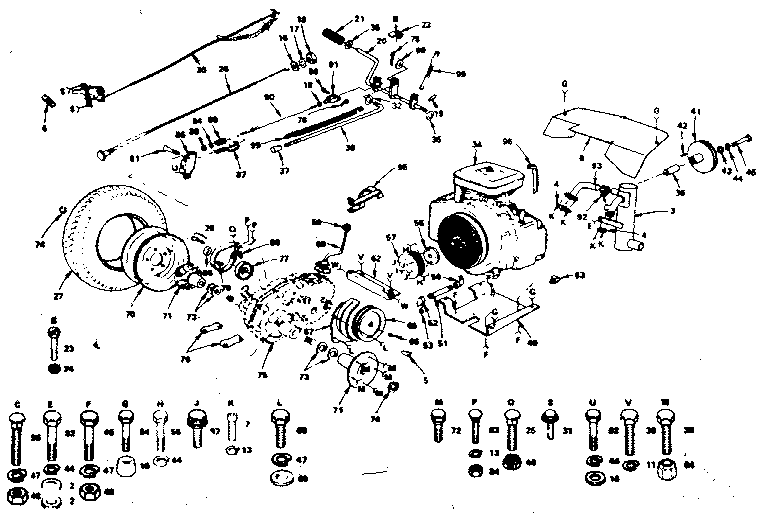

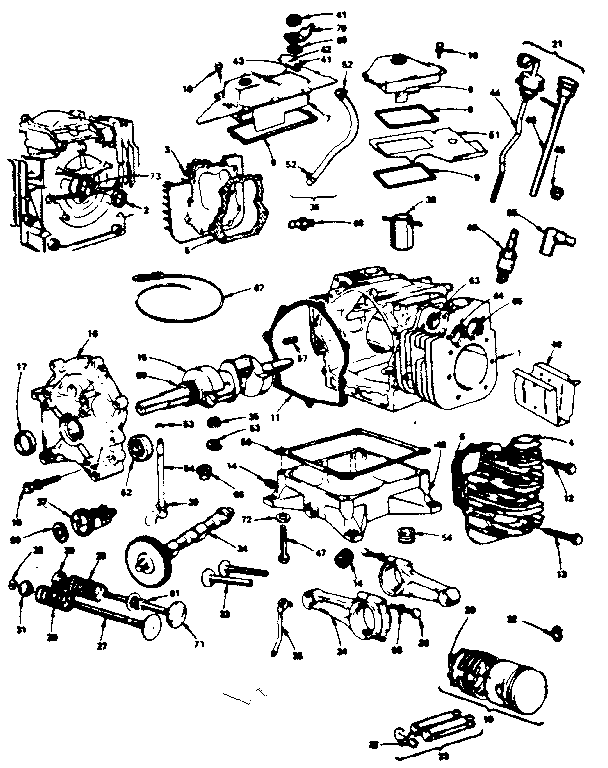

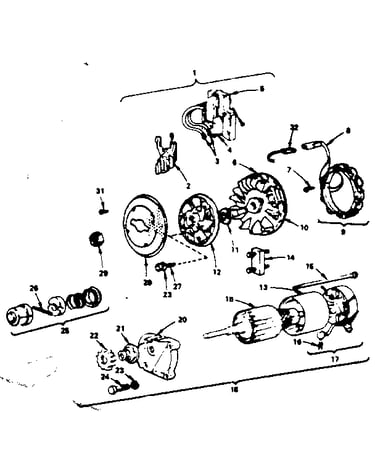

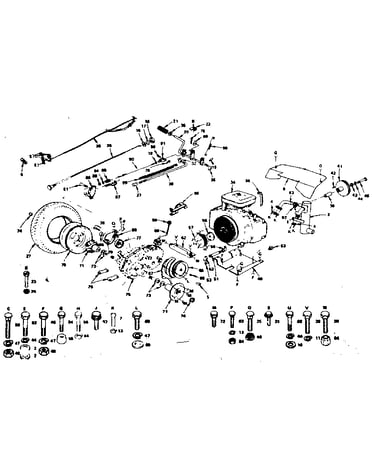

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 599 parts  |
Idler 104360X
#35

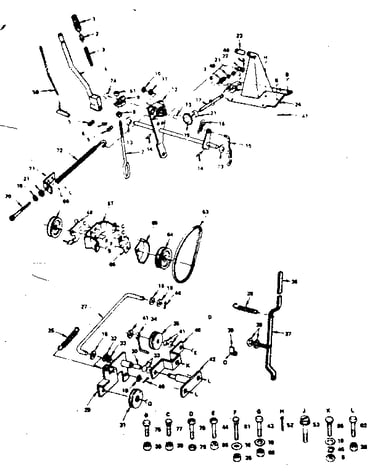

Lever controls diagram

Idler

Part #104360X

Replaced by #532173438

?
Manufacturer substitution
This part replaces 104360X. Substitute parts can look different from the original.
BEST SELLER
$16.90 |
11% OFF Phone Price : $18.90
In Stock
Hardened Race Thrust Bearing 6266H
Hardened race thrust bearing

Part #6266H

Replaced by #532006266

?
Manufacturer substitution
This part replaces 6266H. Substitute parts can look different from the original.
BEST SELLER
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Gas Outlet Bushing 3645J
#32A

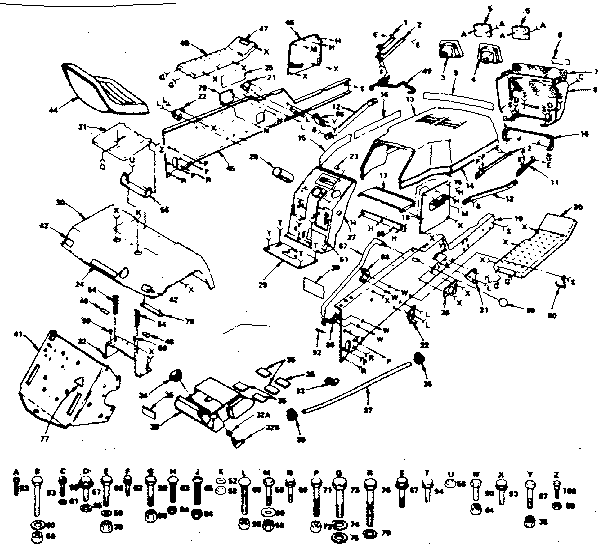

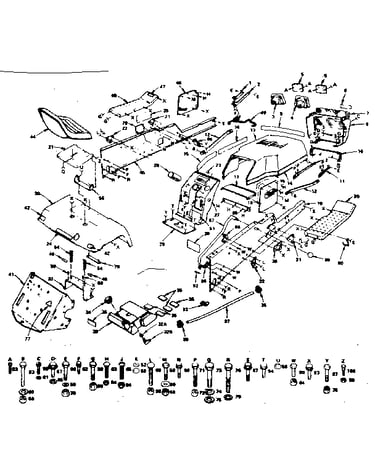

Chassis, fender and dashboard diagram

Gas outlet bushing

Part #3645J

Replaced by #532003645

?
Manufacturer substitution
This part replaces 3645J. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Cap 4609J
#34

Chassis, fender and dashboard diagram

Cap

Part #4609J

Replaced by #581075501

?
Manufacturer substitution
This part replaces 4609J. Substitute parts can look different from the original.
BEST SELLER
$30.64 |
16% OFF Phone Price : $36.64
In Stock
Shaft Lever 392672
#15

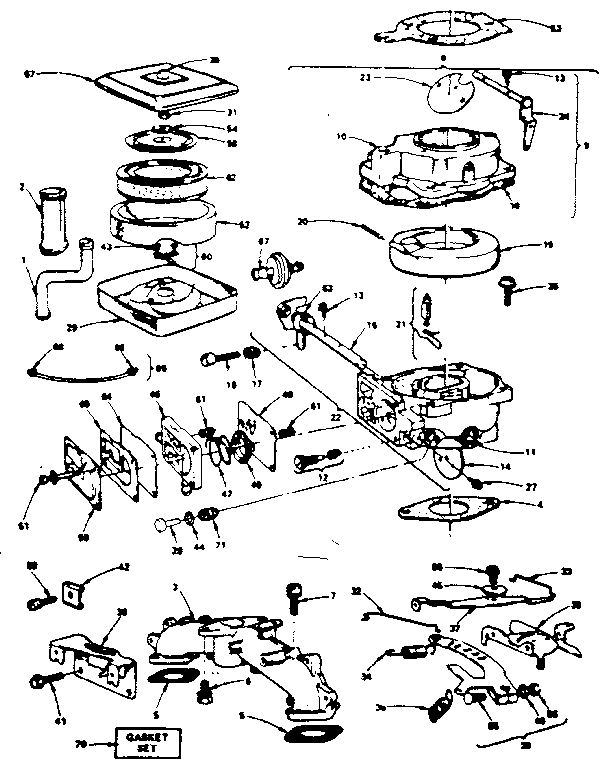

Air cleaner-carburetor group diagram

Shaft lever

Part #392672

Replaced by #697029

?
Manufacturer substitution
This part replaces 392672. Substitute parts can look different from the original.
BEST SELLER
$18.87 |
10% OFF Phone Price : $20.87
In Stock
Ring 5845R
#2

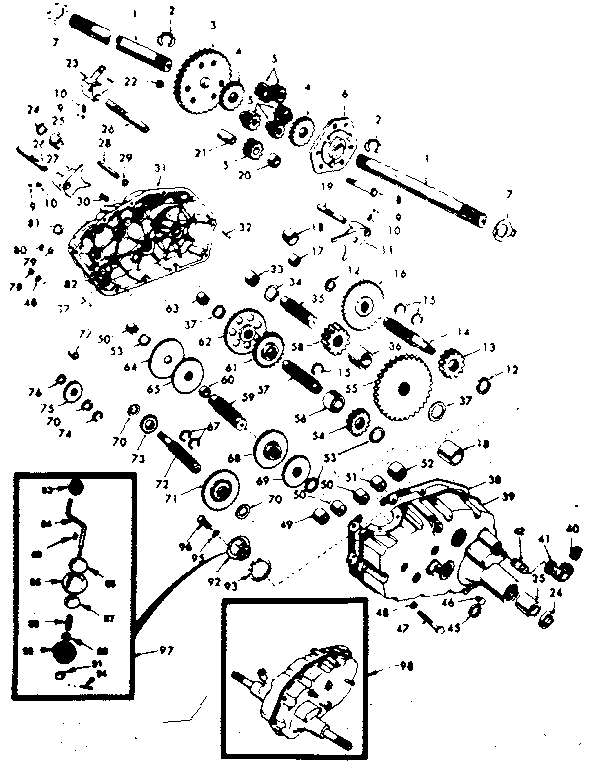

Transaxle diagram

Ring

Part #5845R

Replaced by #812000029

?
Manufacturer substitution
This part replaces 5845R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Lawn & Garden Equipment E-ring, 2-pack 12000034
Lawn & garden equipment e-ring, 2-pack

Part #12000034

Replaced by #812000029

?
Manufacturer substitution
This part replaces 12000034. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Lawn Tractor Steering Wheel Shaft Flange Bearing 104239X
#55

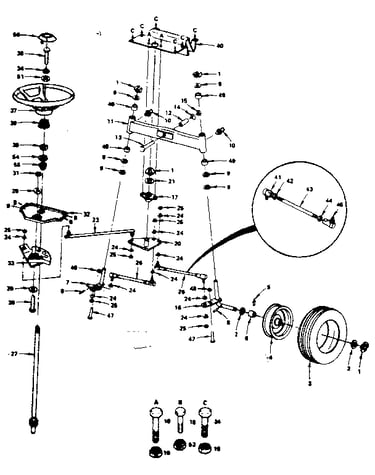

Steering diagram

Lawn tractor steering wheel shaft flange bearing

Part #104239X

Replaced by #532104239

?
Manufacturer substitution
This part replaces 104239X. Substitute parts can look different from the original.
BEST SELLER
$13.71 |
13% OFF Phone Price : $15.71
In Stock
Lawn Tractor Ignition Switch STD365402
#41

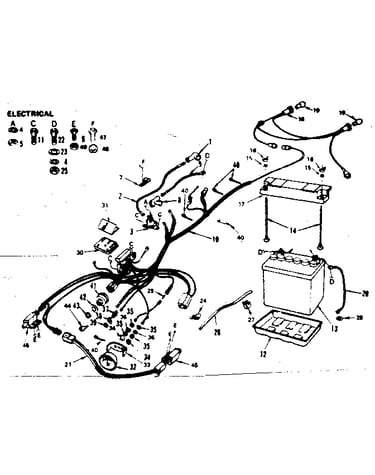

Electrical diagram

Lawn tractor ignition switch

Part #STD365402

Replaced by #532365402

?
Manufacturer substitution
This part replaces STD365402. Substitute parts can look different from the original.
BEST SELLER
$28.82 |
17% OFF Phone Price : $34.82
In Stock
Element 271271
#52

Air cleaner-carburetor group diagram

Element

Part #271271

Replaced by #272490S

?
Manufacturer substitution
This part replaces 271271. Substitute parts can look different from the original.
BEST SELLER
$6.98 |
13% OFF Phone Price : $7.98
In Stock
