Model # 663833700 Official Kenmore citrus juicer

Here are the diagrams and repair parts for Official Kenmore 663833700 citrus juicer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Kenmore Screw 67296
#14

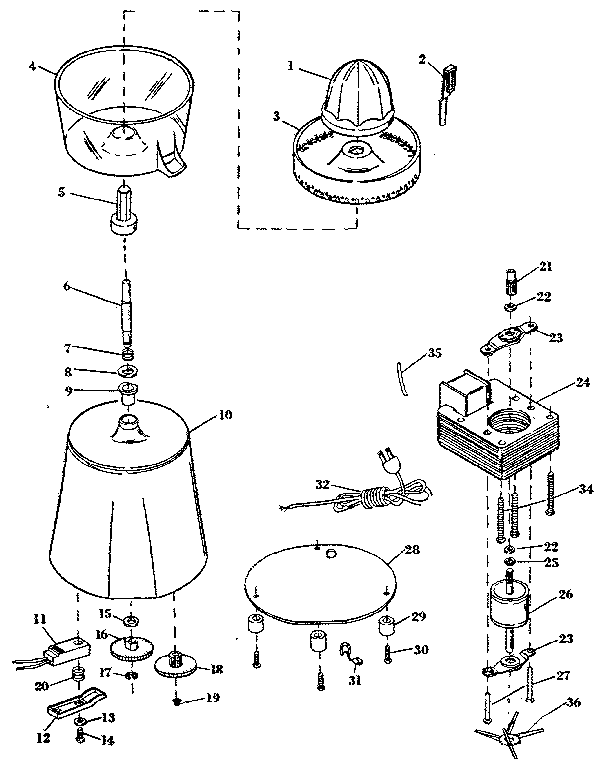

Replacement parts diagram

Kenmore screw

Part #67296

The manufacturer no longer makes this part, and there's no substitute part

Washer 67293
#8

Replacement parts diagram

Washer

Part #67293

The manufacturer no longer makes this part, and there's no substitute part

Reamer 67242
#1

Replacement parts diagram

Reamer

Part #67242

The manufacturer no longer makes this part, and there's no substitute part

Strainer 203386
#3

Replacement parts diagram

Strainer

Part #203386

The manufacturer no longer makes this part, and there's no substitute part

Screw 76598
#30

Replacement parts diagram

Screw

Part #76598

The manufacturer no longer makes this part, and there's no substitute part

Gear/pinon 69727
#18

Replacement parts diagram

Gear/pinon

Part #69727

The manufacturer no longer makes this part, and there's no substitute part

Bearing Bracket 200901
#23

Replacement parts diagram

Bearing bracket

Part #200901

The manufacturer no longer makes this part, and there's no substitute part

Stator Assembly 200642
#24

Replacement parts diagram

Stator assembly

Part #200642

The manufacturer no longer makes this part, and there's no substitute part

Wiper 203838
#2

Replacement parts diagram

Wiper

Part #203838

The manufacturer no longer makes this part, and there's no substitute part

Rivet 65182
#27

Replacement parts diagram

Rivet

Part #65182

The manufacturer no longer makes this part, and there's no substitute part
