Carrier
Heating & Cooling Combined Unit

Model # 48DUN036090300 Official Carrier package unit

Here are the diagrams and repair parts for Official Carrier 48DUN036090300 package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

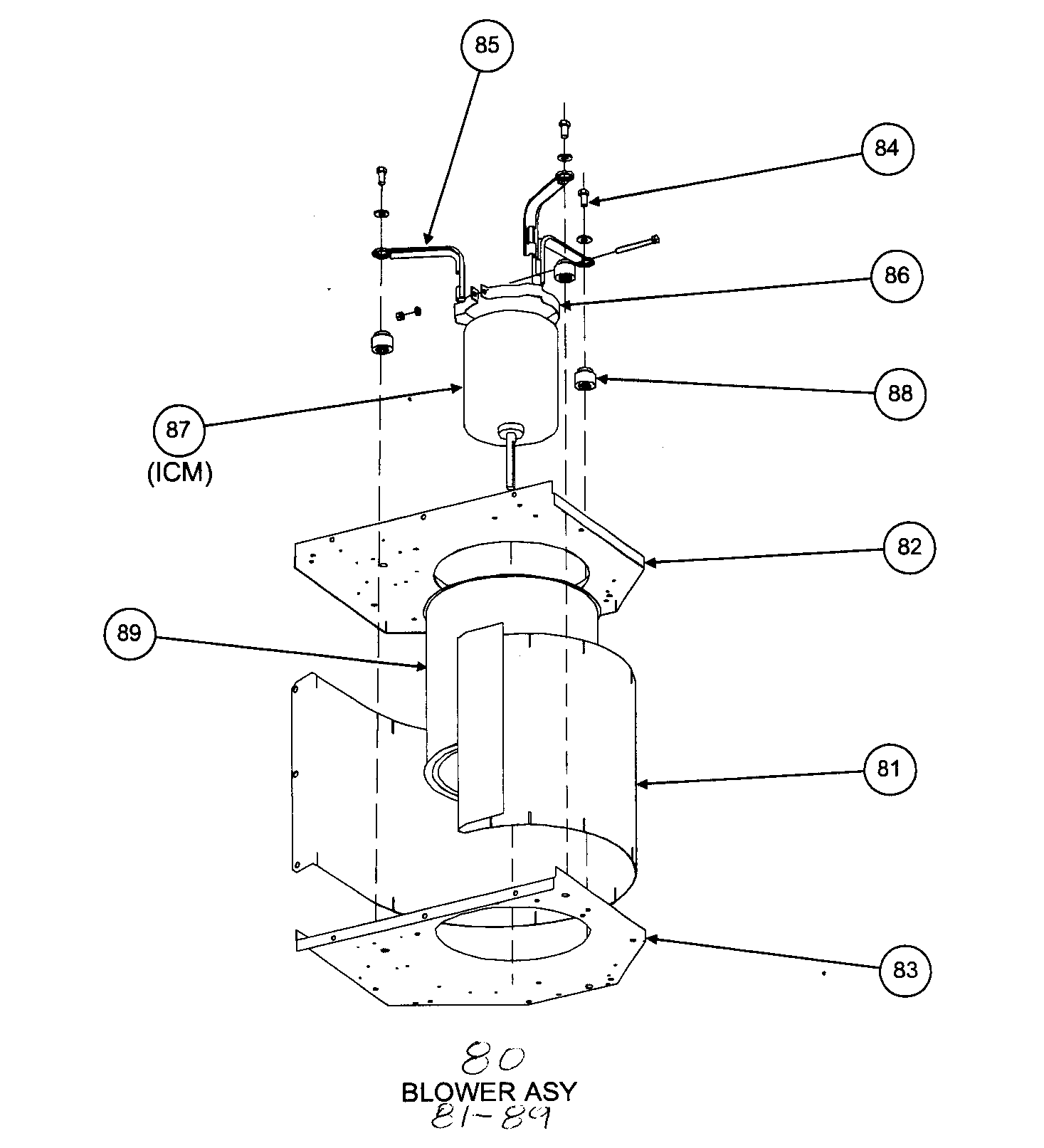

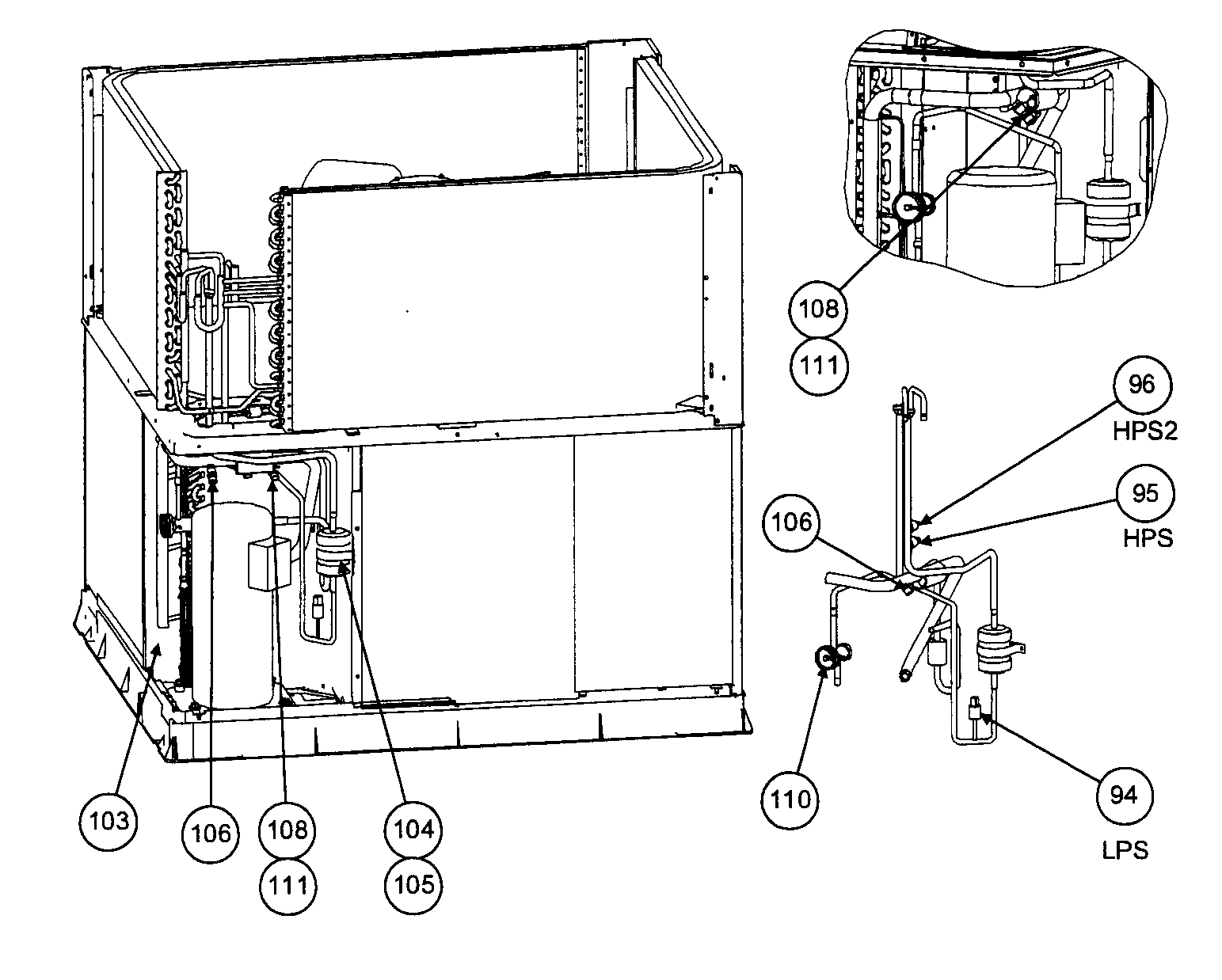

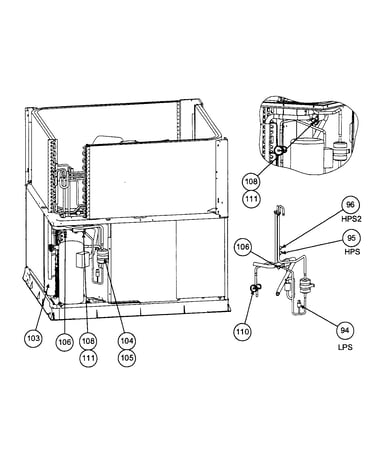

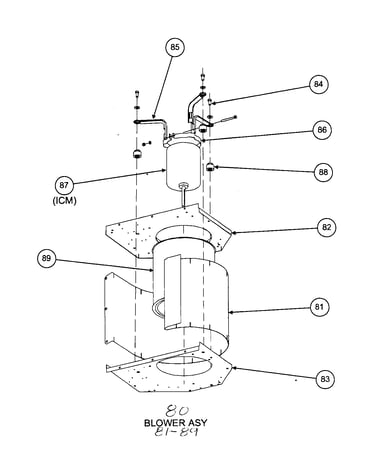

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Control Board HK42FZ024
#65

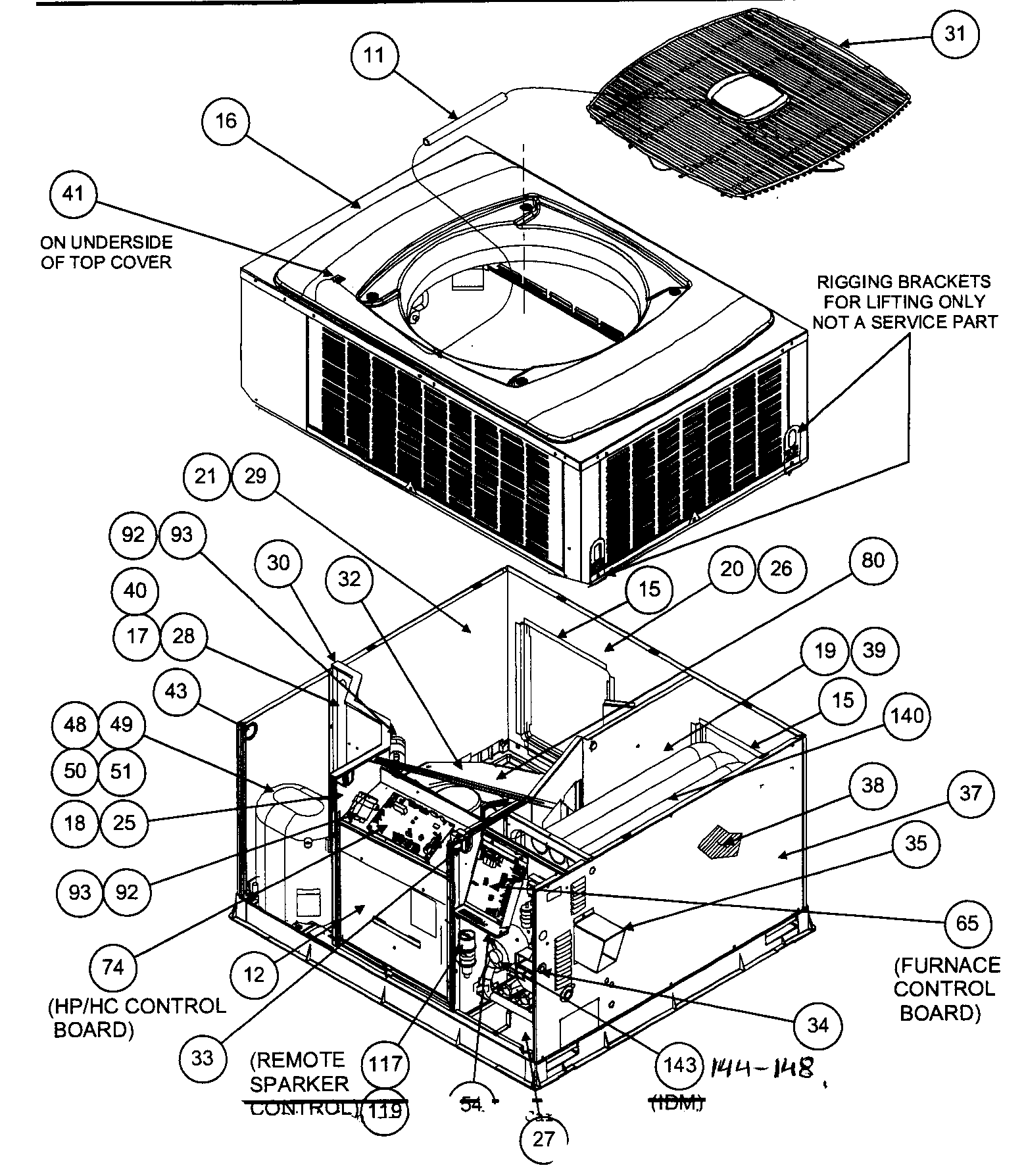

Inside view diagram

Control board

Part #HK42FZ024

Replaced by #HK42FZ035

?
Manufacturer substitution
This part replaces HK42FZ024. Substitute parts can look different from the original.
$809.30 |
$12.00 OFF Phone Price : $821.30
In Stock
Pcb Assembly HK38EA008
#74

Inside view diagram

Pcb assembly

Part #HK38EA008

Replaced by #HK38EA023

?
Manufacturer substitution
This part replaces HK38EA008. Substitute parts can look different from the original.
$971.19 |
$12.00 OFF Phone Price : $983.19
In Stock
Cover Assembly 48GS400552
#15

Inside view diagram

Cover assembly

Part #48GS400552

$267.15
In Stock
Spud LH32RF086
#138

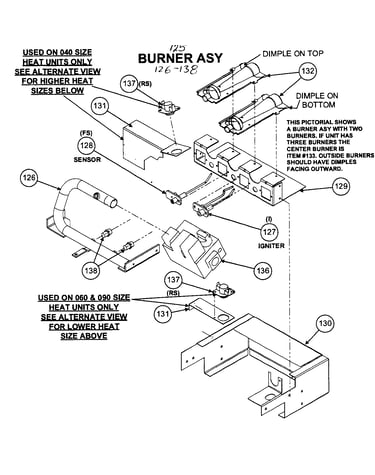

Burner assy diagram

Spud

Part #LH32RF086

$7.86
In Stock
Gas Valve EF33CW201
#136

Burner assy diagram

Gas valve

Part #EF33CW201

$274.95
In Stock

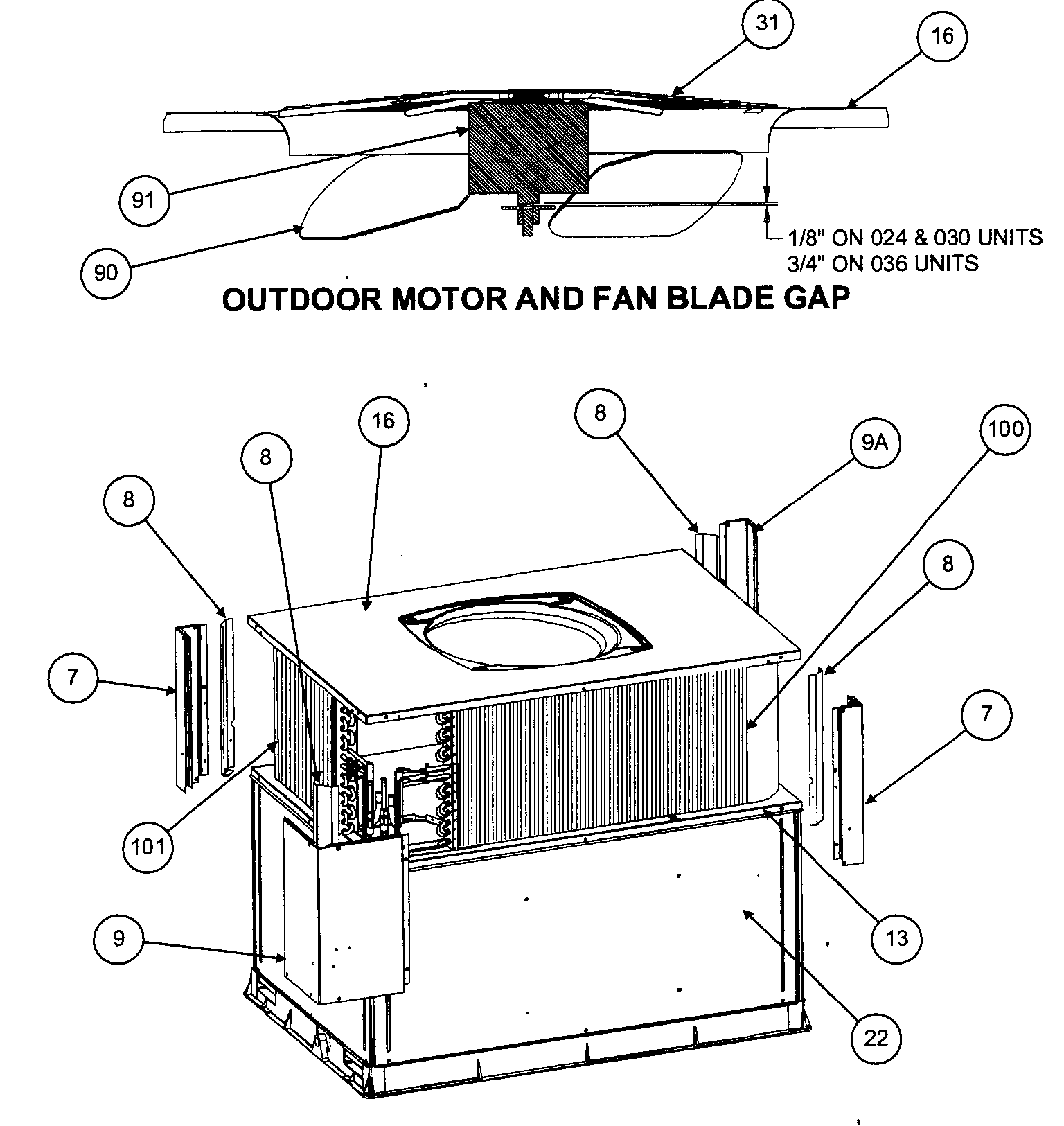

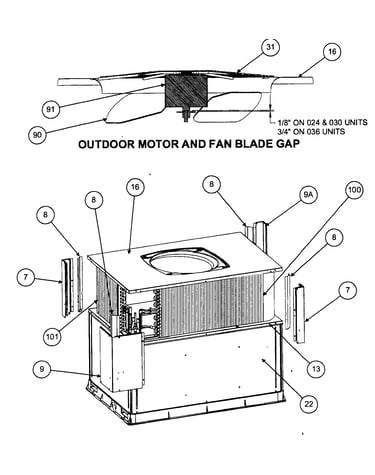

Grille 50SZ500126
#31

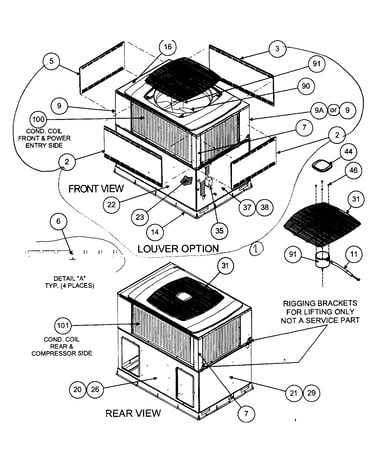

Front view/rear view diagram

Grille

Part #50SZ500126

$452.53
In Stock
Panel 48GS500235
#20

Front view/rear view diagram

Panel

Part #48GS500235

$293.29
In Stock
Furnace Burner 50DK407029
#133

Burner assy diagram

Furnace burner

Part #50DK407029

$40.33
In Stock
Oct Sensor HH79NZ088
#56A

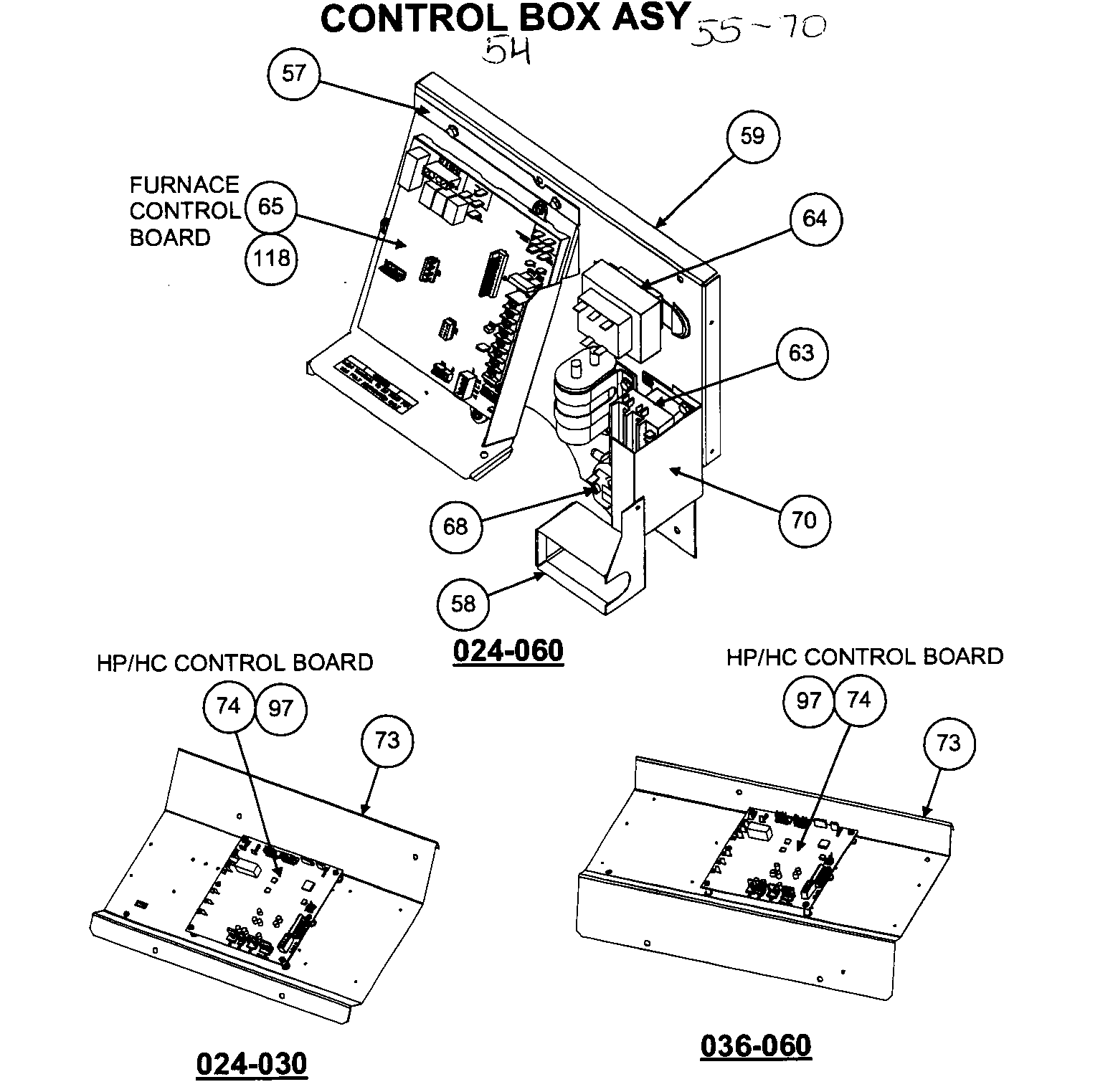

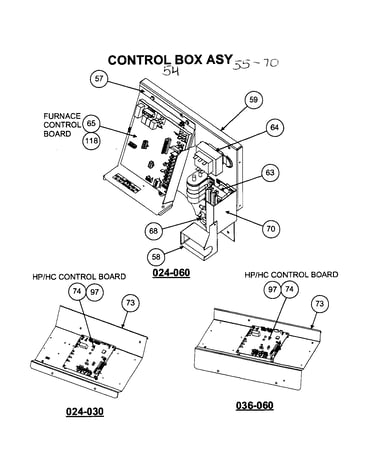

Control box/control panel assy diagram

Oct sensor

Part #HH79NZ088

$133.82
In Stock
Switch,tem HH18HA545
#123

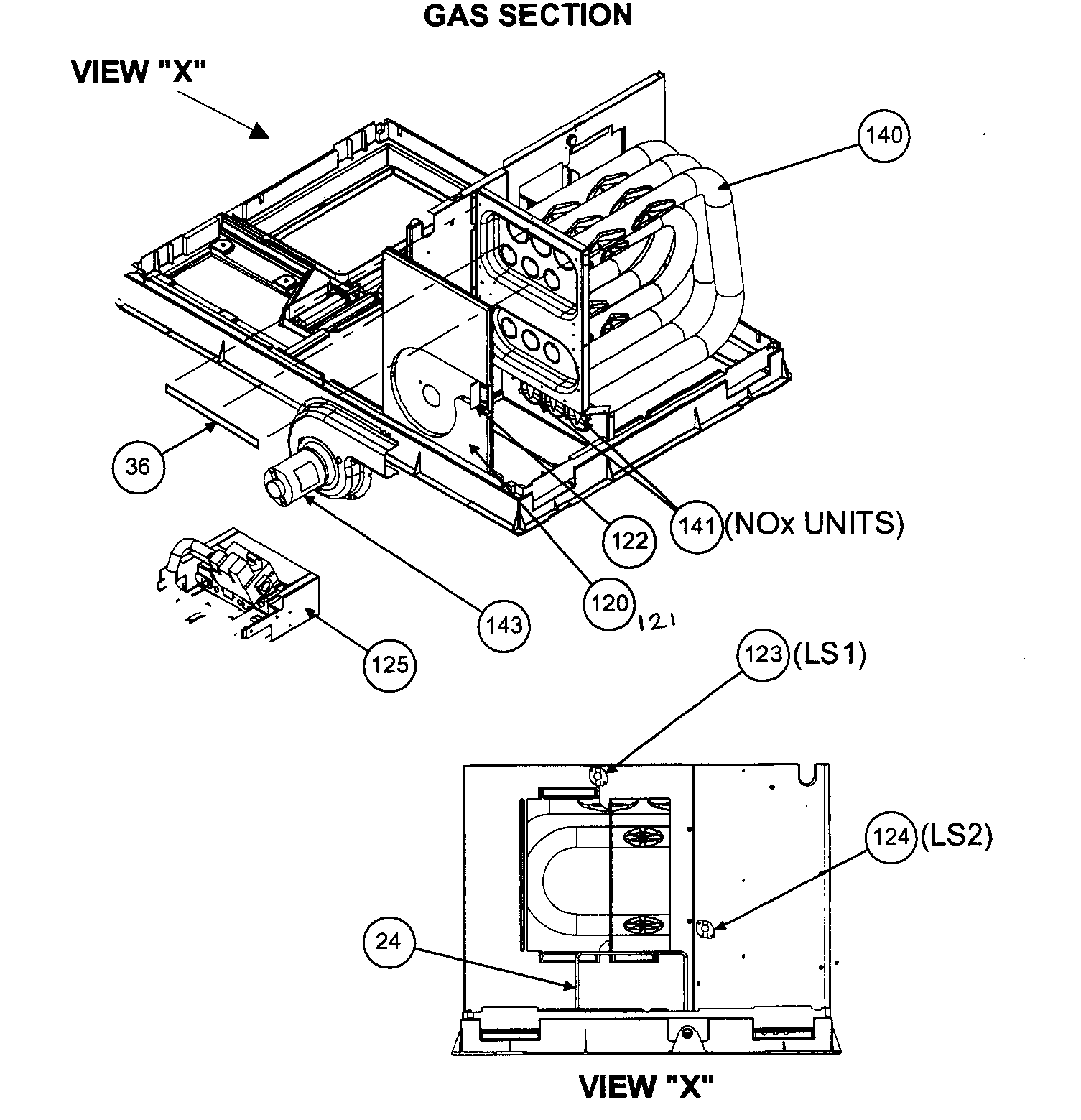

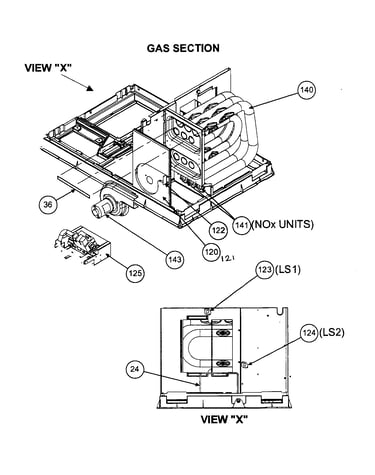

Gas section diagram

Switch,tem

Part #HH18HA545

$43.47
In Stock
