Model # 917384030 Official Craftsman walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917384030 walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Lock Nut 83923
Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Washer 52160
#46

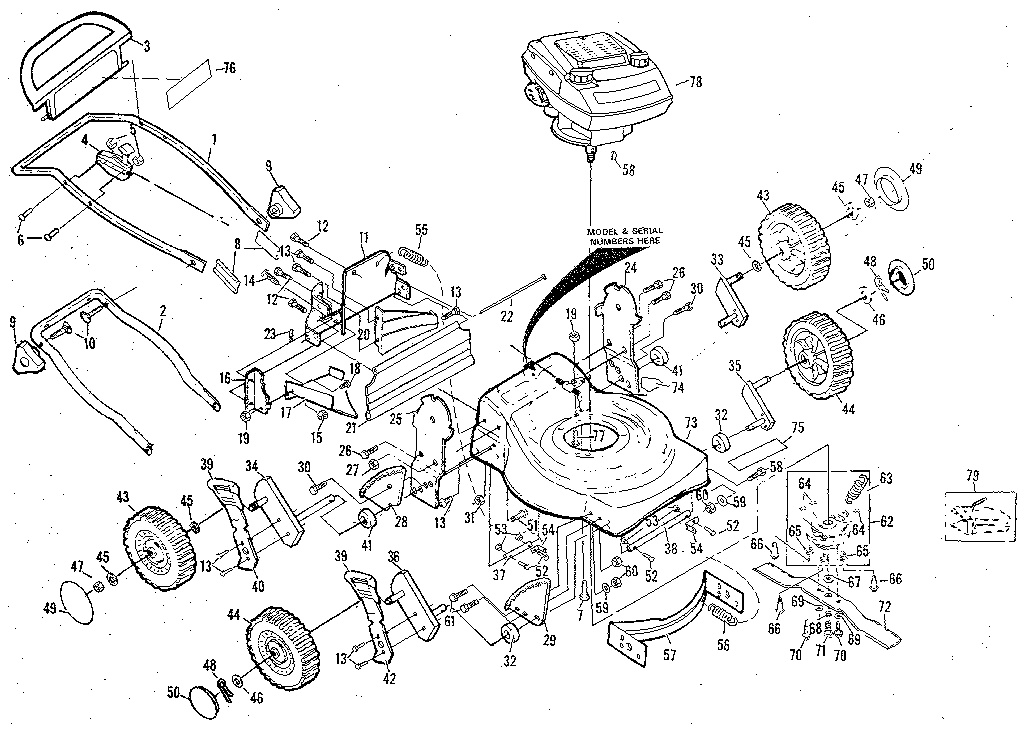

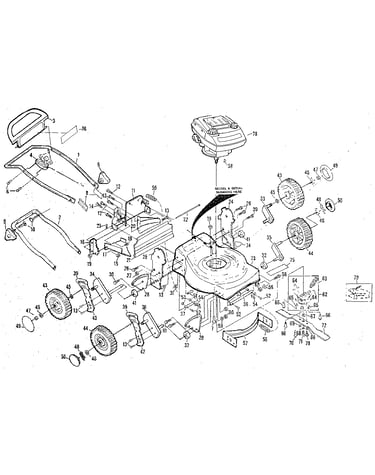

Replacement parts diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Stud 88291
#31

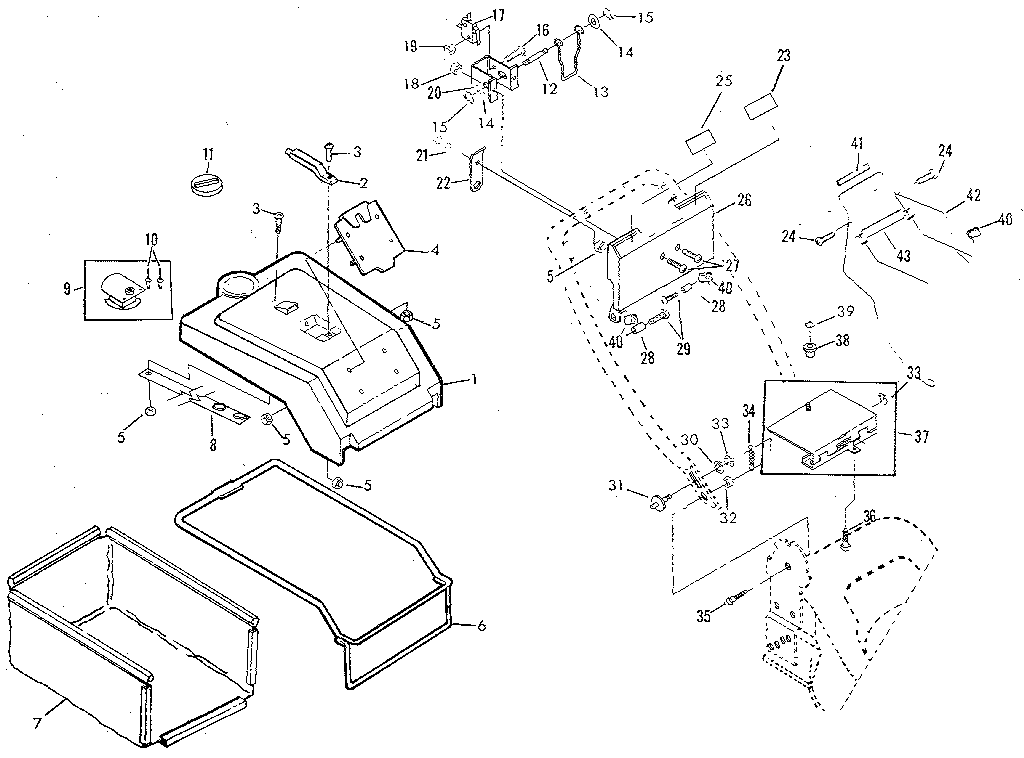

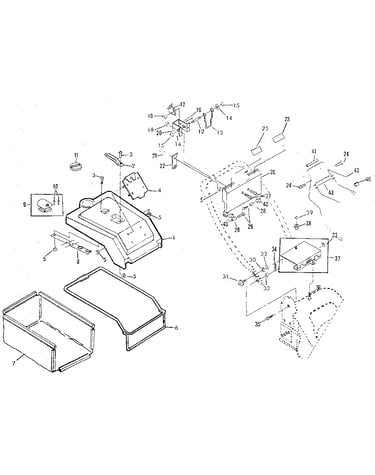

Lift top catcher diagram

Stud

Part #88291

Replaced by #760875MA

?
Manufacturer substitution
This part replaces 88291. Substitute parts can look different from the original.
$17.20 |
10% OFF Phone Price : $19.20
In Stock
Spacer 84920
#32

Replacement parts diagram

Spacer

Part #84920

Replaced by #532401629

?
Manufacturer substitution
This part replaces 84920. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Screw 55187
#26

Replacement parts diagram

Screw

Part #55187

Replaced by #532428867

?
Manufacturer substitution
This part replaces 55187. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Retainer Clip 85179
#48

Replacement parts diagram

Retainer clip

Part #85179

Replaced by #532085179

?
Manufacturer substitution
This part replaces 85179. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Washer 59289
#30

Lift top catcher diagram

Washer

Part #59289

Replaced by #532059289

?
Manufacturer substitution
This part replaces 59289. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Walk-behind Lawn Mower Handle Knob 87692
#9

Replacement parts diagram

Walk-behind lawn mower handle knob

Part #87692

Replaced by #532087692

?
Manufacturer substitution
This part replaces 87692. Substitute parts can look different from the original.
$15.40
In Stock
Bolt 66238
#51

Replacement parts diagram

Bolt

Part #66238

The manufacturer no longer makes this part, and there's no substitute part

Bolt 58714
#10

Replacement parts diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
