Sony
Speaker

Model # SS-CCP11 Official Sony audio speakers

Here are the diagrams and repair parts for Official Sony SS-CCP11 audio speakers, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Service Manual 992909611
#NI

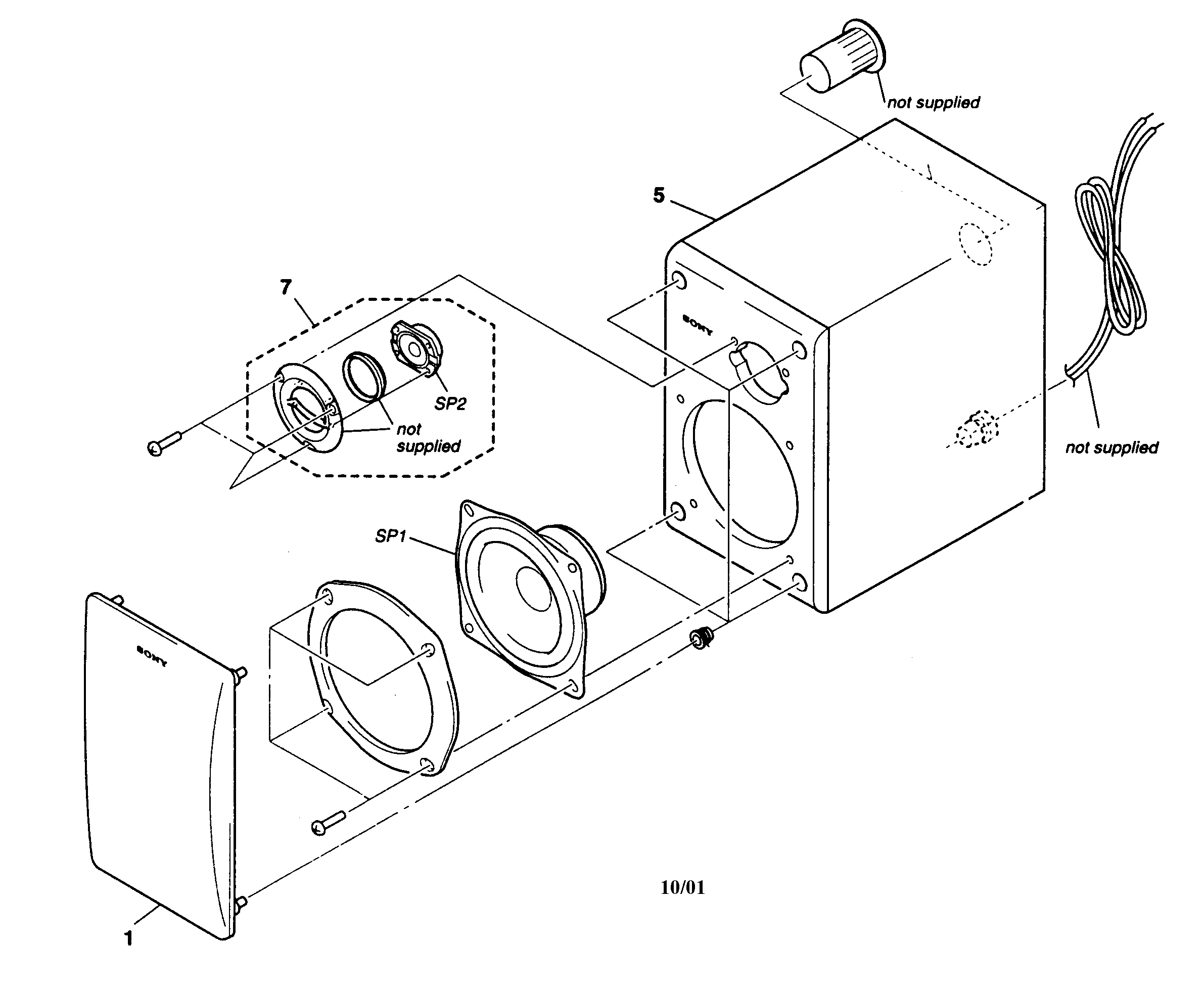

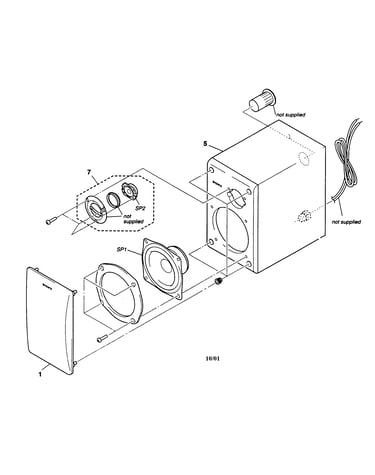

Cabinet parts diagram

Service manual

Part #992909611

The manufacturer no longer makes this part, and there's no substitute part

Box(r) 421736601
#5A

Cabinet parts diagram

Box(r)

Part #421736601

The manufacturer no longer makes this part, and there's no substitute part

Speaker Tweeter,2.5cm Dia 152947611
#SP2

Cabinet parts diagram

Speaker tweeter,2.5cm dia

Part #152947611

The manufacturer no longer makes this part, and there's no substitute part

Net Assy X49527271
#1

Cabinet parts diagram

Net assy

Part #X49527271

The manufacturer no longer makes this part, and there's no substitute part

Panel Assembly A4412189A
#7

Cabinet parts diagram

Panel assembly

Part #A4412189A

The manufacturer no longer makes this part, and there's no substitute part

Woofer 152972711
#SP1

Cabinet parts diagram

Woofer

Part #152972711

The manufacturer no longer makes this part, and there's no substitute part

Box(l) 421736501
#5

Cabinet parts diagram

Box(l)

Part #421736501

The manufacturer no longer makes this part, and there's no substitute part
