Kenmore
Floor Scrubber

Model # 10083400 Official Kenmore floor polisher

Here are the diagrams and repair parts for Official Kenmore 10083400 floor polisher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Cap 37125P1
#38

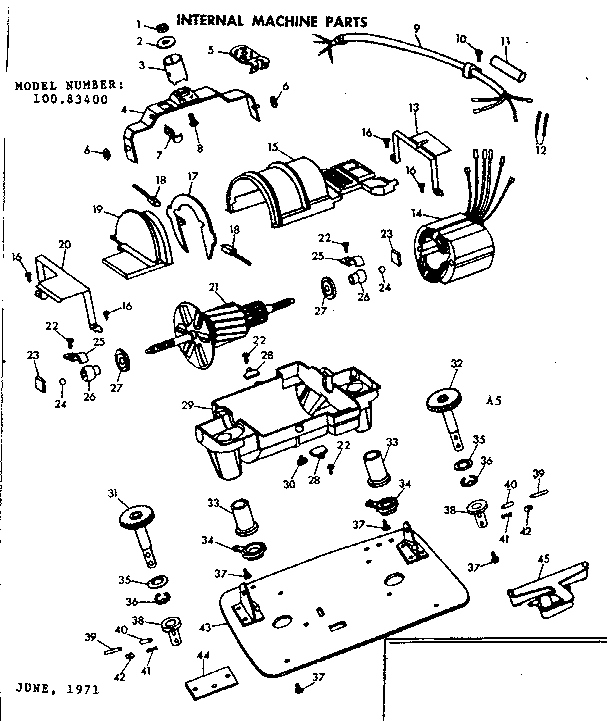

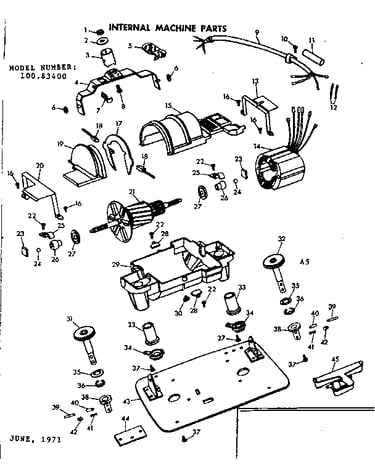

Internal machine parts diagram

Cap

Part #37125P1

The manufacturer no longer makes this part, and there's no substitute part

Spring 37149P1
#41

Internal machine parts diagram

Spring

Part #37149P1

The manufacturer no longer makes this part, and there's no substitute part

Line Cord 36131P2046
#1

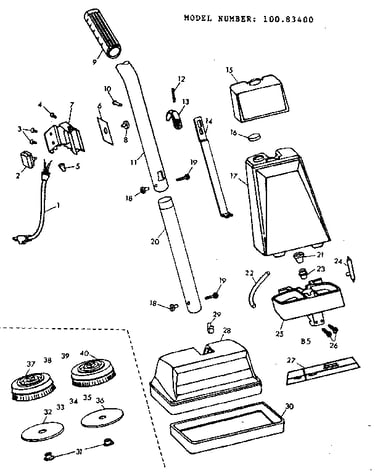

External machine parts diagram

Line cord

Part #36131P2046

The manufacturer no longer makes this part, and there's no substitute part

Control 39011P2046
#15

External machine parts diagram

Control

Part #39011P2046

The manufacturer no longer makes this part, and there's no substitute part

Spring 39038P1
#12

External machine parts diagram

Spring

Part #39038P1

The manufacturer no longer makes this part, and there's no substitute part

Shampoo Brush 905308
#40

External machine parts diagram

Shampoo brush

Part #905308

The manufacturer no longer makes this part, and there's no substitute part

Lock 37144P1
#42

Internal machine parts diagram

Lock

Part #37144P1

The manufacturer no longer makes this part, and there's no substitute part

Pad 905301
#33

External machine parts diagram

Pad

Part #905301

The manufacturer no longer makes this part, and there's no substitute part

Scrub Pad 905300
#36

External machine parts diagram

Scrub pad

Part #905300

The manufacturer no longer makes this part, and there's no substitute part

Gear 937920G2
#31

Internal machine parts diagram

Gear

Part #937920G2

The manufacturer no longer makes this part, and there's no substitute part
