Front-Engine Lawn Tractor

Model # 917272281 Official Craftsman lawn tractor

Here are the diagrams and repair parts for Official Craftsman 917272281 lawn tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

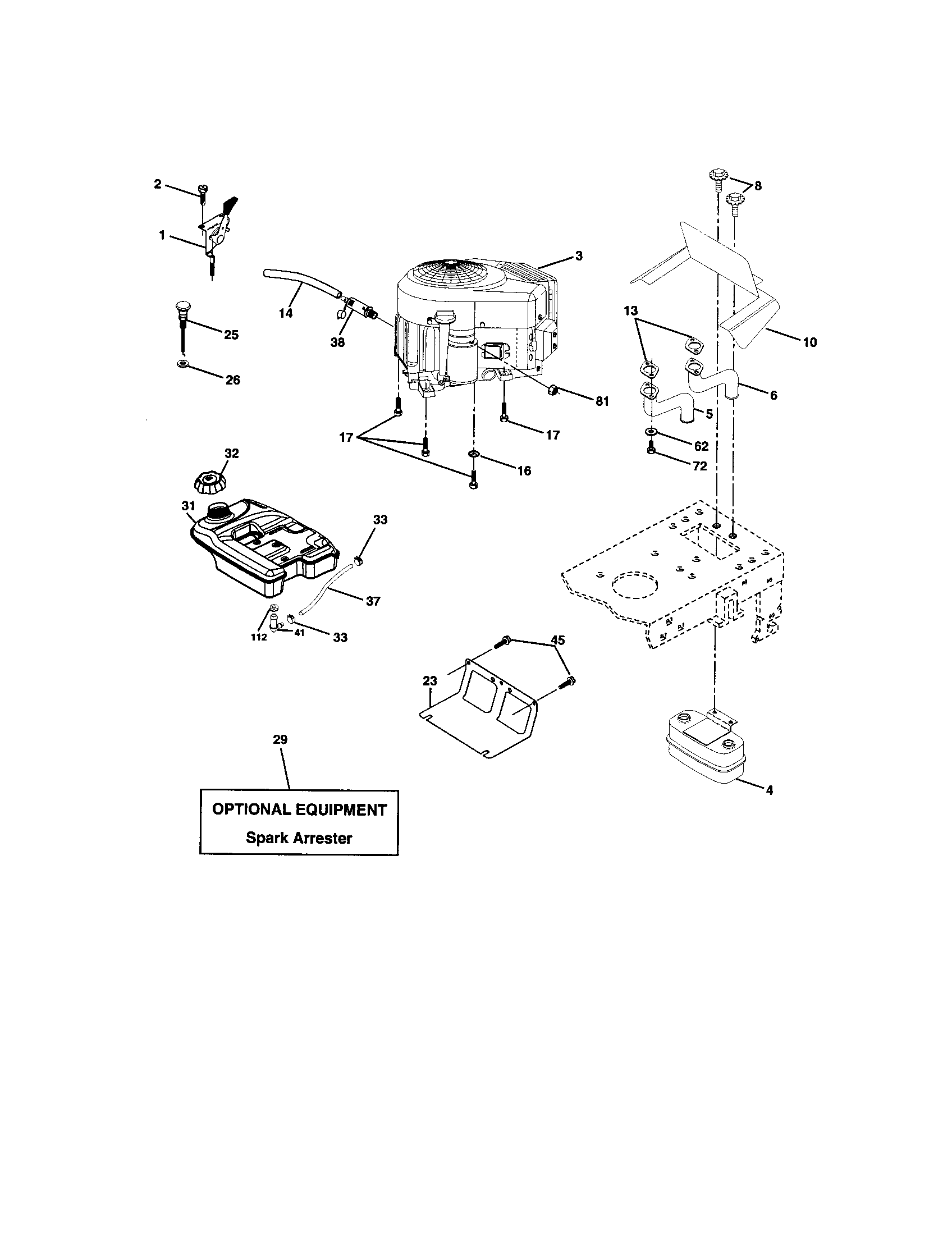

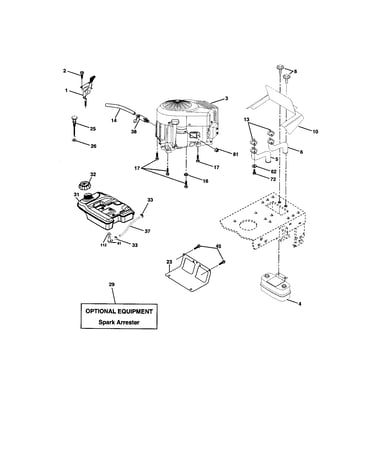

  View engine

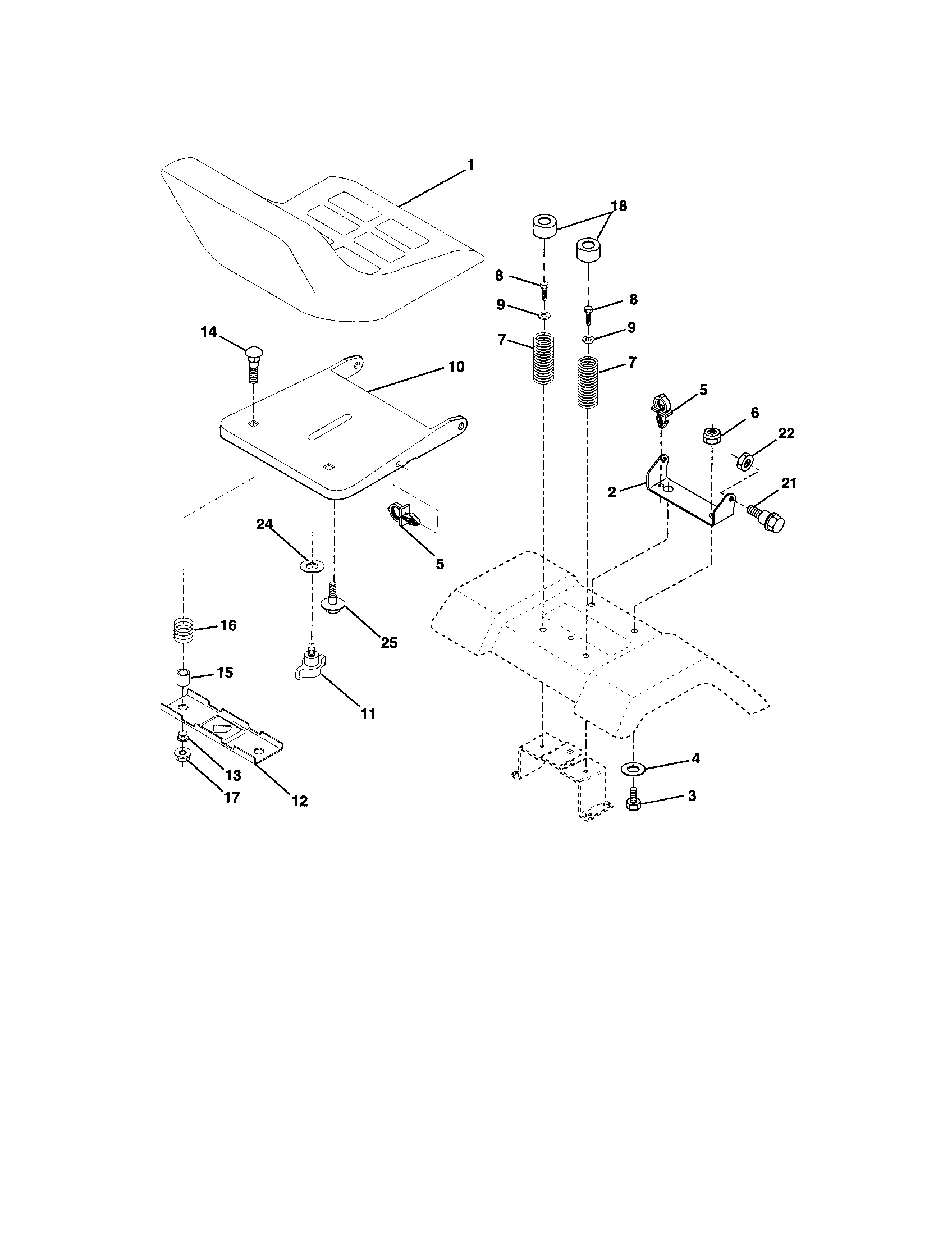

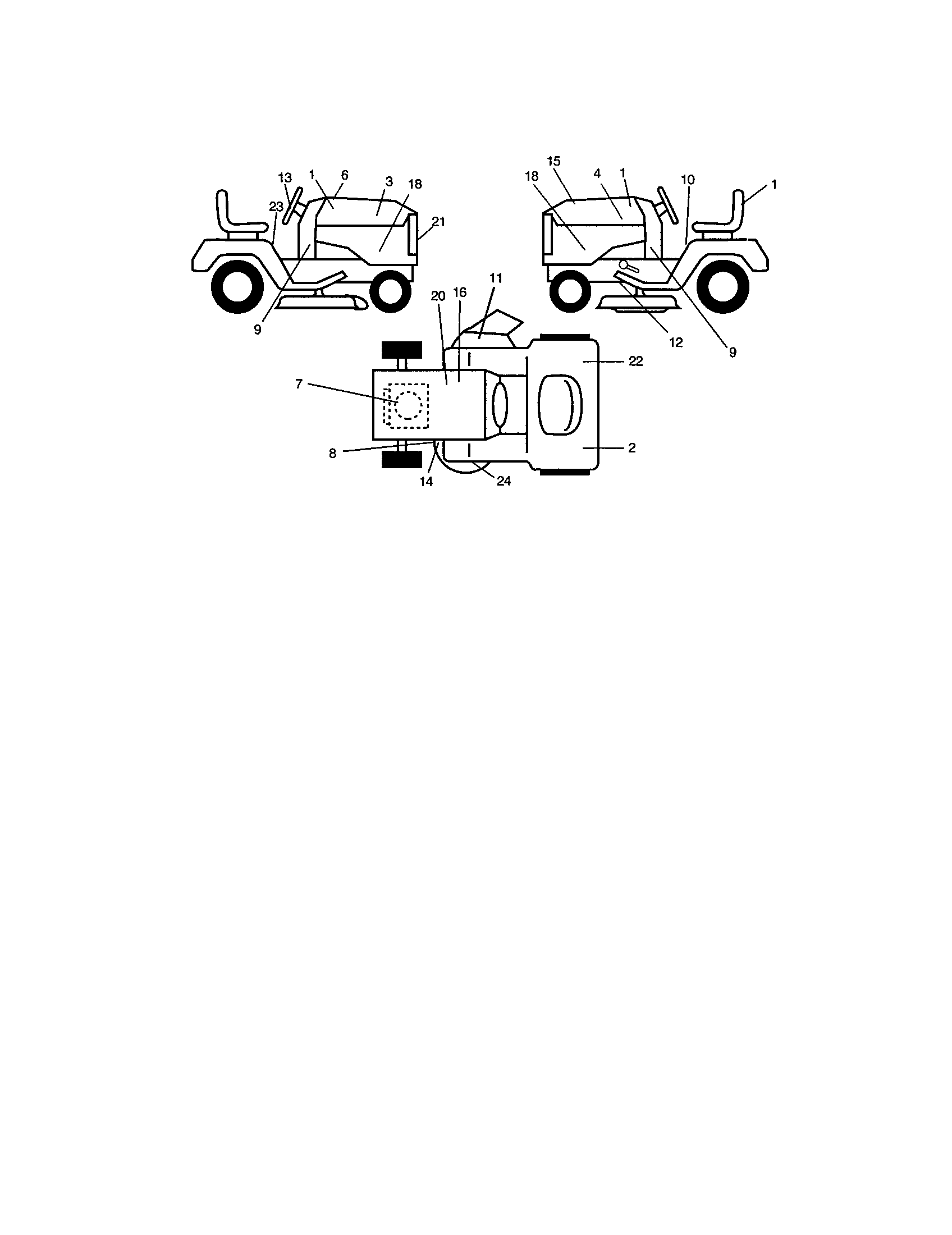

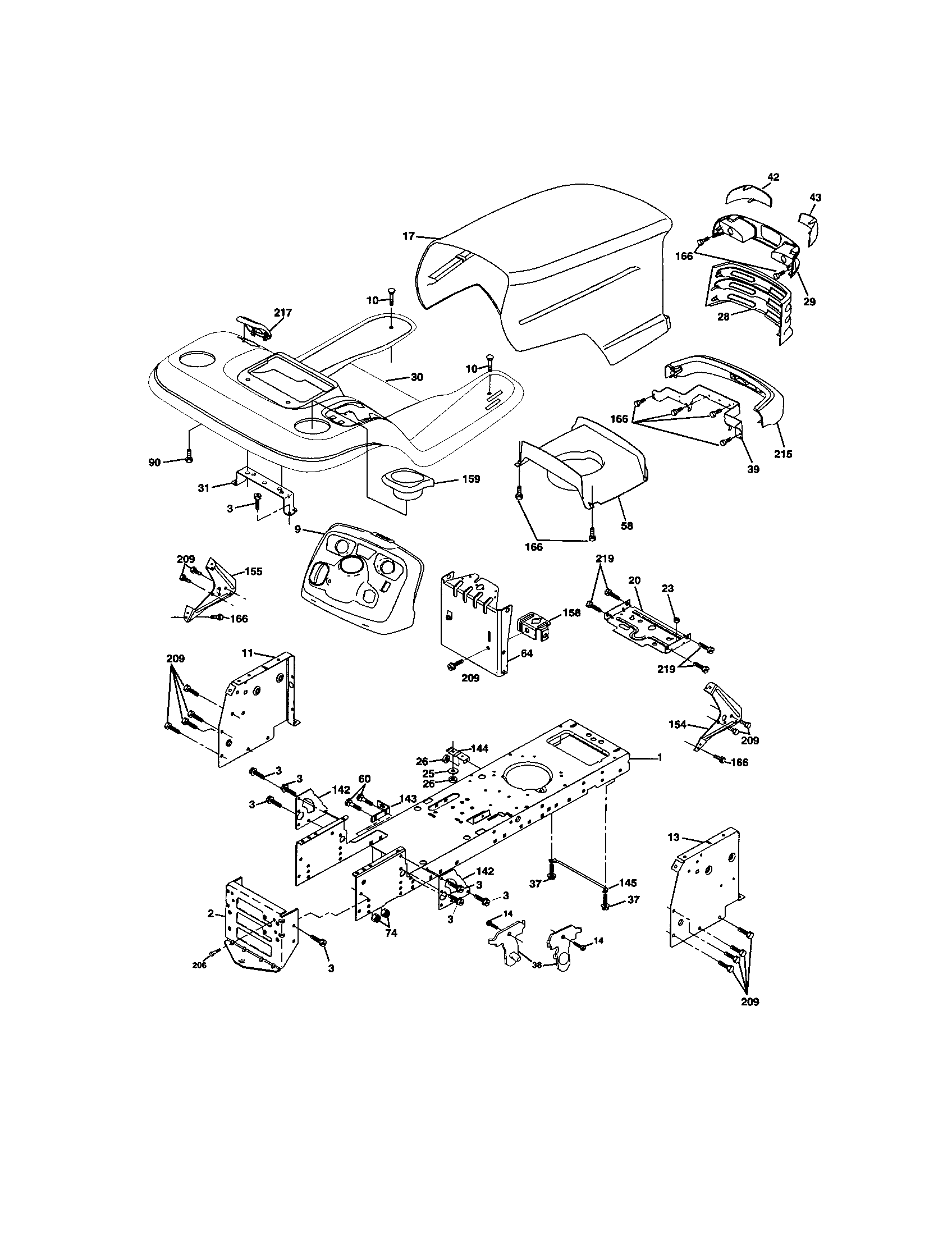

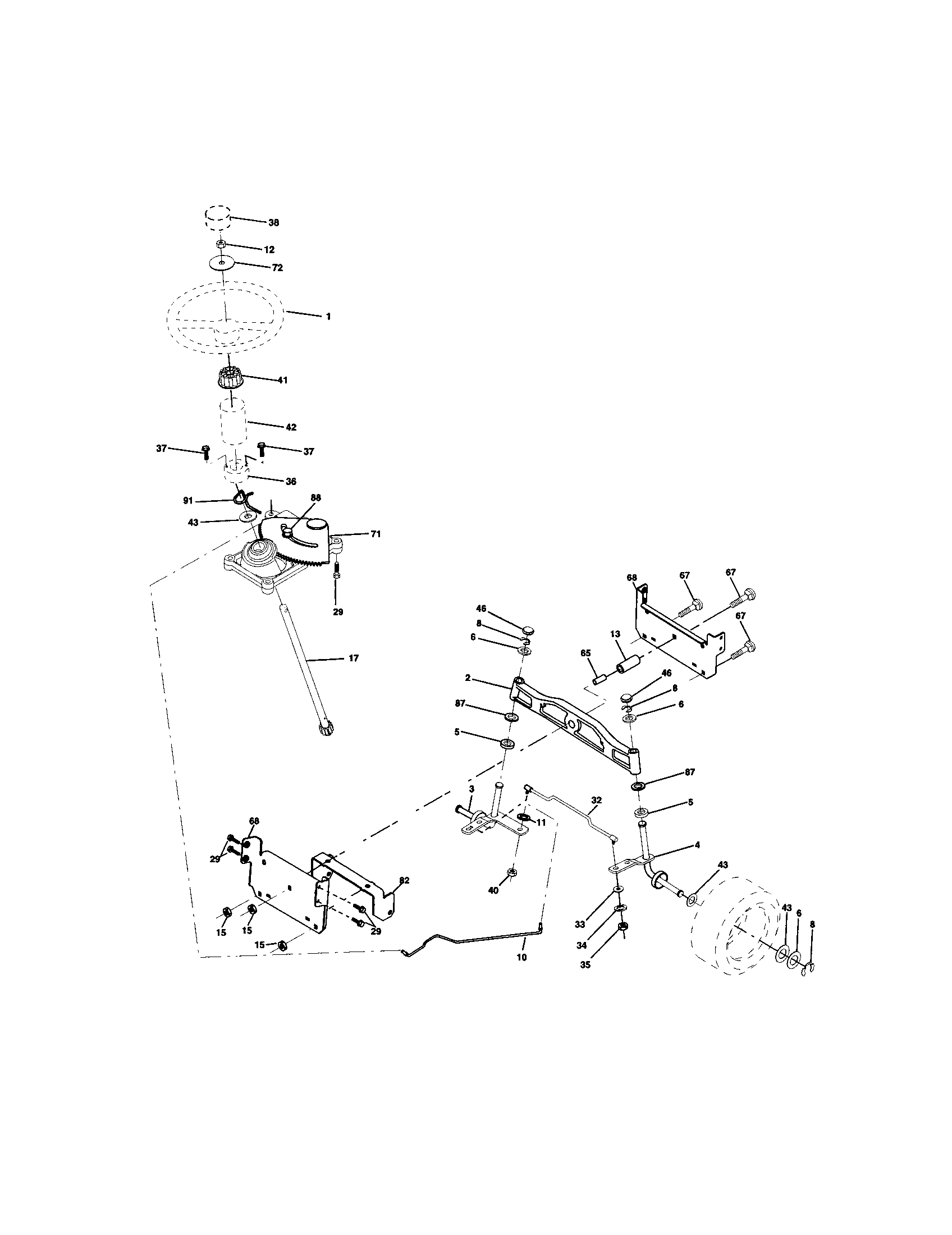

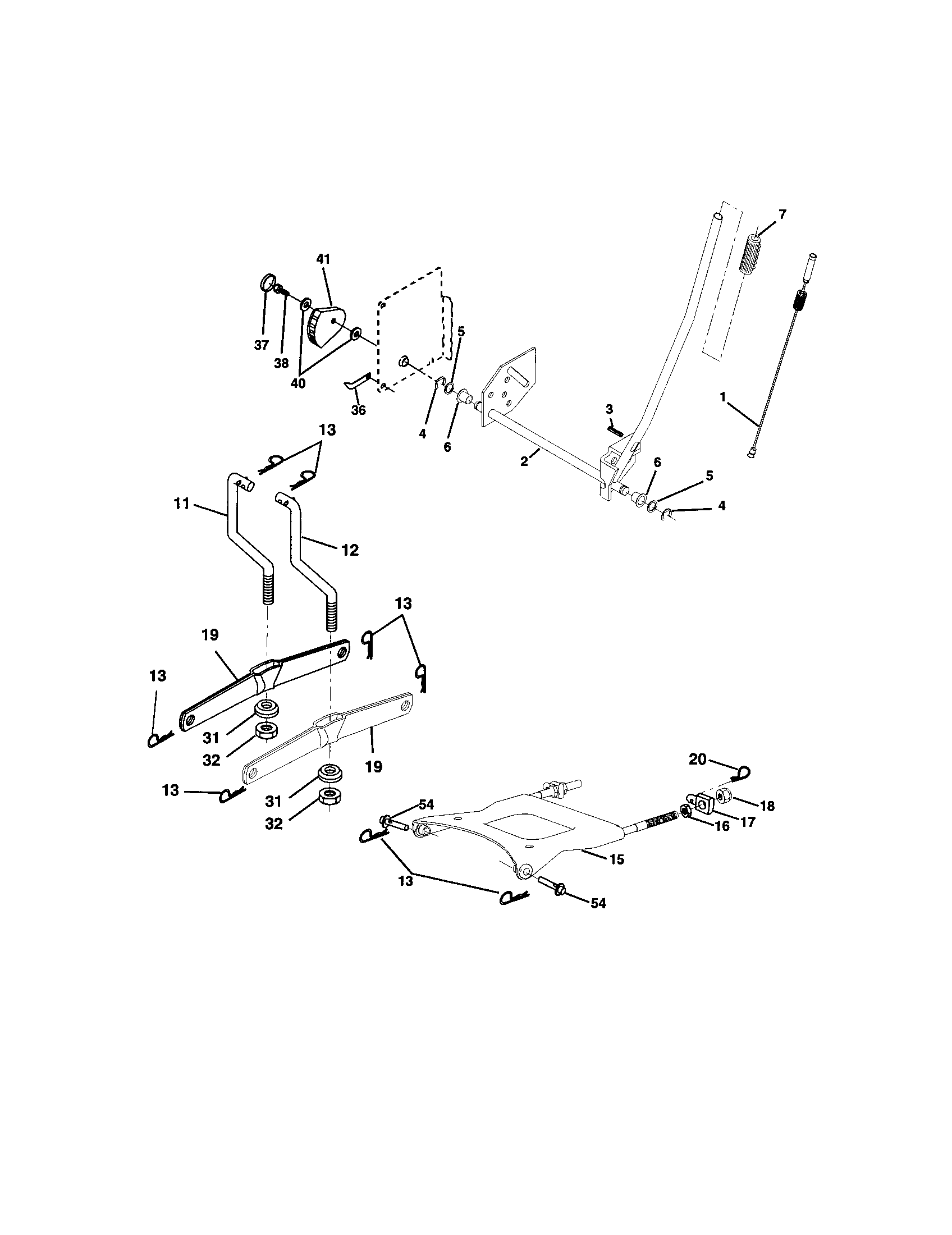

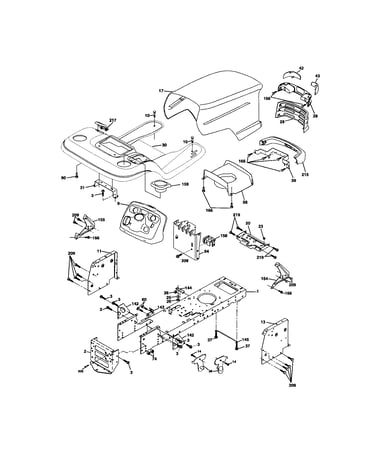

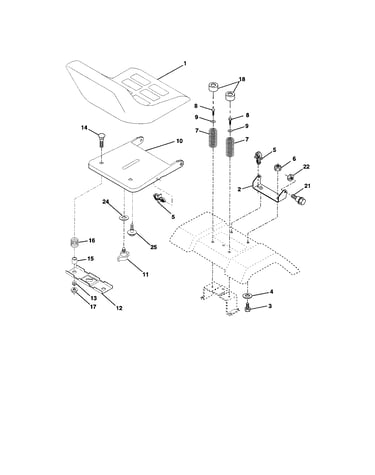

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 671 parts  |
Axle Cap 104757X417
#11

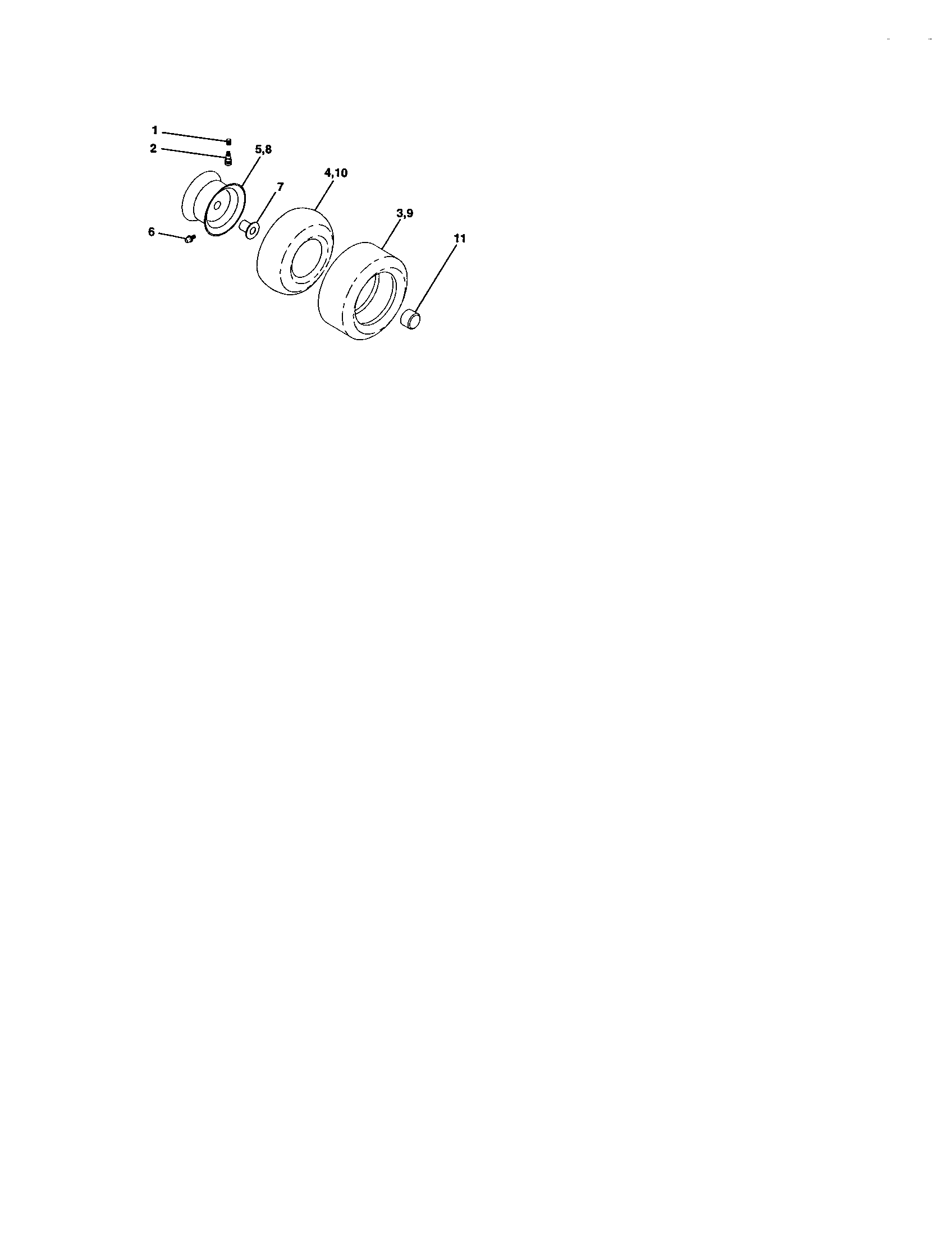

Wheels and tires diagram

Axle cap

Part #104757X417

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X417. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Bolt 173984
#30

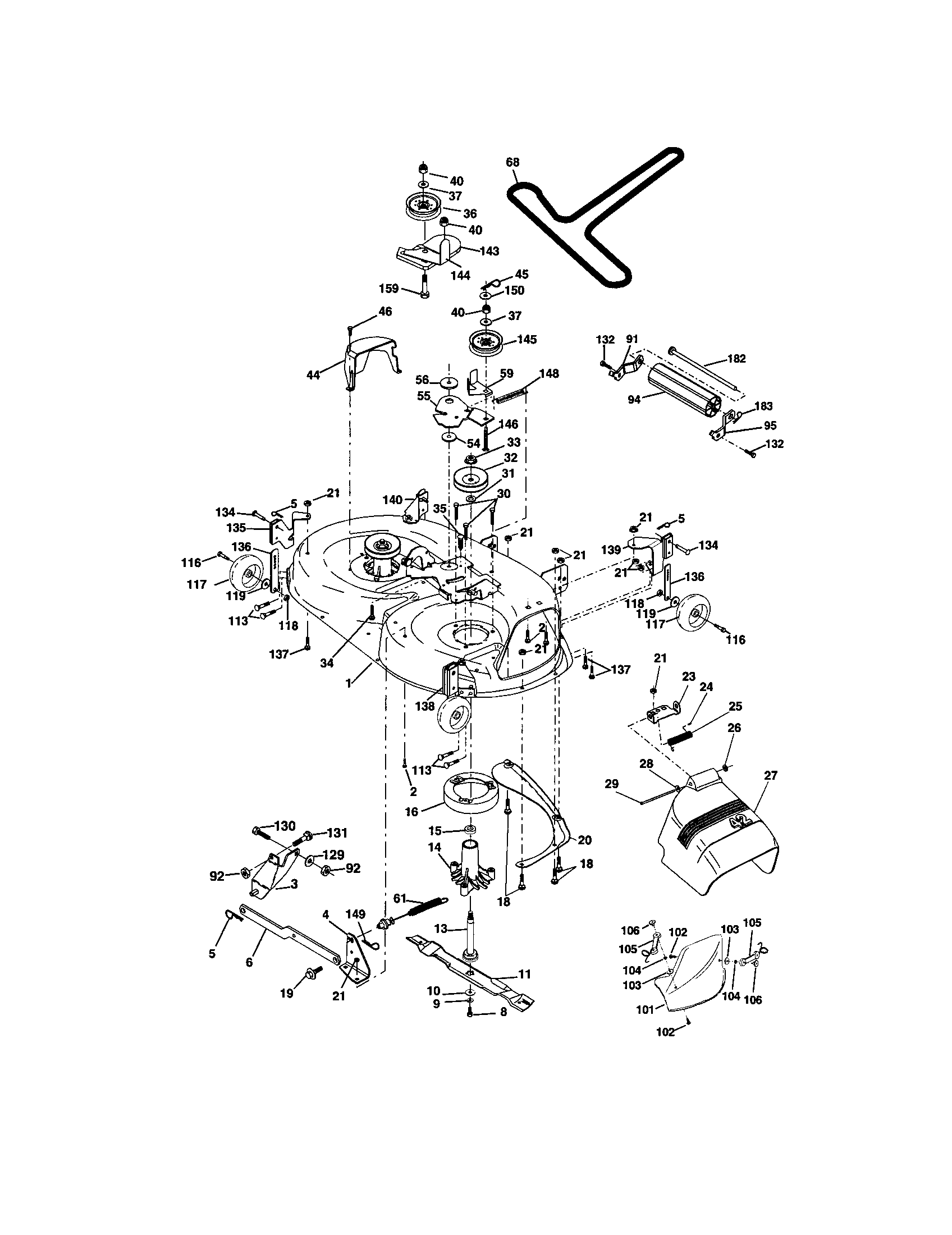

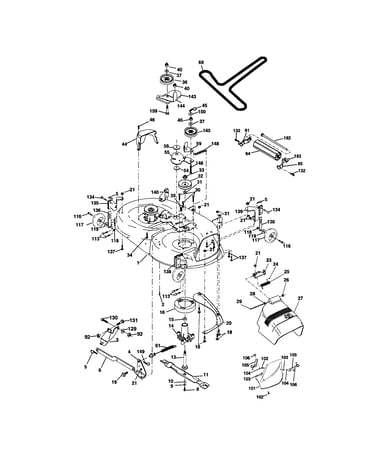

Mower deck diagram

Lawn tractor bolt

Part #173984

Replaced by #584953901

?
Manufacturer substitution
This part replaces 173984. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Ground Drive Belt, 1/2 X 82-in 140294
#57

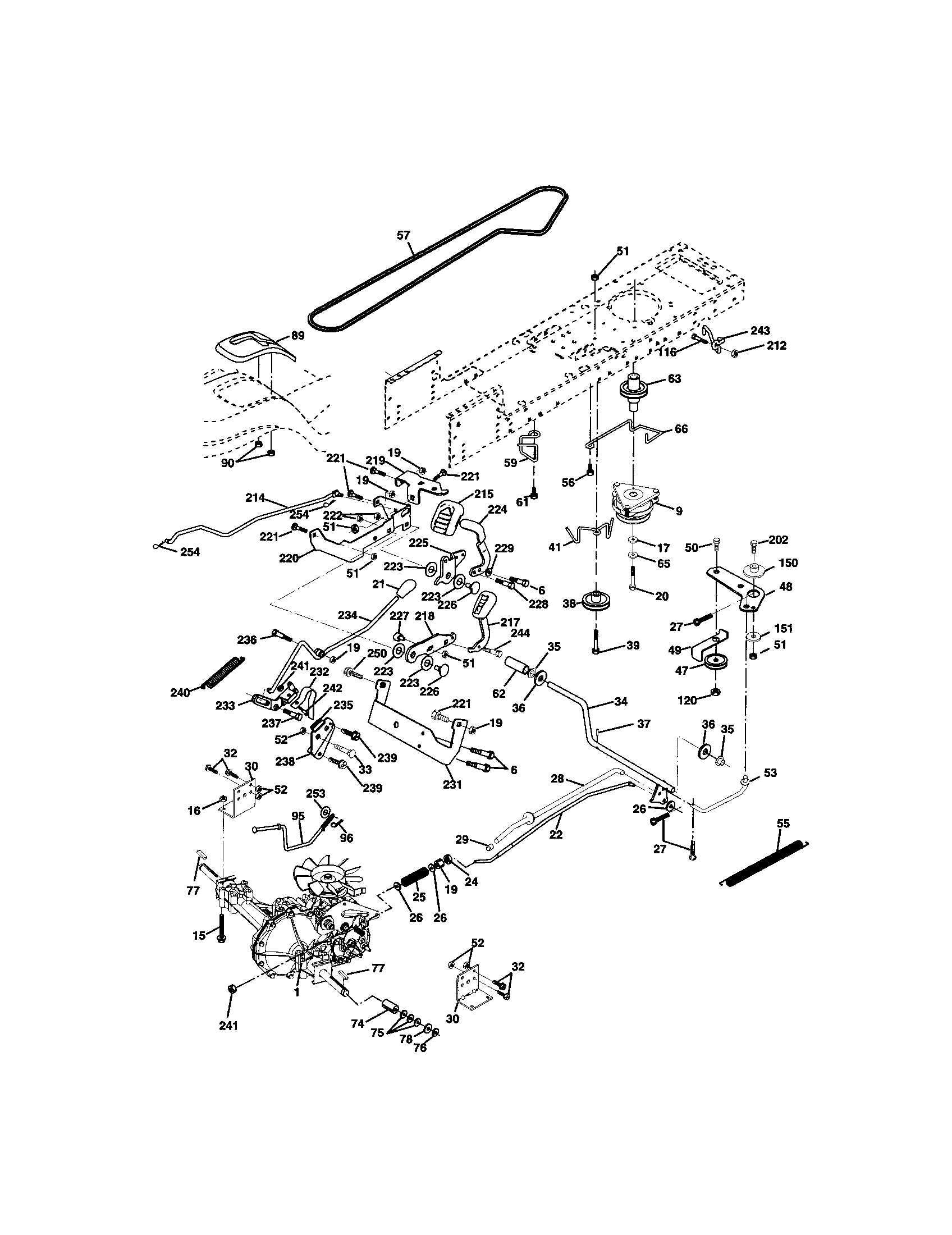

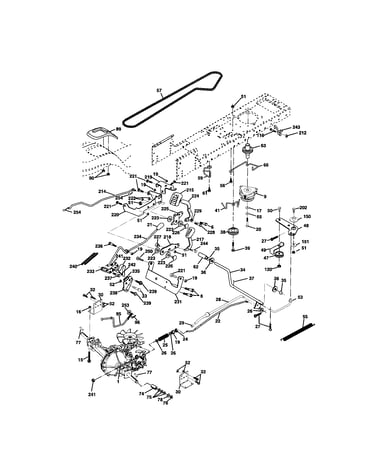

Ground drive diagram

Lawn tractor ground drive belt, 1/2 x 82-in

Part #140294

Replaced by #532140294

?
Manufacturer substitution
This part replaces 140294. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$32.99 |
15% OFF Phone Price : $38.99
In Stock
Solenoid With Brass Plunger 178861
#43

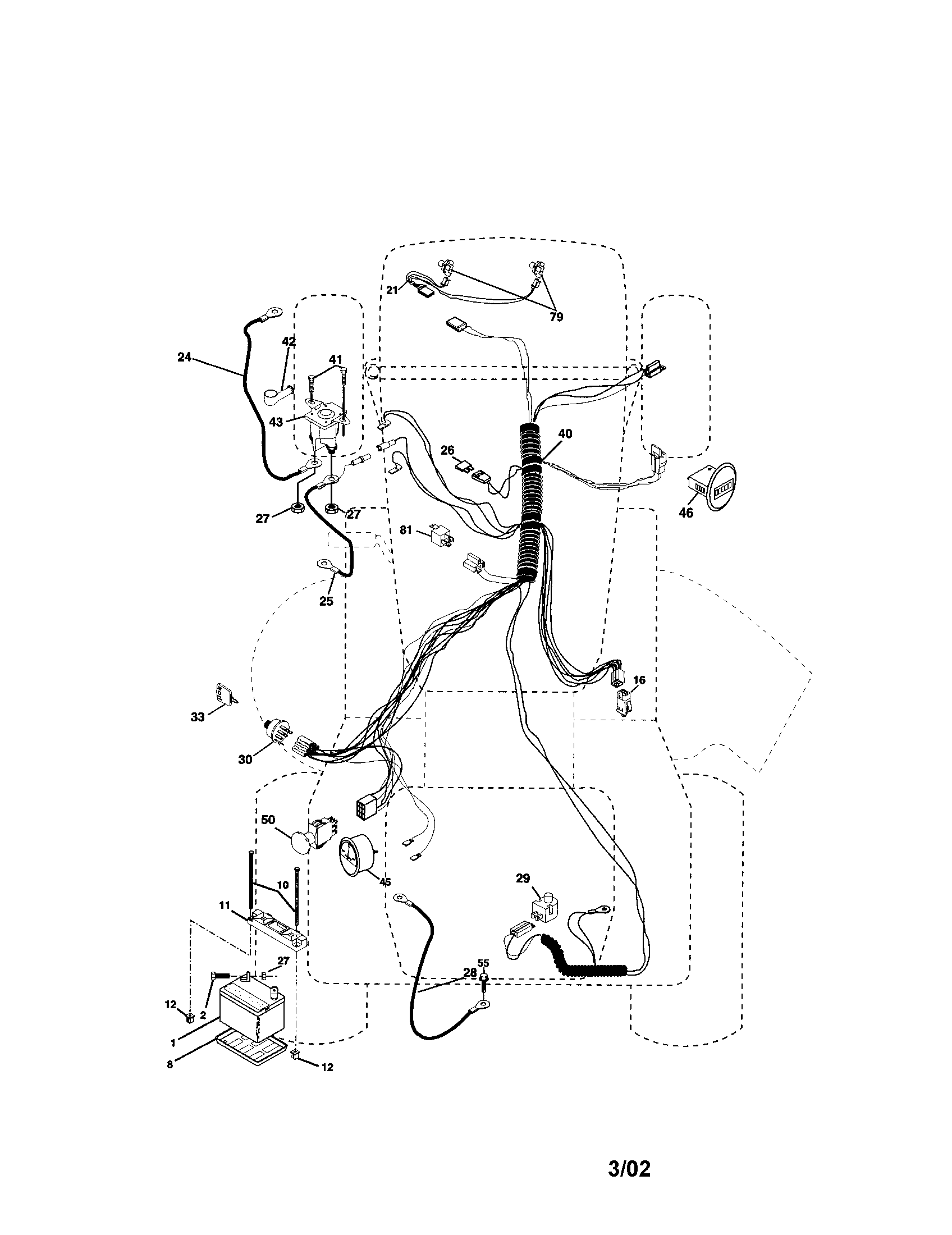

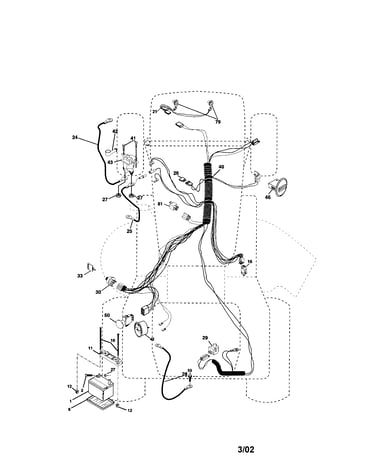

Electrical diagram

Solenoid with brass plunger

Part #178861

Replaced by #532146154

?
Manufacturer substitution
This part replaces 178861. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Lawn Tractor Deflector Shield Hinge Rod 131491
#29

Mower deck diagram

Lawn tractor deflector shield hinge rod

Part #131491

Replaced by #595297001

?
Manufacturer substitution
This part replaces 131491. Substitute parts can look different from the original.
BEST SELLER
$7.05 |
12% OFF Phone Price : $8.05
In Stock
Lawn Tractor Deflector Shield 130968X428
#27

Mower deck diagram

Lawn tractor deflector shield

Part #130968X428

Replaced by #532130968

?
Manufacturer substitution
This part replaces 130968X428. Substitute parts can look different from the original.
BEST SELLER
$34.98 |
15% OFF Phone Price : $40.98
In Stock
Washer 19121414
#119

Mower deck diagram

Washer

Part #19121414

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19121414. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Vented Mandrel Shaft Assembly 137645
#13

Mower deck diagram

Vented mandrel shaft assembly

Part #137645

Replaced by #532137646

?
Manufacturer substitution
This part replaces 137645. Substitute parts can look different from the original.
BEST SELLER
$27.68 |
18% OFF Phone Price : $33.68
In Stock
Lawn Tractor Wheel Rim, Front 106732X417
#5

Wheels and tires diagram

Lawn tractor wheel rim, front

Part #106732X417

Replaced by #532106732

?
Manufacturer substitution
This part replaces 106732X417. Substitute parts can look different from the original.
BEST SELLER
$76.59 |
7% OFF Phone Price : $82.59
In Stock
Zinc Retainer Spring 163552
Zinc retainer spring

Part #163552

Replaced by #532003146

?
Manufacturer substitution
This part replaces 163552. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
