Harvest Maid
Small Appliance

Model # FD-5000 Official Harvest Maid food dehydrator

Here are the diagrams and repair parts for Official Harvest Maid FD-5000 food dehydrator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Tray 2911-123
#13

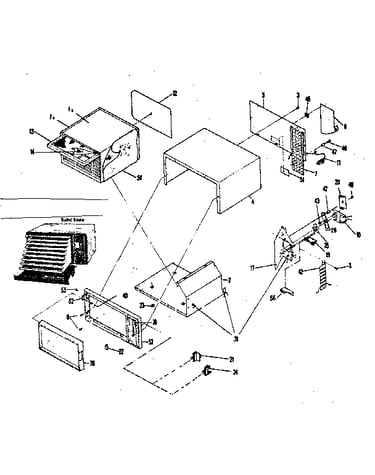

Replacement parts diagram

Tray

Part #2911-123

The manufacturer no longer makes this part, and there's no substitute part

Screw 2911-181
#46

Replacement parts diagram

Screw

Part #2911-181

The manufacturer no longer makes this part, and there's no substitute part

Top/btm Pnl 2911-102A
#1A

Replacement parts diagram

Top/btm pnl

Part #2911-102A

The manufacturer no longer makes this part, and there's no substitute part

Wre Assb-red 2911-264

#NI

All parts diagram

Wre assb-red

Part #2911-264

The manufacturer no longer makes this part, and there's no substitute part

Filter Ext 2911-108
#6

Replacement parts diagram

Filter ext

Part #2911-108

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 2911-455
#51

Replacement parts diagram

Nameplate

Part #2911-455

The manufacturer no longer makes this part, and there's no substitute part

Lead Asmbly 2911-410

#NI

All parts diagram

Lead asmbly

Part #2911-410

The manufacturer no longer makes this part, and there's no substitute part

Air Baffle 2911-110
#7

Replacement parts diagram

Air baffle

Part #2911-110

The manufacturer no longer makes this part, and there's no substitute part

Wre Assb-blv 2911-261

#NI

All parts diagram

Wre assb-blv

Part #2911-261

The manufacturer no longer makes this part, and there's no substitute part

Dry Control 2911-420
#20

Replacement parts diagram

Dry control

Part #2911-420

The manufacturer no longer makes this part, and there's no substitute part
