Model # 706653436 Official Craftsman mobile tool cart

Here are the diagrams and repair parts for Official Craftsman 706653436 mobile tool cart, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |

Drawer A14547A1-EBE
#19

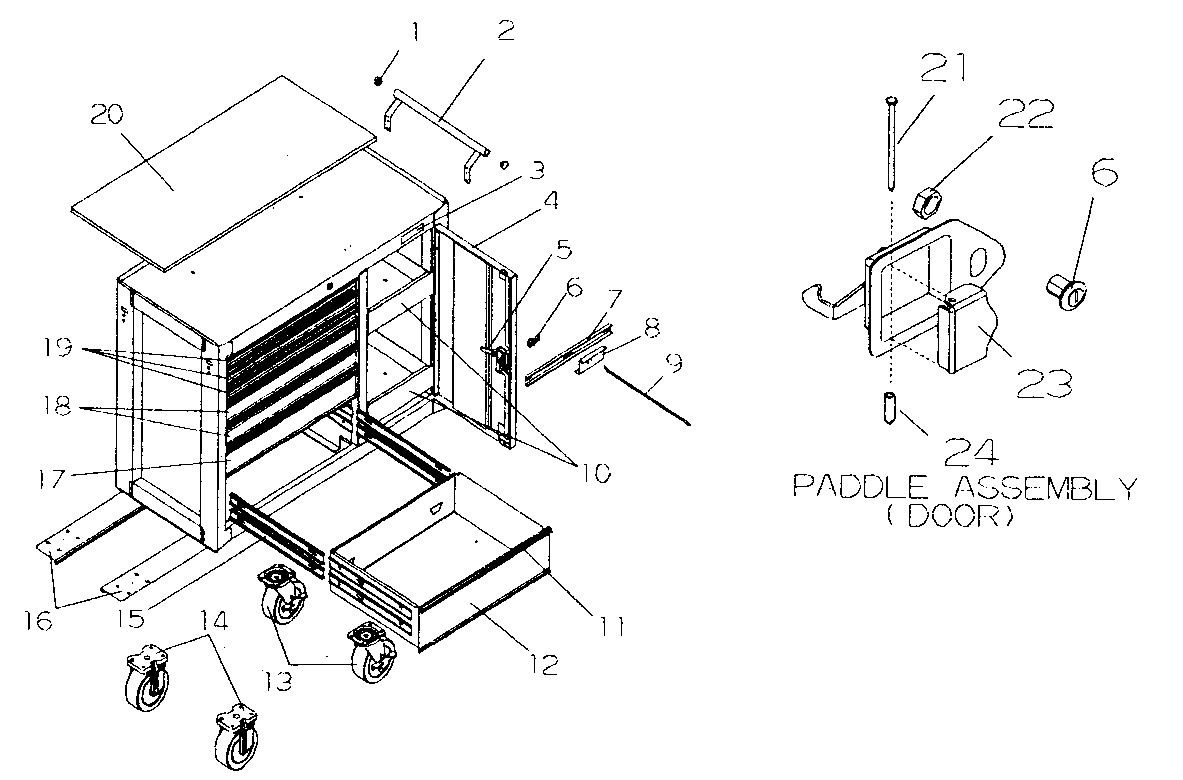

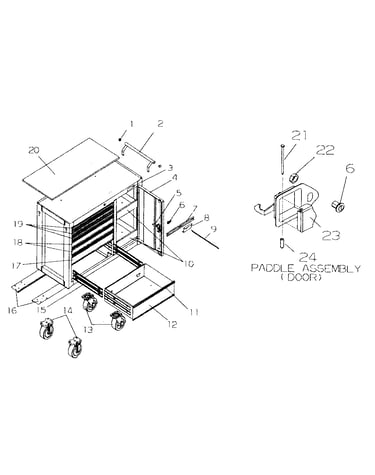

Tool cart diagram

Drawer

Part #A14547A1-EBE

The manufacturer no longer makes this part, and there's no substitute part

Striker M9994A1
#NI

Tool cart diagram

Striker

Part #M9994A1

The manufacturer no longer makes this part, and there's no substitute part

Nut M12544
#22

Tool cart diagram

Nut

Part #M12544

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Clip M9371
#NI

Tool cart diagram

Tool chest clip

Part #M9371

The manufacturer no longer makes this part, and there's no substitute part

Pin M11139
#21

Tool cart diagram

Pin

Part #M11139

The manufacturer no longer makes this part, and there's no substitute part

Lock Cam M10010A35
#5

Tool cart diagram

Lock cam

Part #M10010A35

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer A14606A1-EBE
#12

Tool cart diagram

Tool chest drawer

Part #A14606A1-EBE

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock Rod (replaces 15150a1, T13493a1, T16985a1) M15150A1
#9

Tool cart diagram

Tool chest lock rod (replaces 15150a1, t13493a1, t16985a1)

Part #M15150A1

The manufacturer no longer makes this part, and there's no substitute part

Cap M11192
#24

Tool cart diagram

Cap

Part #M11192

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Top Panel M8809A15
#20

Tool cart diagram

Tool chest top panel

Part #M8809A15

The manufacturer no longer makes this part, and there's no substitute part
