Model # IMTL93040 Official Image 930 treadmill

Here are the diagrams and repair parts for Official Image IMTL93040 930 treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Black & Decker Treadmill Power Cord (replaces 031033, 031143, 031147, 247991) 031229
#19

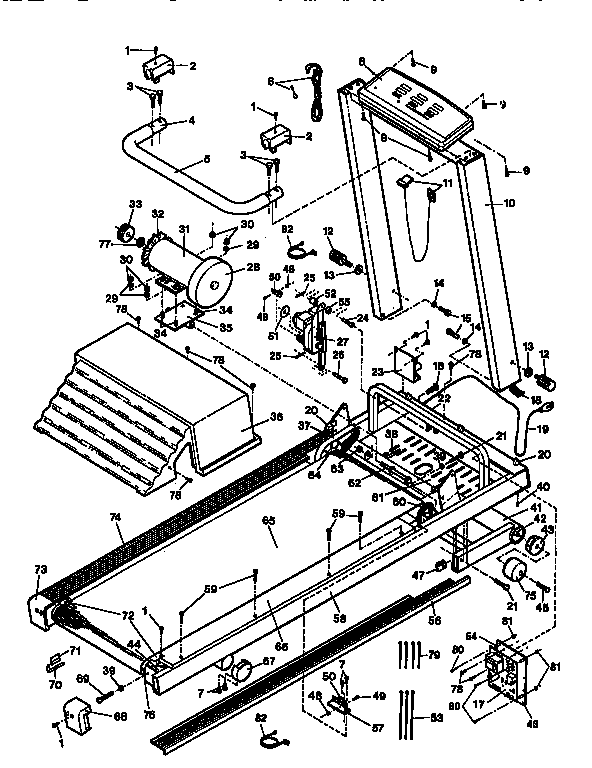

Unit parts diagram

Black & decker treadmill power cord (replaces 031033, 031143, 031147, 247991)

Part #031229

$11.39 |
15% OFF Phone Price : $13.39
In Stock
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382
#16

Unit parts diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Weider Exercise Equipment Optic Sensor 102955
#50

Unit parts diagram

Weider exercise equipment optic sensor

Part #102955

This item is not returnable
$9.29 |
10% OFF Phone Price : $10.29
In Stock
Weider Screw, #8 X 3/4-in 104626
#1

Unit parts diagram

Weider screw, #8 x 3/4-in

Part #104626

This item is not returnable
$2.16
In Stock
Healthrider Nut,h Nyl Lo 012081
#63

Unit parts diagram

Healthrider nut,h nyl lo

Part #012081

This item is not returnable
$2.16
In Stock
Image Wire,14awg,2 103824

#NI

All parts diagram

Image wire,14awg,2

Part #103824

This item is not returnable
$3.99
In Stock
Exercise Equipment Nut 012179
#47

Unit parts diagram

Exercise equipment nut

Part #012179

This item is not returnable
$2.16
In Stock
Nordictrack Carriage Bolt 013445
#21

Unit parts diagram

Nordictrack carriage bolt

Part #013445

This item is not returnable
$2.16
In Stock
Weider Pin,clevis,3 015046
#24

Unit parts diagram

Weider pin,clevis,3

Part #015046

This item is not returnable
$2.16
In Stock
Black & Decker Clamp,8cabl 016057
#53

Unit parts diagram

Black & decker clamp,8cabl

Part #016057

This item is not returnable
$2.16
In Stock
