GE
Top-Mount Refrigerator

Model # TB13SJCLAD Official GE refrigerator

Here are the diagrams and repair parts for Official GE TB13SJCLAD refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

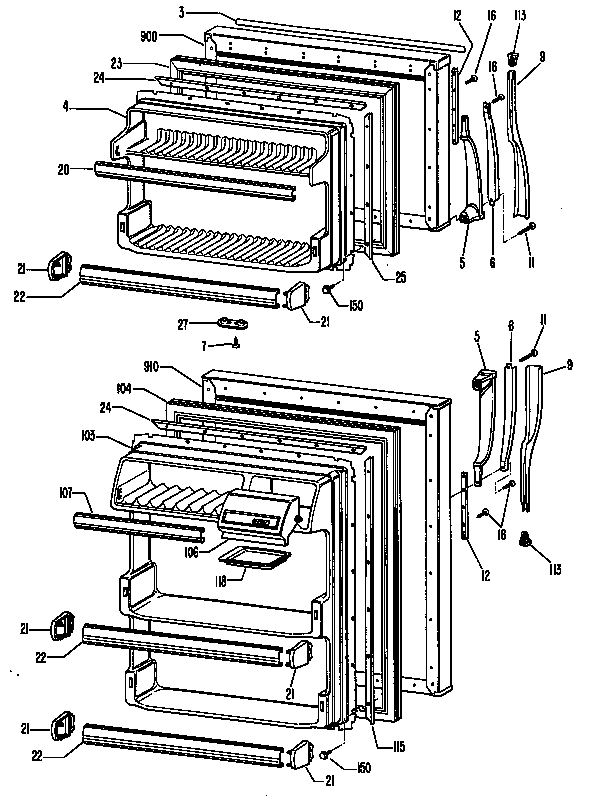

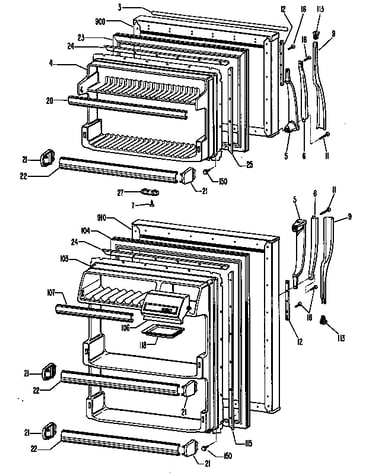

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Terminal Socket WR2X7270
#435

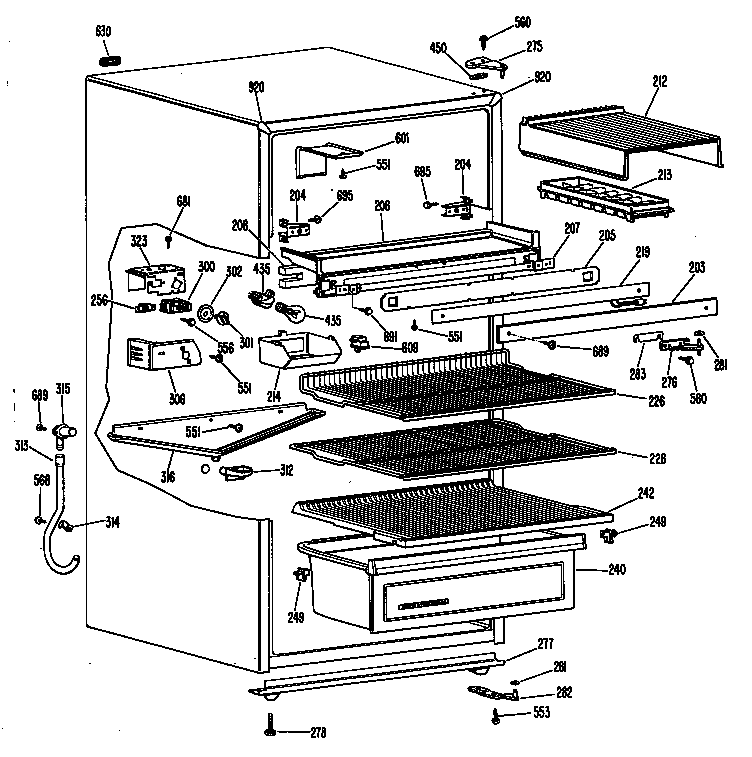

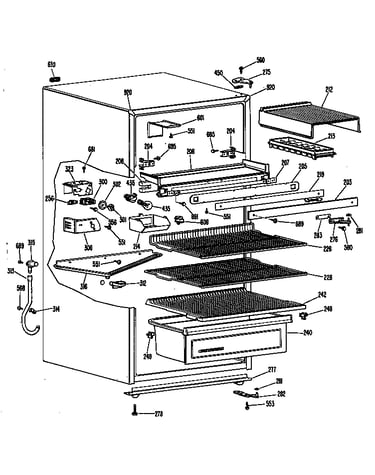

Cabinet diagram

Terminal socket

Part #WR2X7270

Replaced by #WR2X9391

?
Manufacturer substitution
This part replaces WR2X7270. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Light Switch WR23X193
#609

Cabinet diagram

Light switch

Part #WR23X193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X193. Substitute parts can look different from the original.
$8.11
In Stock
Power Cord WR23X108
#626B

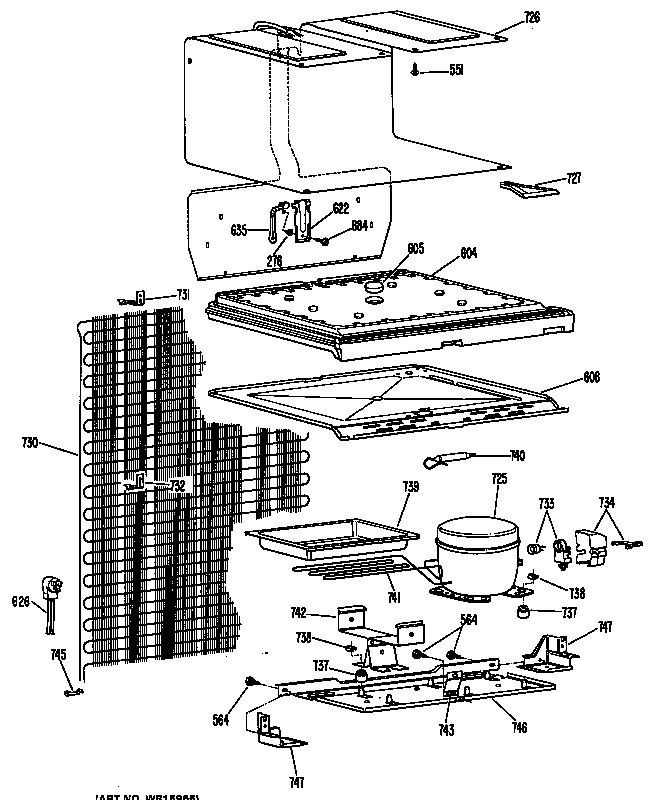

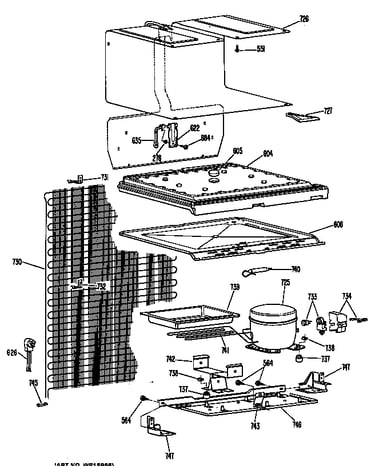

Unit diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Glide WR2X4978
#278

Cabinet diagram

Glide

Part #WR2X4978

$38.44
In Stock
Refrigerator Shelf Wire WR71X1700
#226

Cabinet diagram

Refrigerator shelf wire

Part #WR71X1700

$32.99
In Stock
Liner Top Ff WR17X2211
#608

Unit diagram

Liner top ff

Part #WR17X2211

$32.49
In Stock
Refrigerator Cabinet Sealer Plug WR2X4097
#630

Cabinet diagram

Refrigerator cabinet sealer plug

Part #WR2X4097

$17.96 |
10% OFF Phone Price : $19.96
In Stock
Refrigerator Ice Tray WR30X196
#213

Cabinet diagram

Refrigerator ice tray

Part #WR30X196

Replaced by #WR30X311

?
Manufacturer substitution
This part replaces WR30X196. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Screw WR1X1697
#681

Cabinet diagram

Refrigerator screw

Part #WR1X1697

Replaced by #WE02X10011

?
Manufacturer substitution
This part replaces WR1X1697. Substitute parts can look different from the original.
$23.71
In Stock
Refrigerator Relay WR7X186
#733

Unit diagram

Refrigerator relay

Part #WR7X186

The manufacturer no longer makes this part, and there's no substitute part
