Model # 153337213 Official Kenmore power miser 8 gas water heater

Here are the diagrams and repair parts for Official Kenmore 153337213 power miser 8 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 21 parts |

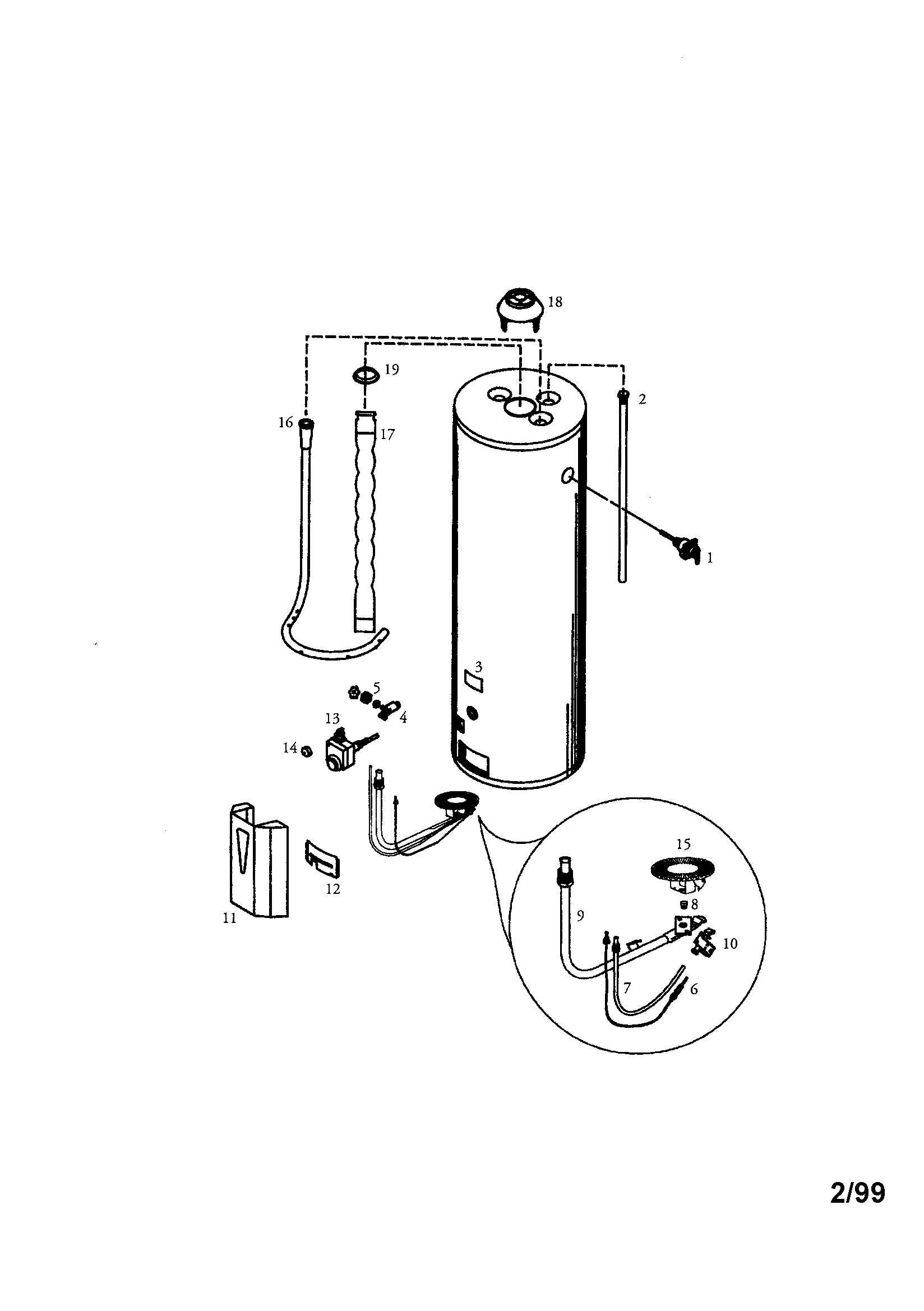

Power miser 40 gal. short high alt. diagram

Thermocouple

Part #33900

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Gas Valve Assembly F145-1278

#13

Power miser 40 gal. short high alt. diagram

Water heater gas valve assembly

Part #F145-1278

The manufacturer no longer makes this part, and there's no substitute part

Power miser 40 gal. short high alt. diagram

Water heater drain valve

Part #9000254

This item is not returnable

$17.69 |

10% OFF Phone Price : $19.69

In Stock

Qty

#15

Power miser 40 gal. short high alt. diagram

Burner

Part #9002411

Replaced by #9003631005

$46.79 |

11% OFF Phone Price : $52.79

In Stock

Qty

Water Heater Manifold Inner Door 9000281

#12

Power miser 40 gal. short high alt. diagram

Water heater manifold inner door

Part #9000281

$17.69 |

10% OFF Phone Price : $19.69

In Stock

Qty

Water Heater Gas Control Valve Knob F145-1280

#14

Power miser 40 gal. short high alt. diagram

Water heater gas control valve knob

Part #F145-1280

The manufacturer no longer makes this part, and there's no substitute part

#17

Power miser 40 gal. short high alt. diagram

Baffle

Part #9002281

$18.49

In Stock

Qty

#NI

All parts diagram

Mag erad

Part #23600

Replaced by #23600

$35.19

In Stock

Qty

Power miser 40 gal. short high alt. diagram

Water heater burner tube

Part #9002617

Replaced by #100108878

$54.44

In Stock

Qty

Power miser 40 gal. short high alt. diagram

Water heater anode rod (replaces 183463-032, 183463-39, 183463-48, 29109-35, 43816-42, 43817-35, 9000734, 9001672, 9001830, 9001830005, 9003529, 9003650, 9003928)

Part #9001829

Replaced by #100108660

$60.00

In Stock

Qty

Most common symptoms to help you fix your water heaters

Choose a symptom to see related water heater repairs.

View all

Why isn't my water heater heating my water?

Main causes: lack of power, no gas supply, thermostat limit switch tripped, bad element, bad thermostat, gas valve failu…

Why isn't my water heater making the water hot enough?

Main causes: thermostats need adjustment, water heater capacity too low, bad heating element, thermostat failure, excess…

Why is there water in my water heater's drain pan?

Main causes: loose water pipe fittings, leaky drain valve, bad temperature-pressure relief valve, leaky heating element,…

Why does my hot water smell like rotten eggs?

Main causes: water supply needs chlorine treatment, anode rod too reactive…

Why isn't my water heater making enough hot water?

Main causes: broken heating element, thermostat failure, excessive tank sediment, tank size too small, burner valve asse…

Why is my water heater making the water too hot?

Main causes: thermostat temperature set too high, thermostats need adjustment, faulty thermostat, shorted heating elemen…

Why is my water heater's pressure relief valve dripping water?

Main causes: faulty pressure relief valve, water is overheating…
