Model # 5130009B Official Frigidaire room air conditioner - 5995292397

Here are the diagrams and repair parts for Official Frigidaire 5130009B room air conditioner - 5995292397, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

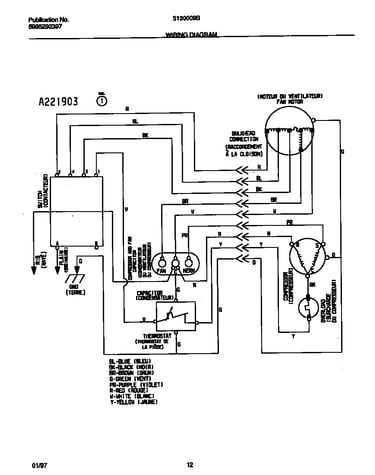

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Westinghouse Screw-wrapper 5303293767
#39

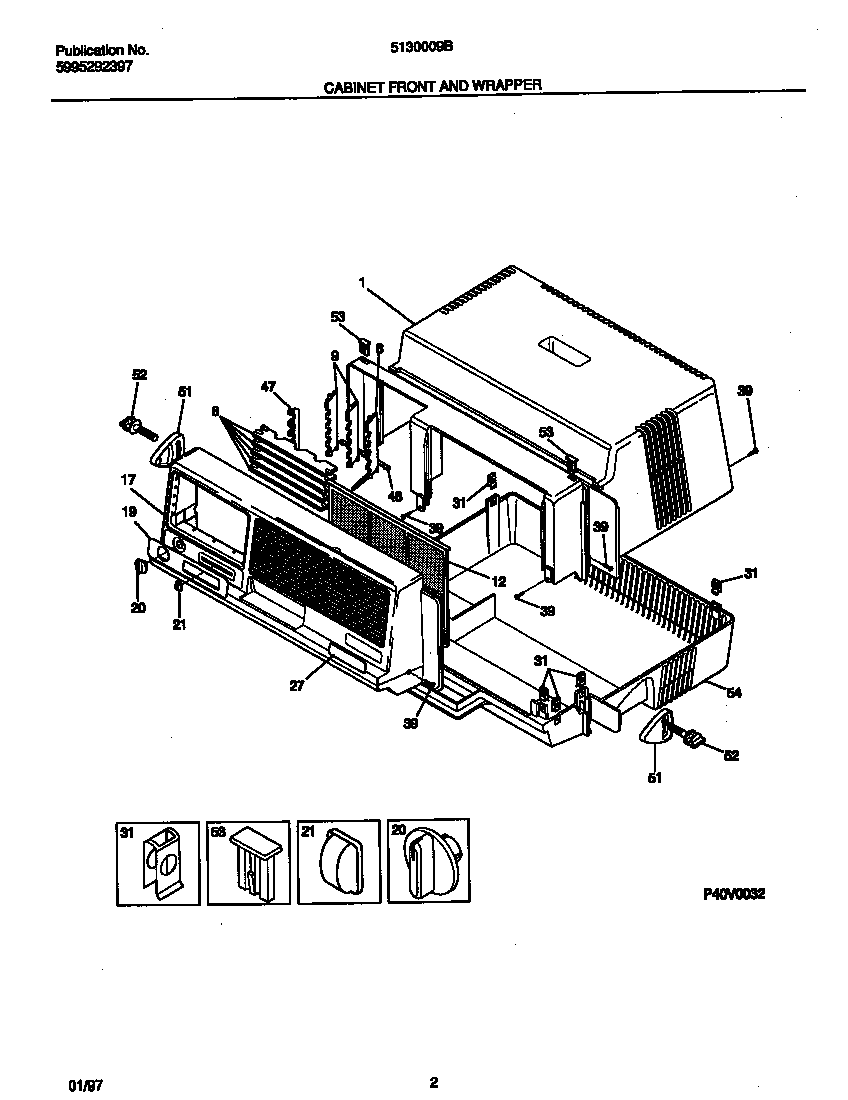

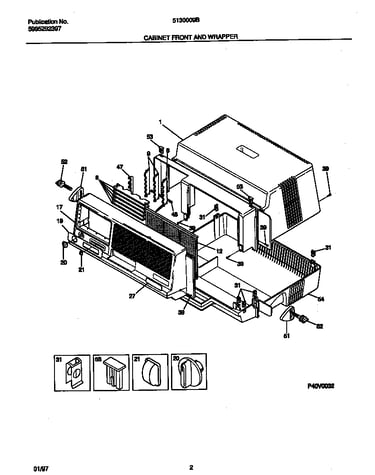

Cabinet front and wrapper diagram

Westinghouse screw-wrapper

Part #5303293767

This item is not returnable
$5.80
In Stock
Capacitor 5303295749
#13

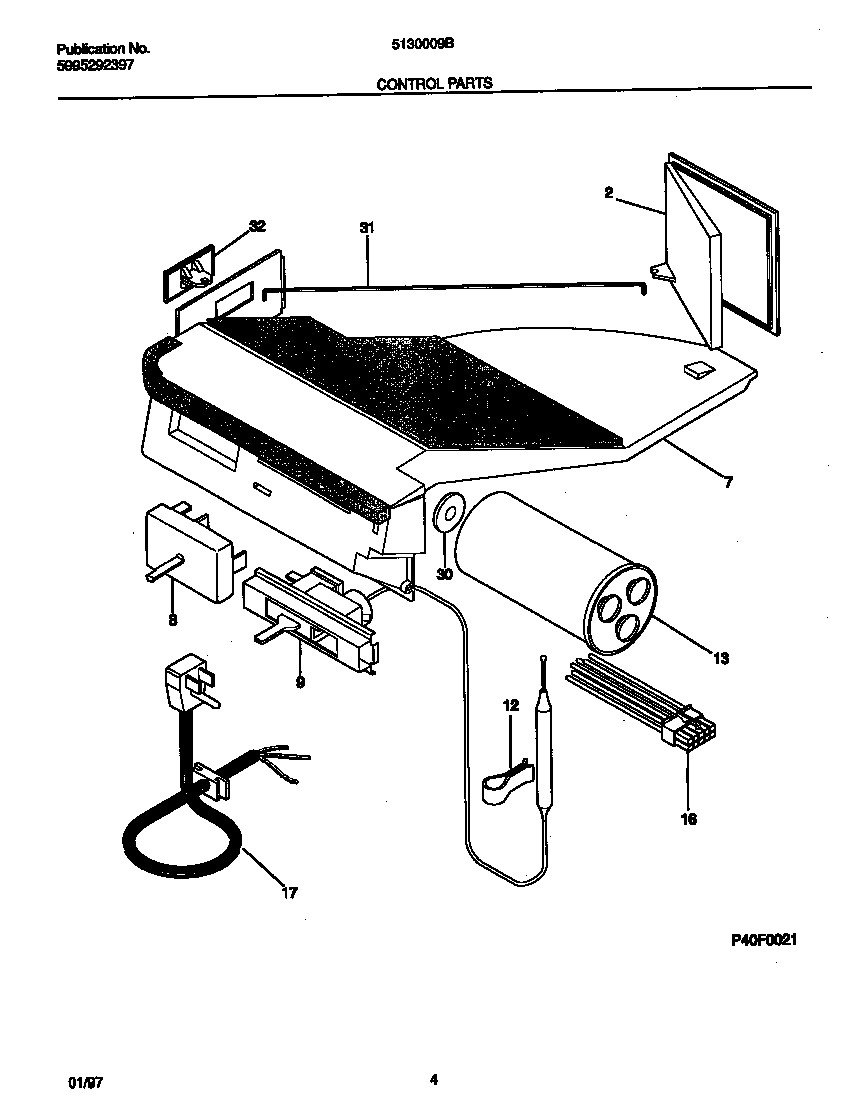

Control parts diagram

Capacitor

Part #5303295749

$122.96
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#17

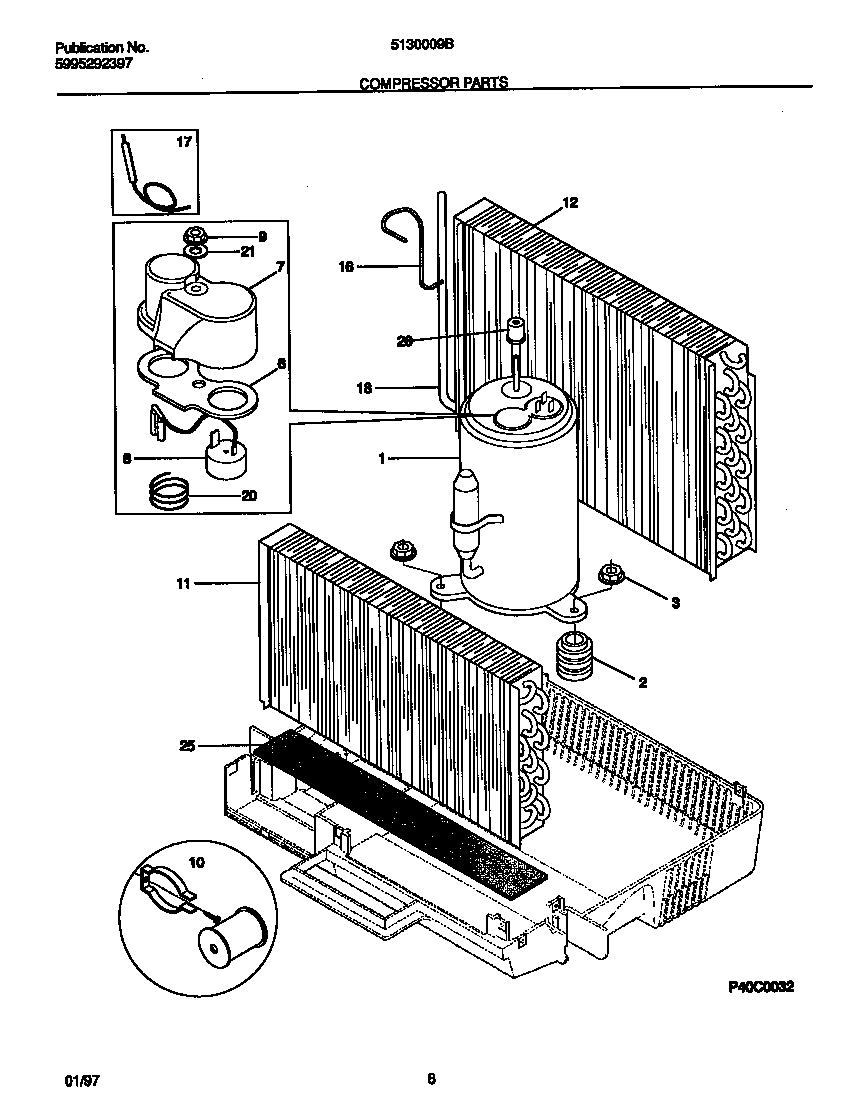

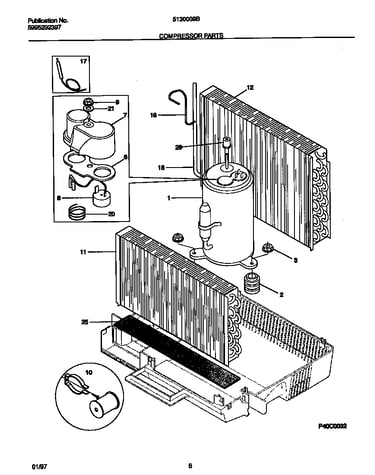

Compressor parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Screw 3202975
#2

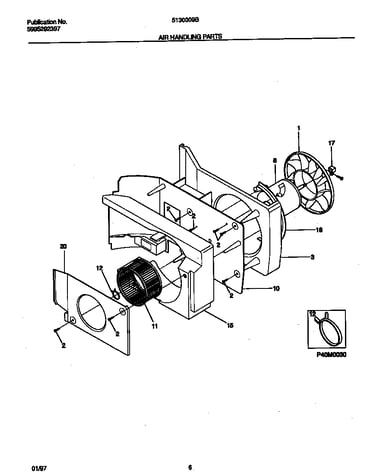

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Gasket 3002603
#1

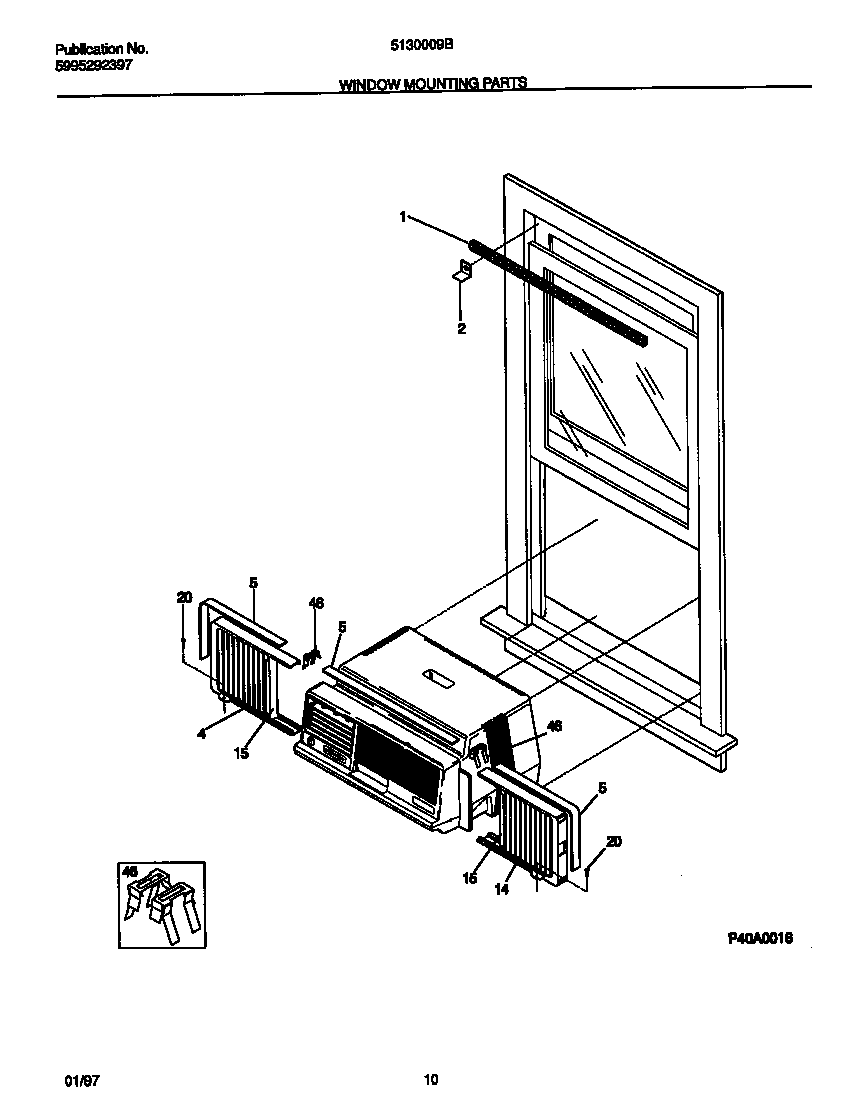

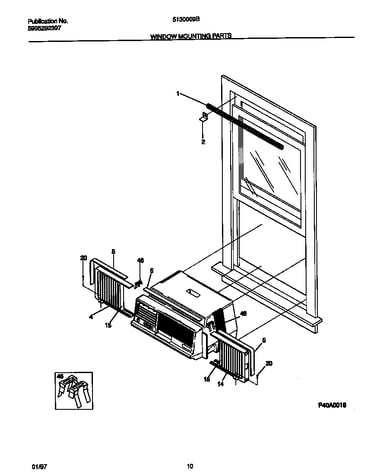

Window mounting parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Actuator 5303285452
#32

Control parts diagram

Actuator

Part #5303285452

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Compressor Grommet 5303283877
#2

Compressor parts diagram

Room air conditioner compressor grommet

Part #5303283877

The manufacturer no longer makes this part, and there's no substitute part

Wrapper 5303307802
#1

Cabinet front and wrapper diagram

Wrapper

Part #5303307802

The manufacturer no longer makes this part, and there's no substitute part

Scroll 5303285449
#15

Air handling parts diagram

Scroll

Part #5303285449

The manufacturer no longer makes this part, and there's no substitute part

Nut 5303286164
#3

Compressor parts diagram

Nut

Part #5303286164

The manufacturer no longer makes this part, and there's no substitute part
