Model # LAT9806AGE Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag LAT9806AGE washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

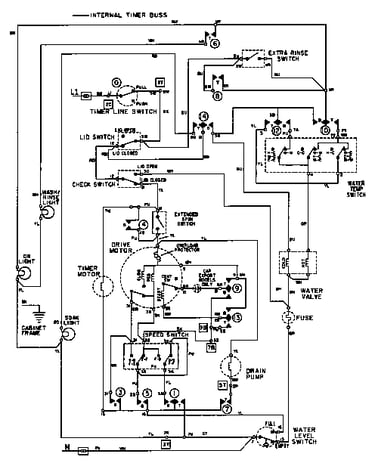

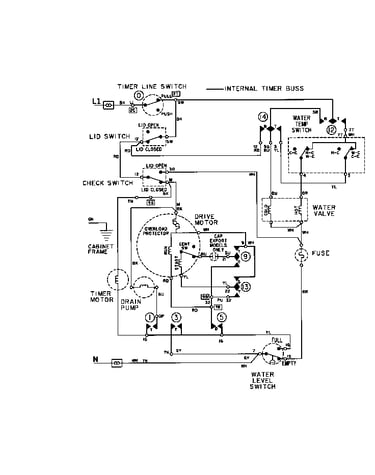

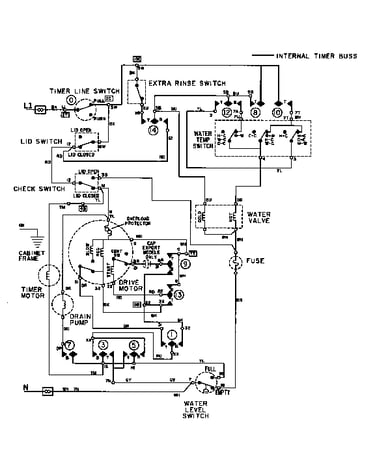

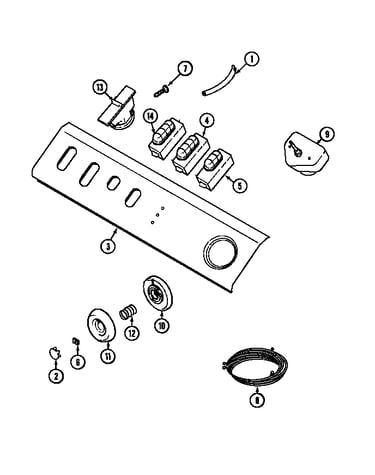

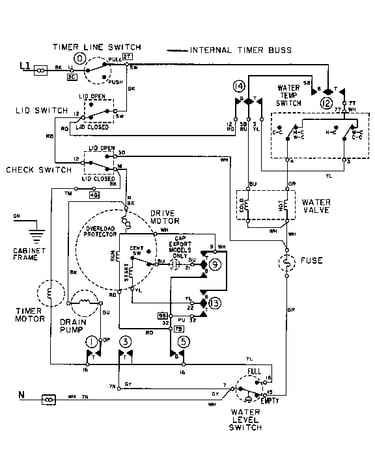

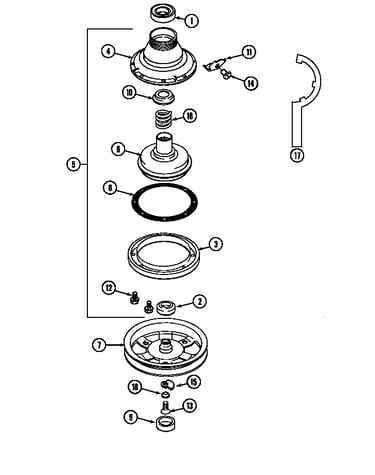

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 259 parts  |

Silastic,adh 058700
#15

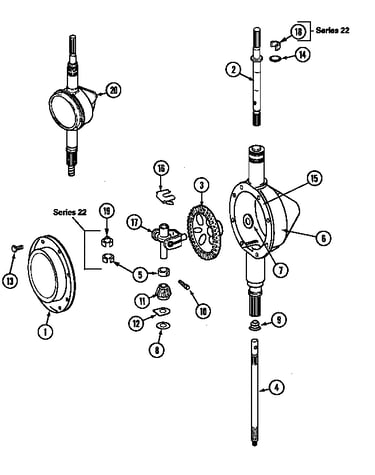

Transmission diagram

Silastic,adh

Part #058700

Replaced by #W10841140

?
Manufacturer substitution
This part replaces 058700. Substitute parts can look different from the original.
BEST SELLER
$14.99
12% OFF Phone Price : $16.99
In Stock
Lid Switch 205415
#15

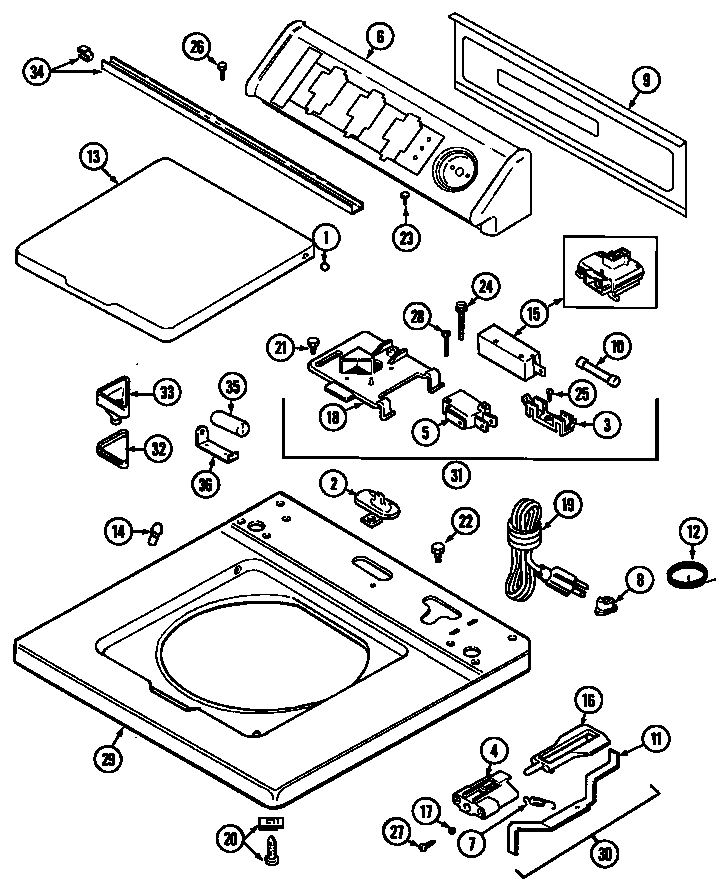

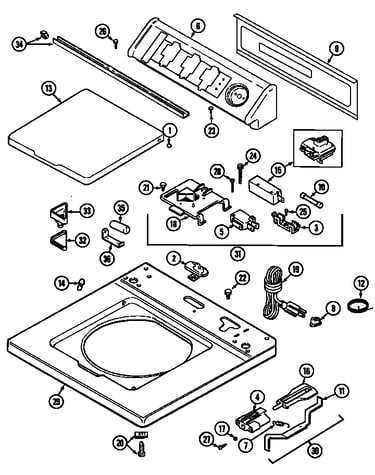

Top diagram

Lid switch

Part #205415

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 205415. Substitute parts can look different from the original.
BEST SELLER
$24.22
20% OFF Phone Price : $30.22
In Stock
Spring Hose 214739
#23A

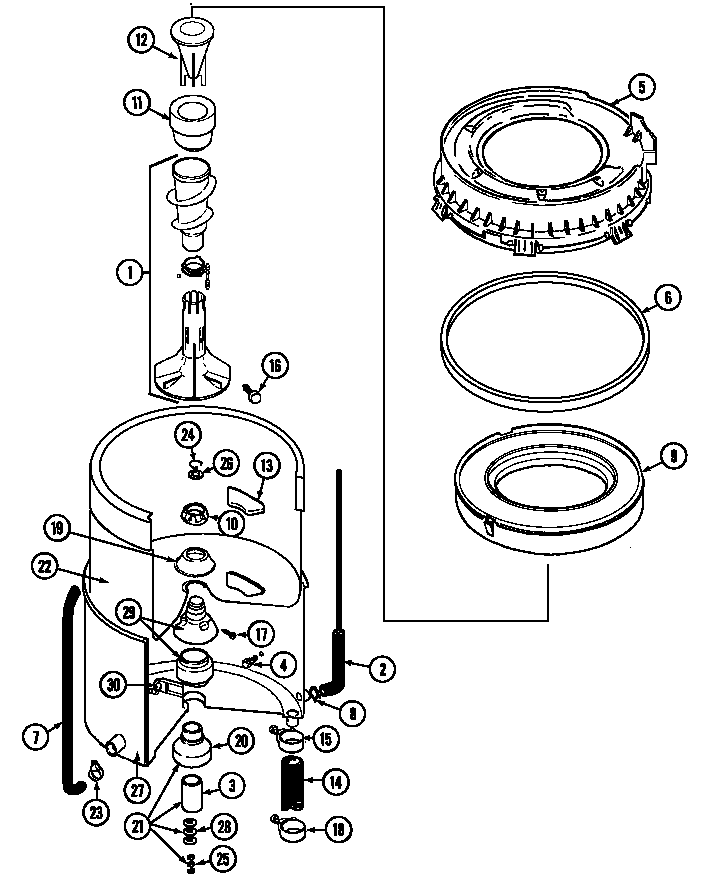

Tub diagram

Spring hose

Part #214739

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 214739. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Clamp,hose-i 216169
Clamp,hose-i

Part #216169

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 216169. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Washer Screw 211294
Washer screw

Part #211294

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 211294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Washer Screw 22001995
#15A

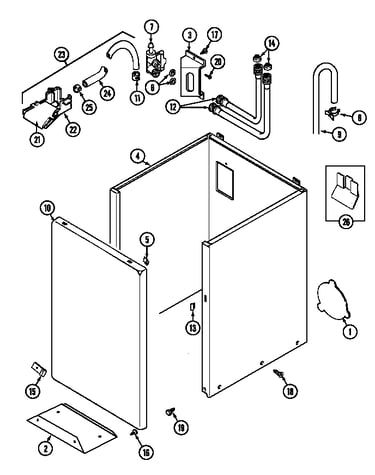

Cabinet diagram

Washer screw

Part #22001995

Replaced by #W11573574

?
Manufacturer substitution
This part replaces 22001995. Substitute parts can look different from the original.
BEST SELLER
In Stock
Keps Nut Motor 311426
#16

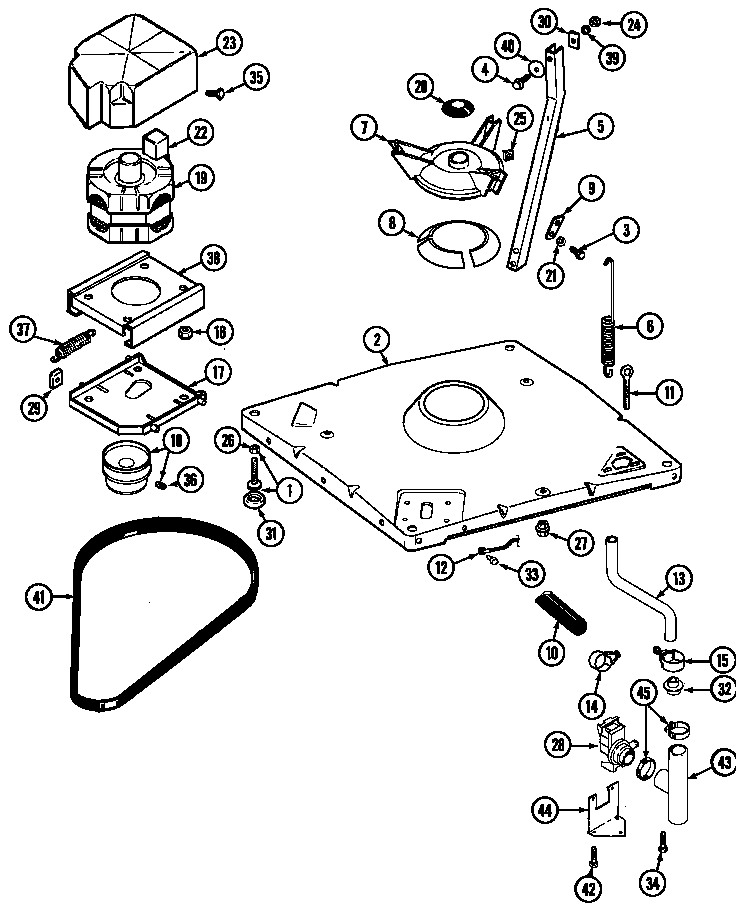

Base diagram

Keps nut motor

Part #311426

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 311426. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Washer Lid Switch 207166
#5

Top diagram

Washer lid switch

Part #207166

Replaced by #WP207166

?
Manufacturer substitution
This part replaces 207166. Substitute parts can look different from the original.
This item is not returnable
$32.49
16% OFF Phone Price : $38.49
In Stock
Screen, Valve 214337
#7A

Cabinet diagram

Screen, valve

Part #214337

Replaced by #WP96160

?
Manufacturer substitution
This part replaces 214337. Substitute parts can look different from the original.
This item is not returnable
$8.52
11% OFF Phone Price : $9.52
In Stock
Washer Damper Pad Kit (replaces 213072, 213497) 203956
#8

Base diagram

Washer damper pad kit (replaces 213072, 213497)

Part #203956

$45.59
12% OFF Phone Price : $51.59
In Stock
