Eureka
Upright Vacuum

Model # 8802AVZ Official Eureka vacuum

Here are the diagrams and repair parts for Official Eureka 8802AVZ vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Eureka Turbo Nozzle 77555
#12

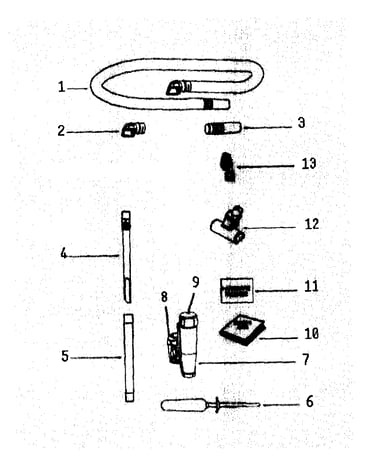

Accessories diagram

Eureka turbo nozzle

Part #77555

The manufacturer no longer makes this part, and there's no substitute part

Eureka Rear Axle 78007
#25

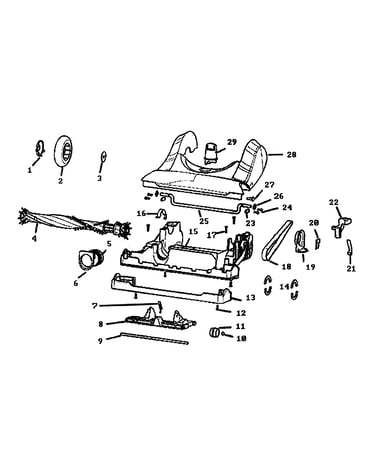

Base parts diagram

Eureka rear axle

Part #78007

The manufacturer no longer makes this part, and there's no substitute part

Coupling 78730
#3

Accessories diagram

Coupling

Part #78730

The manufacturer no longer makes this part, and there's no substitute part

Front Axle 77651
#9

Base parts diagram

Front axle

Part #77651

The manufacturer no longer makes this part, and there's no substitute part

Eureka Vacuum Motor Safety Filter 63406
#8

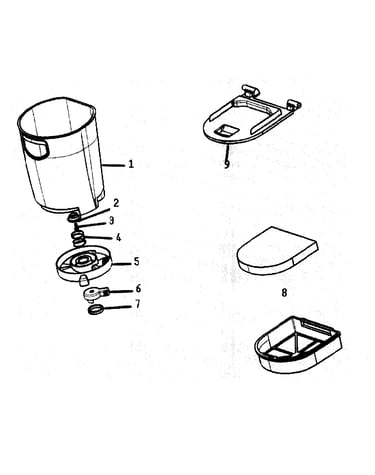

Cup/filter diagram

Eureka vacuum motor safety filter

Part #63406

The manufacturer no longer makes this part, and there's no substitute part

Gasket 77658
#14

Base parts diagram

Gasket

Part #77658

The manufacturer no longer makes this part, and there's no substitute part

Eureka Vacuum Handle 78459-1
#1

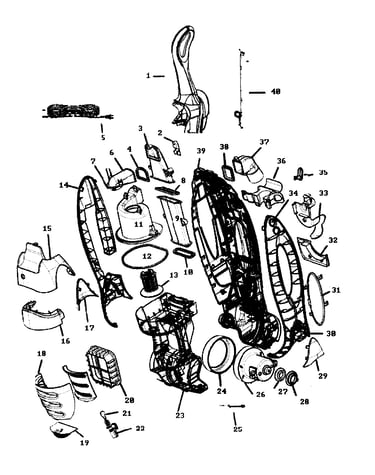

Main body diagram

Eureka vacuum handle

Part #78459-1

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Vacuum Spring 54943
#7

Base parts diagram

Electrolux vacuum spring

Part #54943

The manufacturer no longer makes this part, and there's no substitute part

Gasket 77579
#8

Main body diagram

Gasket

Part #77579

The manufacturer no longer makes this part, and there's no substitute part

Light Lens 77707-313N
#19

Main body diagram

Light lens

Part #77707-313N

The manufacturer no longer makes this part, and there's no substitute part
