Milwaukee
Reciprocating Saw

Model # 6527 Official Milwaukee super sawzall

Here are the diagrams and repair parts for Official Milwaukee 6527 super sawzall, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Baffle 31-05-0050
#39

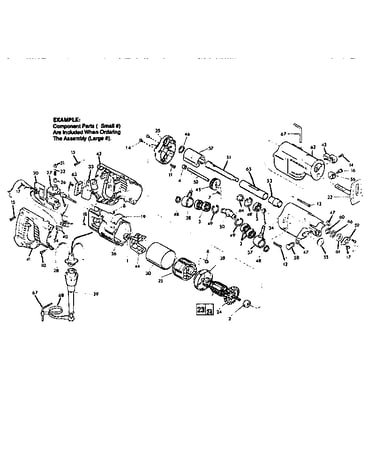

Unit parts diagram

Baffle

Part #31-05-0050

The manufacturer no longer makes this part, and there's no substitute part

Cap 23-44-0190
#31

Unit parts diagram

Cap

Part #23-44-0190

The manufacturer no longer makes this part, and there's no substitute part

Plate 30-72-0080
#37

Unit parts diagram

Plate

Part #30-72-0080

The manufacturer no longer makes this part, and there's no substitute part

Shaft 42-12-0150
#52

Unit parts diagram

Shaft

Part #42-12-0150

The manufacturer no longer makes this part, and there's no substitute part

Spacer 45-36-1450
#64

Unit parts diagram

Spacer

Part #45-36-1450

The manufacturer no longer makes this part, and there's no substitute part

Drill Motor Brush Spring 23-52-0160
#32

Unit parts diagram

Drill motor brush spring

Part #23-52-0160

The manufacturer no longer makes this part, and there's no substitute part

Insulator 23-16-0456
#30

Unit parts diagram

Insulator

Part #23-16-0456

The manufacturer no longer makes this part, and there's no substitute part

Switch Cap 31-12-0190
#40

Unit parts diagram

Switch cap

Part #31-12-0190

The manufacturer no longer makes this part, and there's no substitute part

Bolt 06-81-1058
#9

Unit parts diagram

Bolt

Part #06-81-1058

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord 48-76-4008
#29

Unit parts diagram

Power tool power cord

Part #48-76-4008

The manufacturer no longer makes this part, and there's no substitute part
