Angle Grinder

Model # 9523NBH Official Makita angle grinder

Here are the diagrams and repair parts for Official Makita 9523NBH angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Makita Holder Cap 643928-5
#31

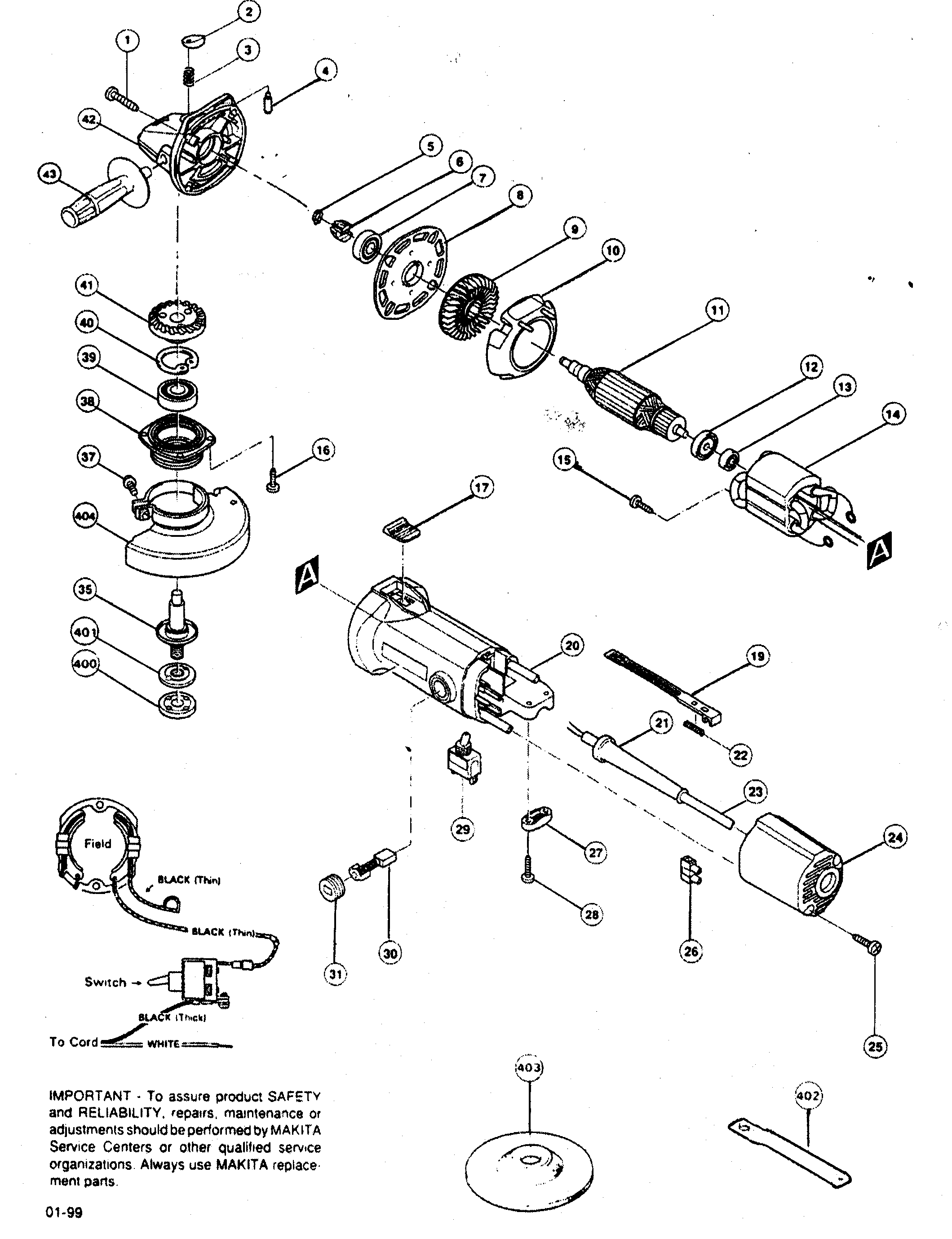

Grinder diagram

Makita holder cap

Part #643928-5

The manufacturer no longer makes this part, and there's no substitute part

Makita Field 521621-0
#14

Grinder diagram

Makita field

Part #521621-0

The manufacturer no longer makes this part, and there's no substitute part

Makita Housing 159867-4
#42

Grinder diagram

Makita housing

Part #159867-4

The manufacturer no longer makes this part, and there's no substitute part

Makita Pin 256437-1
#4

Grinder diagram

Makita pin

Part #256437-1

The manufacturer no longer makes this part, and there's no substitute part

Makita Grinding Wheel 741405-2-1
#403

Grinder diagram

Makita grinding wheel

Part #741405-2-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 266041-8
#1

Grinder diagram

Screw

Part #266041-8

The manufacturer no longer makes this part, and there's no substitute part

Makita Fan 241890-4
#9

Grinder diagram

Makita fan

Part #241890-4

The manufacturer no longer makes this part, and there's no substitute part

Makita Bearing 211012-0
#13

Grinder diagram

Makita bearing

Part #211012-0

The manufacturer no longer makes this part, and there's no substitute part

Makita Screw 266007-8
#15

Grinder diagram

Makita screw

Part #266007-8

The manufacturer no longer makes this part, and there's no substitute part

Makita Housing 316800-1
#38

Grinder diagram

Makita housing

Part #316800-1

The manufacturer no longer makes this part, and there's no substitute part
