GE
Warming Drawer

Model # JTD915SK2SS Official GE warming drawer

Here are the diagrams and repair parts for Official GE JTD915SK2SS warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

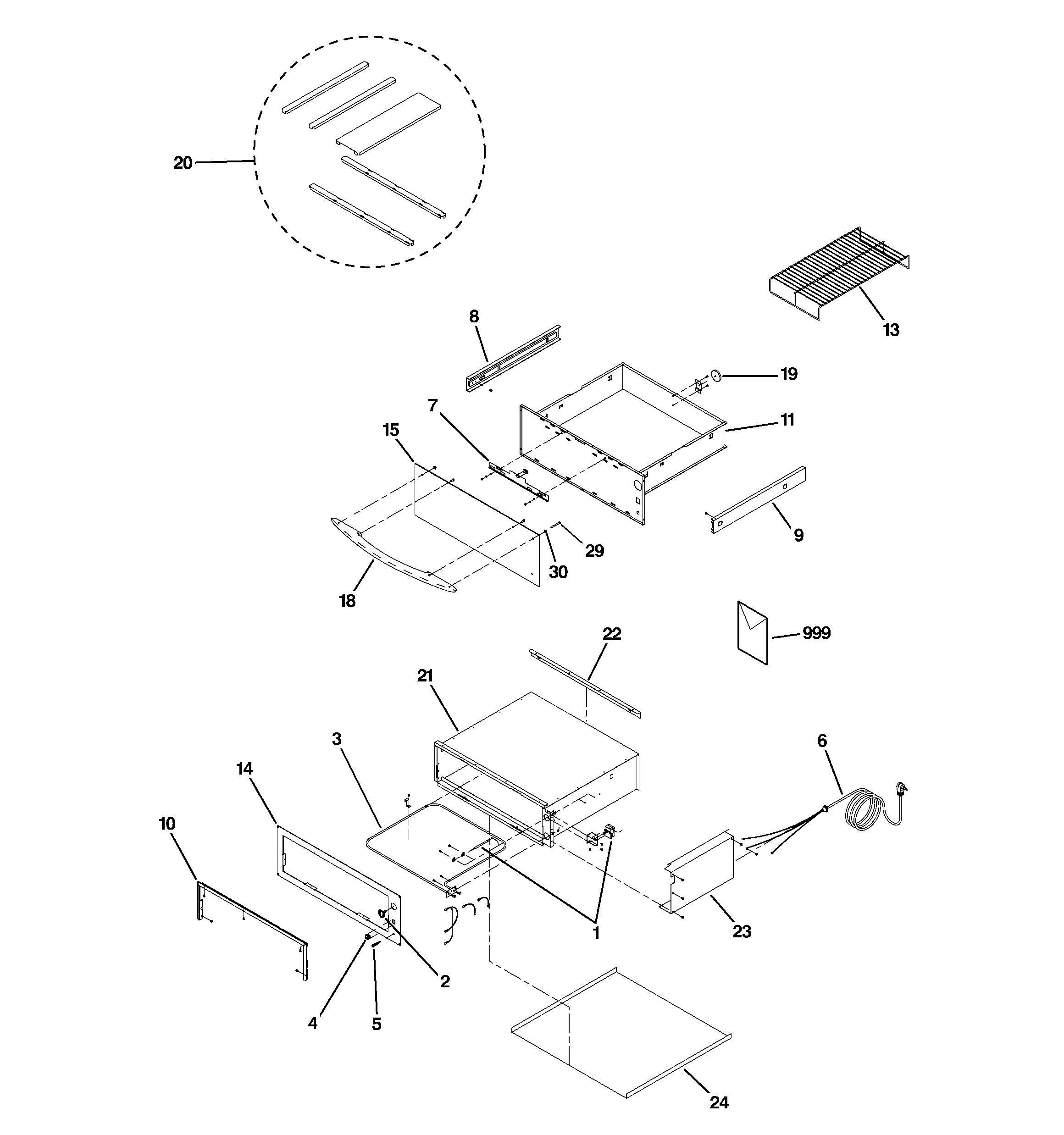

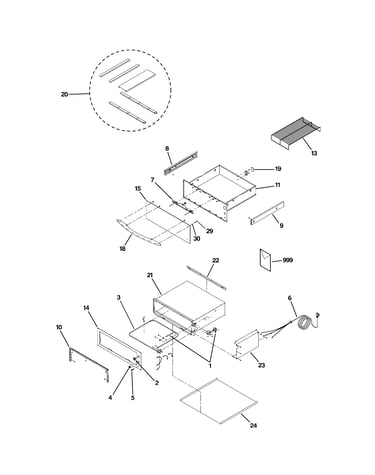

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |

Heating Element WB44X10029
#3

Warming drawer diagram

Heating element

Part #WB44X10029

$86.69
6% OFF Phone Price : $92.69
In Stock
Indicator Lamp WB02X10587
#5

Warming drawer diagram

Indicator lamp

Part #WB02X10587

$74.69
7% OFF Phone Price : $80.69
In Stock
Magnet Closure WB02X10592
#19

Warming drawer diagram

Magnet closure

Part #WB02X10592

In Stock
Cover WB02X11008
#24

Warming drawer diagram

Cover

Part #WB02X11008

In Stock
Bolt,hex Hea WB01X10288
#29

Warming drawer diagram

Bolt,hex hea

Part #WB01X10288

This item is not returnable
In Stock
Cavity 30" WB63X10045
#21

Warming drawer diagram

Cavity 30"

Part #WB63X10045

In Stock
Rail Kit, 30 WB64X10002
#20

Warming drawer diagram

Rail kit, 30

Part #WB64X10002

Replaced by #WB64X10032

?
Manufacturer substitution
This part replaces WB64X10002. Substitute parts can look different from the original.
In Stock
Wire Rack WB48X10010
#13

Warming drawer diagram

Wire rack

Part #WB48X10010

Replaced by #WB48X10045

?
Manufacturer substitution
This part replaces WB48X10010. Substitute parts can look different from the original.
$143.09
8% OFF Phone Price : $155.09
In Stock
Handle Profile WB15T10129
#18

Warming drawer diagram

Handle profile

Part #WB15T10129

Replaced by #WB15T10190

?
Manufacturer substitution
This part replaces WB15T10129. Substitute parts can look different from the original.
$177.11
6% OFF Phone Price : $189.11
In Stock
Washer 1.5 O WB01X10289
#30

Warming drawer diagram

Washer 1.5 o

Part #WB01X10289

The manufacturer no longer makes this part, and there's no substitute part
