Model # WPGT9150H0WW Official GE washer

Here are the diagrams and repair parts for Official GE WPGT9150H0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Washer Water Inlet Valve WH13X10017
#180

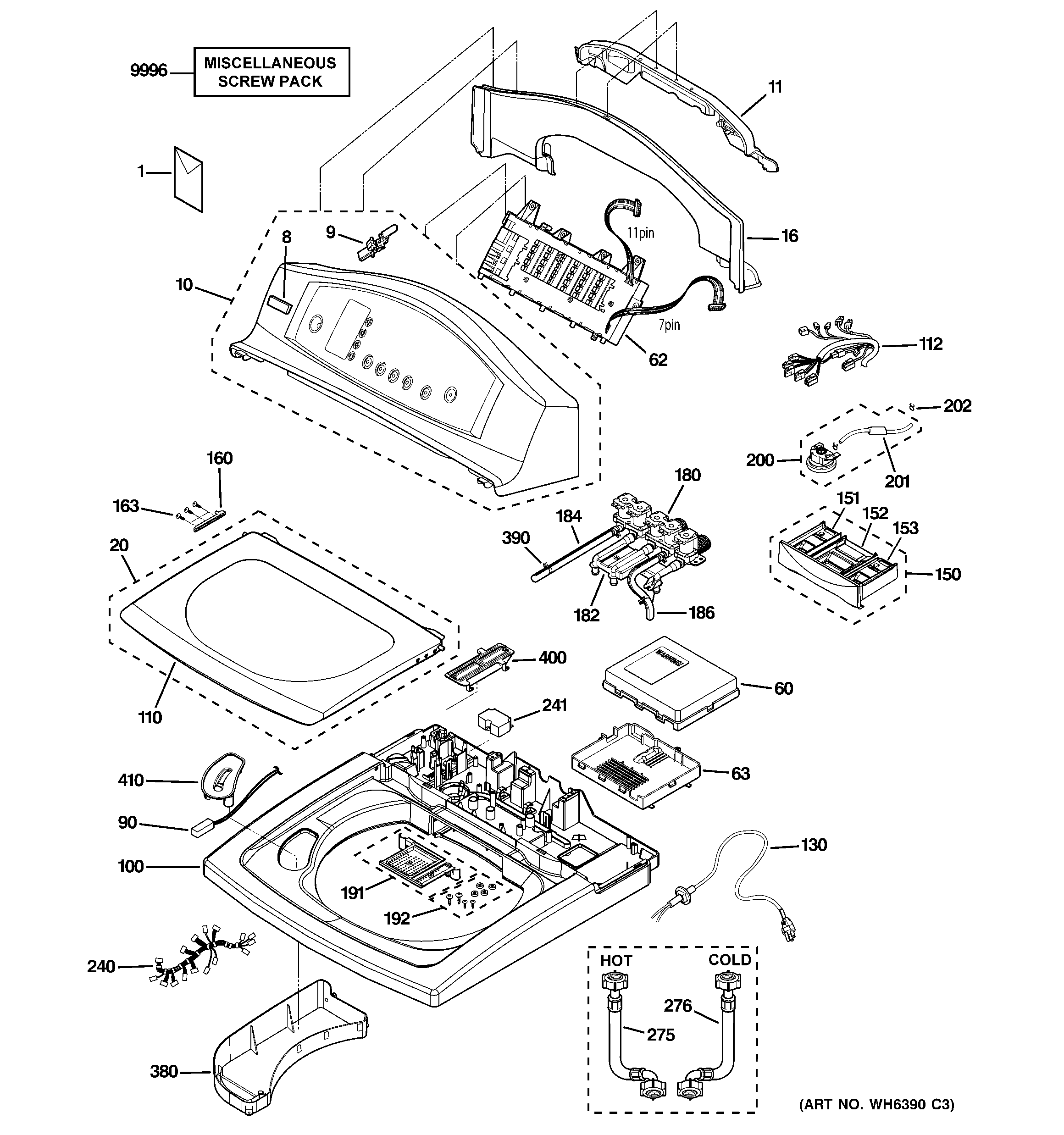

Controls, backsplash & top panel diagram

Washer water inlet valve

Part #WH13X10017

$136.82 |
8% OFF Phone Price : $148.82
In Stock
Washer Motor Rotor Assembly WH39X10005
#215

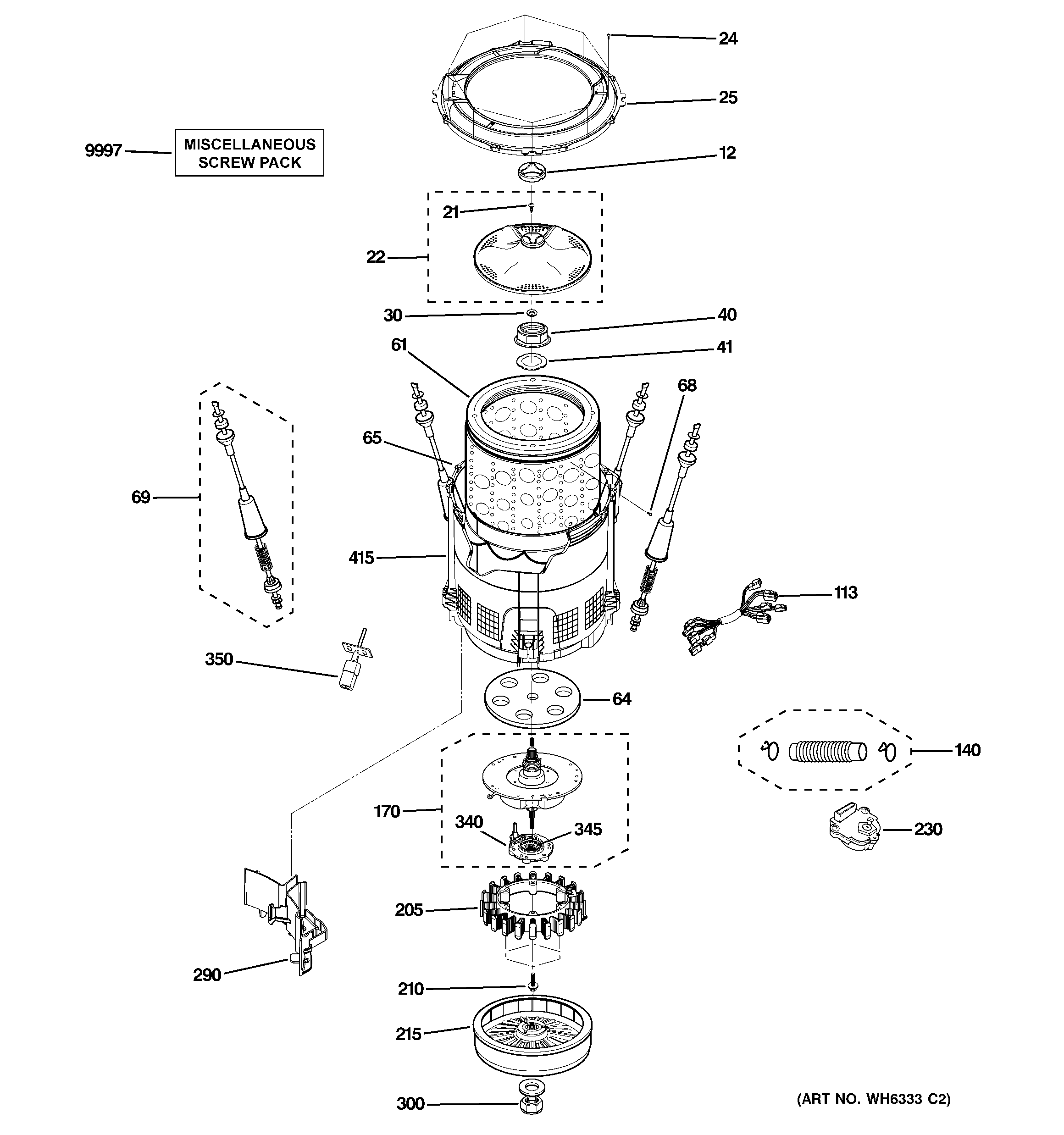

Tub, suspension & drive components diagram

Washer motor rotor assembly

Part #WH39X10005

Replaced by #WH49X25041

?
Manufacturer substitution
This part replaces WH39X10005. Substitute parts can look different from the original.
$265.33 |
$12.00 OFF Phone Price : $277.33
In Stock
Washer Drive Motor WH39X10004
#205

Tub, suspension & drive components diagram

Washer drive motor

Part #WH39X10004

Replaced by #WH49X25041

?
Manufacturer substitution
This part replaces WH39X10004. Substitute parts can look different from the original.
$265.33 |
$12.00 OFF Phone Price : $277.33
In Stock
Washer Drain Hose WH41X10083
#140

Tub, suspension & drive components diagram

Washer drain hose

Part #WH41X10083

$48.47 |
11% OFF Phone Price : $54.47
In Stock
Screw WE02X10060
#163

Controls, backsplash & top panel diagram

Screw

Part #WE02X10060

This item is not returnable
$4.35
In Stock
Washer Suspension Rod And Spring Assembly WH16X10056
#69

Tub, suspension & drive components diagram

Washer suspension rod and spring assembly

Part #WH16X10056

$60.05 |
9% OFF Phone Price : $66.05
In Stock
Cap Insert WH47X10016
#153

Controls, backsplash & top panel diagram

Cap insert

Part #WH47X10016

$14.79
In Stock
Washer Motor Wire Harness WH19X10027
#113

Tub, suspension & drive components diagram

Washer motor wire harness

Part #WH19X10027

The manufacturer no longer makes this part, and there's no substitute part

Hanger Assembly WH16X10054
#4

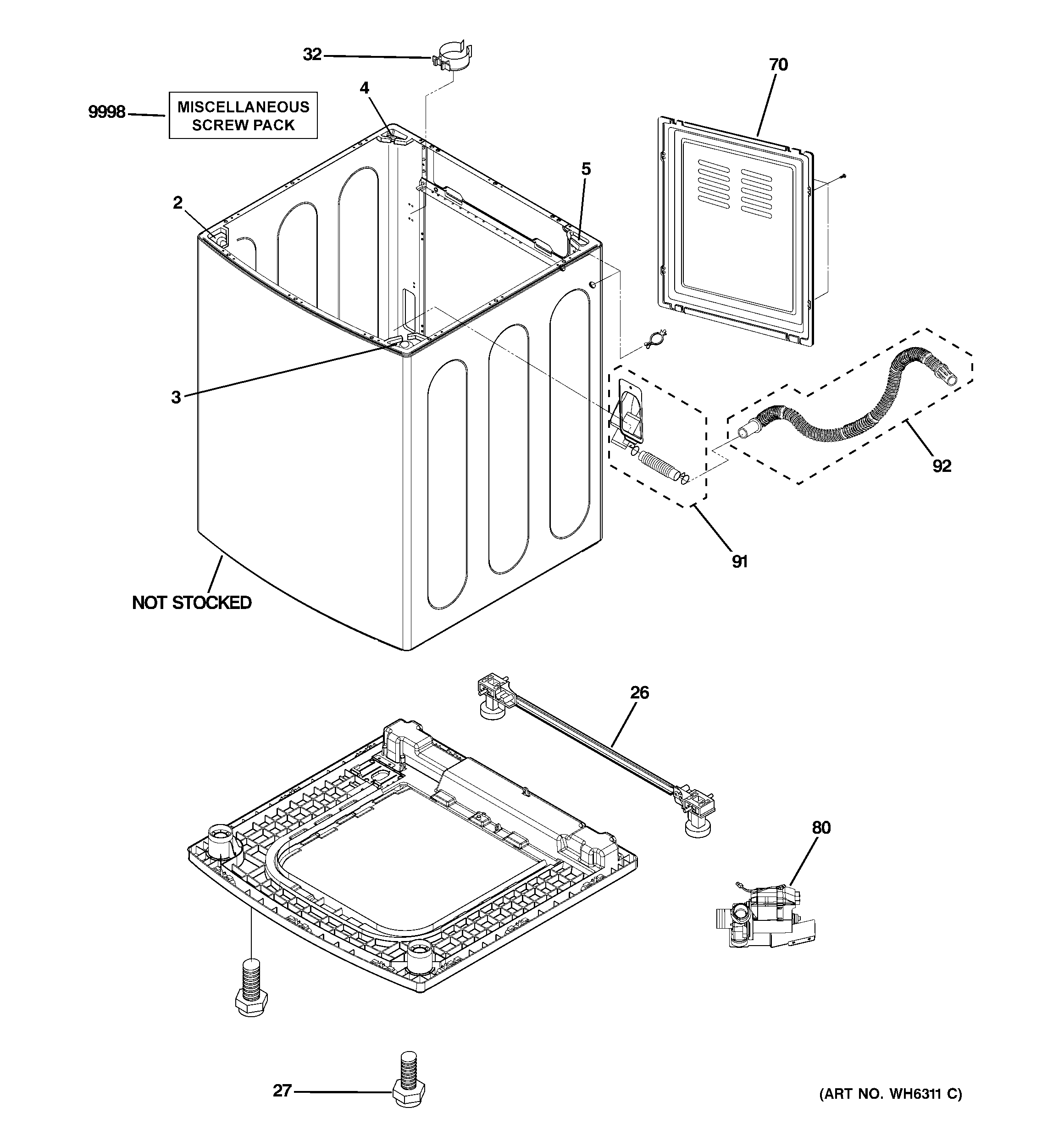

Cabinet diagram

Hanger assembly

Part #WH16X10054

The manufacturer no longer makes this part, and there's no substitute part

Panel WH46X10183
#16

Controls, backsplash & top panel diagram

Panel

Part #WH46X10183

The manufacturer no longer makes this part, and there's no substitute part
