Crosley
Gas Range

Model # 90515293 Official Crosley ikea/gas range

Here are the diagrams and repair parts for Official Crosley 90515293 ikea/gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

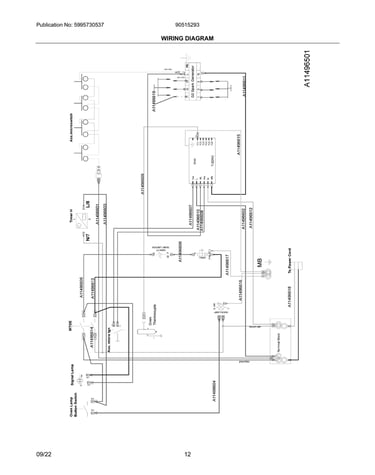

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Range Spark Module (replaces 318079001) 808608804
#73

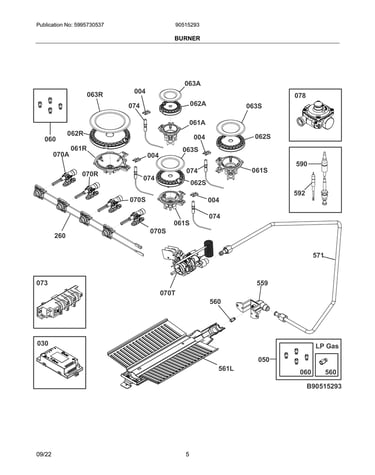

Burner diagram

Range spark module (replaces 318079001)

Part #808608804

BEST SELLER
$58.27 |
9% OFF Phone Price : $64.27
In Stock
Bulb 808564103
#504

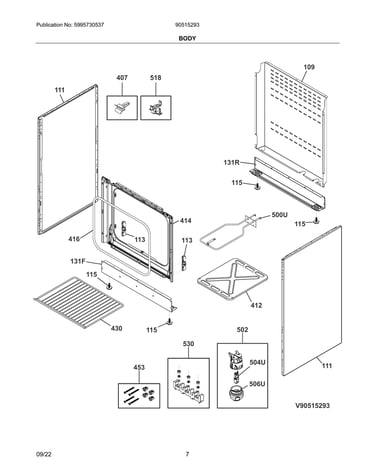

Body diagram

Bulb

Part #808564103

Replaced by #318946500

?
Manufacturer substitution
This part replaces 808564103. Substitute parts can look different from the original.
$38.98 |
13% OFF Phone Price : $44.98
In Stock
Crosley Range Oven Burner Igniter 342906802
#592

Burner diagram

Crosley range oven burner igniter

Part #342906802

$25.89
In Stock
Crosley Thermocouple 342907301
#590

Burner diagram

Crosley thermocouple

Part #342907301

$66.42
In Stock
Crosley Wheel 342553101
#118

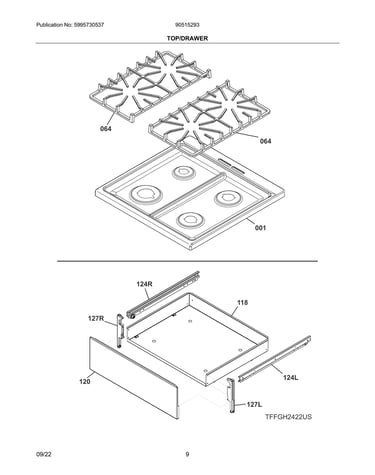

Top/drawer diagram

Crosley wheel

Part #342553101

$11.66
In Stock
Crosley Pc Board A02169804
#220

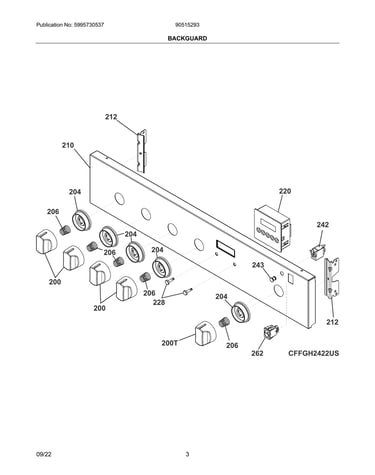

Backguard diagram

Crosley pc board

Part #A02169804

$134.37 |
8% OFF Phone Price : $146.37
In Stock
Crosley Thermostat A13030601
#70

Burner diagram

Crosley thermostat

Part #A13030601

$192.45
In Stock
Crosley Wheel 342553001
#118

Top/drawer diagram

Crosley wheel

Part #342553001

$11.63
In Stock
Crosley Orifice 354400003
#560

Burner diagram

Crosley orifice

Part #354400003

$12.51
In Stock
Crosley Bolt 354324402
#NI

Burner diagram

Crosley bolt

Part #354324402

$11.63
In Stock
