Hoover
Upright Vacuum

Model # U4407--- Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U4407- upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Kenmore Vacuum Wheel Retainer 32182001
#56

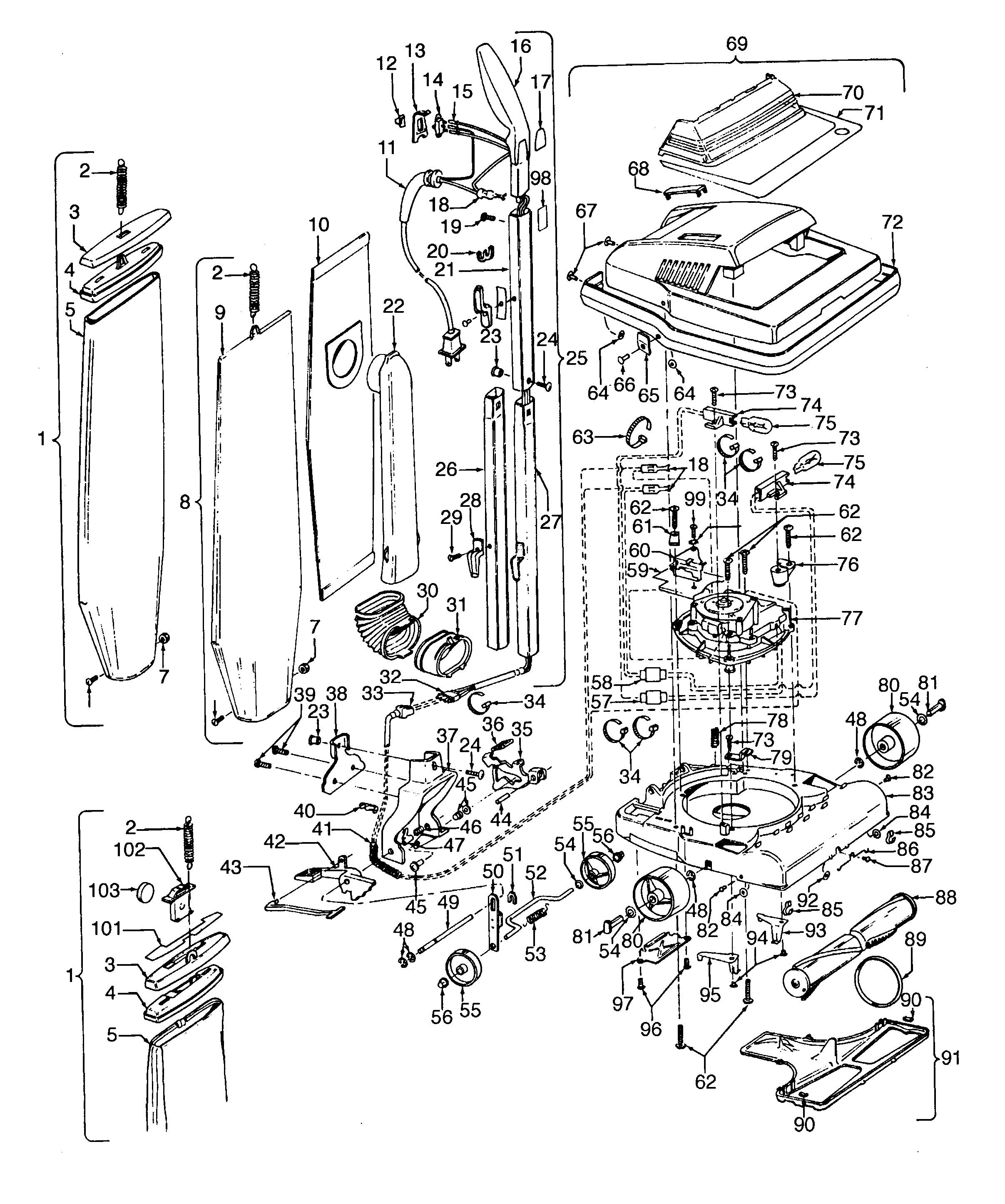

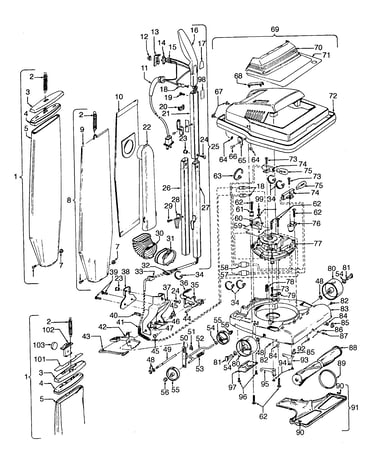

Agitator, handle, mainbody, outerbag diagram

Kenmore vacuum wheel retainer

Part #32182001

The manufacturer no longer makes this part, and there's no substitute part

Spring 048409FW
#46

Agitator, handle, mainbody, outerbag diagram

Spring

Part #048409FW

The manufacturer no longer makes this part, and there's no substitute part

Handle Nut 32277008
#23

Agitator, handle, mainbody, outerbag diagram

Handle nut

Part #32277008

The manufacturer no longer makes this part, and there's no substitute part

Screw 21434824
#29

Agitator, handle, mainbody, outerbag diagram

Screw

Part #21434824

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Self Stick Support Pad 34111001
#90

Agitator, handle, mainbody, outerbag diagram

Kenmore self stick support pad

Part #34111001

The manufacturer no longer makes this part, and there's no substitute part

Kenmore R Whl Shft 33152003
#52

Agitator, handle, mainbody, outerbag diagram

Kenmore r whl shft

Part #33152003

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Sleeve Hose 32156010
#28

Cleaningtools diagram

Kenmore sleeve hose

Part #32156010

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Retaining Flange 35434040
#97

Agitator, handle, mainbody, outerbag diagram

Kenmore retaining flange

Part #35434040

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Hndl Cnt Lvr 38456050
#35

Agitator, handle, mainbody, outerbag diagram

Kenmore hndl cnt lvr

Part #38456050

The manufacturer no longer makes this part, and there's no substitute part

Screw/doze 21772501
#12

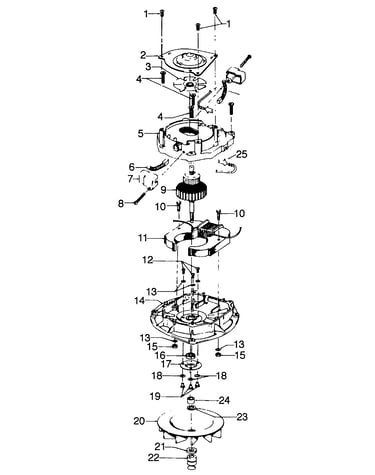

Motor assembly diagram

Screw/doze

Part #21772501

The manufacturer no longer makes this part, and there's no substitute part
