Kenmore
Dehumidifier

Model # 106953400 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 106953400 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Screw 489073
#11

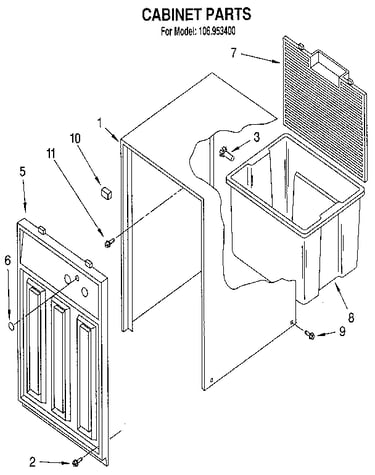

Cabinet diagram

Screw

Part #489073

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 489073. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Valve Kit 978025

#NI

All parts diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Screw, 8 X 1 488480
#15

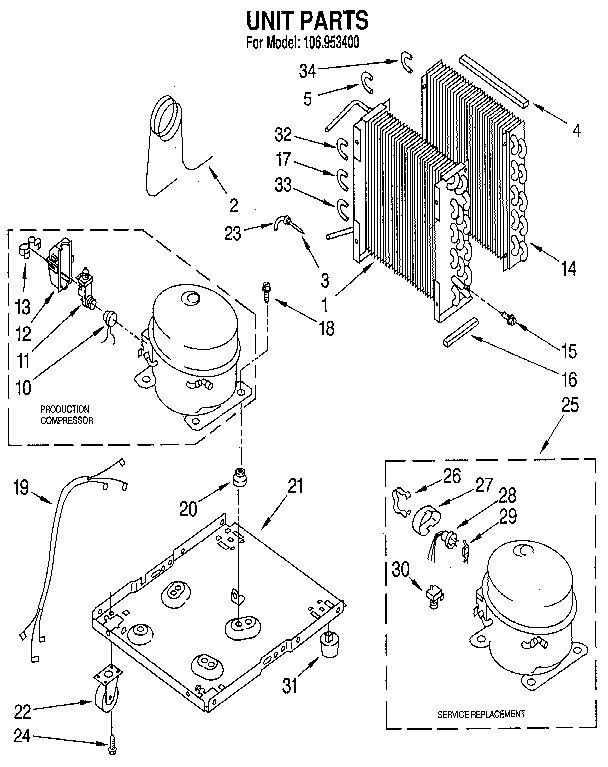

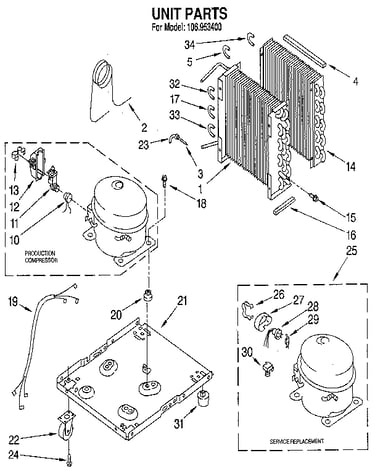

Unit diagram

Screw, 8 x 1

Part #488480

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 1162513
#24

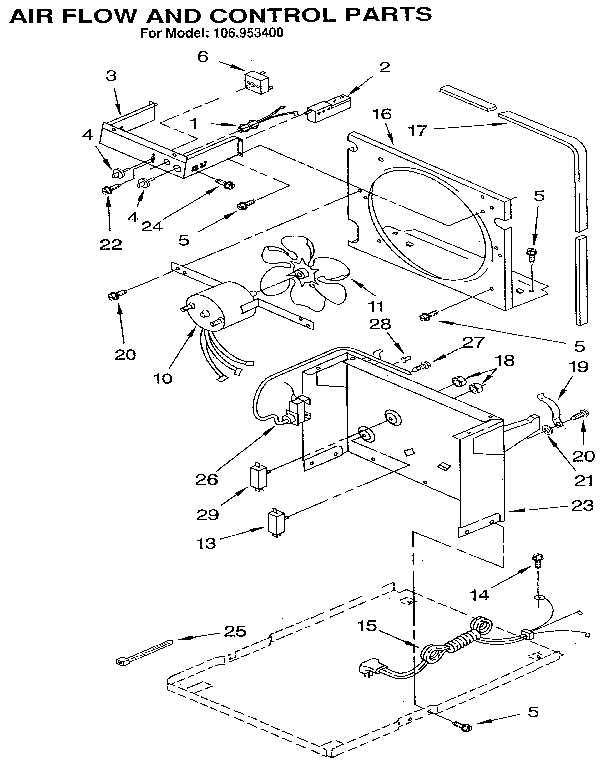

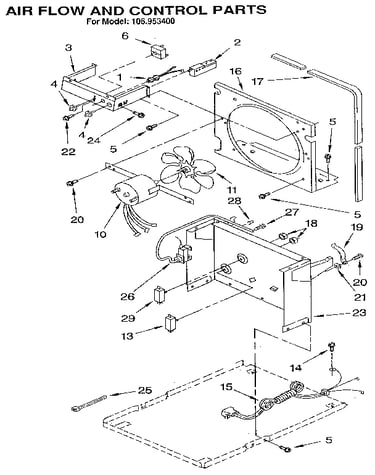

Air flow and control diagram

Screw

Part #1162513

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 1162513. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 488889
#22

Air flow and control diagram

Screw

Part #488889

This item is not returnable
$4.22
In Stock
Valve Kit 978030

#NI

All parts diagram

Valve kit

Part #978030

Replaced by #978030

?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Screw 488234
#27

Air flow and control diagram

Screw

Part #488234

Replaced by #WP488234

?
Manufacturer substitution
This part replaces 488234. Substitute parts can look different from the original.
This item is not returnable
$4.20
In Stock
Washer 647338

#NI

All parts diagram

Washer

Part #647338

Replaced by #285448A

?
Manufacturer substitution
This part replaces 647338. Substitute parts can look different from the original.
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
Valve Kit 978026

#NI

All parts diagram

Valve kit

Part #978026

Replaced by #978026

?
Manufacturer substitution
This part replaces 978026. Substitute parts can look different from the original.
$34.19 |
15% OFF Phone Price : $40.19
In Stock
Wire Tie 602851
#25

Air flow and control diagram

Wire tie

Part #602851

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 602851. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
