Model # PB900YV2FS Official GE free standing electric range

Here are the diagrams and repair parts for Official GE PB900YV2FS free standing electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Range Halogen Surface Element WB30T10130
#56

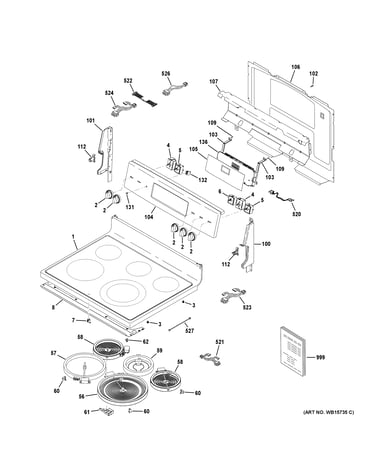

Control panel & cooktop diagram

Range halogen surface element

Part #WB30T10130

BEST SELLER
$133.06 |
8% OFF Phone Price : $145.06
In Stock
Range Dual Radiant Element WB30T10133
#57

Control panel & cooktop diagram

Range dual radiant element

Part #WB30T10133

BEST SELLER
$98.55 |
11% OFF Phone Price : $110.55
In Stock
Range Surface Element Control Switch (replaces Wb27t10384) WB24T10153
#5

Control panel & cooktop diagram

Range surface element control switch (replaces wb27t10384)

Part #WB24T10153

BEST SELLER
$98.13 |
11% OFF Phone Price : $110.13
In Stock
Range Dual Surface Element Control Switch (replaces Wb24t10031) WB24T10058
#6

Control panel & cooktop diagram

Range dual surface element control switch (replaces wb24t10031)

Part #WB24T10058

BEST SELLER
$103.81 |
10% OFF Phone Price : $115.81
In Stock
Cooktop Indicator Light WB27T10668
#7

Control panel & cooktop diagram

Cooktop indicator light

Part #WB27T10668

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Oven Lamp Holder WB08T10002
#235

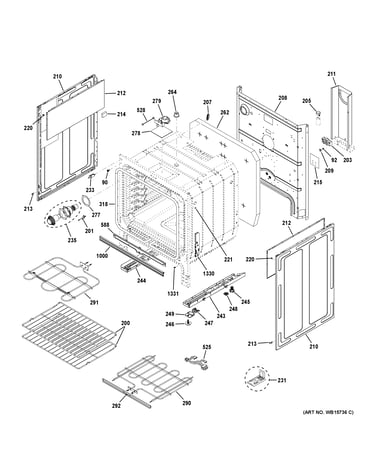

Body parts diagram

Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
#380

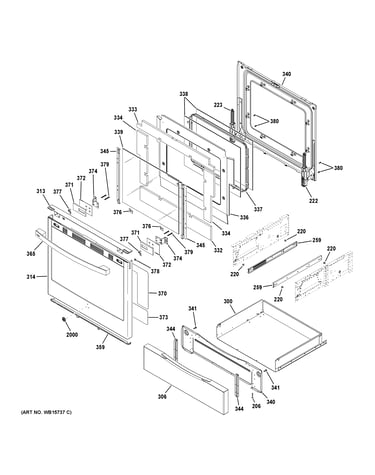

Door & drawer parts diagram

Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Nut WB02T10017
#729

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Leveling Leg (replaces Wb02k10379) WB02K10182
#245

Body parts diagram

Range leveling leg (replaces wb02k10379)

Part #WB02K10182

This item is not returnable
$7.92 |
11% OFF Phone Price : $8.92
In Stock
Range Warmer Zone Surface Element WB30T10124
#59

Control panel & cooktop diagram

Range warmer zone surface element

Part #WB30T10124

$79.53 |
7% OFF Phone Price : $85.53
In Stock
