Model # WCCB1030V1WC Official GE commercial washer

Here are the diagrams and repair parts for Official GE WCCB1030V1WC commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

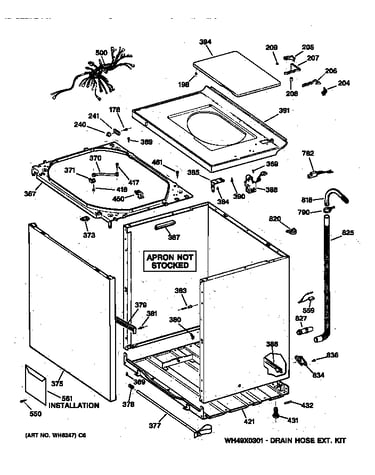

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Hub Nut WH02X1193
#325

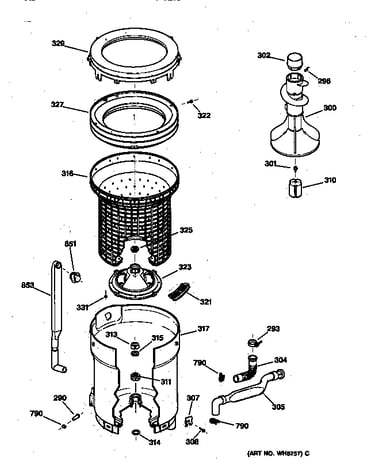

Tub, basket & agitator diagram

Hub nut

Part #WH02X1193

Replaced by #WH2X1193

?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Tub Seal WH02X1196
#311

Tub, basket & agitator diagram

Tub seal

Part #WH02X1196

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH02X1196. Substitute parts can look different from the original.
BEST SELLER
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Hub Washer WH02X1199
#315

Tub, basket & agitator diagram

Hub washer

Part #WH02X1199

Replaced by #WH2X1199

?
Manufacturer substitution
This part replaces WH02X1199. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Pump Bracket WH23X0091
#655

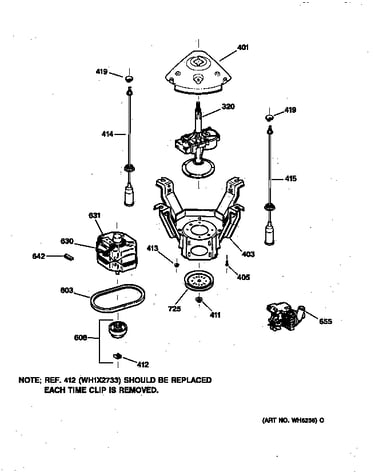

Suspension, pump & drive components diagram

Pump bracket

Part #WH23X0091

Replaced by #WH23X10030

?
Manufacturer substitution
This part replaces WH23X0091. Substitute parts can look different from the original.
BEST SELLER
$67.97 |
8% OFF Phone Price : $73.97
In Stock
Valve WH13X0086
#805

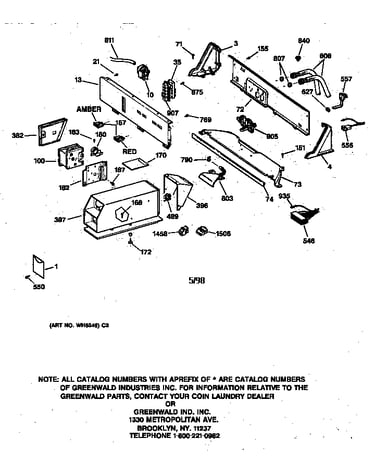

Backsplash & coin box assembly diagram

Valve

Part #WH13X0086

Replaced by #WH13X10024

?
Manufacturer substitution
This part replaces WH13X0086. Substitute parts can look different from the original.
BEST SELLER
$68.35 |
8% OFF Phone Price : $74.35
In Stock
Rod/sprg Blk WH16X0544
#414

Suspension, pump & drive components diagram

Rod/sprg blk

Part #WH16X0544

Replaced by #WH16X544

?
Manufacturer substitution
This part replaces WH16X0544. Substitute parts can look different from the original.
BEST SELLER
$35.27 |
15% OFF Phone Price : $41.27
In Stock
Rod/spr Yllw WH16X0543
#415

Suspension, pump & drive components diagram

Rod/spr yllw

Part #WH16X0543

Replaced by #WH16X543

?
Manufacturer substitution
This part replaces WH16X0543. Substitute parts can look different from the original.
BEST SELLER
$33.98 |
15% OFF Phone Price : $39.98
In Stock
Scr 1/4-20 M WH02X10037
#301

Tub, basket & agitator diagram

Scr 1/4-20 m

Part #WH02X10037

Replaced by #WH49X10042

?
Manufacturer substitution
This part replaces WH02X10037. Substitute parts can look different from the original.
BEST SELLER
$21.12 |
22% OFF Phone Price : $27.12
In Stock
Coupling WH43X0137
#310

Tub, basket & agitator diagram

Coupling

Part #WH43X0137

Replaced by #WH49X10042

?
Manufacturer substitution
This part replaces WH43X0137. Substitute parts can look different from the original.
BEST SELLER
$21.12 |
22% OFF Phone Price : $27.12
In Stock
Hose Pressure Switch WH41X0365
#811

Backsplash & coin box assembly diagram

Hose pressure switch

Part #WH41X0365

Replaced by #WH41X365

?
Manufacturer substitution
This part replaces WH41X0365. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
