Model # AHG40LEM1 Official GE dehumidifier

Here are the diagrams and repair parts for Official GE AHG40LEM1 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Ge Tube Asm,suc WR57X10042
#22

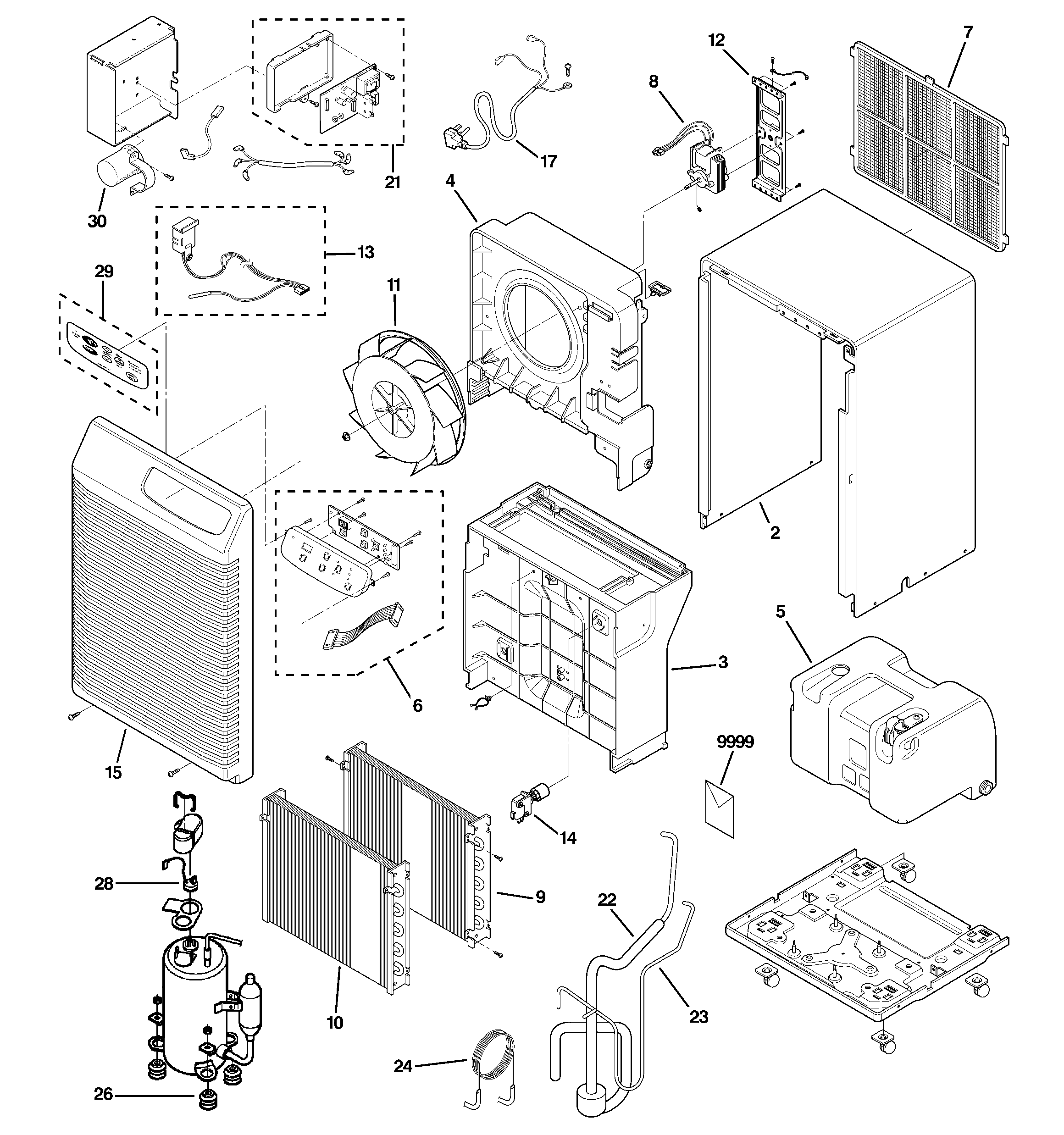

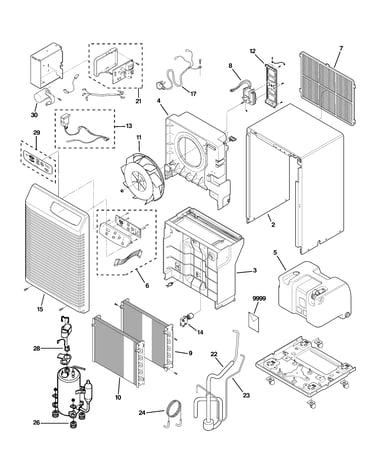

Dehumidifier diagram

Ge tube asm,suc

Part #WR57X10042

$45.99
In Stock
Ge Tube Diode WR57X10043
#23

Dehumidifier diagram

Ge tube diode

Part #WR57X10043

$22.99
In Stock
Ge Tube Asm, Ca WR57X10041
#24

Dehumidifier diagram

Ge tube asm, ca

Part #WR57X10041

$25.99
In Stock
Ahg30,40,50 49-7468
#9999

Dehumidifier diagram

Ahg30,40,50

Part #49-7468

$17.99
In Stock
Shroud Assembly WK76X10007
#4

Dehumidifier diagram

Shroud assembly

Part #WK76X10007

The manufacturer no longer makes this part, and there's no substitute part

Cover Asm. D WK26X10014
#6

Dehumidifier diagram

Cover asm. d

Part #WK26X10014

The manufacturer no longer makes this part, and there's no substitute part

Main Board A WK27X10021
#21

Dehumidifier diagram

Main board a

Part #WK27X10021

The manufacturer no longer makes this part, and there's no substitute part

Cabinet WK90X10007
#2

Dehumidifier diagram

Cabinet

Part #WK90X10007

The manufacturer no longer makes this part, and there's no substitute part

Condenser WK88X10011
#10

Dehumidifier diagram

Condenser

Part #WK88X10011

The manufacturer no longer makes this part, and there's no substitute part

Grille, Front WK71X10008
#15

Dehumidifier diagram

Grille, front

Part #WK71X10008

The manufacturer no longer makes this part, and there's no substitute part
