Model # GBE21DYKGRFS Official GE refrigerator

Here are the diagrams and repair parts for Official GE GBE21DYKGRFS refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

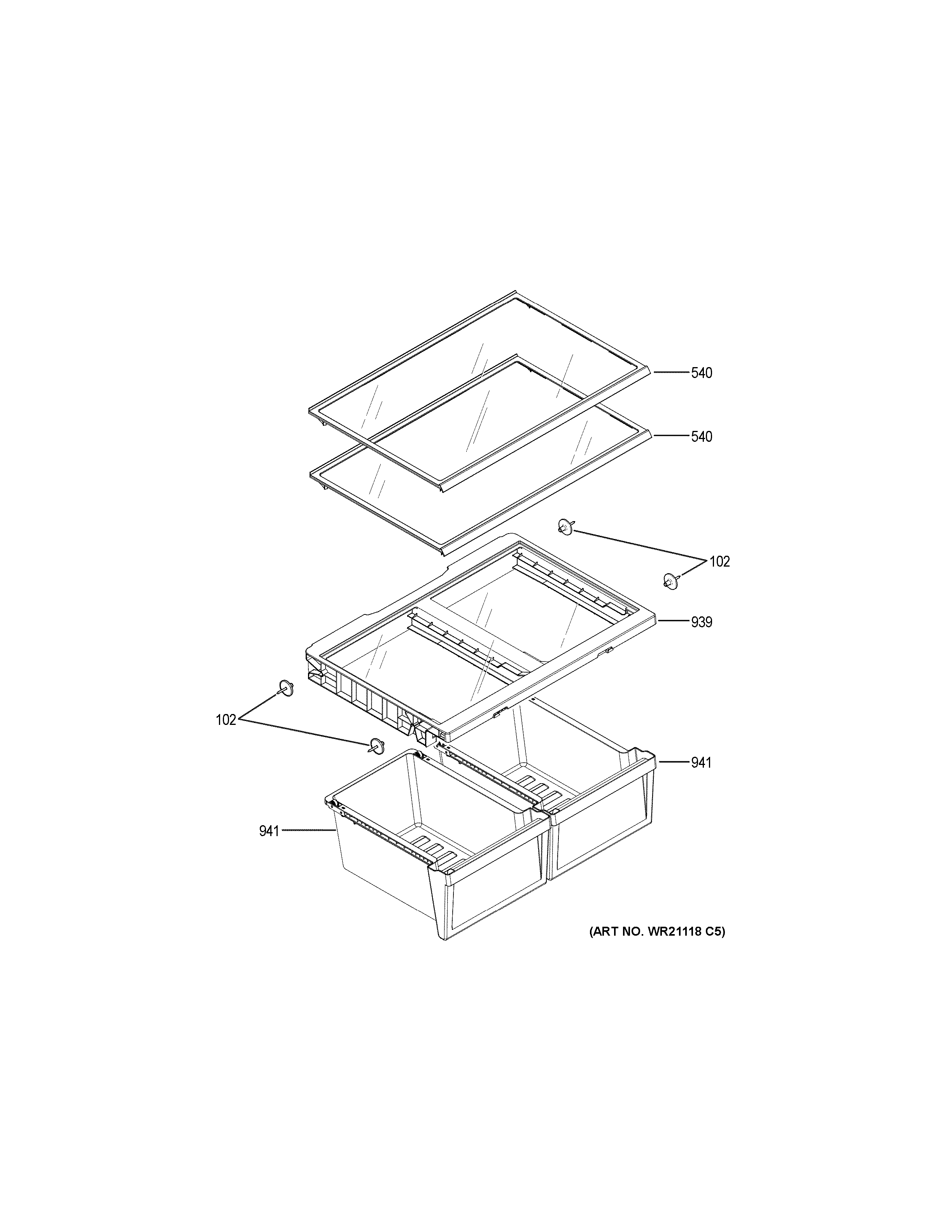

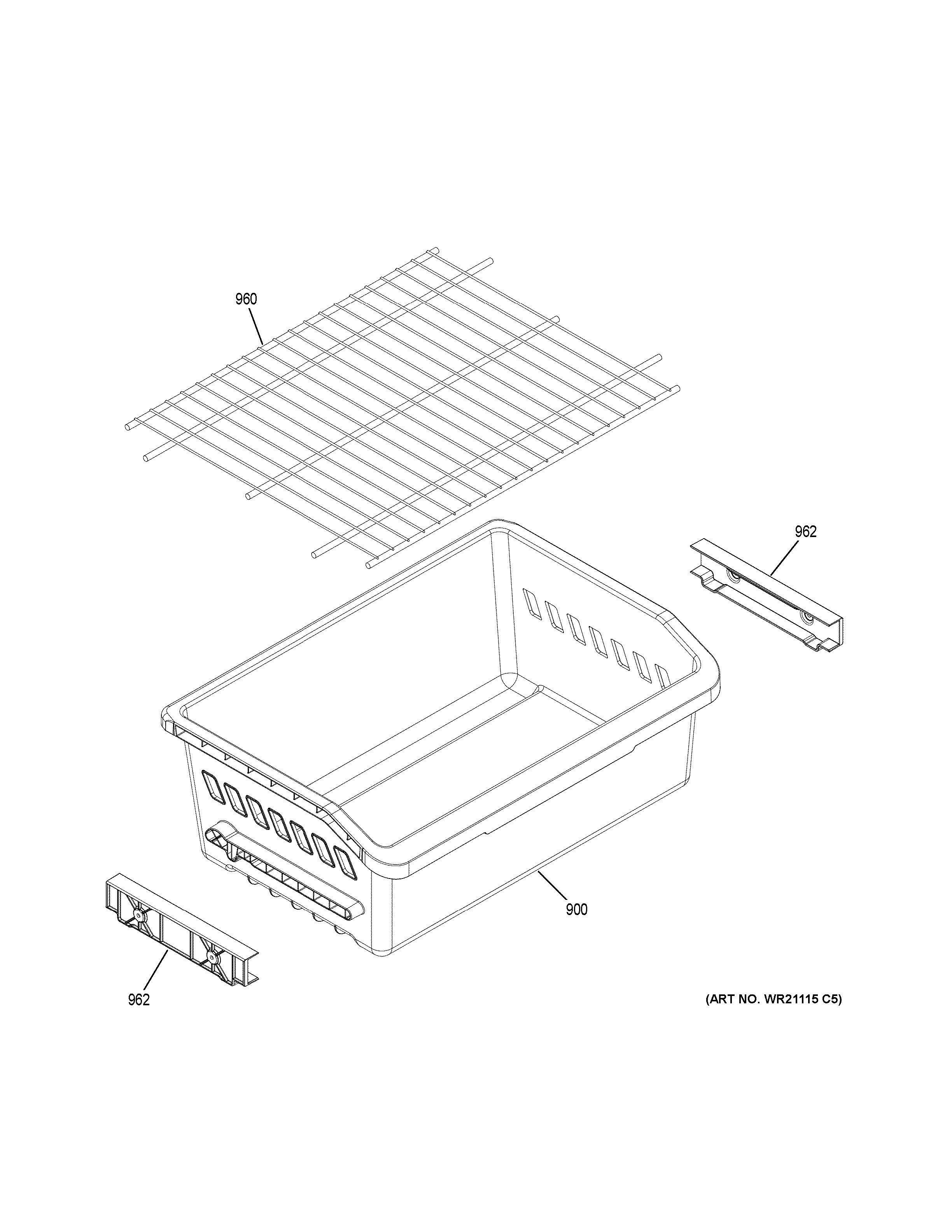

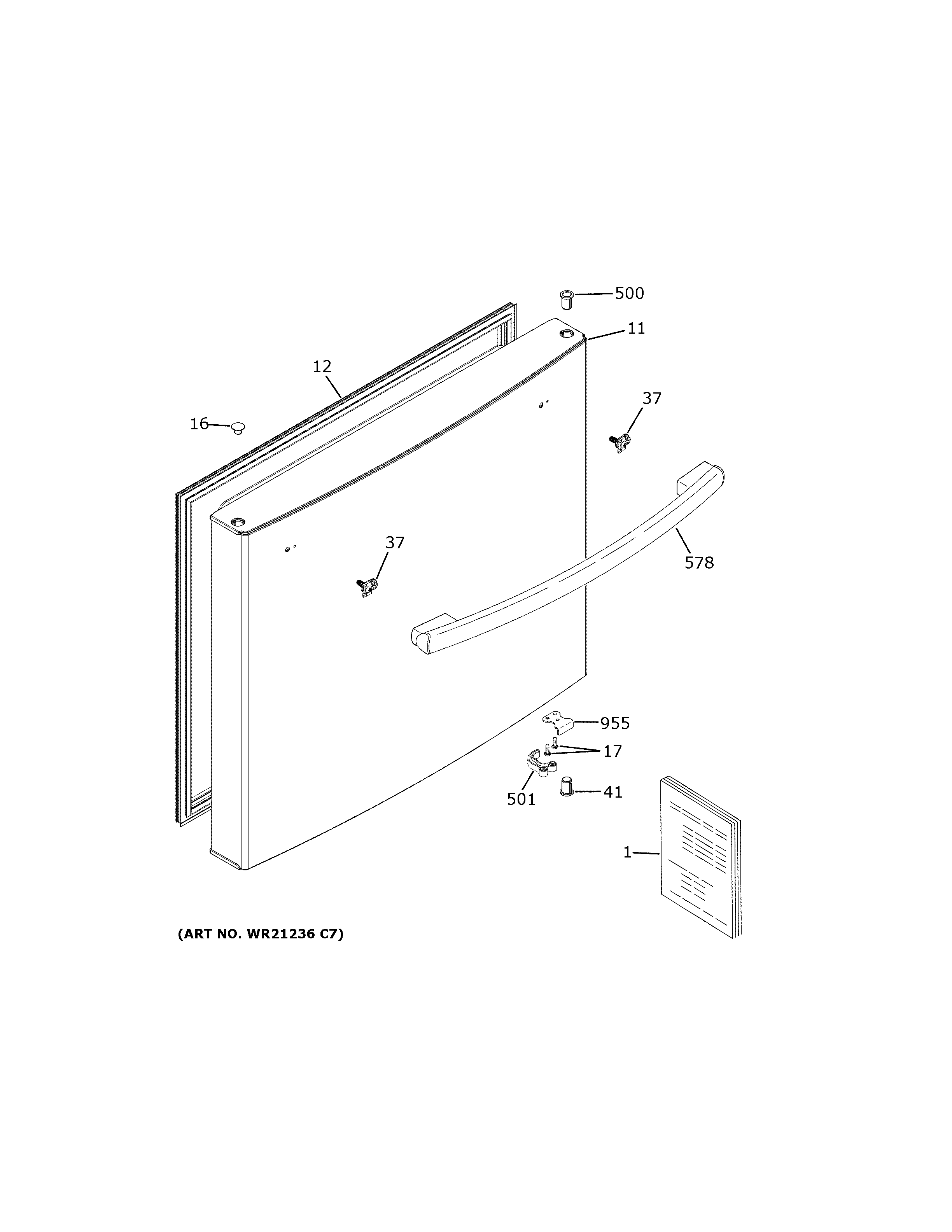

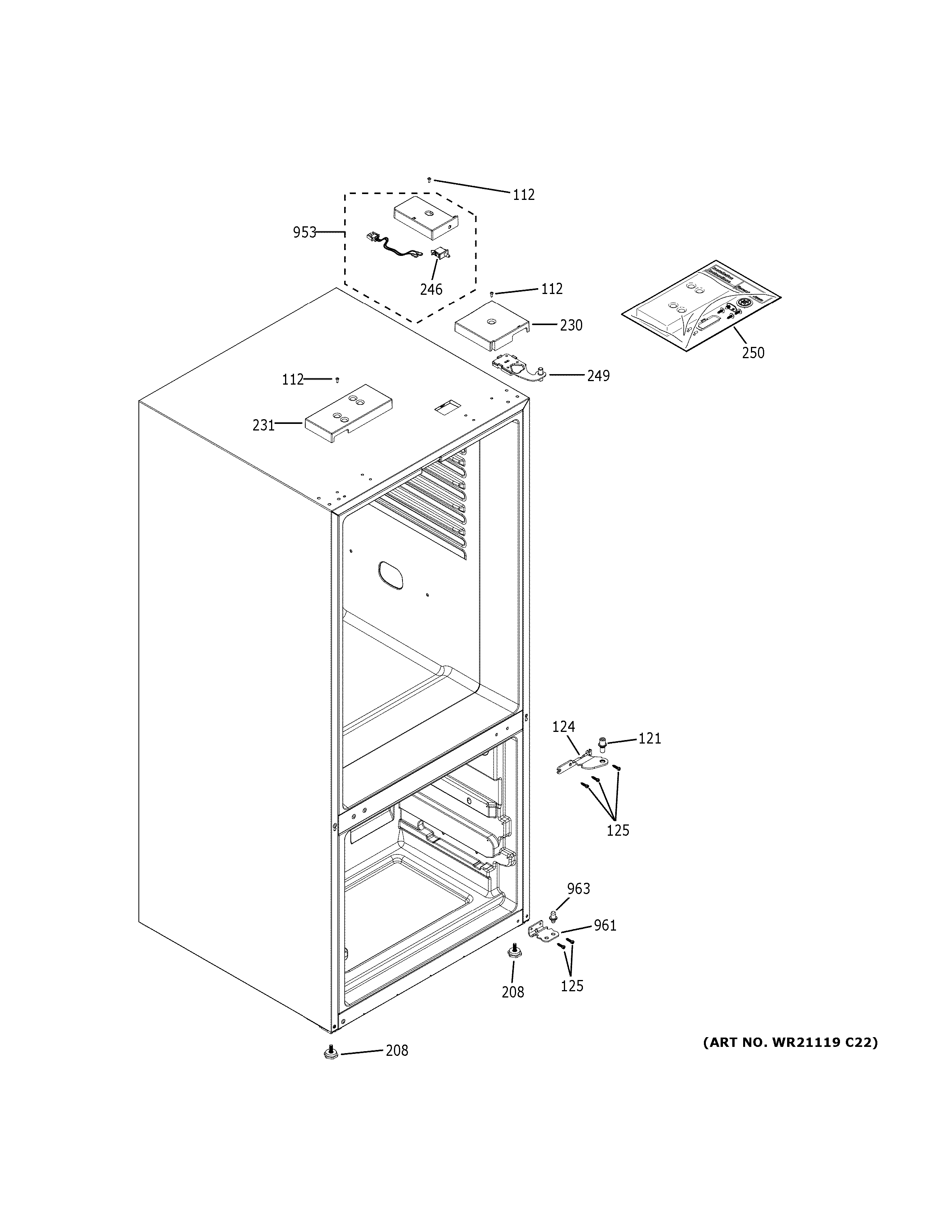

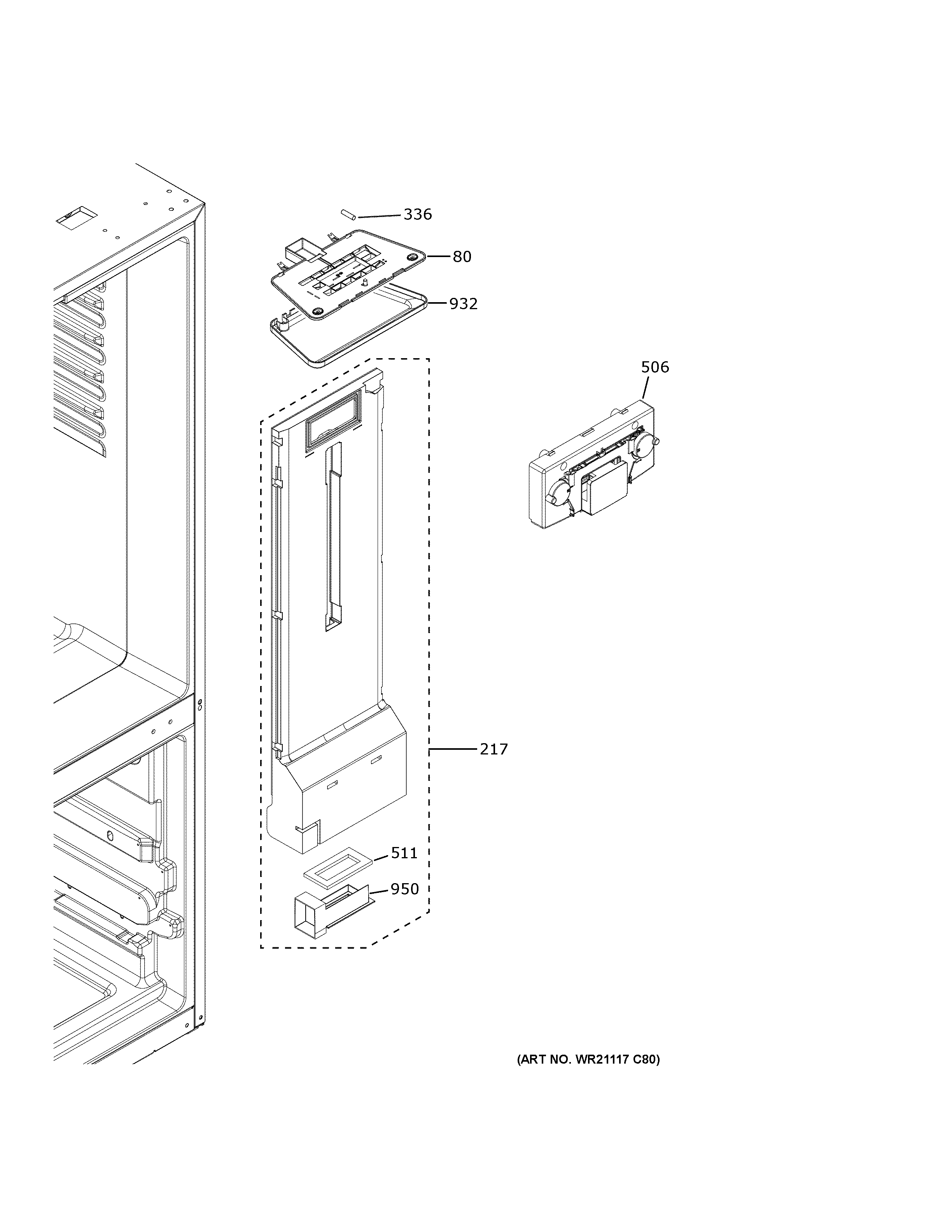

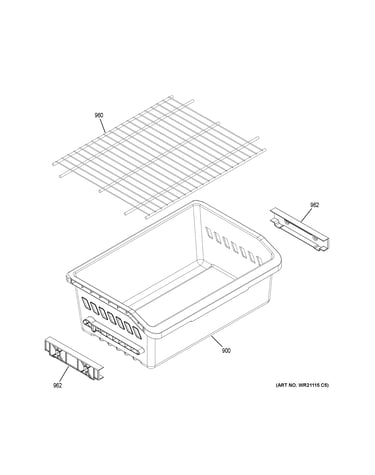

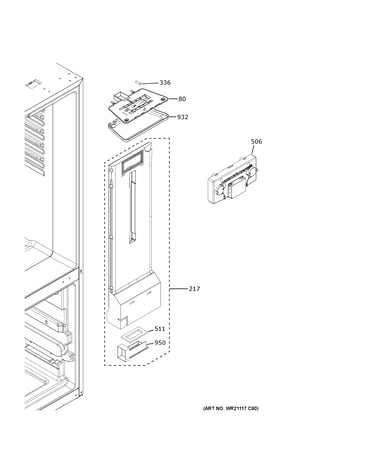

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
R600 Drier W/ Red Cap WR87X30875
#740

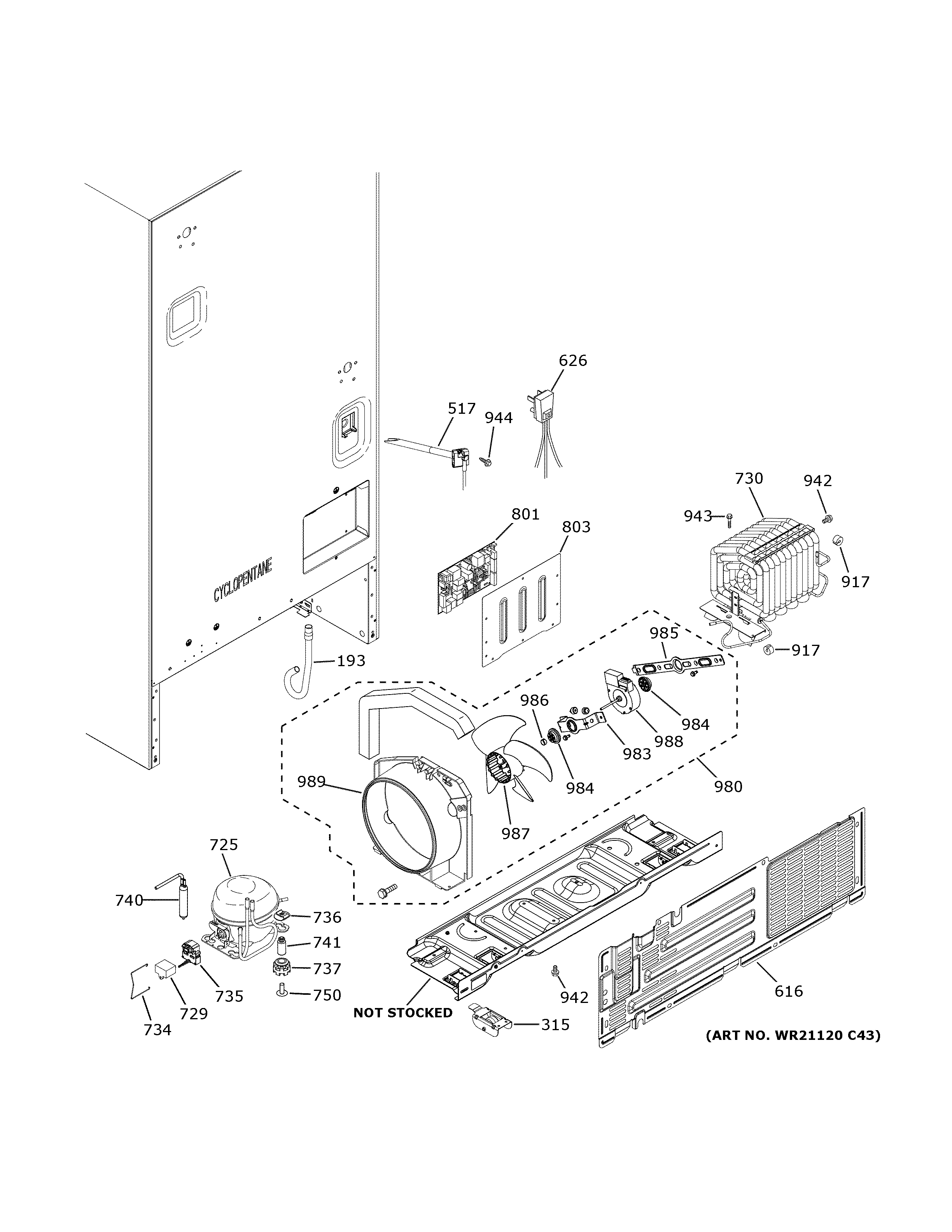

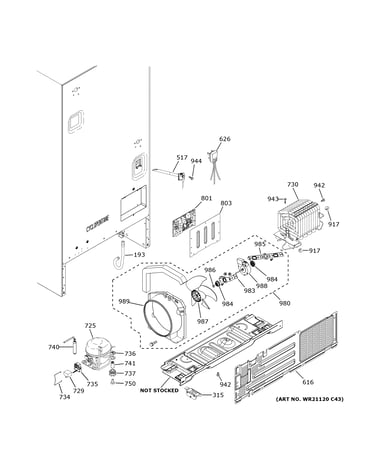

Machine compartment diagram

R600 drier w/ red cap

Part #WR87X30875

BEST SELLER
$56.29
In Stock
Refrigerator Run Capacitor WR55X23731
#729

Machine compartment diagram

Refrigerator run capacitor

Part #WR55X23731

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR55X23731. Substitute parts can look different from the original.
BEST SELLER
$41.95 |
13% OFF Phone Price : $47.95
In Stock
Hotpoint Refrigerator Evaporator Fan Blade (replaces Wr60x10208) WR60X30922
#229

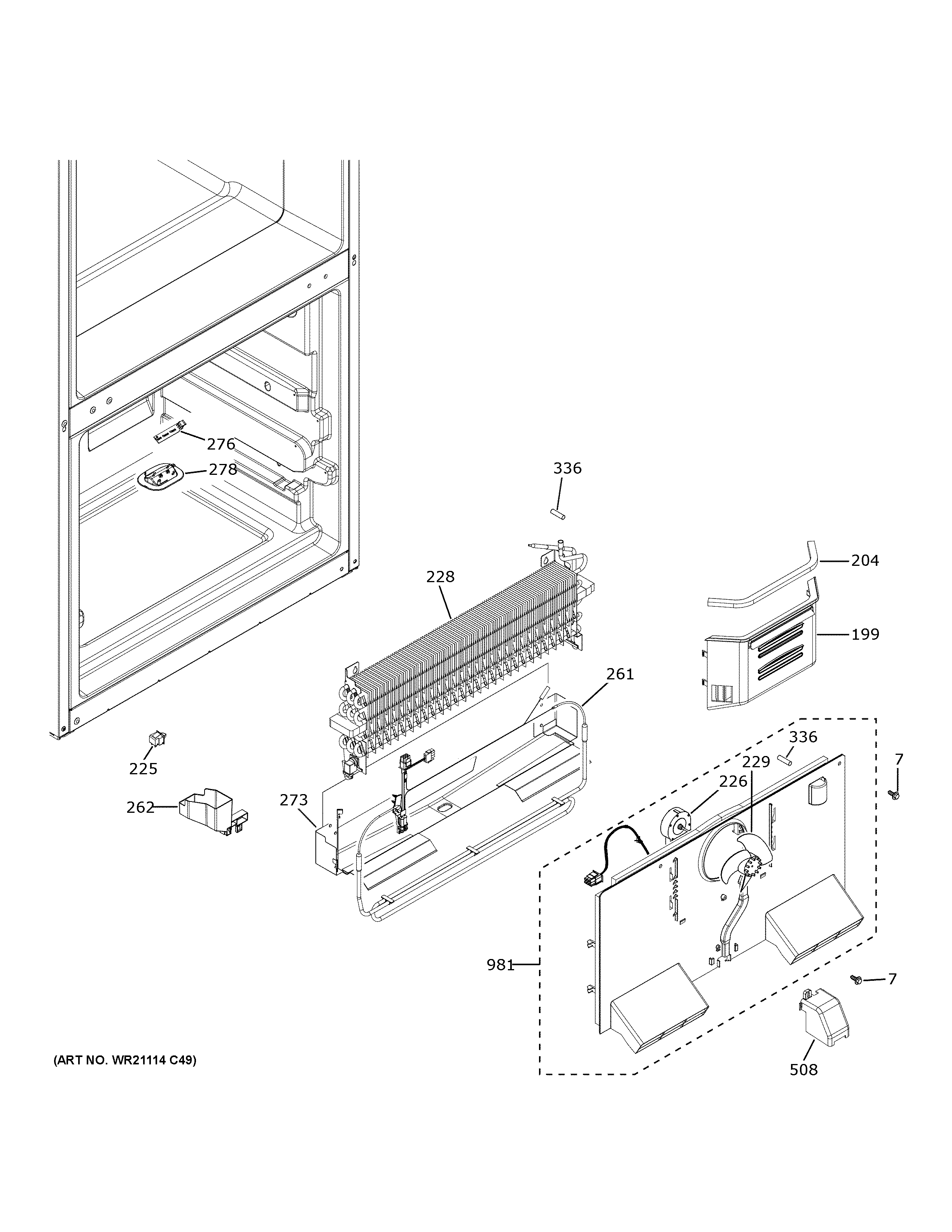

Freezer section diagram

Hotpoint refrigerator evaporator fan blade (replaces wr60x10208)

Part #WR60X30922

BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Compressor Meizhi WR87X40771
#725

Machine compartment diagram

Compressor meizhi

Part #WR87X40771

Replaced by #WR87X43805

?
Manufacturer substitution
This part replaces WR87X40771. Substitute parts can look different from the original.
BEST SELLER
$818.03
In Stock

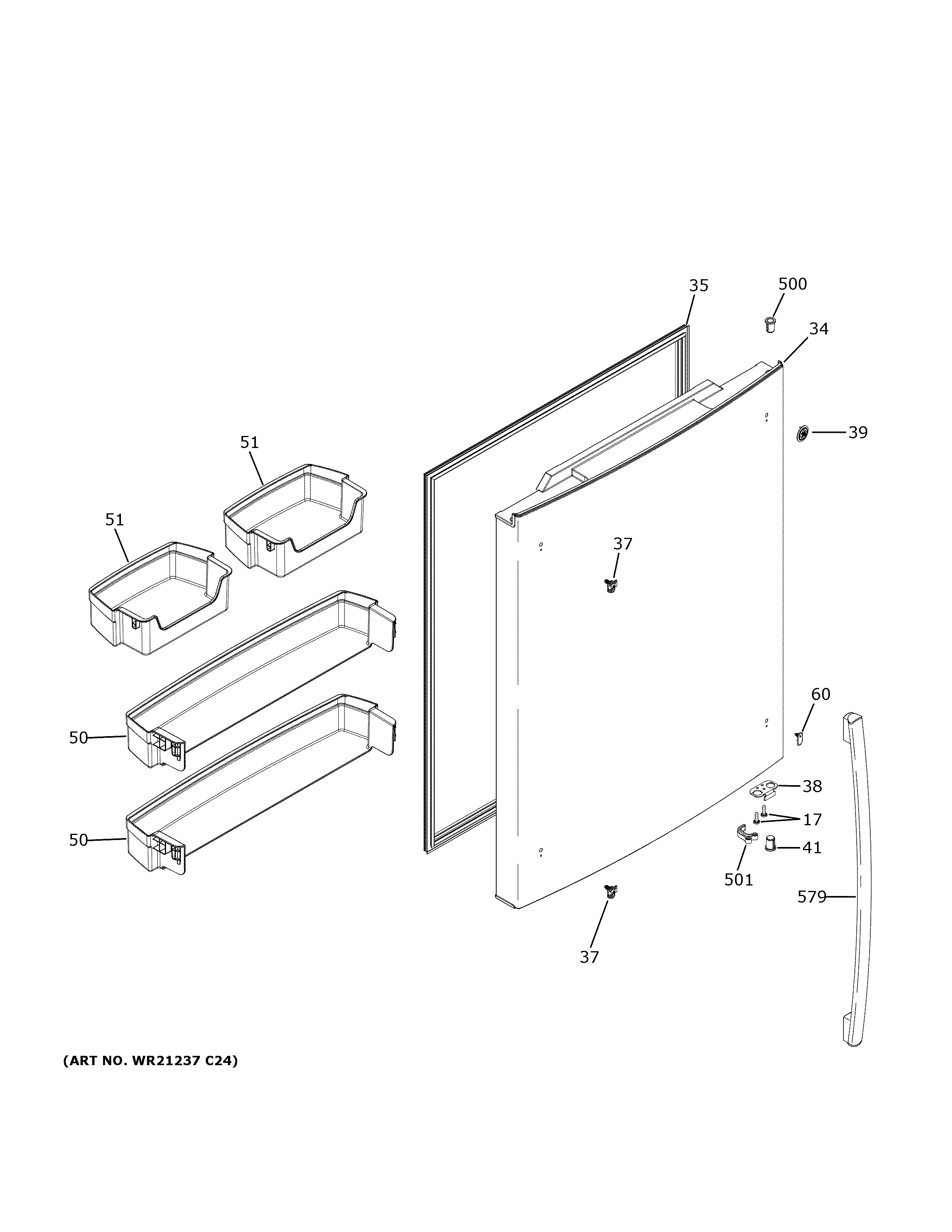

Refrigerator Door Handle Mounting Stud (replaces Wr01x25070) WR01X39781
Refrigerator door handle mounting stud (replaces wr01x25070)

Part #WR01X39781

BEST SELLER
$24.86
In Stock
Refrigerator Ice Maker (replaces Wr30x10093, Wr30x30719, Wr30x30919, Wr30x318, Wr30x40986) WR30X30972
#820

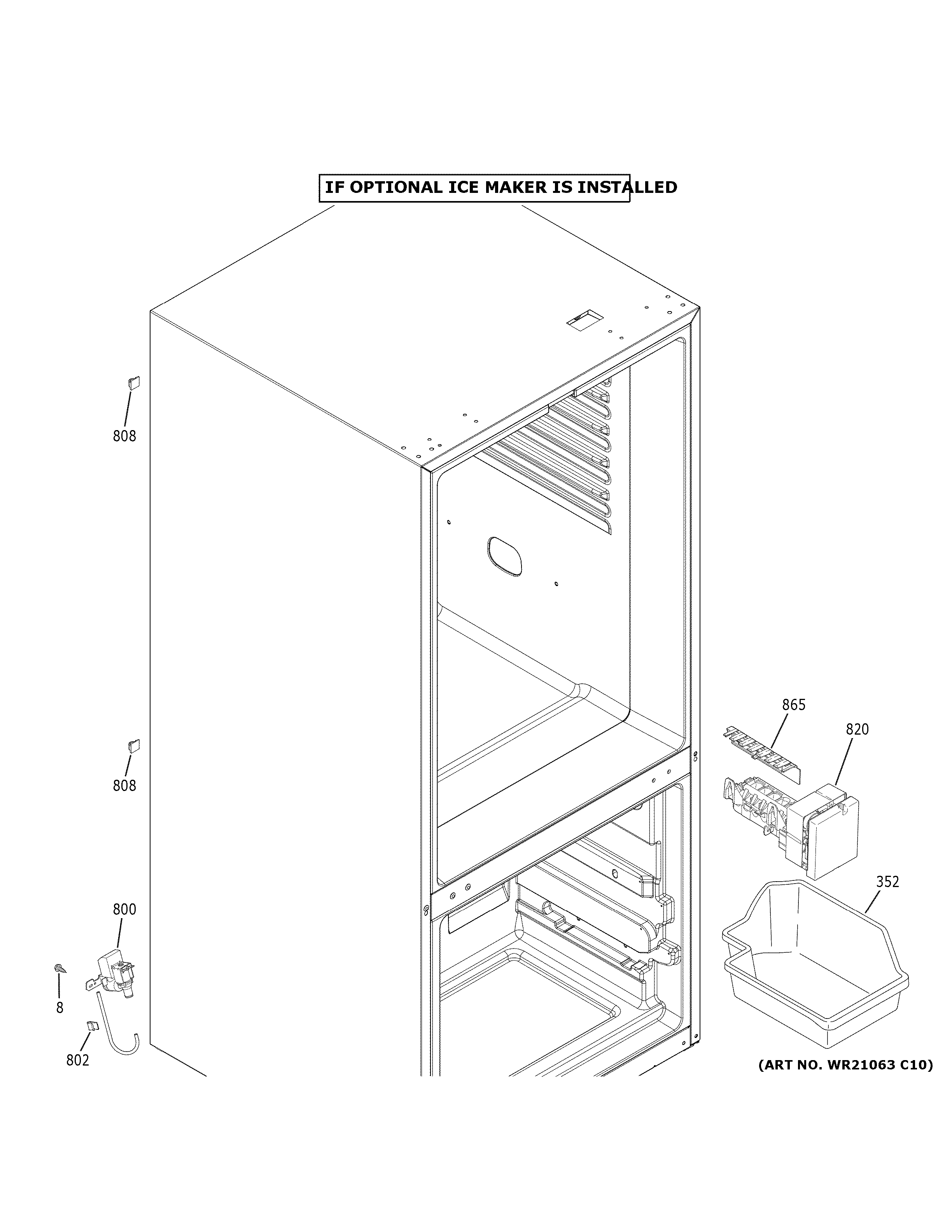

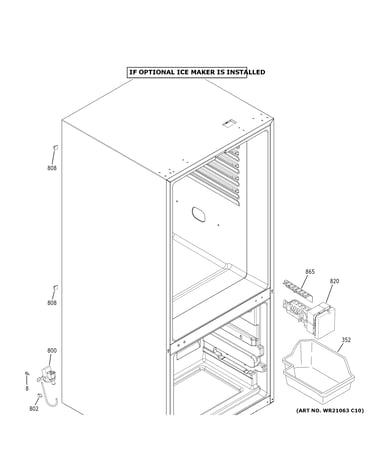

Ice maker diagram

Refrigerator ice maker (replaces wr30x10093, wr30x30719, wr30x30919, wr30x318, wr30x40986)

Part #WR30X30972

BEST SELLER
$174.74 |
6% OFF Phone Price : $186.74
In Stock
Refrigerator Drain Tube (replaces Wr02x10661, Wr02x12058) WR02X11426
#193

Machine compartment diagram

Refrigerator drain tube (replaces wr02x10661, wr02x12058)

Part #WR02X11426

BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Refrigerator Fan Blade Retainer Ring (replaces Wr02x10509, Wr02x10581) WR02X12149
#986

Machine compartment diagram

Refrigerator fan blade retainer ring (replaces wr02x10509, wr02x10581)

Part #WR02X12149

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Cplg1/4-5/32 WR97X10033
#7000

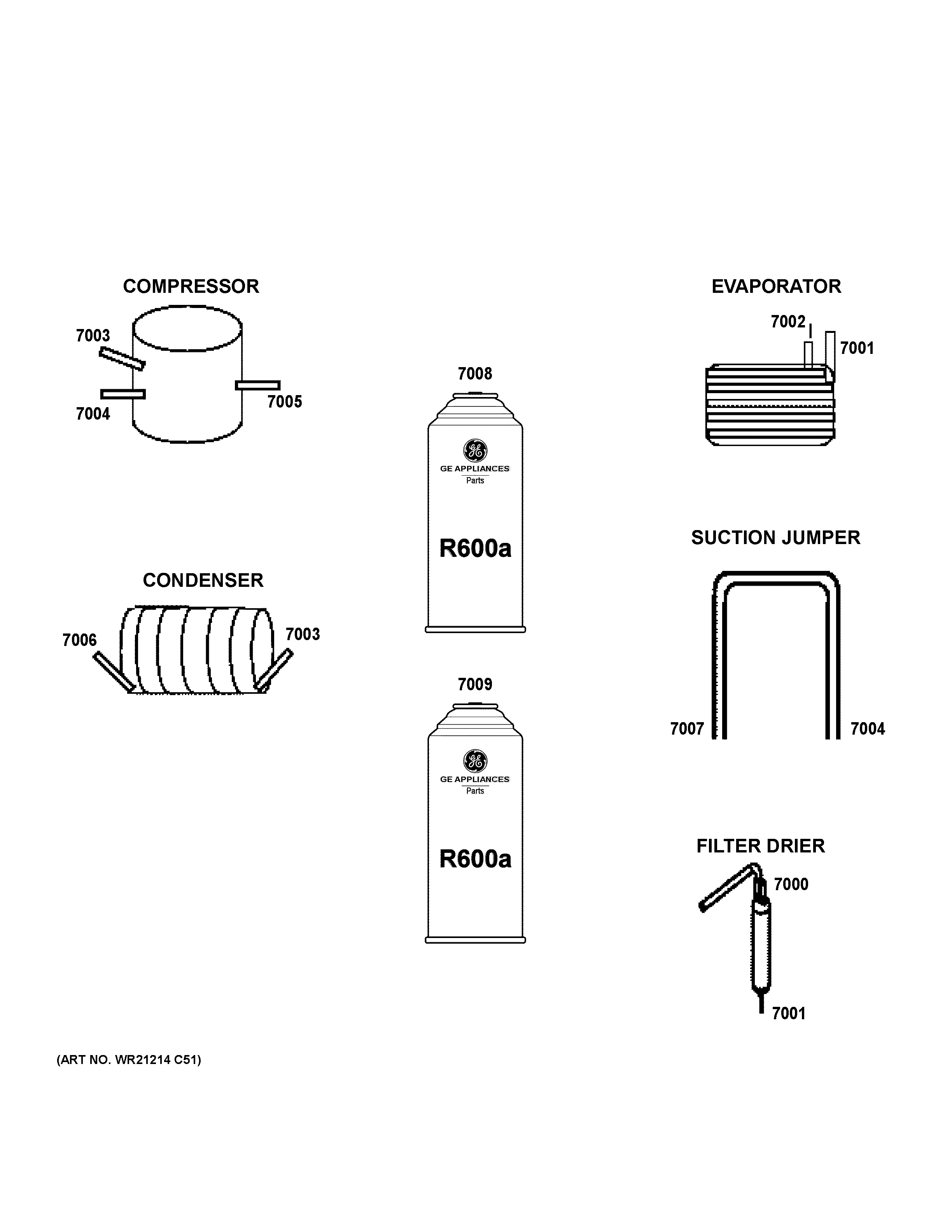

Lokring connectors diagram

Cplg1/4-5/32

Part #WR97X10033

$31.76
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

View all

Why won't my refrigerator run?

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Read more

Why won't my refrigerator ice maker make ice?

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Read more

Why is water dripping from my refrigerator onto the floor?

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Read more

Why is frost building up in my refrigerator's freezer?

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Read more

Why isn't my refrigerator cooling well?

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Read more

Why won't my refrigerator cool at all?

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Read more

Why is my freezer not cold enough?

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Read more

What routine maintenance does my refrigerator need?

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Read more
