Model # 167429580 Official Sears swimming pool fir deck & ladder

Here are the diagrams and repair parts for Official Sears 167429580 swimming pool fir deck & ladder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Washer 0523804
Washer

Part #0523804

The manufacturer no longer makes this part, and there's no substitute part

Nail 0553803
#28

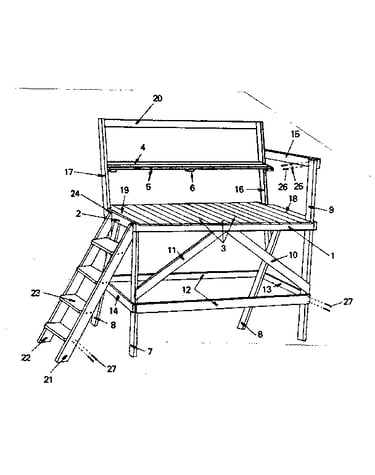

Frame assembly diagram

Nail

Part #0553803

The manufacturer no longer makes this part, and there's no substitute part

Leg 7452460
#8

Frame assembly diagram

Leg

Part #7452460

The manufacturer no longer makes this part, and there's no substitute part

Center Piece 7452510
#1

Frame assembly diagram

Center piece

Part #7452510

The manufacturer no longer makes this part, and there's no substitute part

Brace 7452590
#14

Frame assembly diagram

Brace

Part #7452590

The manufacturer no longer makes this part, and there's no substitute part

End Frame 7452410
#2

Frame assembly diagram

End frame

Part #7452410

The manufacturer no longer makes this part, and there's no substitute part

Board 7452490
#4

Frame assembly diagram

Board

Part #7452490

The manufacturer no longer makes this part, and there's no substitute part

Nail 0553804
#27

Frame assembly diagram

Nail

Part #0553804

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 0543865
#7

Inside ladder diagram

Machine screw

Part #0543865

The manufacturer no longer makes this part, and there's no substitute part

Brace 7452560
#11

Frame assembly diagram

Brace

Part #7452560

The manufacturer no longer makes this part, and there's no substitute part
