Model # AZ75H09DACM1 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ75H09DACM1 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Cord Holder WP01X10009
#1073

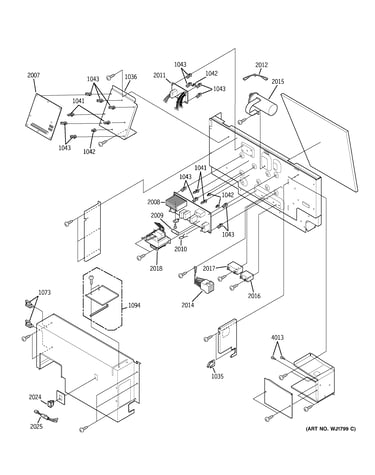

Control parts diagram

Cord holder

Part #WP01X10009

This item is not returnable
$4.35
In Stock
Room Air Conditioner Transformer WP27X10023
#2018

Control parts diagram

Room air conditioner transformer

Part #WP27X10023

$66.04 |
8% OFF Phone Price : $72.04
In Stock
Filter Guide WJ05X10029
#1069

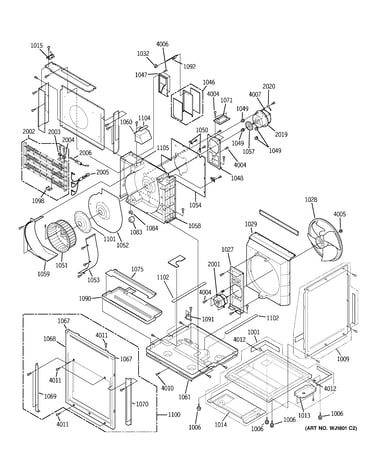

Motor, heater & base pan parts diagram

Filter guide

Part #WJ05X10029

$18.31
In Stock
Bulkhead Insert WJ40X10015
#1084

Motor, heater & base pan parts diagram

Bulkhead insert

Part #WJ40X10015

This item is not returnable
$4.35
In Stock
Zvac 7500 Se 49-7419
#9999

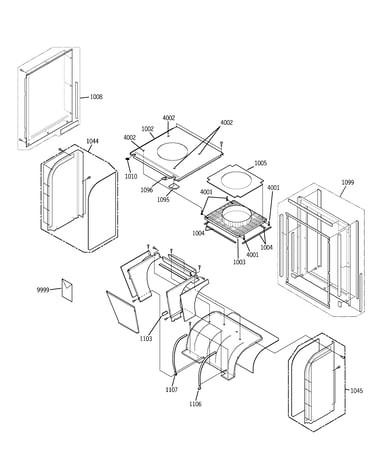

Chassis parts diagram

Zvac 7500 se

Part #49-7419

$8.49
In Stock
Divider R As WJ01X10169
#1045

Chassis parts diagram

Divider r as

Part #WJ01X10169

$88.94
In Stock
Room Air Conditioner Heater High-limit Thermostat WP28X10005
#2003

Motor, heater & base pan parts diagram

Room air conditioner heater high-limit thermostat

Part #WP28X10005

$35.76 |
14% OFF Phone Price : $41.76
In Stock
Special Screw WJ01X10178
#4013

Control parts diagram

Special screw

Part #WJ01X10178

This item is not returnable
$2.70
In Stock
Fan Housing WJ60X10007
#1104

Motor, heater & base pan parts diagram

Fan housing

Part #WJ60X10007

This item is not returnable
$4.99
In Stock
Complete Cushion WJ01X10002
#1066

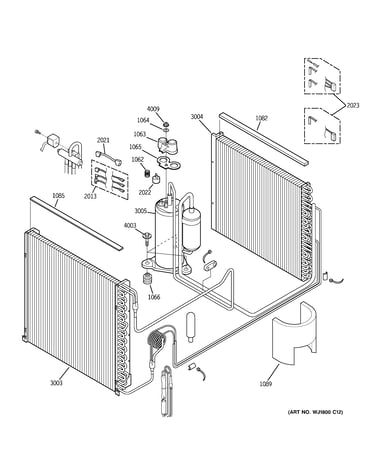

Unit parts diagram

Complete cushion

Part #WJ01X10002

This item is not returnable
$11.37 |
15% OFF Phone Price : $13.37
In Stock
