Kenmore
Gas Grill

Model # 14610377910 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 14610377910 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Permasteel Gas Grill Flame Tamer (replaces 40700023) 40800023
#B18

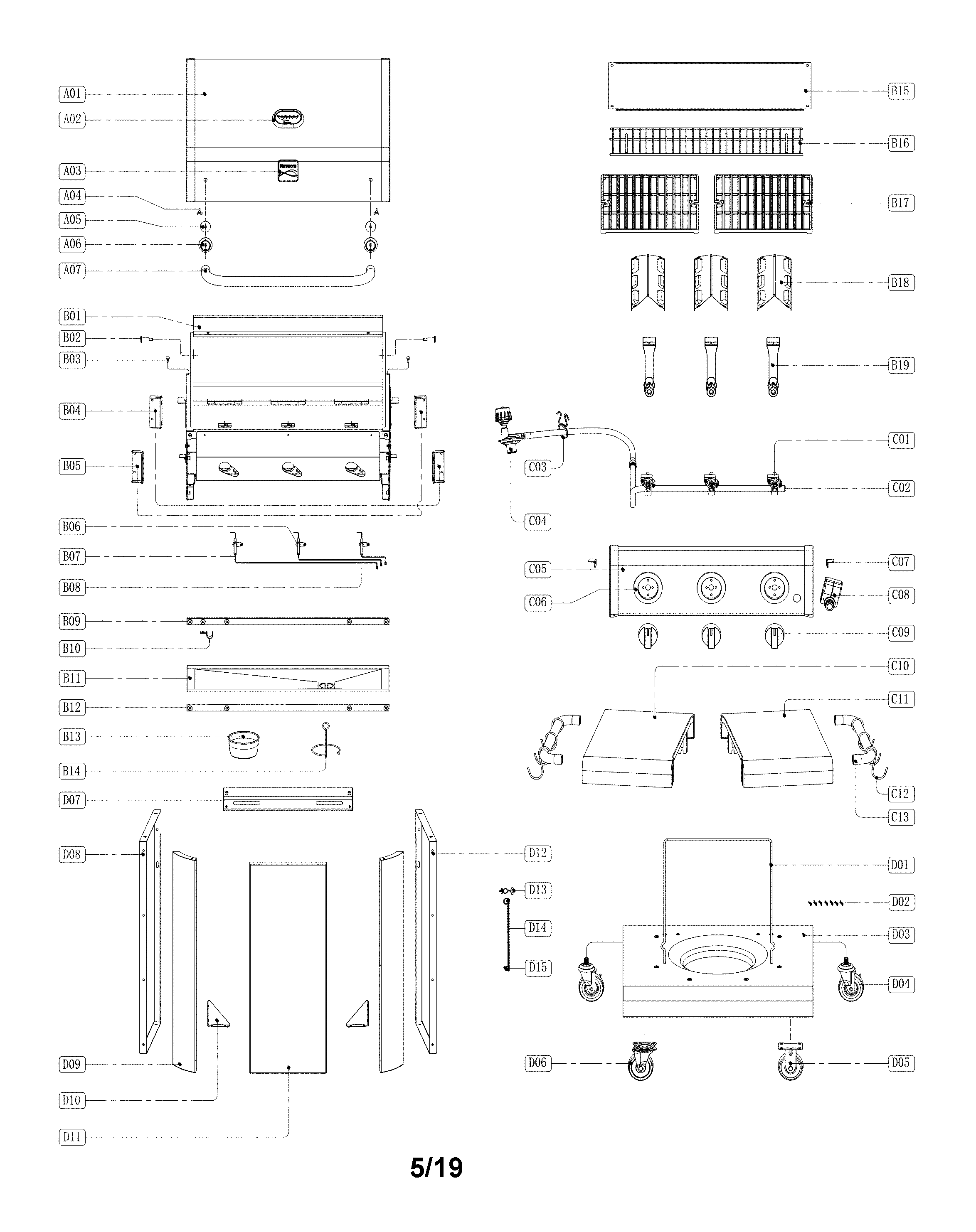

Gas grill diagram

Permasteel gas grill flame tamer (replaces 40700023)

Part #40800023

BEST SELLER
$33.63 |
15% OFF Phone Price : $39.63
In Stock
Gas Grill Grease Cup 40800026
#B13

Gas grill diagram

Gas grill grease cup

Part #40800026

$22.49 |
21% OFF Phone Price : $28.49
In Stock
Permasteel Gas Grill Burner Knob 40900206
#C09

Gas grill diagram

Permasteel gas grill burner knob

Part #40900206

$10.39 |
16% OFF Phone Price : $12.39
In Stock
Gas Grill Push Bar 40800099
#C13

Gas grill diagram

Gas grill push bar

Part #40800099

$14.49 |
12% OFF Phone Price : $16.49
In Stock
Gas Grill Lid Hinge Pin 50300207
#B02

Gas grill diagram

Gas grill lid hinge pin

Part #50300207

This item is not returnable
$3.11 |
24% OFF Phone Price : $4.11
In Stock
Gas Grill Lid Handle 30400014
#A07

Gas grill diagram

Gas grill lid handle

Part #30400014

$24.38
In Stock
Gas Grill Regulator And Hose Assembly 30400051
#C04

Gas grill diagram

Gas grill regulator and hose assembly

Part #30400051

$50.62 |
11% OFF Phone Price : $56.62
In Stock
Drip Tray 30400019
#B11

Gas grill diagram

Drip tray

Part #30400019

$24.60 |
20% OFF Phone Price : $30.60
In Stock
Gas Grill Caster Wheel 40900213
#D06

Gas grill diagram

Gas grill caster wheel

Part #40900213

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Gas Grill Lid Bumper 40700103
#A04

Gas grill diagram

Gas grill lid bumper

Part #40700103

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
