Gas Cooktop

Model # NGT945UC/01 Official Bosch gas cooktop

Here are the diagrams and repair parts for Official Bosch NGT945UC-01 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Cooktop Burner Orifice Nut 188978
#112

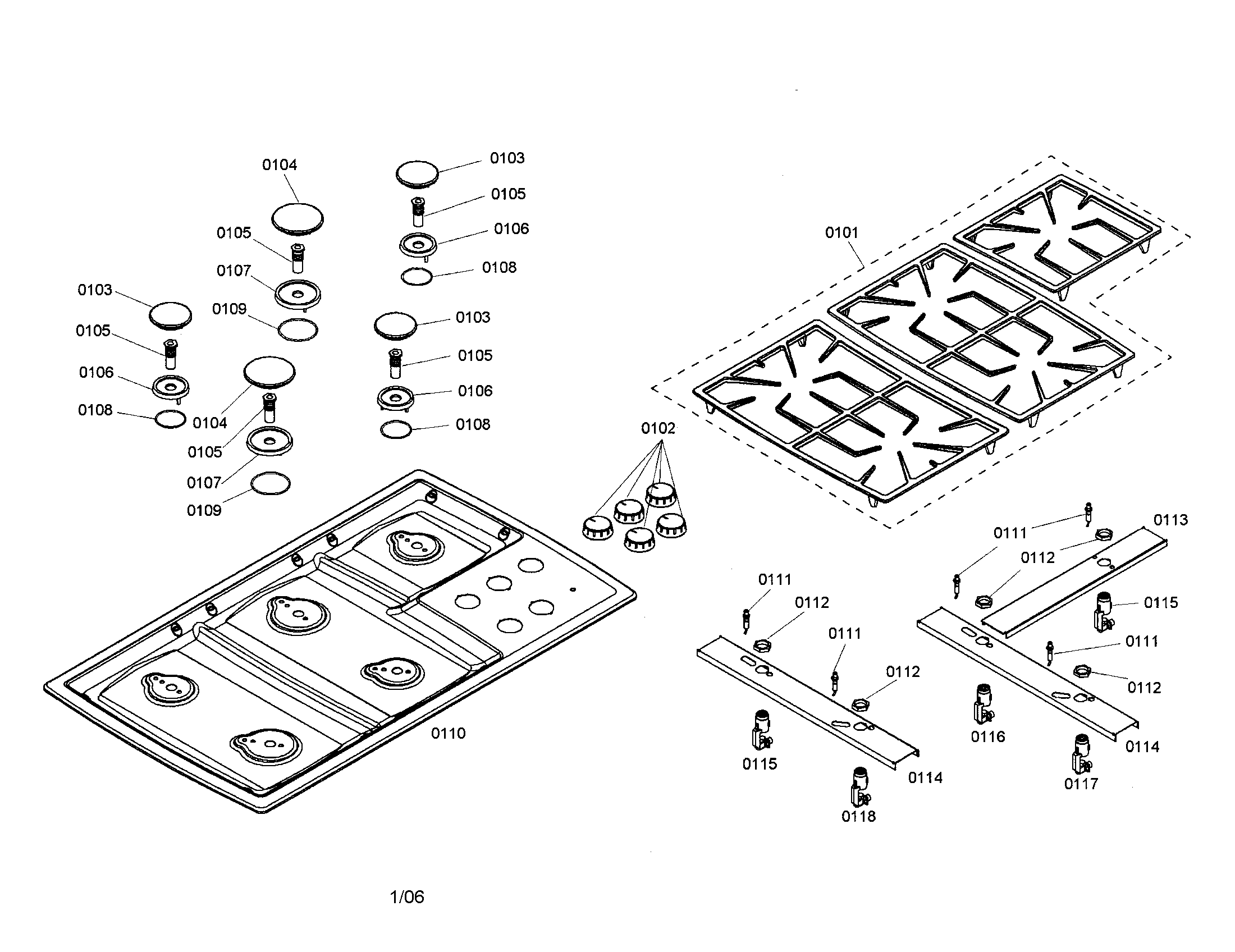

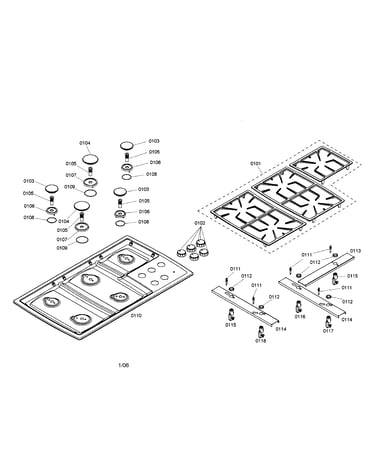

Grate/maintop/burner cap/jet holder diagram

Cooktop burner orifice nut

Part #188978

Replaced by #00188978

?
Manufacturer substitution
This part replaces 188978. Substitute parts can look different from the original.
$20.59 |
23% OFF Phone Price : $26.59
In Stock
Ignition Head 189324
#111

Grate/maintop/burner cap/jet holder diagram

Ignition head

Part #189324

Replaced by #00189324

?
Manufacturer substitution
This part replaces 189324. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
In Stock
Cooktop Surface Burner Cap 189336
#103

Grate/maintop/burner cap/jet holder diagram

Cooktop surface burner cap

Part #189336

Replaced by #00189336

?
Manufacturer substitution
This part replaces 189336. Substitute parts can look different from the original.
$77.49 |
7% OFF Phone Price : $83.49
In Stock
Out Valve 189307
#203

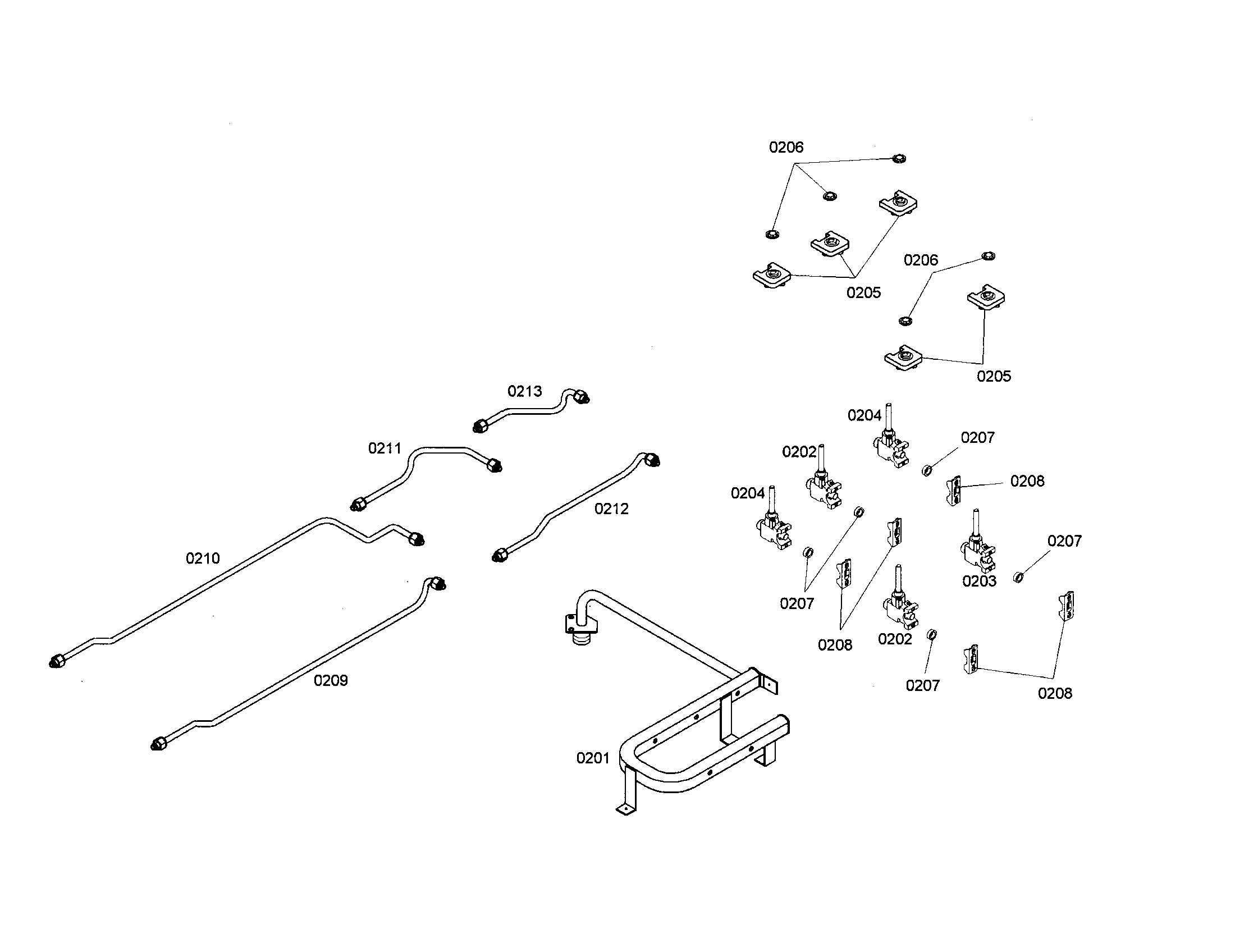

Manifold/valve/tubing diagram

Out valve

Part #189307

Replaced by #00189307

?
Manufacturer substitution
This part replaces 189307. Substitute parts can look different from the original.
$35.24
In Stock
Cooktop Spark Switch 189008
#205

Manifold/valve/tubing diagram

Cooktop spark switch

Part #189008

Replaced by #00189008

?
Manufacturer substitution
This part replaces 189008. Substitute parts can look different from the original.
$33.59 |
15% OFF Phone Price : $39.59
In Stock
Tube 189321
#105

Grate/maintop/burner cap/jet holder diagram

Tube

Part #189321

Replaced by #00189321

?
Manufacturer substitution
This part replaces 189321. Substitute parts can look different from the original.
$46.44
In Stock
Valve (blue) 189305
#204

Manifold/valve/tubing diagram

Valve (blue)

Part #189305

Replaced by #00189305

?
Manufacturer substitution
This part replaces 189305. Substitute parts can look different from the original.
$43.98
In Stock
Burn Cap C 189335
#104

Grate/maintop/burner cap/jet holder diagram

Burn cap c

Part #189335

Replaced by #00189335

?
Manufacturer substitution
This part replaces 189335. Substitute parts can look different from the original.
$121.02 |
9% OFF Phone Price : $133.02
In Stock
Power Module 486771
#303

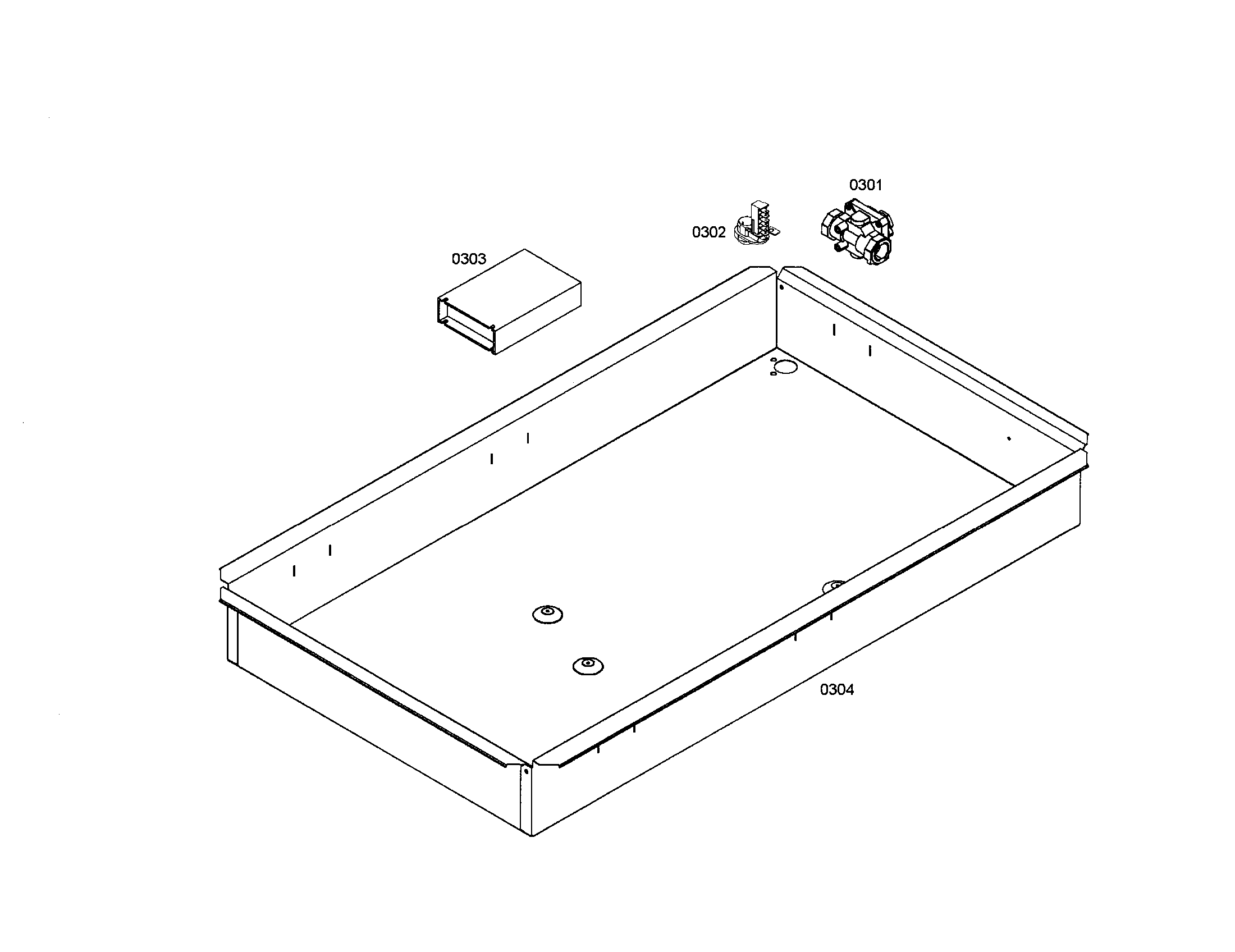

Regulator/housing, box diagram

Power module

Part #486771

Replaced by #00753257

?
Manufacturer substitution
This part replaces 486771. Substitute parts can look different from the original.
$179.68 |
6% OFF Phone Price : $191.68
In Stock
Base 189318
#106

Grate/maintop/burner cap/jet holder diagram

Base

Part #189318

Replaced by #00189318

?
Manufacturer substitution
This part replaces 189318. Substitute parts can look different from the original.
$77.87
In Stock
