Model # 315109530 Official Craftsman circular saw

Here are the diagrams and repair parts for Official Craftsman 315109530 circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Washer 706239-845
#8

Motor assembly diagram

Washer

Part #706239-845

The manufacturer no longer makes this part, and there's no substitute part

Retain Ring 718602-804
#12

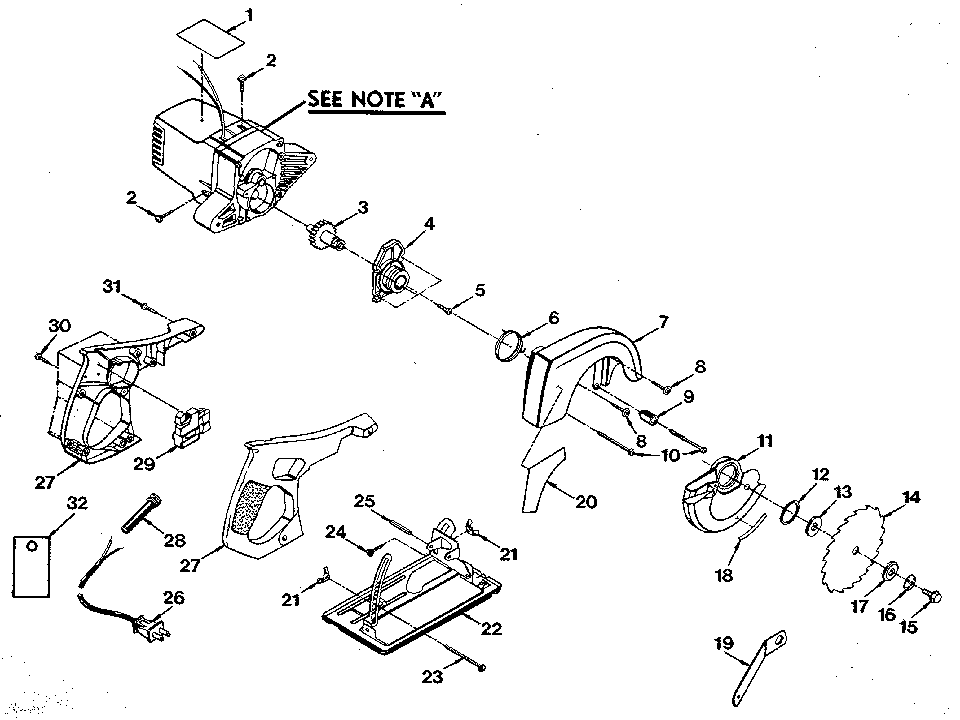

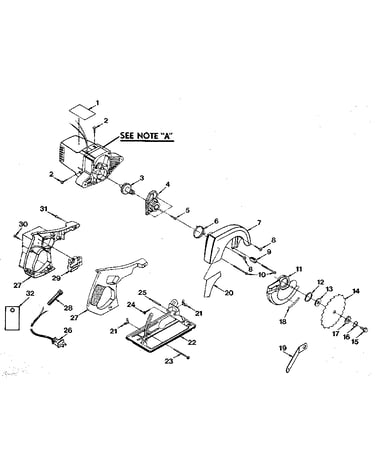

Base and blade assembly diagram

Retain ring

Part #718602-804

The manufacturer no longer makes this part, and there's no substitute part

Screw 617966-009
#30

Base and blade assembly diagram

Screw

Part #617966-009

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 998441-004
#14

Motor assembly diagram

Motor housing

Part #998441-004

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly 999774-002
#22

Base and blade assembly diagram

Base assembly

Part #999774-002

The manufacturer no longer makes this part, and there's no substitute part

Armature 998418-025
#11

Motor assembly diagram

Armature

Part #998418-025

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut 621438-006
#21

Base and blade assembly diagram

Wing nut

Part #621438-006

The manufacturer no longer makes this part, and there's no substitute part

Guard 999979-002
#7

Base and blade assembly diagram

Guard

Part #999979-002

The manufacturer no longer makes this part, and there's no substitute part

Decal 999988-001
#18

Base and blade assembly diagram

Decal

Part #999988-001

The manufacturer no longer makes this part, and there's no substitute part

Bolt 621433-013
#23

Base and blade assembly diagram

Bolt

Part #621433-013

The manufacturer no longer makes this part, and there's no substitute part
