Model # 266292420 Official Lifestyler exercise cycle

Here are the diagrams and repair parts for Official Lifestyler 266292420 exercise cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Console 081116
#20

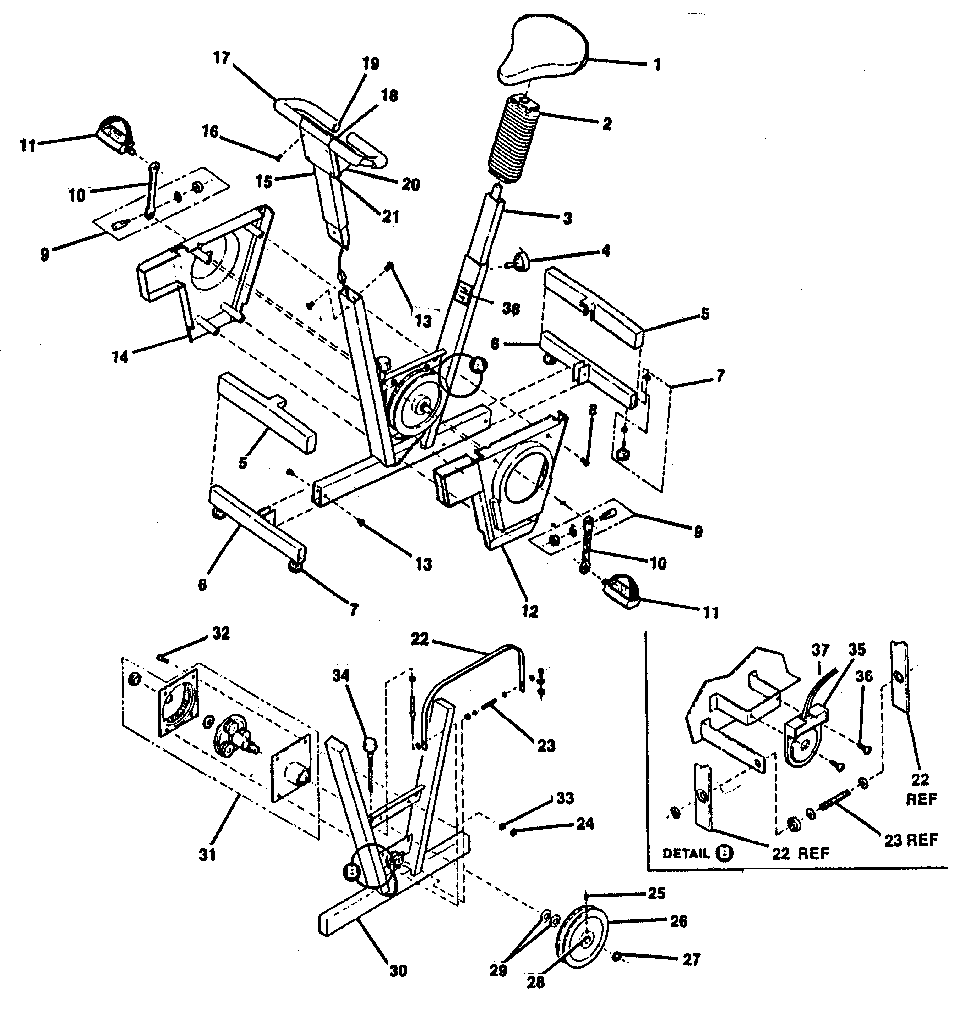

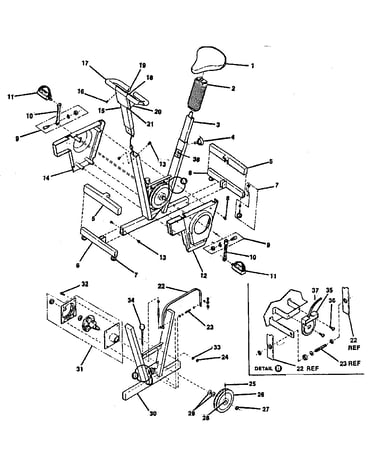

Unit parts diagram

Console

Part #081116

The manufacturer no longer makes this part, and there's no substitute part

Seat 035416
#1

Unit parts diagram

Seat

Part #035416

The manufacturer no longer makes this part, and there's no substitute part

Support 082015
#6

Unit parts diagram

Support

Part #082015

The manufacturer no longer makes this part, and there's no substitute part

Knob 082554
#4

Unit parts diagram

Knob

Part #082554

The manufacturer no longer makes this part, and there's no substitute part

Hardware 083658
#7

Unit parts diagram

Hardware

Part #083658

The manufacturer no longer makes this part, and there's no substitute part

Strap 080675
#22

Unit parts diagram

Strap

Part #080675

The manufacturer no longer makes this part, and there's no substitute part

Key Rect 080438
#28

Unit parts diagram

Key rect

Part #080438

The manufacturer no longer makes this part, and there's no substitute part

Pick-up 071560
#35

Unit parts diagram

Pick-up

Part #071560

The manufacturer no longer makes this part, and there's no substitute part

Crnk Arm Rl 056235
#10

Unit parts diagram

Crnk arm rl

Part #056235

The manufacturer no longer makes this part, and there's no substitute part

Cover Plate 081965
#14

Unit parts diagram

Cover plate

Part #081965

The manufacturer no longer makes this part, and there's no substitute part
