Model # CXL 4200 (5APE) Official Smith Corona typewriter

Here are the diagrams and repair parts for Official Smith Corona CXL-4200-5APE typewriter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

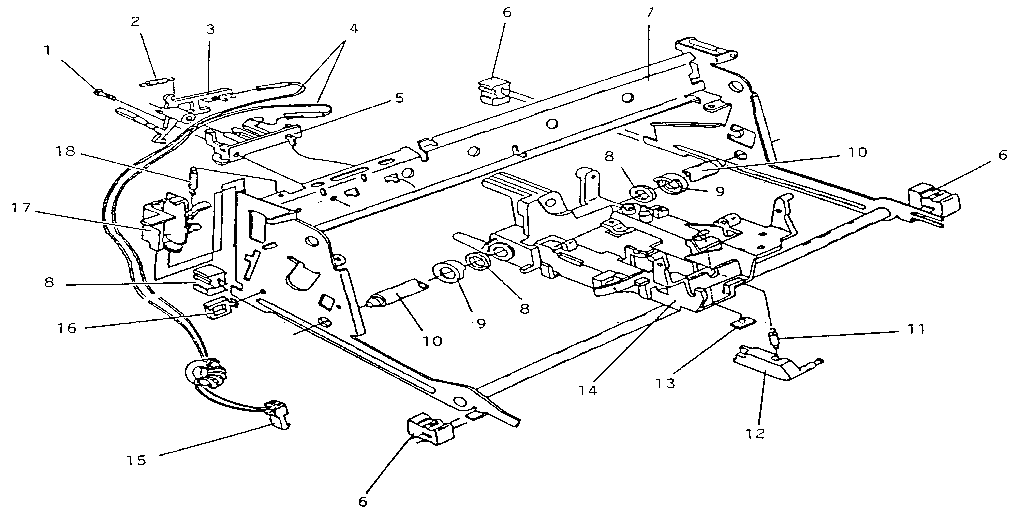

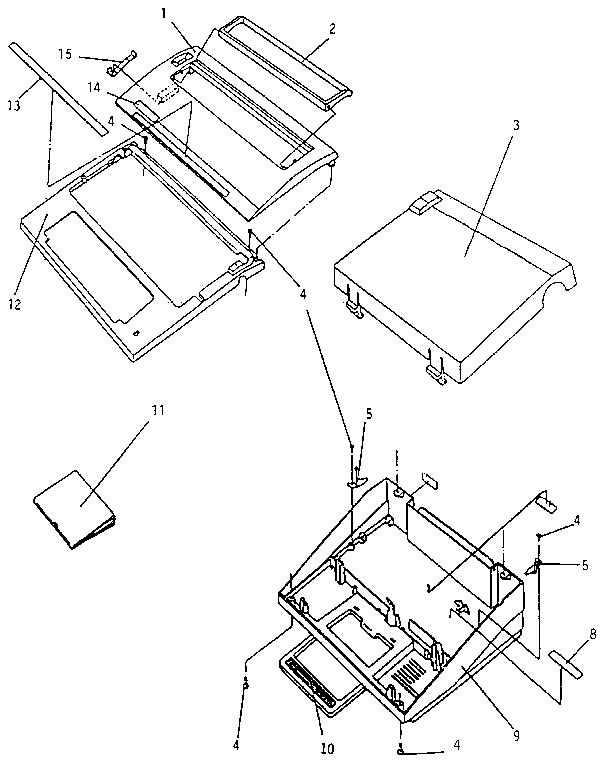

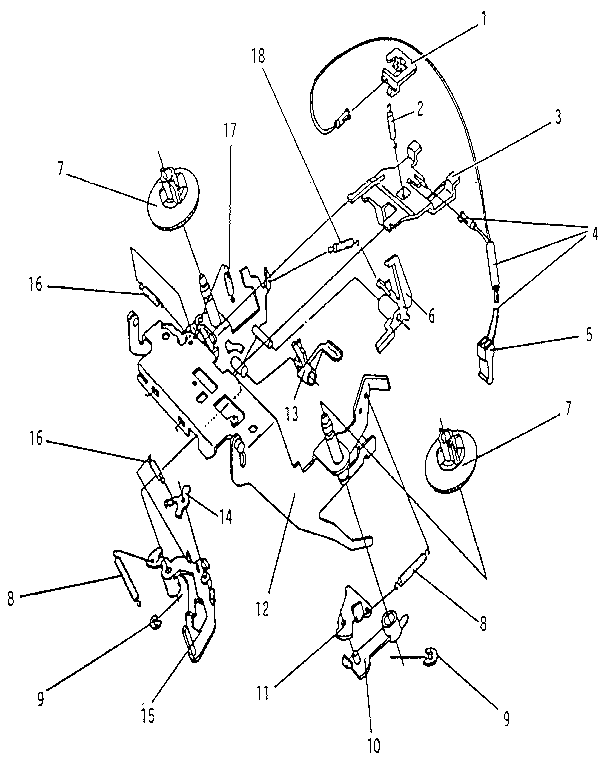

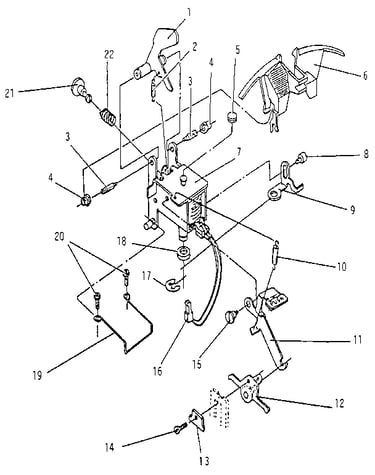

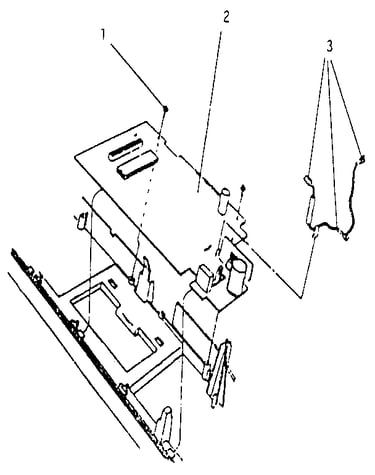

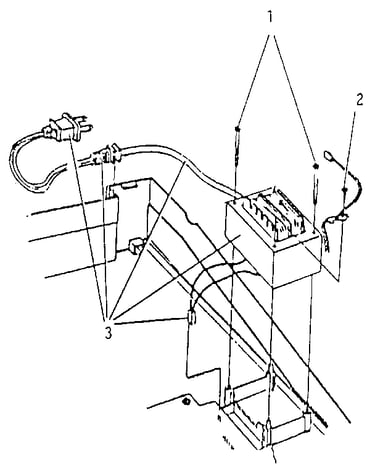

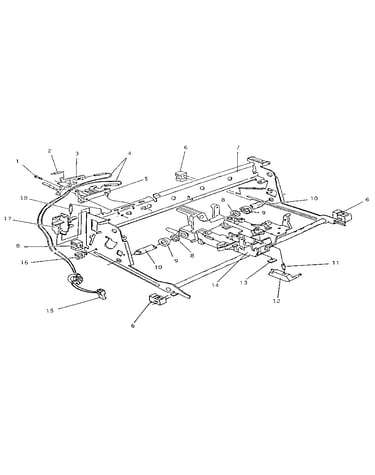

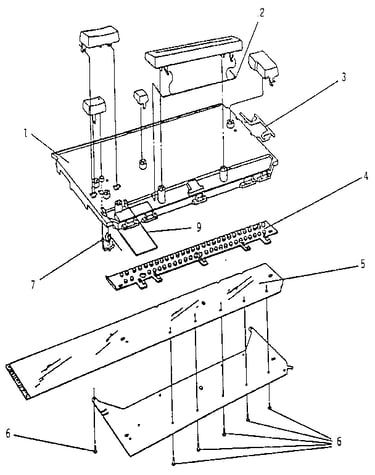

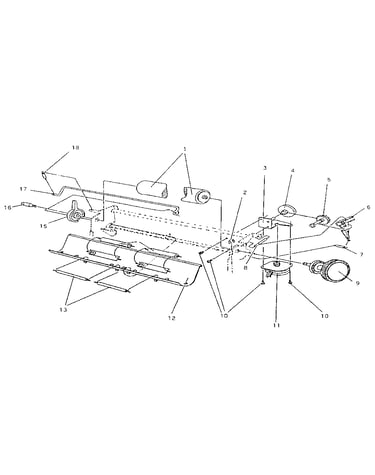

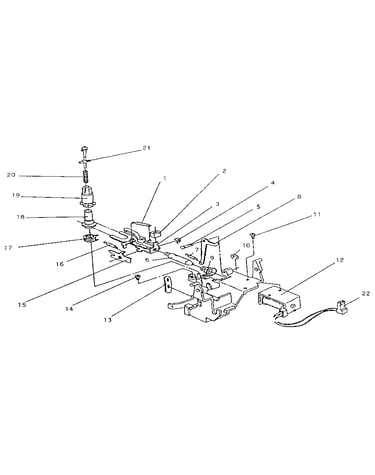

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |

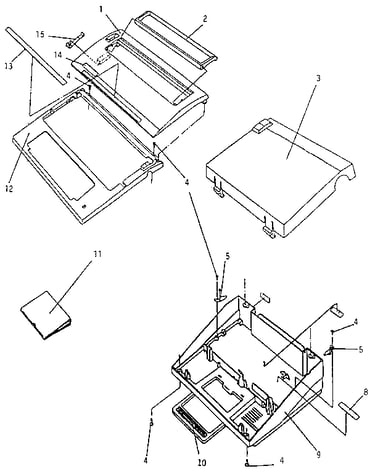

Cvr Up Rbbn 59055

#NI

All parts diagram

Cvr up rbbn

Part #59055

The manufacturer no longer makes this part, and there's no substitute part

Key Button 778437
#38

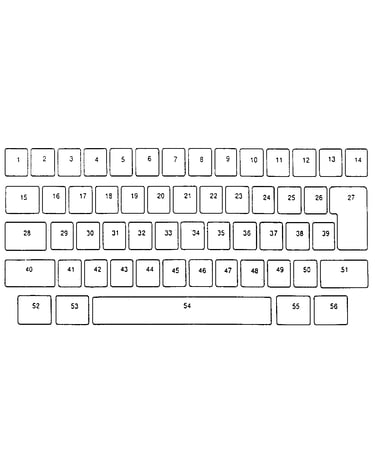

Keybutton reference chart diagram

Key button

Part #778437

The manufacturer no longer makes this part, and there's no substitute part

Spring 751719
#4

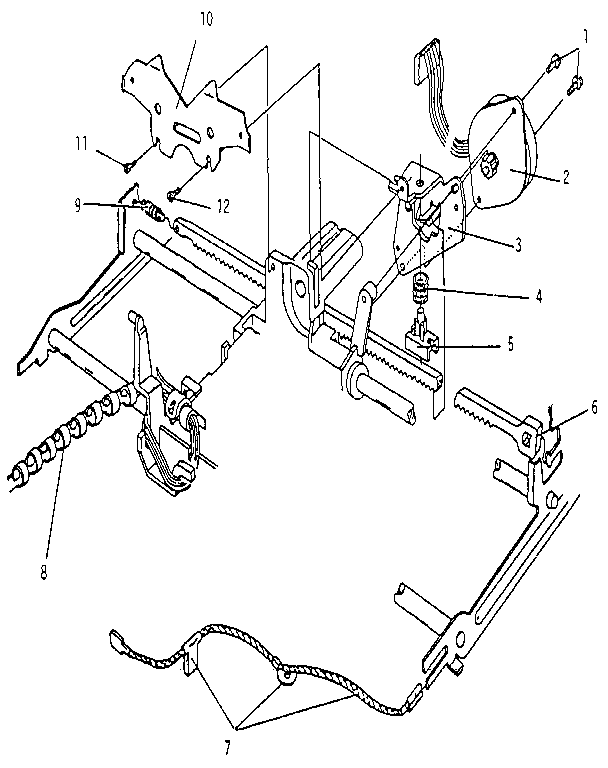

Carrier drive diagram

Spring

Part #751719

The manufacturer no longer makes this part, and there's no substitute part

Keybutton,g 778432
#33

Keybutton reference chart diagram

Keybutton,g

Part #778432

The manufacturer no longer makes this part, and there's no substitute part

Tab 778414
#15

Keybutton reference chart diagram

Tab

Part #778414

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 770175
#11

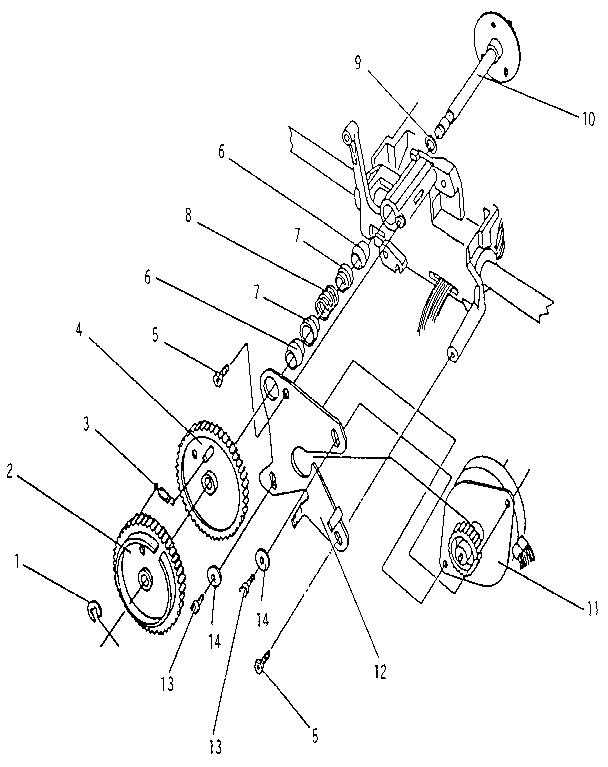

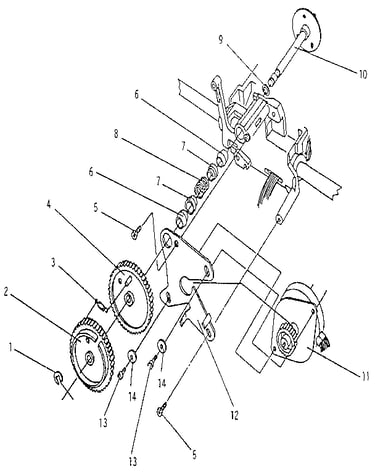

Element drive diagram
