Craftsman
Front-Engine Lawn Tractor

Model # 91799670 Official Craftsman 12-v lighting kit for custom tractor with electric starter

Here are the diagrams and repair parts for Official Craftsman 91799670 12-v lighting kit for custom tractor with electric starter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Screw 9409101
#11

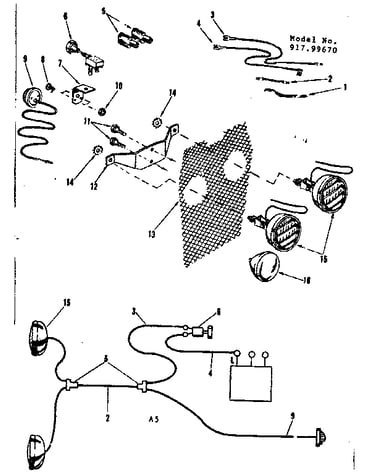

Replacement parts diagram

Screw

Part #9409101

The manufacturer no longer makes this part, and there's no substitute part

Bracket 5730H
#7

Replacement parts diagram

Bracket

Part #5730H

The manufacturer no longer makes this part, and there's no substitute part

Screw 187463
#8

Replacement parts diagram

Screw

Part #187463

The manufacturer no longer makes this part, and there's no substitute part

Wire Wrapper 3498H
#1

Replacement parts diagram

Wire wrapper

Part #3498H

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 6144H
#2

Replacement parts diagram

Lead wire

Part #6144H

The manufacturer no longer makes this part, and there's no substitute part

Nut 120361
#10

Replacement parts diagram

Nut

Part #120361

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 6135H
#4

Replacement parts diagram

Lead wire

Part #6135H

The manufacturer no longer makes this part, and there's no substitute part

Tail Light 6134H
#9

Replacement parts diagram

Tail light

Part #6134H

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 6136H
#3

Replacement parts diagram

Lead wire

Part #6136H

The manufacturer no longer makes this part, and there's no substitute part

Connect Wire 5740H
#5

Replacement parts diagram

Connect wire

Part #5740H

The manufacturer no longer makes this part, and there's no substitute part
