Modern Maid
Electric Cooktop

Model # FET100 Official Modern Maid electric cooktop

Here are the diagrams and repair parts for Official Modern Maid FET100 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Infinite Switch 31-051726-02-0
#9A

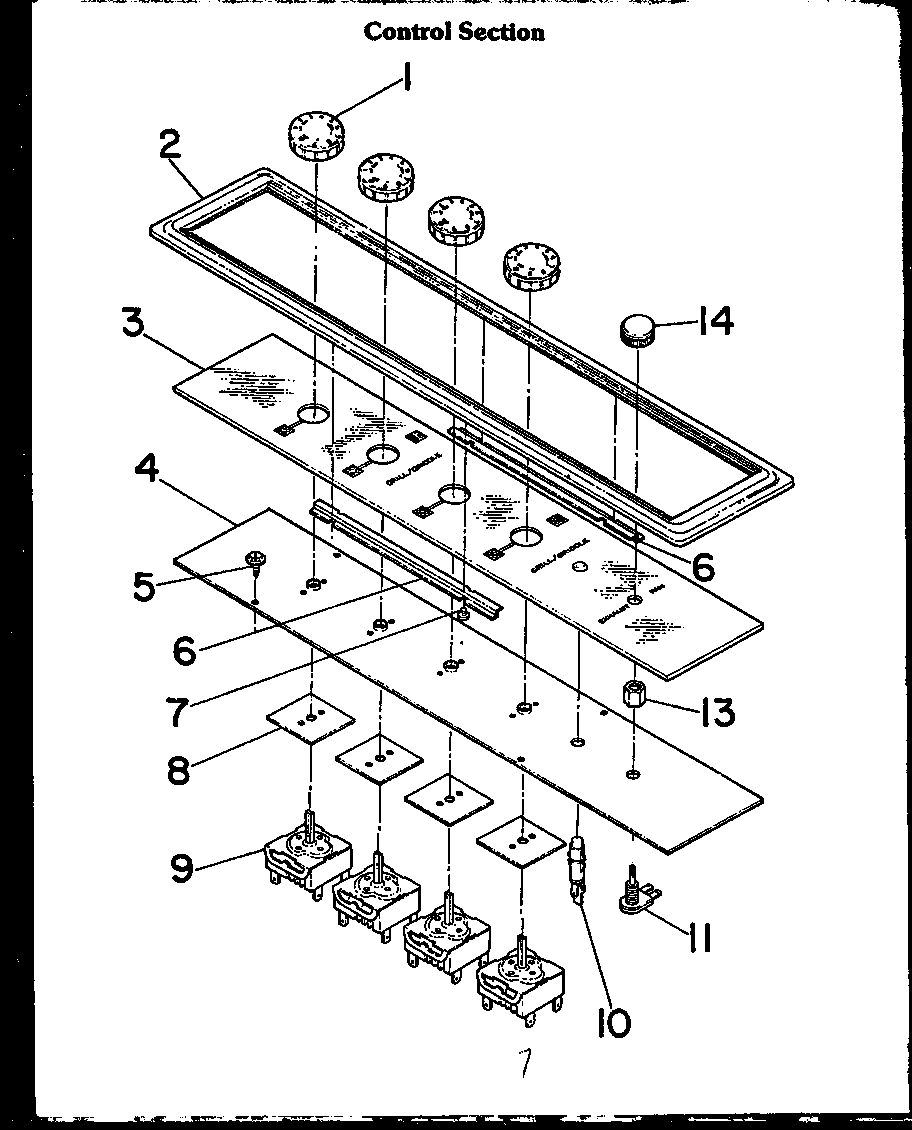

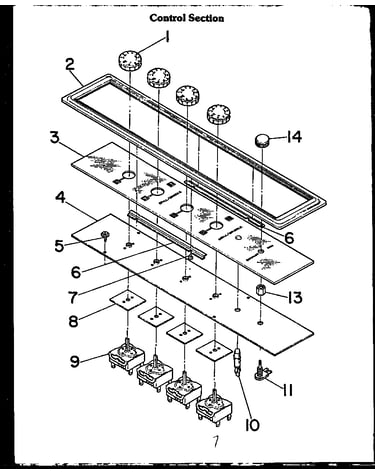

Control section (fet100) diagram

Infinite switch

Part #31-051726-02-0

The manufacturer no longer makes this part, and there's no substitute part

Shield, Switch 74-040821-00-0
#2

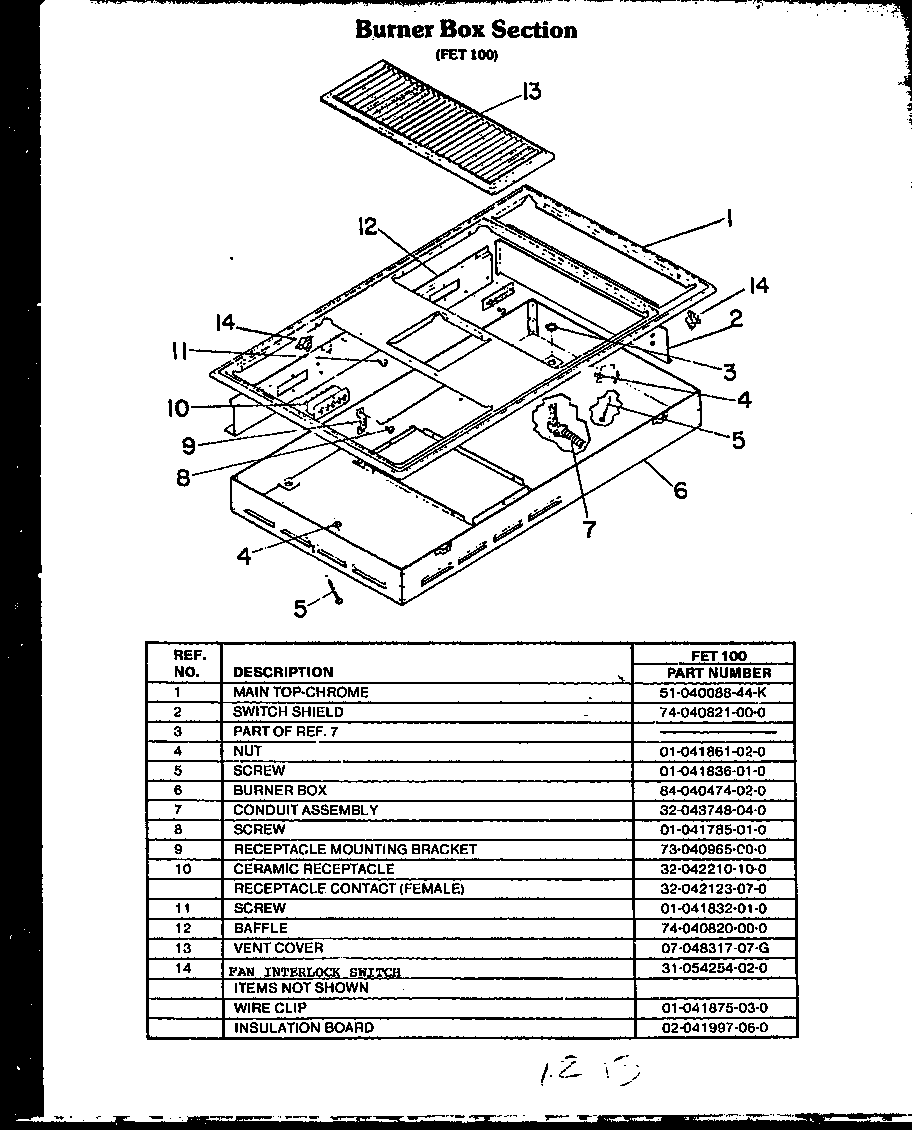

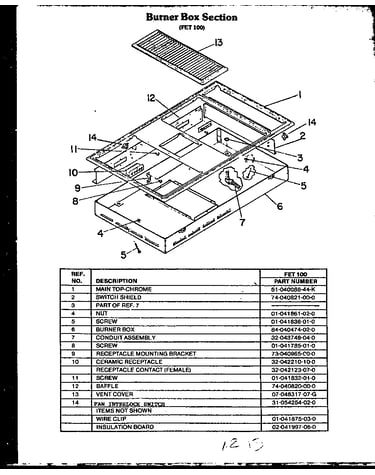

Burner box section (fet100) diagram

Shield, switch

Part #74-040821-00-0

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Plug Block Mounting 08-042154-01-0
#3A

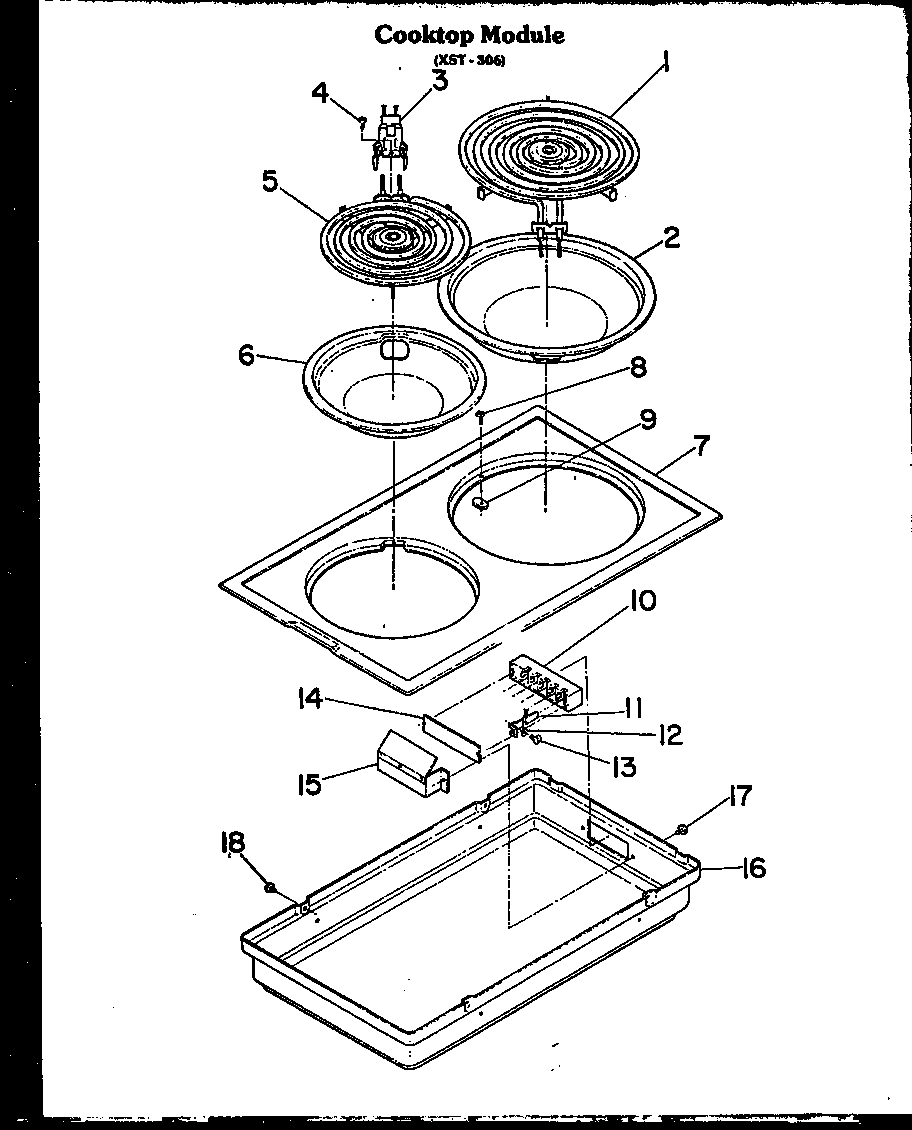

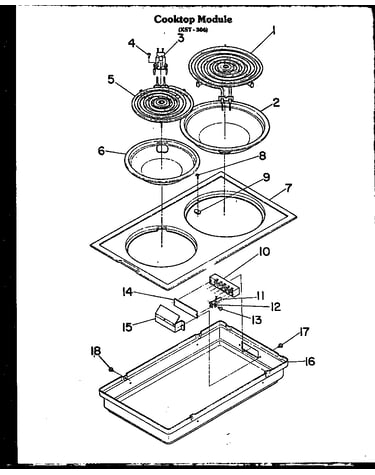

Cooktop module (xst-306) (fet100) diagram

Bracket, plug block mounting

Part #08-042154-01-0

The manufacturer no longer makes this part, and there's no substitute part

Contact, Spade - Power (4) 67-052040-44-J
Contact, spade - power (4)

Part #67-052040-44-J

The manufacturer no longer makes this part, and there's no substitute part

Surface Knob 07-042632-02-0
#1

Control section (fet100) diagram

Surface knob

Part #07-042632-02-0

The manufacturer no longer makes this part, and there's no substitute part

Rubber Grommet 04-041981-03-0
#13

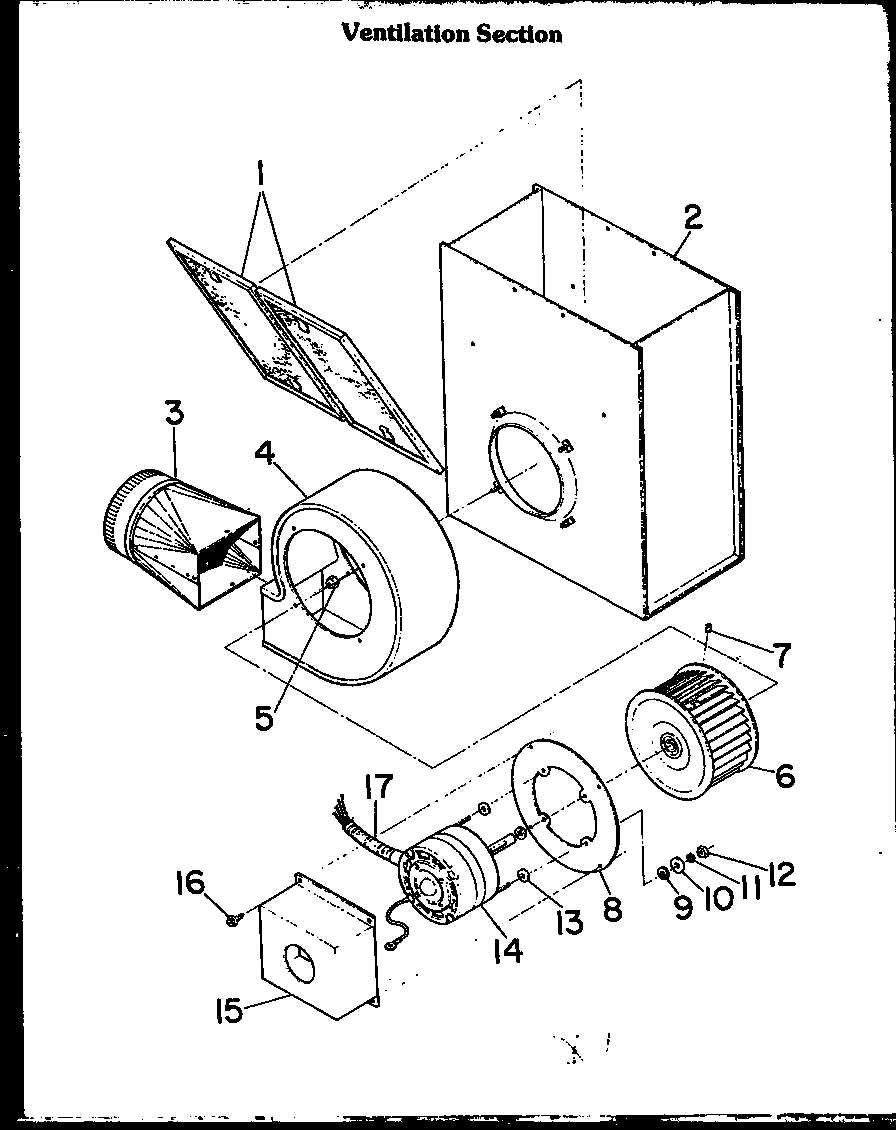

Ventilation section (fet100) diagram

Rubber grommet

Part #04-041981-03-0

The manufacturer no longer makes this part, and there's no substitute part

Washer 01-041935-04-0
#10

Ventilation section (fet100) diagram

Washer

Part #01-041935-04-0

The manufacturer no longer makes this part, and there's no substitute part

Nut 01-041861-02-0
#4

Burner box section (fet100) diagram

Nut

Part #01-041861-02-0

The manufacturer no longer makes this part, and there's no substitute part

Conduit Assembly 32-043748-04-0
#7

Burner box section (fet100) diagram

Conduit assembly

Part #32-043748-04-0

The manufacturer no longer makes this part, and there's no substitute part

Module Top-chrome 51-040084-44-K
#7

Cooktop module (xst-306) (fet100) diagram

Module top-chrome

Part #51-040084-44-K

The manufacturer no longer makes this part, and there's no substitute part
