Model # 548 Official Porter Cable jig saw

Here are the diagrams and repair parts for Official Porter Cable 548 jig saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |

Porter Cable Armature, T5 872644
#1

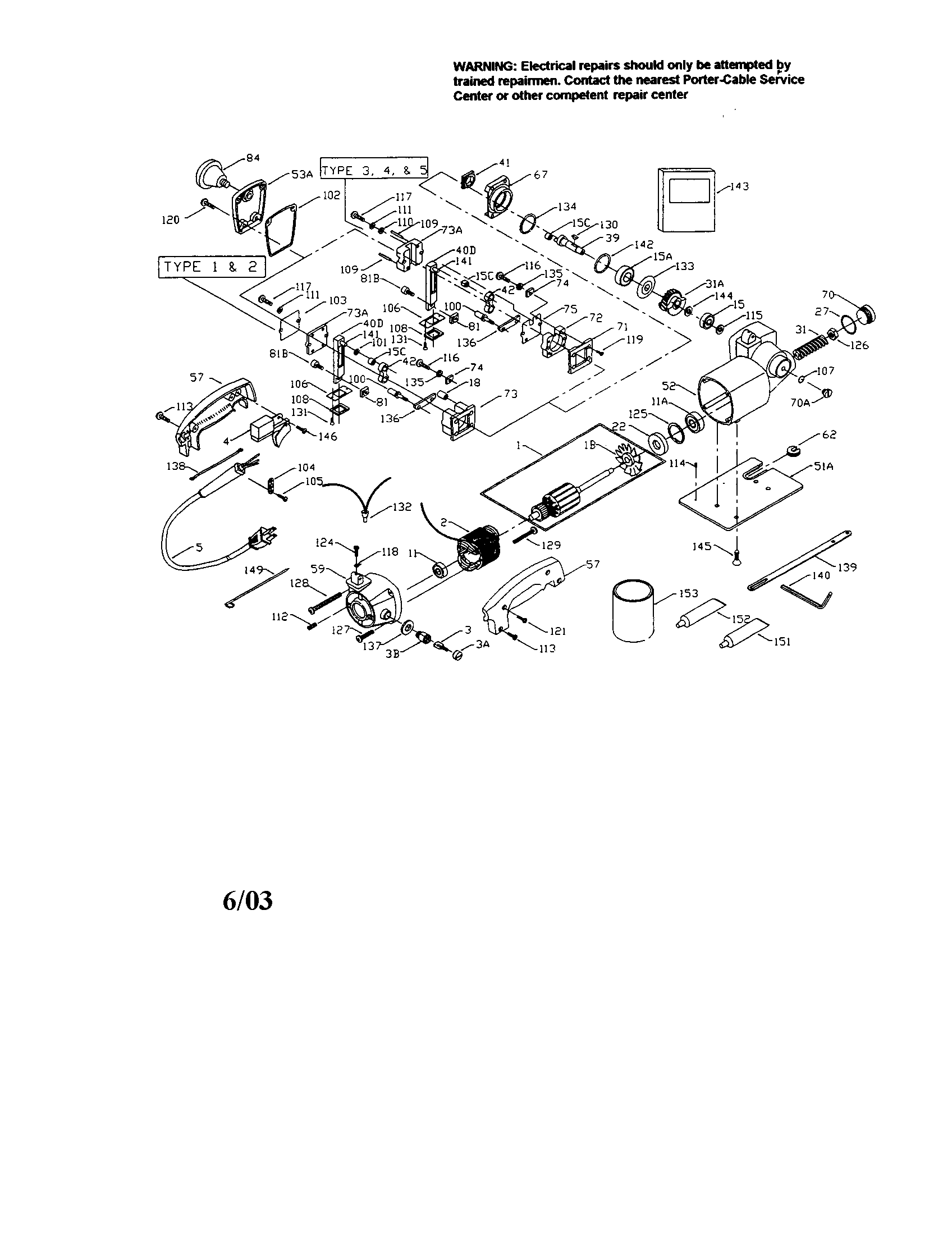

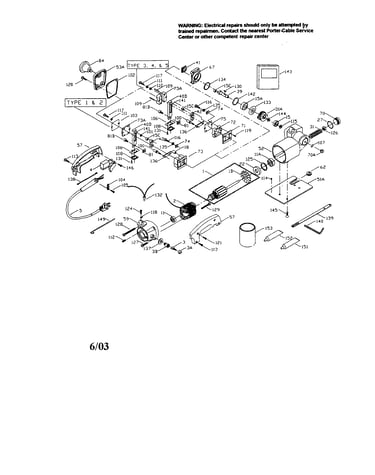

Bayonet saw diagram

Porter cable armature, t5

Part #872644

The manufacturer no longer makes this part, and there's no substitute part

Terminal 849314
#118

Bayonet saw diagram

Terminal

Part #849314

The manufacturer no longer makes this part, and there's no substitute part

Retainer 801723
#136

Bayonet saw diagram

Retainer

Part #801723

The manufacturer no longer makes this part, and there's no substitute part

Bearing Block, T3, T4 692890
#73A

Bayonet saw diagram

Bearing block, t3, t4

Part #692890

The manufacturer no longer makes this part, and there's no substitute part

Screw 801374
#114

Bayonet saw diagram

Screw

Part #801374

The manufacturer no longer makes this part, and there's no substitute part

Screw 878813
#116

Bayonet saw diagram

Screw

Part #878813

The manufacturer no longer makes this part, and there's no substitute part

Screw 802607
#129

Bayonet saw diagram

Screw

Part #802607

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Armature (except T5) 869655
#1A

Bayonet saw diagram

Porter cable armature (except t5)

Part #869655

The manufacturer no longer makes this part, and there's no substitute part

Service Pkg 695726
#73

Bayonet saw diagram

Service pkg

Part #695726

The manufacturer no longer makes this part, and there's no substitute part

Nut 802943
#126

Bayonet saw diagram

Nut

Part #802943

The manufacturer no longer makes this part, and there's no substitute part
