Model # PRL366EG03 Official Thermador range

Here are the diagrams and repair parts for Official Thermador PRL366EG03 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

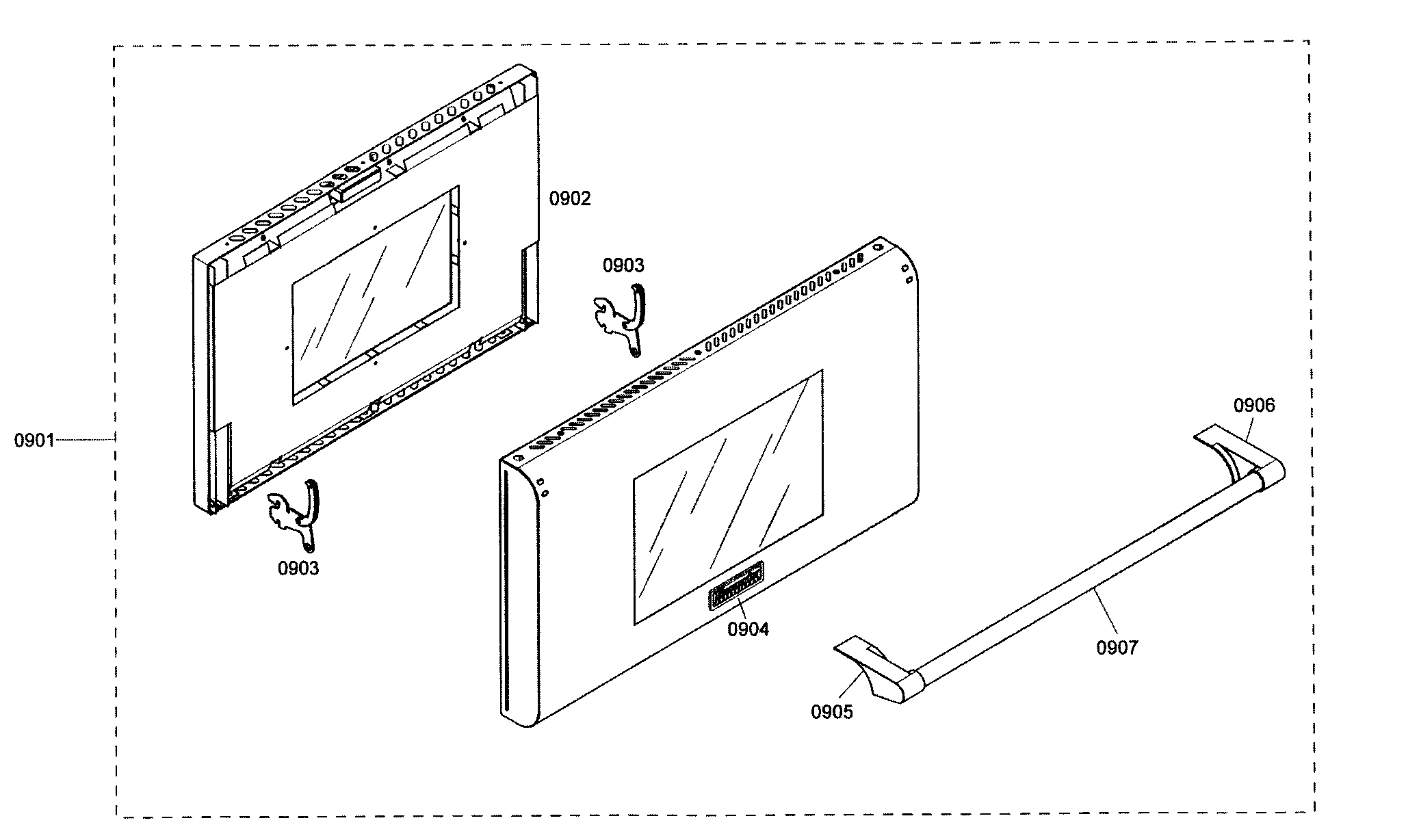

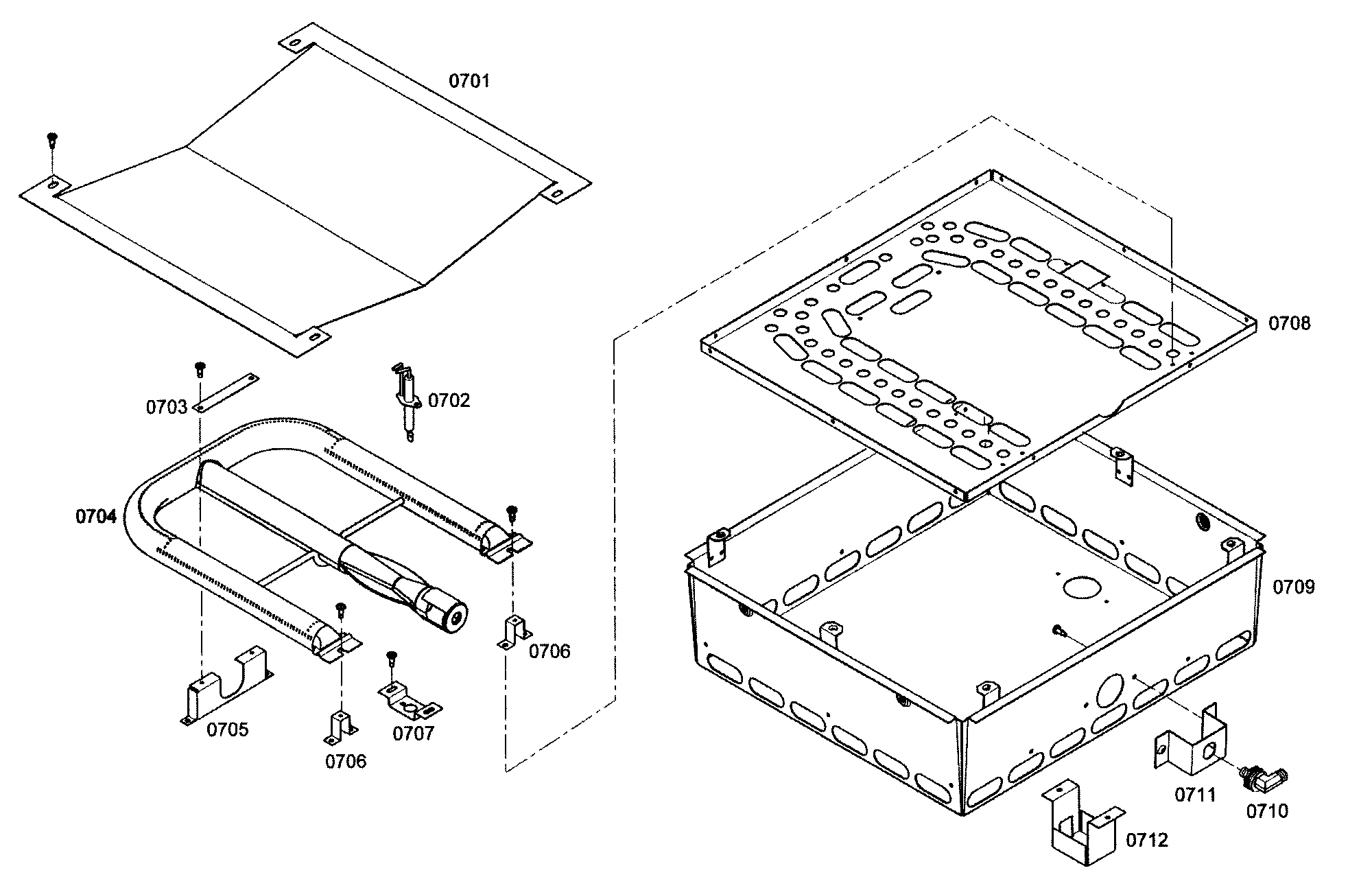

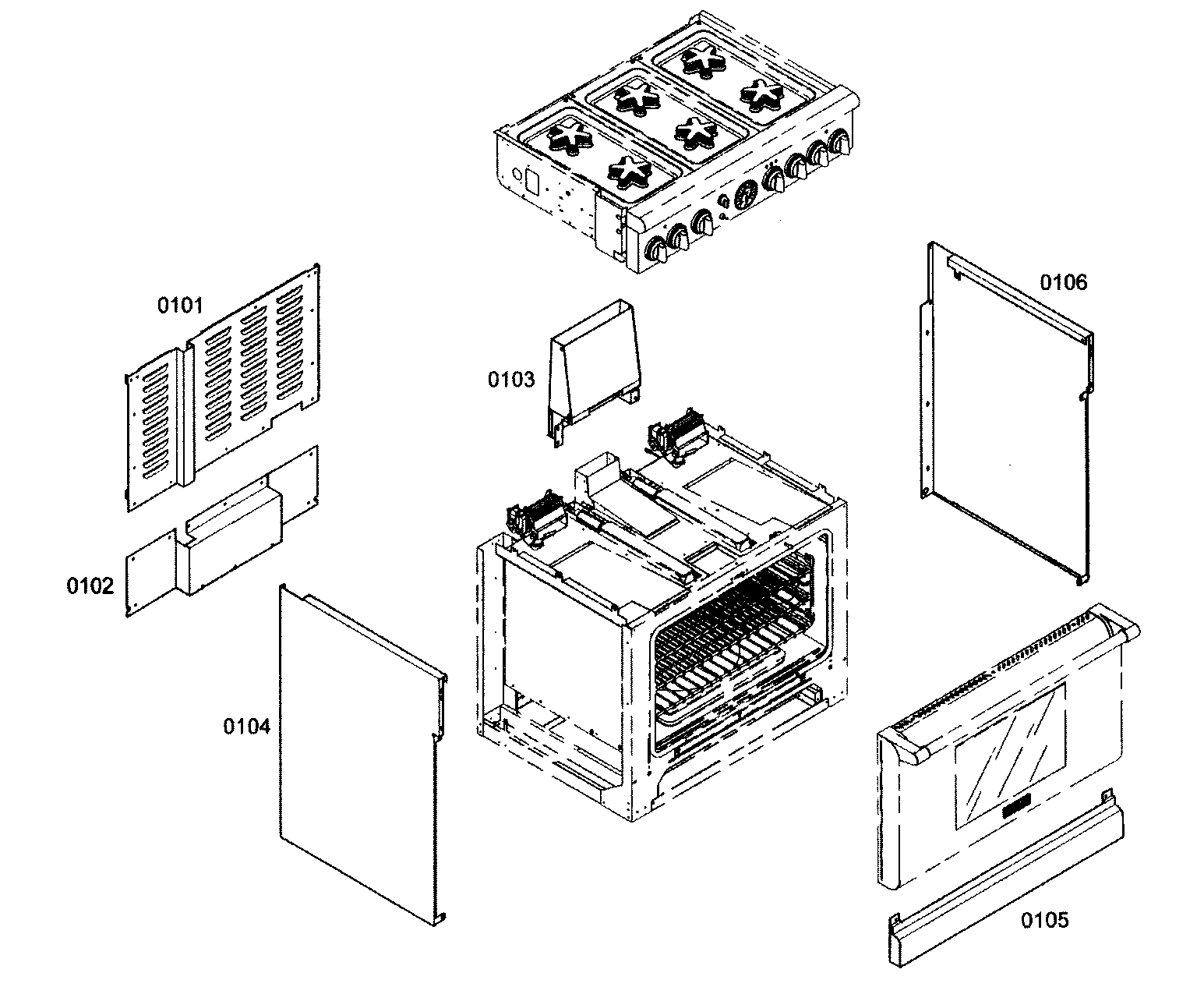

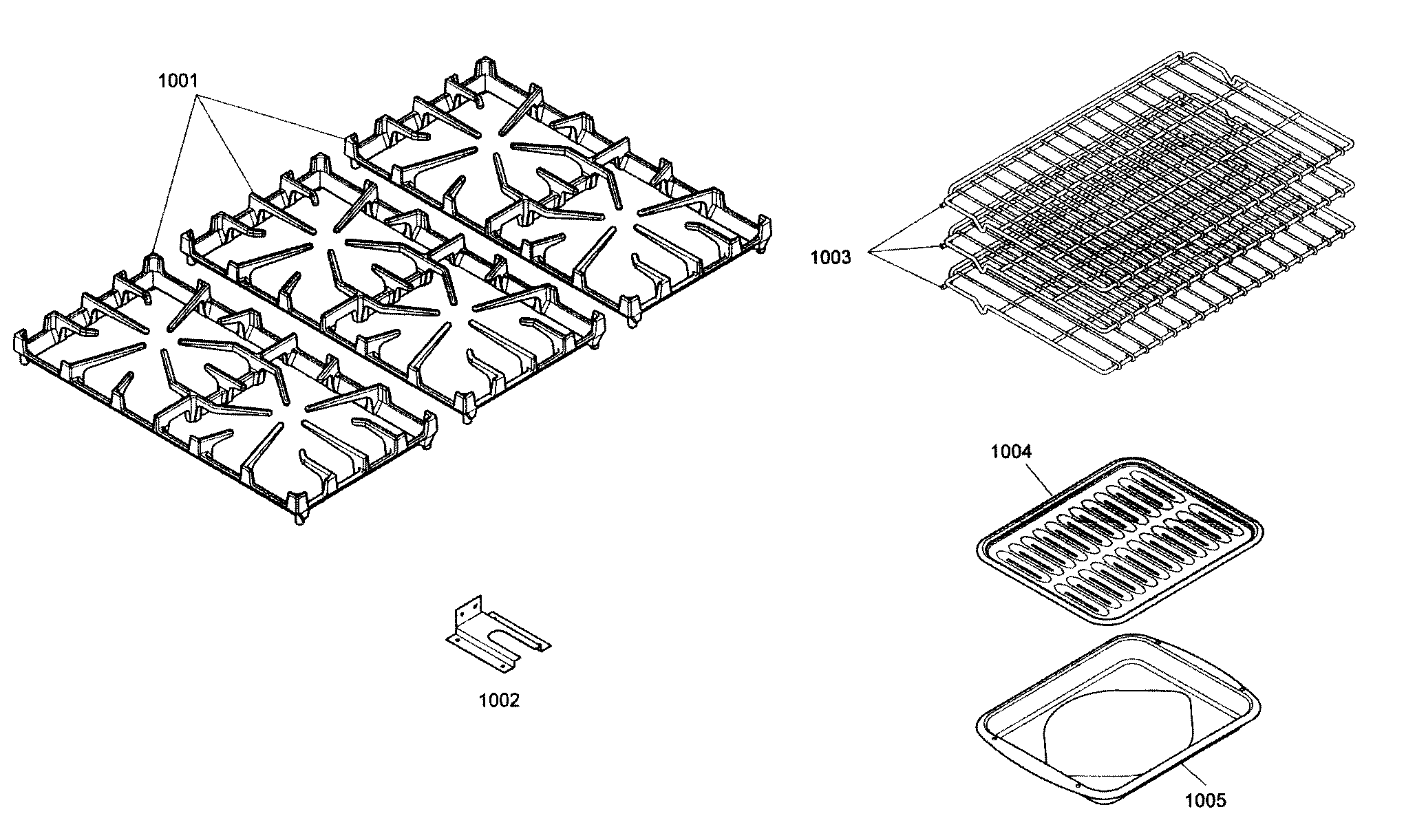

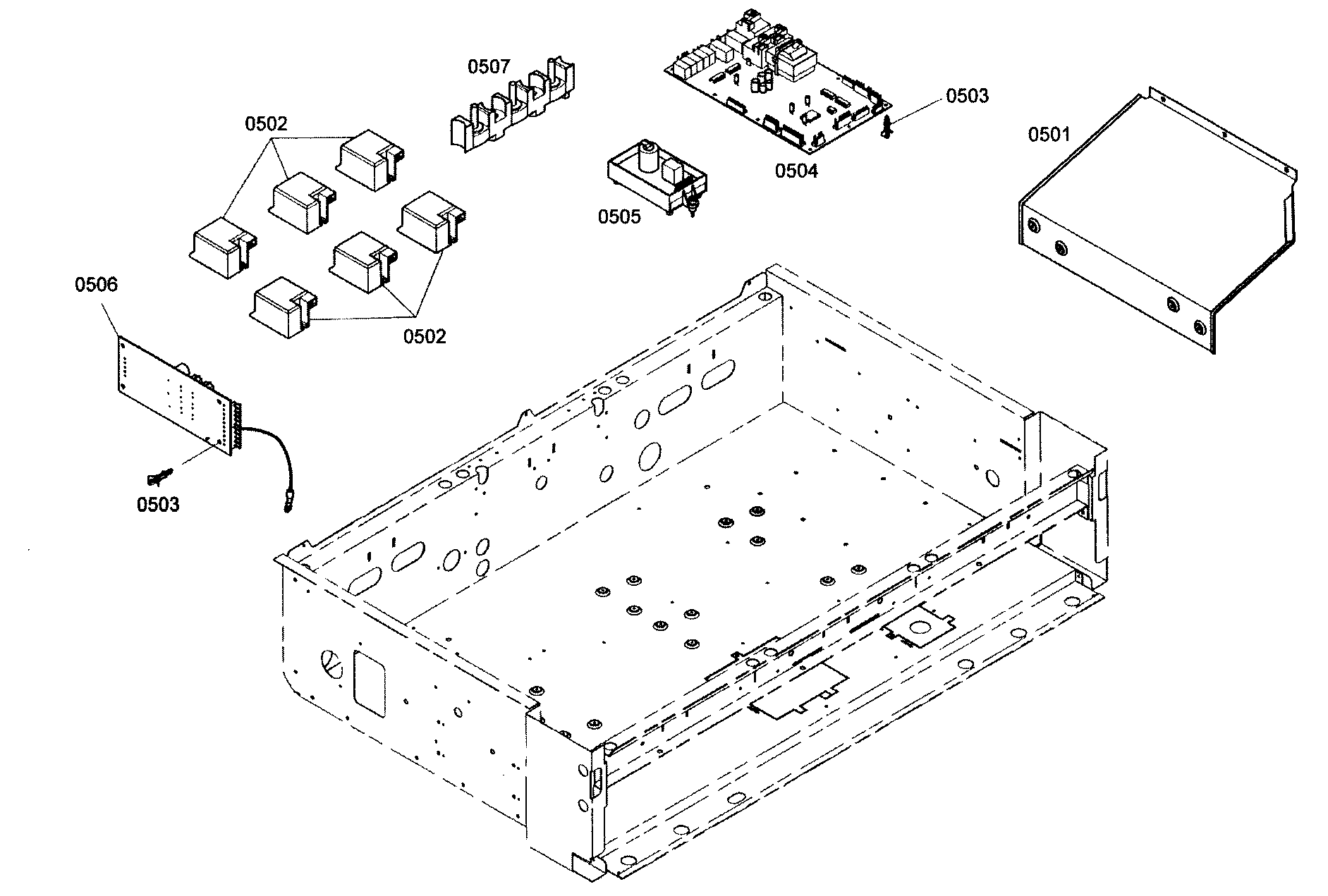

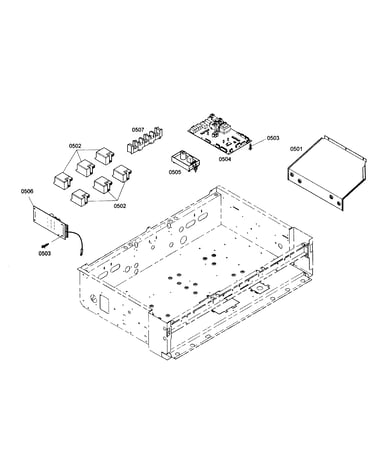

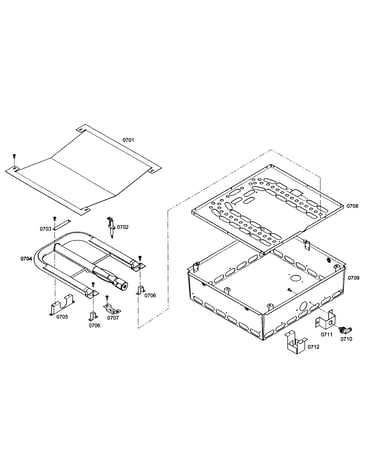

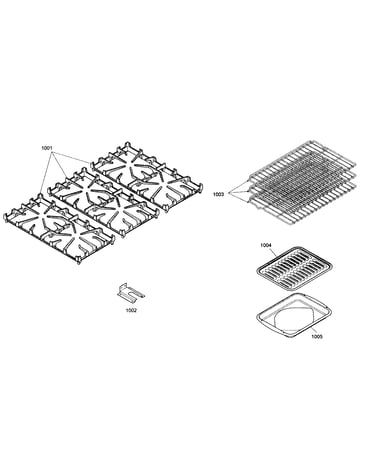

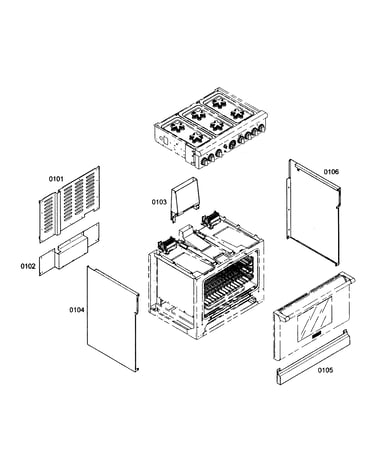

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Igniter 492431
#603

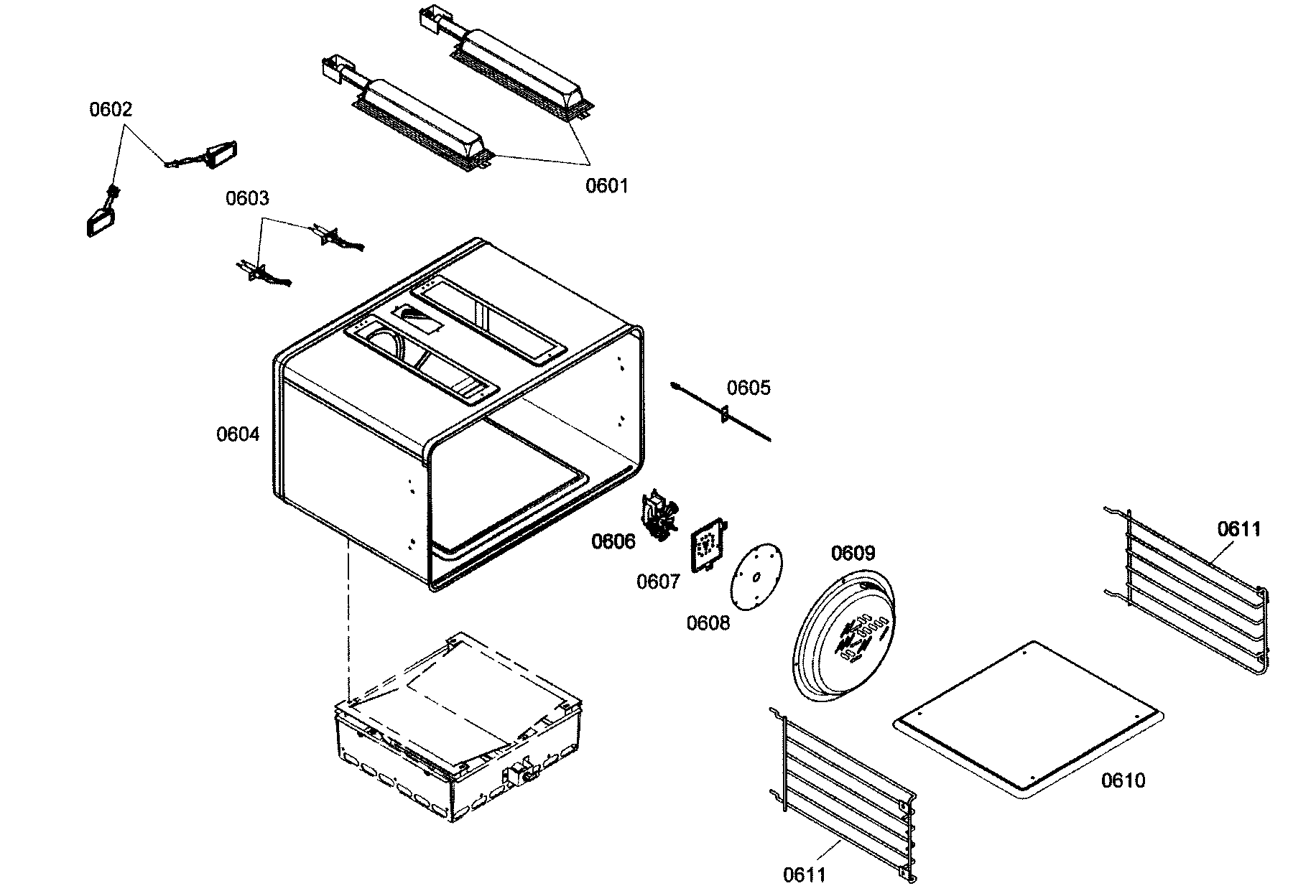

Oven 1 diagram

Igniter

Part #492431

Replaced by #00492431

?
Manufacturer substitution
This part replaces 492431. Substitute parts can look different from the original.
$120.69 |
9% OFF Phone Price : $132.69
In Stock
Tube 189023
#302

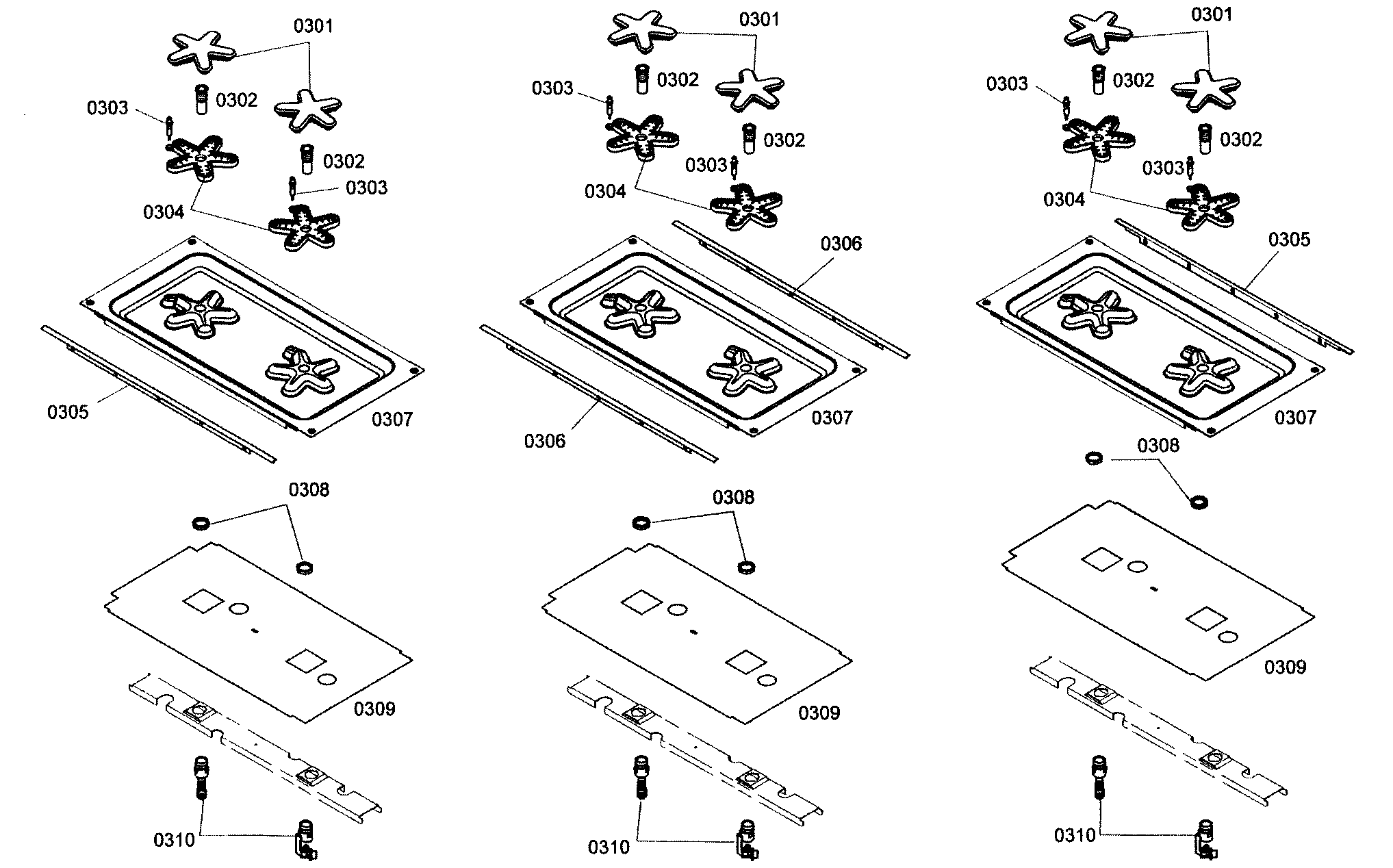

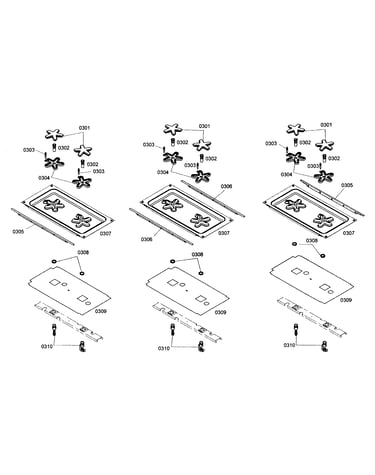

Burner assy diagram

Tube

Part #189023

Replaced by #00189023

?
Manufacturer substitution
This part replaces 189023. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
In Stock
Tube 498909
#414

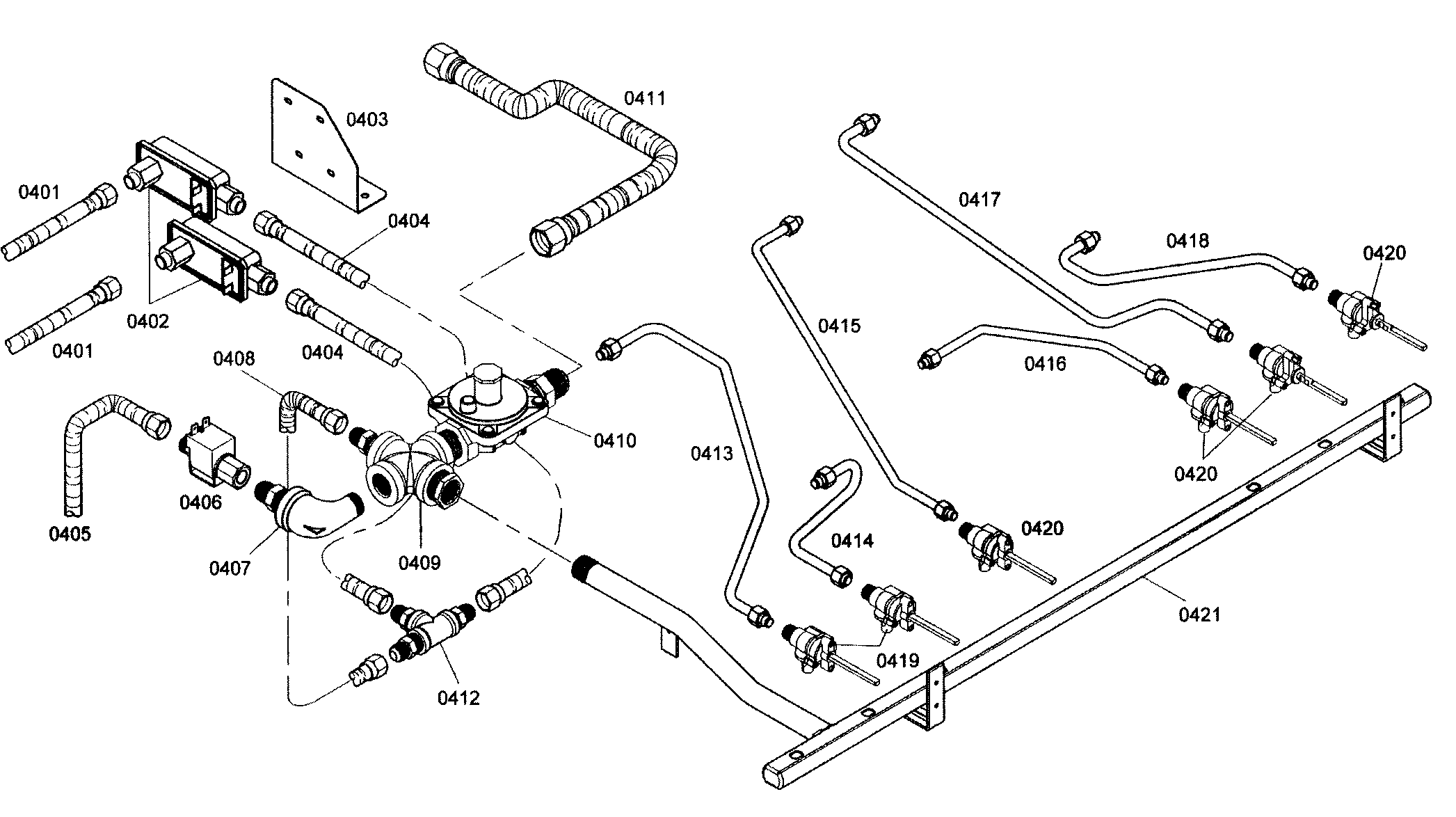

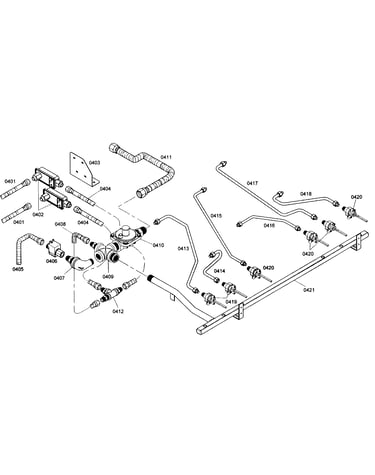

Gas supply diagram

Tube

Part #498909

Replaced by #00498909

?
Manufacturer substitution
This part replaces 498909. Substitute parts can look different from the original.
$40.62
In Stock
Igniter Plug 603777
#303

Burner assy diagram

Igniter plug

Part #603777

Replaced by #00603777

?
Manufacturer substitution
This part replaces 603777. Substitute parts can look different from the original.
$27.36
In Stock
Gas Tap 489571
#406

Gas supply diagram

Gas tap

Part #489571

Replaced by #00489571

?
Manufacturer substitution
This part replaces 489571. Substitute parts can look different from the original.
$182.67
In Stock
Temp.dsply 641396
#220

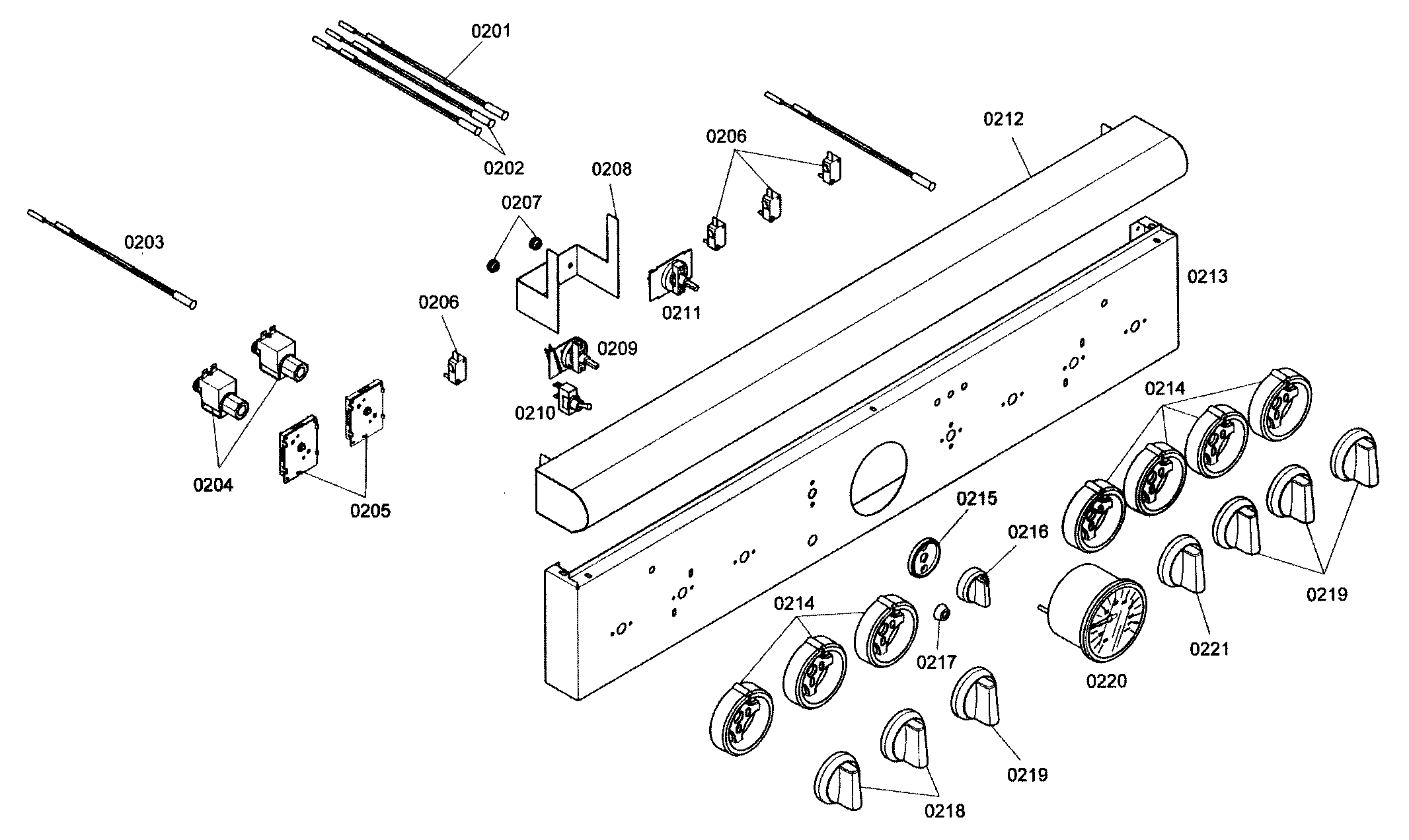

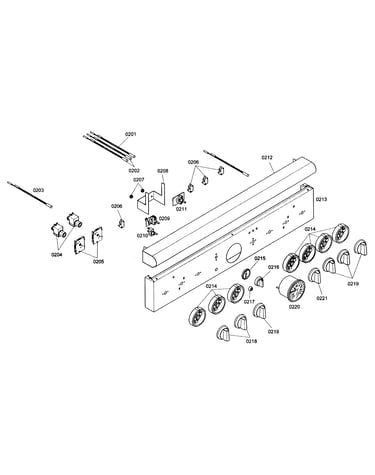

Control panel diagram

Temp.dsply

Part #641396

Replaced by #00641396

?
Manufacturer substitution
This part replaces 641396. Substitute parts can look different from the original.
$528.10 |
$12.00 OFF Phone Price : $540.10
In Stock
Tube 498913
#416

Gas supply diagram

Tube

Part #498913

Replaced by #00498913

?
Manufacturer substitution
This part replaces 498913. Substitute parts can look different from the original.
$36.13
In Stock
Switch 428049
#206

Control panel diagram

Switch

Part #428049

Replaced by #00428049

?
Manufacturer substitution
This part replaces 428049. Substitute parts can look different from the original.
$15.83 |
11% OFF Phone Price : $17.83
In Stock
Cover 489125
#609

Oven 1 diagram

Cover

Part #489125

Replaced by #00489125

?
Manufacturer substitution
This part replaces 489125. Substitute parts can look different from the original.
$202.62
In Stock
Support 442762
#806

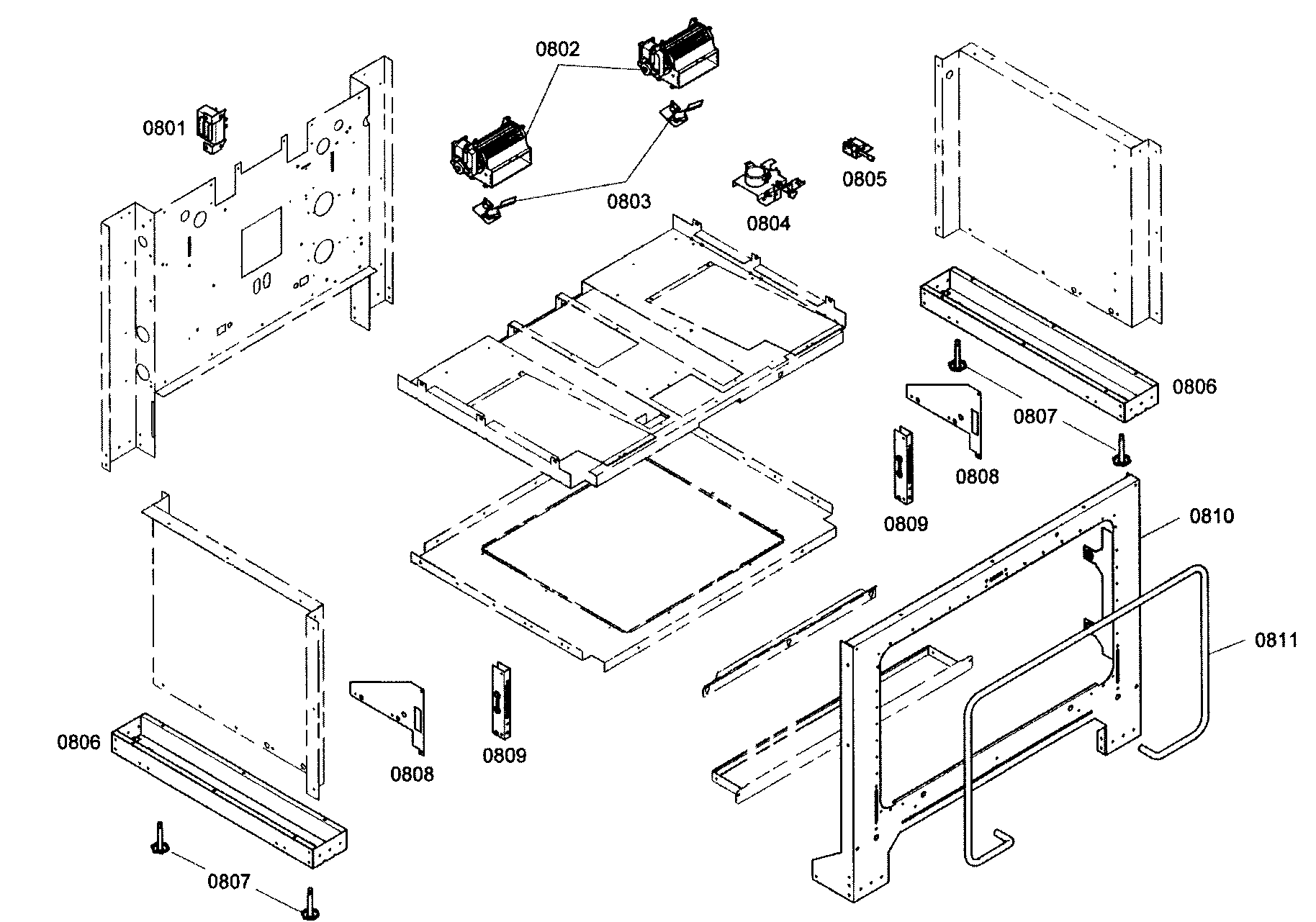

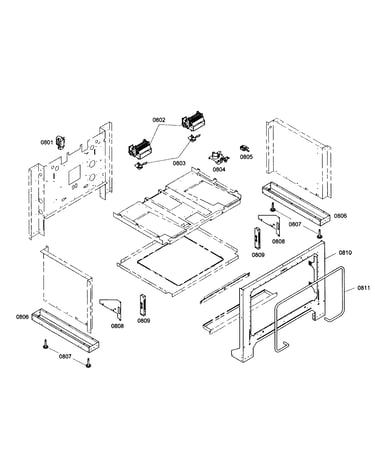

Inside parts diagram

Support

Part #442762

Replaced by #00442762

?
Manufacturer substitution
This part replaces 442762. Substitute parts can look different from the original.
$132.54
In Stock
