Hotpoint
Gas Cooktop

Model # RGU32U01 Official Hotpoint gas cooktop

Here are the diagrams and repair parts for Official Hotpoint RGU32U01 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |

Grate WB32X5023
#9

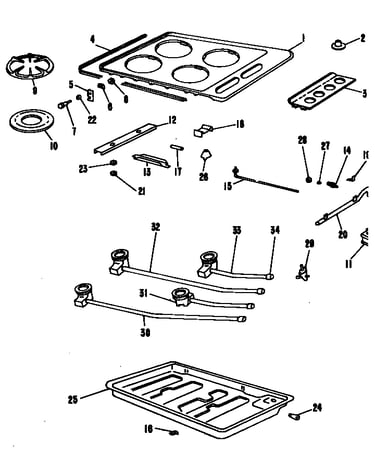

Cooktop diagram

Grate

Part #WB32X5023

In Stock
Burner Asm. - Right Rear WB28X5018
#33

Cooktop diagram

Burner asm. - right rear

Part #WB28X5018

The manufacturer no longer makes this part, and there's no substitute part

Main Top - Wh WB62X5156
#1E

Cooktop diagram

Main top - wh

Part #WB62X5156

The manufacturer no longer makes this part, and there's no substitute part

Trim Strip WB7X5399
#4

Cooktop diagram

Trim strip

Part #WB7X5399

The manufacturer no longer makes this part, and there's no substitute part

Burner Box WB49X5027
#25

Cooktop diagram

Burner box

Part #WB49X5027

The manufacturer no longer makes this part, and there's no substitute part

Burner Asm. - Left Front WB28X5015
#30

Cooktop diagram

Burner asm. - left front

Part #WB28X5015

The manufacturer no longer makes this part, and there's no substitute part

Burner Bowl WB32X5024
#10

Cooktop diagram

Burner bowl

Part #WB32X5024

The manufacturer no longer makes this part, and there's no substitute part

Heat Shield Top Pilot WB2X5943
#18

Cooktop diagram

Heat shield top pilot

Part #WB2X5943

The manufacturer no longer makes this part, and there's no substitute part

Channel Flash Tube Suppo WB2X5935
#13

Cooktop diagram

Channel flash tube suppo

Part #WB2X5935

The manufacturer no longer makes this part, and there's no substitute part

Orifice Hood No. 53 WB2X5942

#NI

All parts diagram

Orifice hood no. 53

Part #WB2X5942

The manufacturer no longer makes this part, and there's no substitute part
