Model # 867842851 Official Kenmore 230-v packaged terminal heat pump
Here are the diagrams and repair parts for Official Kenmore 867842851 230-v packaged terminal heat pump, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
867842851 230-V Packaged Terminal Heat Pump
#7

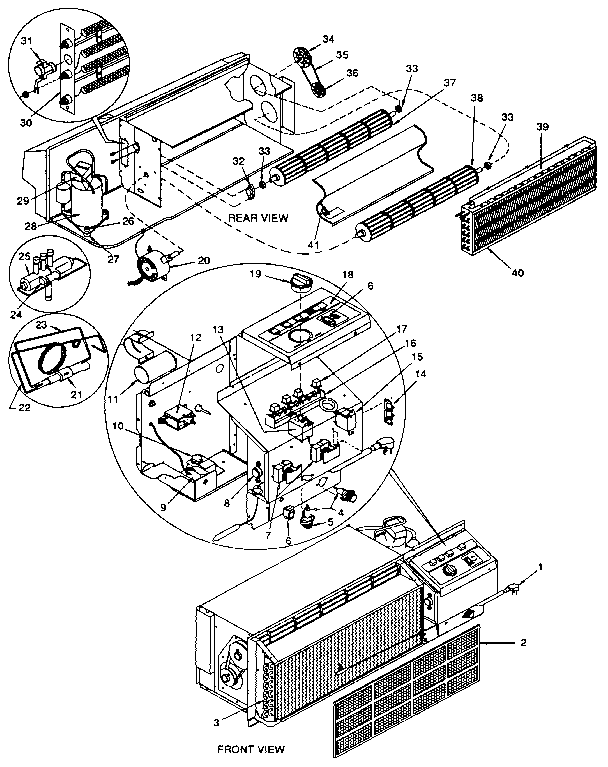

Functional diagram
Relay defros
Part #1091127
Replaced by #90-342
?
Manufacturer substitution
This part replaces 1091127. Substitute parts can look different from the original.
$22.82 |
21% OFF Phone Price : $28.82
In Stock
#15
Functional diagram
Relay spdt
Part #1058148
The manufacturer no longer makes this part, and there's no substitute part
#12
Functional diagram
Relay
Part #43205003
Replaced by #90-384
?
Manufacturer substitution
This part replaces 43205003. Substitute parts can look different from the original.
$25.39
In Stock
#33
Functional diagram
Isolator bea
Part #1058987
The manufacturer no longer makes this part, and there's no substitute part
#22
Functional diagram
Capllry tube
Part #1059074
The manufacturer no longer makes this part, and there's no substitute part
#16
Non functional diagram
Scroll blwr
Part #1058350
The manufacturer no longer makes this part, and there's no substitute part
#20
Non functional diagram
Cntrl box as
Part #1058894
The manufacturer no longer makes this part, and there's no substitute part
#18
Non functional diagram
Wall divider
Part #1060842
The manufacturer no longer makes this part, and there's no substitute part
#4
Non functional diagram
Clip
Part #1058518
The manufacturer no longer makes this part, and there's no substitute part
#15
Non functional diagram
Cvr blwr acs
Part #1059049
The manufacturer no longer makes this part, and there's no substitute part
