Gas Walk-Behind Mower

Model # 917388852 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388852 rotary lawn mower, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
917388852 Walk-Behind Mowers
Hndl.knob.bl 189713X428
#14

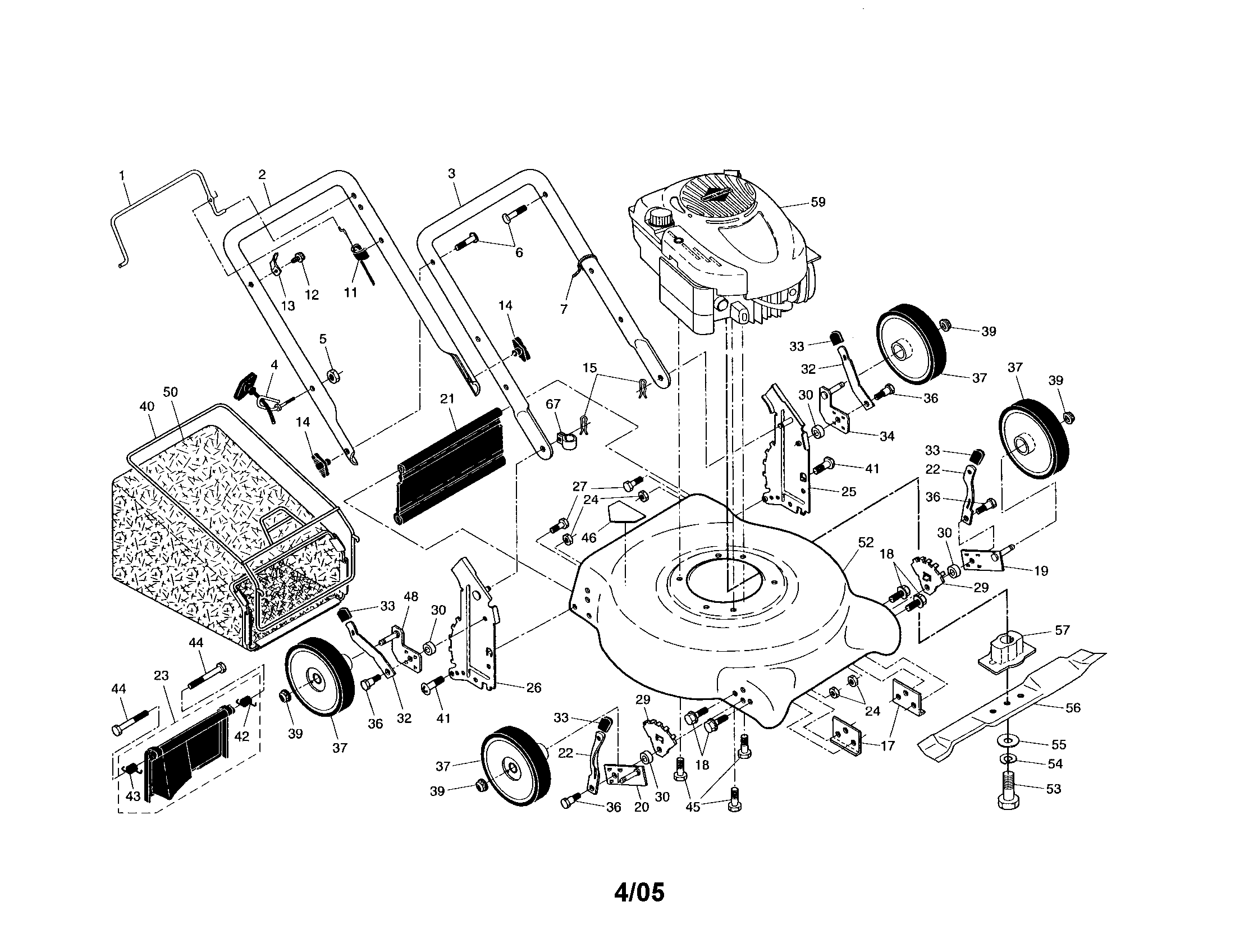

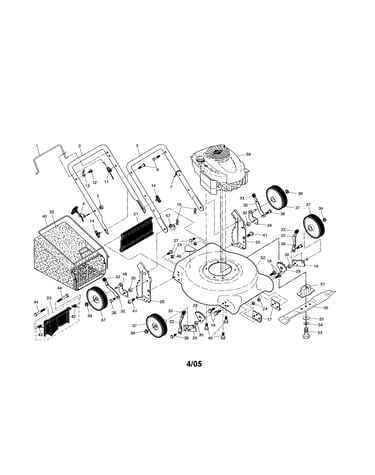

Engine/housing/handle/bag/wheels diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$11.53
15% OFF Phone Price : $13.53
In Stock
Handle Bolt 191574
#6

Engine/housing/handle/bag/wheels diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$8.64
10% OFF Phone Price : $9.64
In Stock
Lawn Mower Grass Bag 194360
#50

Engine/housing/handle/bag/wheels diagram

Lawn mower grass bag

Part #194360

Replaced by #532410666

?
Manufacturer substitution
This part replaces 194360. Substitute parts can look different from the original.
BEST SELLER
$60.55
9% OFF Phone Price : $66.55
In Stock
Nut 132004
#5

Engine/housing/handle/bag/wheels diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.87
26% OFF Phone Price : $3.87
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Engine/housing/handle/bag/wheels diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.31
19% OFF Was : $5.31
In Stock
Lawn Mower 21-in Deck 3-in-1 Blade (replaces 532189028, 5321890-28) 189028
#56

Engine/housing/handle/bag/wheels diagram

Lawn mower 21-in deck 3-in-1 blade (replaces 532189028, 5321890-28)

Part #189028

Replaced by #532189028

?
Manufacturer substitution
This part replaces 189028. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

In Stock
Skirt 188987
#21

Engine/housing/handle/bag/wheels diagram

Skirt

Part #188987

Replaced by #532413160

?
Manufacturer substitution
This part replaces 188987. Substitute parts can look different from the original.
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#55

Engine/housing/handle/bag/wheels diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lawn Mower Zone Control Cable (replaces 198463, 532183281) 183281
#11

Engine/housing/handle/bag/wheels diagram

Lawn mower zone control cable (replaces 198463, 532183281)

Part #183281

Replaced by #532183281

?
Manufacturer substitution
This part replaces 183281. Substitute parts can look different from the original.
In Stock
Lawn Mower Axle 186575X004
#48

Engine/housing/handle/bag/wheels diagram

Lawn mower axle

Part #186575X004

Replaced by #532186575

?
Manufacturer substitution
This part replaces 186575X004. Substitute parts can look different from the original.
In Stock
