Model # GTH18GCDDRWW Official GE refrigerator

Here are the diagrams and repair parts for Official GE GTH18GCDDRWW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Refrigerator Ice Maker Assembly WR30X10109
Refrigerator ice maker assembly

Part #WR30X10109

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10109. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Appliance Light Bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, Std398091, Wr02x12328, Wx12x1510) 40A15
#435

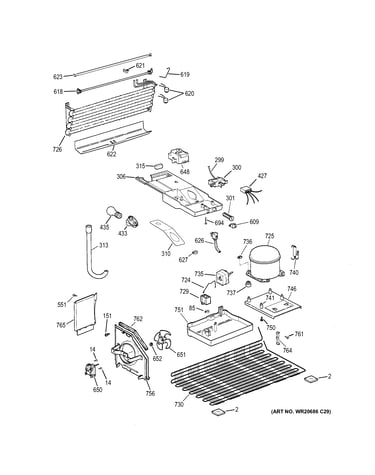

Unit parts diagram

Appliance light bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Evaporator Fan Motor WR60X10141
#610

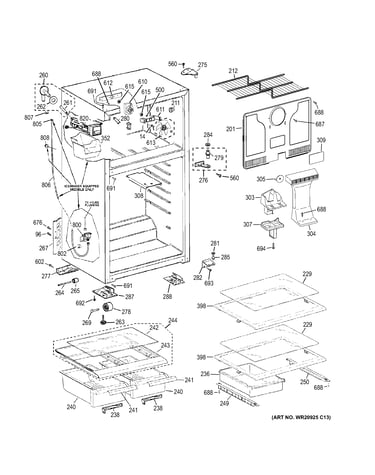

Cabinet diagram

Refrigerator evaporator fan motor

Part #WR60X10141

Replaced by #WR60X31522

?
Manufacturer substitution
This part replaces WR60X10141. Substitute parts can look different from the original.
BEST SELLER
$64.75 |
8% OFF Phone Price : $70.75
In Stock
Refrigerator Compressor WR87X10211
#725

Unit parts diagram

Refrigerator compressor

Part #WR87X10211

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X10211. Substitute parts can look different from the original.
BEST SELLER
$382.57 |
$12.00 OFF Phone Price : $394.57
In Stock
Refrigerator Evaporator Fan Blade (replaces Wr60x10047, Wr60x10188) WR60X10204
#613

Cabinet diagram

Refrigerator evaporator fan blade (replaces wr60x10047, wr60x10188)

Part #WR60X10204

BEST SELLER
$12.47 |
14% OFF Phone Price : $14.47
In Stock
Refrigerator Water Inlet Valve Assembly (replaces Wr57x10034, Wr57x10049, Wr57x10063, Wr57x10075, Wr57x95) WR57X10033
#800

Cabinet diagram

Refrigerator water inlet valve assembly (replaces wr57x10034, wr57x10049, wr57x10063, wr57x10075, wr57x95)

Part #WR57X10033

BEST SELLER
$39.92 |
13% OFF Phone Price : $45.92
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

Unit parts diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Evaporator Fan Motor Grommet WR02X12008
#615

Cabinet diagram

Refrigerator evaporator fan motor grommet

Part #WR02X12008

BEST SELLER
$19.32
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10146
#281

Cabinet diagram

Refrigerator door hinge nylon washer

Part #WR01X10146

Replaced by #WR01X27364

?
Manufacturer substitution
This part replaces WR01X10146. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Refrigerator Fixed Shelf WR17X12916
#19

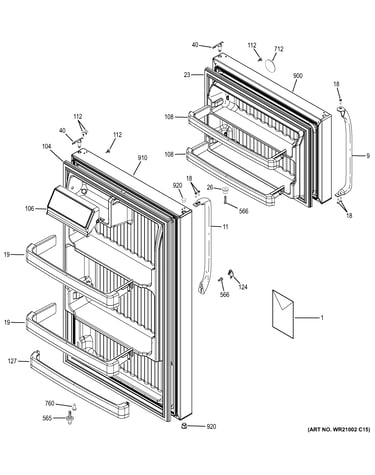

Doors diagram

Refrigerator fixed shelf

Part #WR17X12916

Replaced by #WR17X11889

?
Manufacturer substitution
This part replaces WR17X12916. Substitute parts can look different from the original.
BEST SELLER
$26.47 |
18% OFF Phone Price : $32.47
In Stock
