Model # 11096578810 Official Kenmore electric dryer
Here are the diagrams and repair parts for Official Kenmore 11096578810 electric dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

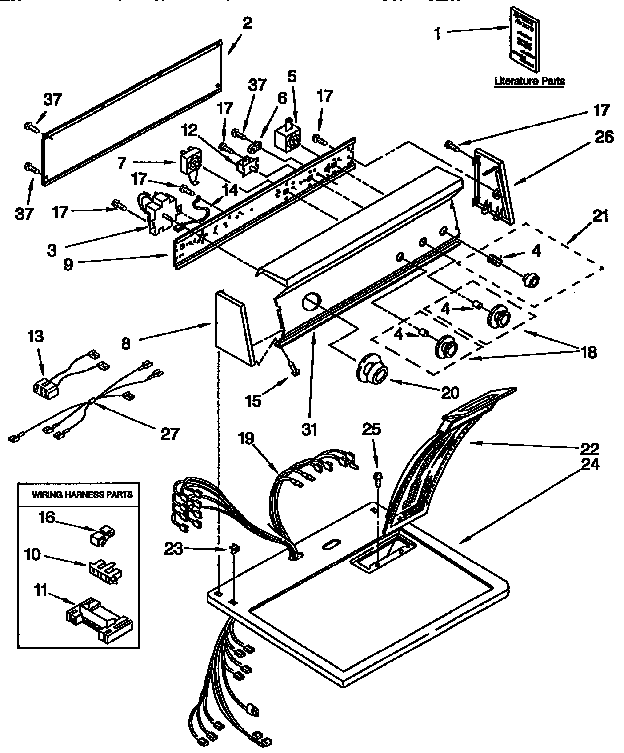

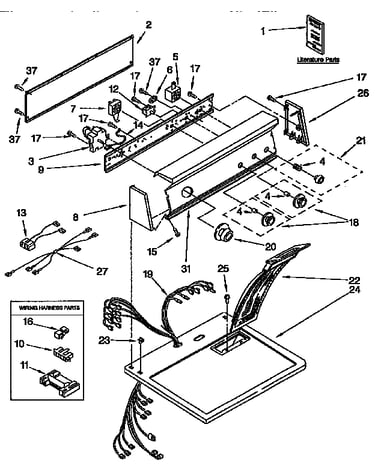

SELECT DIAGRAM
Browse Parts for
11096578810 Electric Dryer
#30

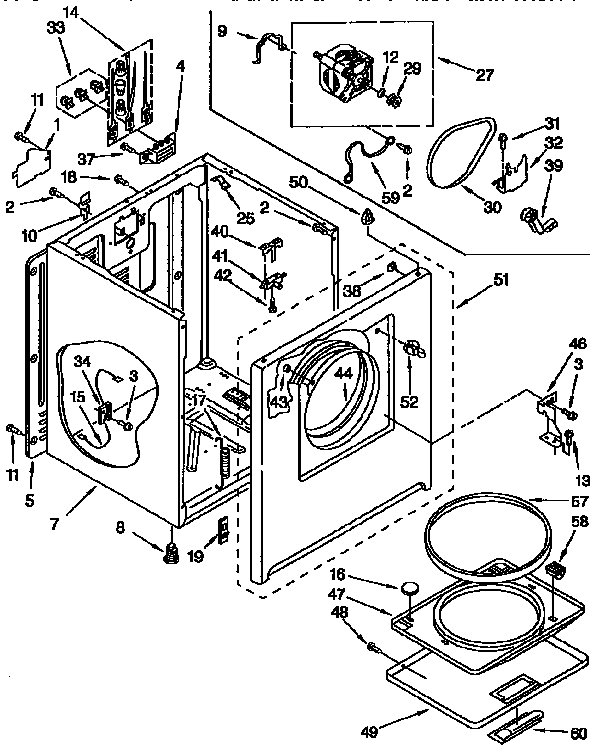

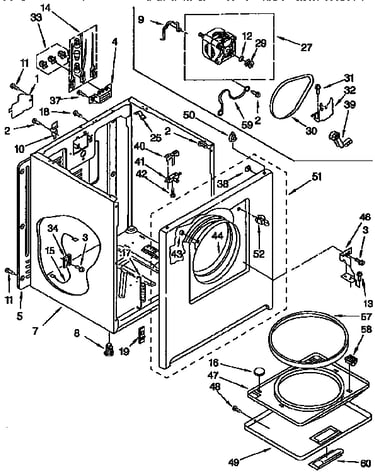

Cabinet diagram
Drum belt
Part #660996
Replaced by #341241
?
Manufacturer substitution
This part replaces 660996. Substitute parts can look different from the original.
$12.15 |
14% OFF Phone Price : $14.15
In Stock
#59

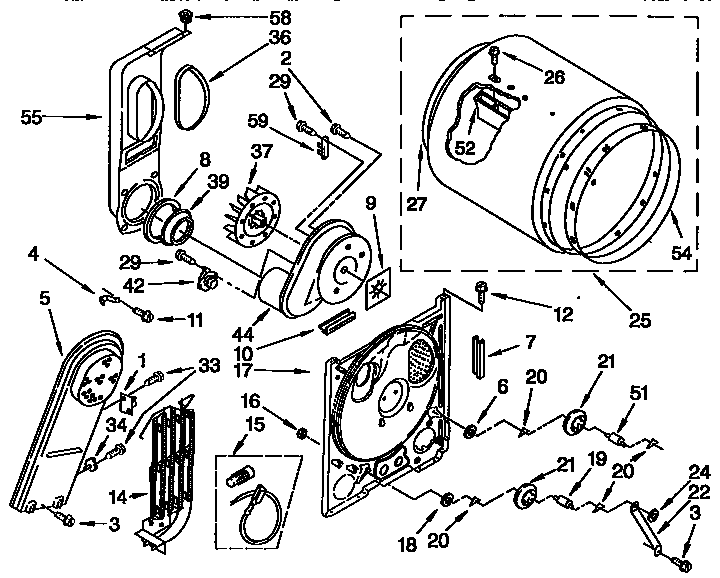

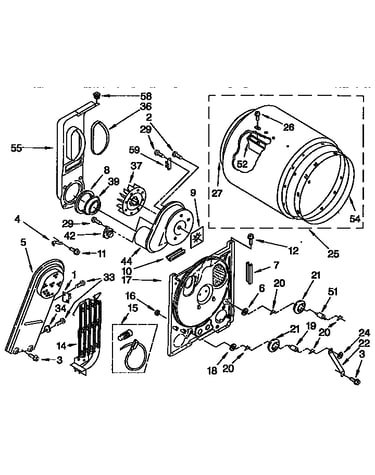

Bulkhead diagram
Dryer thermal fuse
Part #3392519
Replaced by #WP3392519
?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
$15.80 |
11% OFF Phone Price : $17.80
In Stock
#39
Cabinet diagram
Dryer idler pulley
Part #691366
Replaced by #WP691366
?
Manufacturer substitution
This part replaces 691366. Substitute parts can look different from the original.
$17.63 |
10% OFF Phone Price : $19.63
In Stock
#27
Cabinet diagram
Drive motor
Part #3395652
Replaced by #279827
?
Manufacturer substitution
This part replaces 3395652. Substitute parts can look different from the original.
$81.32 |
7% OFF Phone Price : $87.32
In Stock
#42
Bulkhead diagram
Dryer operating thermostat
Part #3387134
Replaced by #WP3387134
?
Manufacturer substitution
This part replaces 3387134. Substitute parts can look different from the original.
$17.67 |
10% OFF Phone Price : $19.67
In Stock
#37
Bulkhead diagram
Dryer blower wheel
Part #694089
Replaced by #WP694089
?
Manufacturer substitution
This part replaces 694089. Substitute parts can look different from the original.
$25.56 |
19% OFF Phone Price : $31.56
In Stock
#1
Bulkhead diagram
Cut-off kit
Part #3398671
Replaced by #279769
?
Manufacturer substitution
This part replaces 3398671. Substitute parts can look different from the original.
$34.84 |
15% OFF Phone Price : $40.84
In Stock
#52
Cabinet diagram
Strike
Part #696144
Replaced by #279570
?
Manufacturer substitution
This part replaces 696144. Substitute parts can look different from the original.
This item is not returnable
$3.92 |
20% OFF Phone Price : $4.92
In Stock
#58
Cabinet diagram
Catch
Part #690081
Replaced by #279570
?
Manufacturer substitution
This part replaces 690081. Substitute parts can look different from the original.
This item is not returnable
$3.92 |
20% OFF Phone Price : $4.92
In Stock
#29
Cabinet diagram
Motor pulley
Part #3389627
Replaced by #WP8066184
?
Manufacturer substitution
This part replaces 3389627. Substitute parts can look different from the original.
$35.79 |
14% OFF Phone Price : $41.79
In Stock
