Model # WF45K6500AV/A2-01 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF45K6500AV-A2-01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Washer Drain Pump Motor DC31-00178D
#11-1

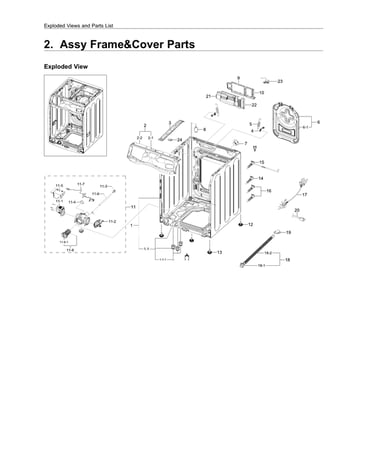

Frame & cover parts diagram

Washer drain pump motor

Part #DC31-00178D

Replaced by #DC31-00187A

?
Manufacturer substitution
This part replaces DC31-00178D. Substitute parts can look different from the original.
BEST SELLER
$129.67 |
8% OFF Phone Price : $141.67
In Stock
Washer Shock Absorber (replaces Dc66-00650c) DC66-00470B
#8-2-7

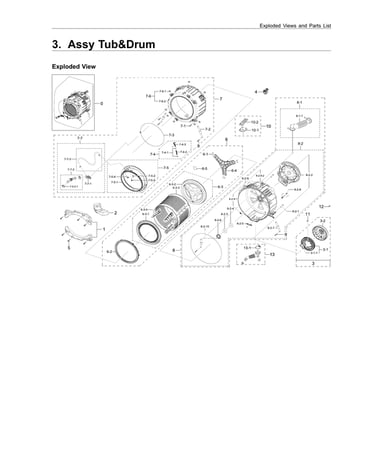

Tub & drum parts diagram

Washer shock absorber (replaces dc66-00650c)

Part #DC66-00470B

BEST SELLER
$30.91 |
16% OFF Phone Price : $36.91
In Stock
Washer Water Inlet Valve (replaces Dc62-30314h) DC62-30314K
#2

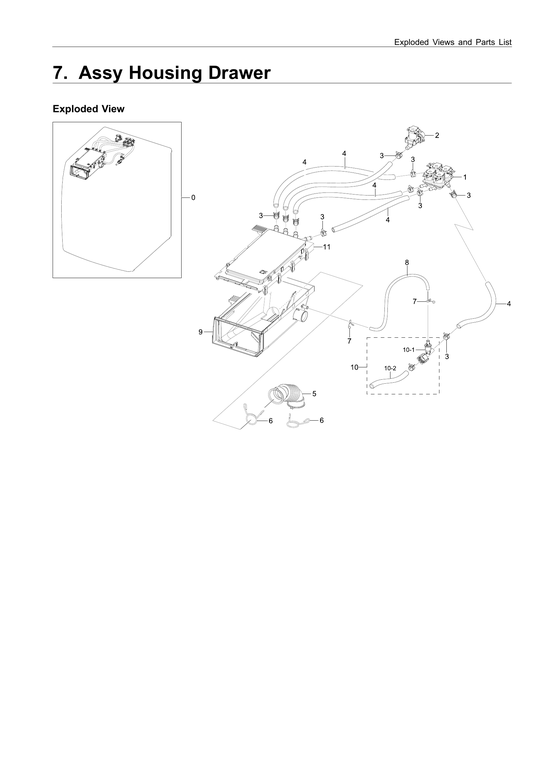

Drawer housing parts diagram

Washer water inlet valve (replaces dc62-30314h)

Part #DC62-30314K

BEST SELLER
$61.69 |
9% OFF Phone Price : $67.69
In Stock
Washer Inverter Control Board DC92-01531C
#10

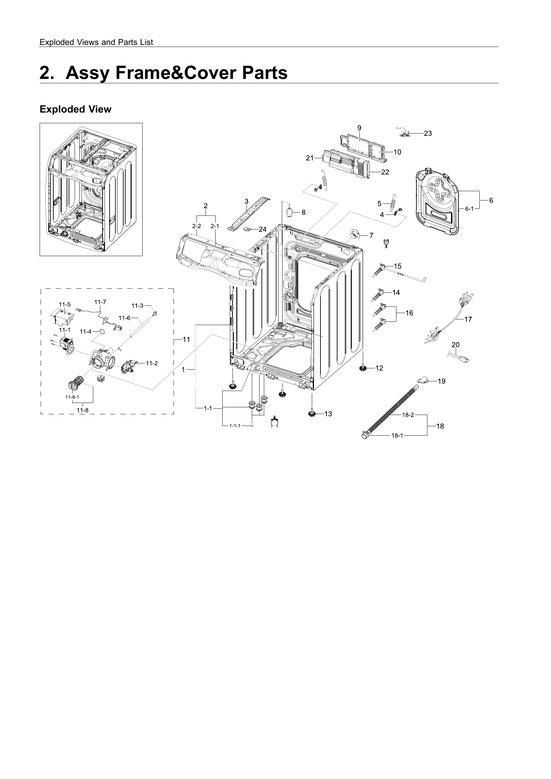

Frame & cover parts diagram

Washer inverter control board

Part #DC92-01531C

BEST SELLER
$209.37 |
5% OFF Phone Price : $221.37
In Stock
Kenmore Washer Drive Motor (replaces Dc31-00111b, Dc97-19994c) DC31-00111A
#3-1

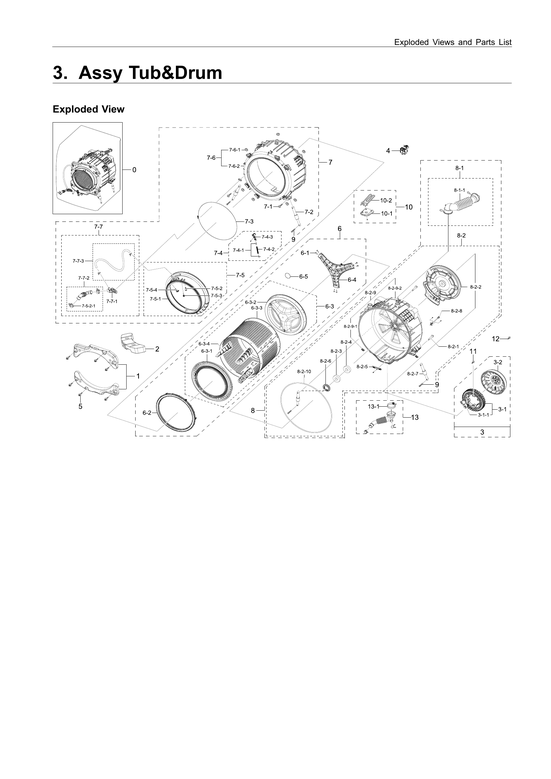

Tub & drum parts diagram

Kenmore washer drive motor (replaces dc31-00111b, dc97-19994c)

Part #DC31-00111A

BEST SELLER
$203.76 |
6% OFF Phone Price : $215.76
In Stock
Washer Motor Rotor Position Sensor DC31-00098A
#3-1-1

Tub & drum parts diagram

Washer motor rotor position sensor

Part #DC31-00098A

BEST SELLER
$59.00 |
9% OFF Phone Price : $65.00
In Stock
Washer Door Boot Spring Clamp DC97-04973B
#8

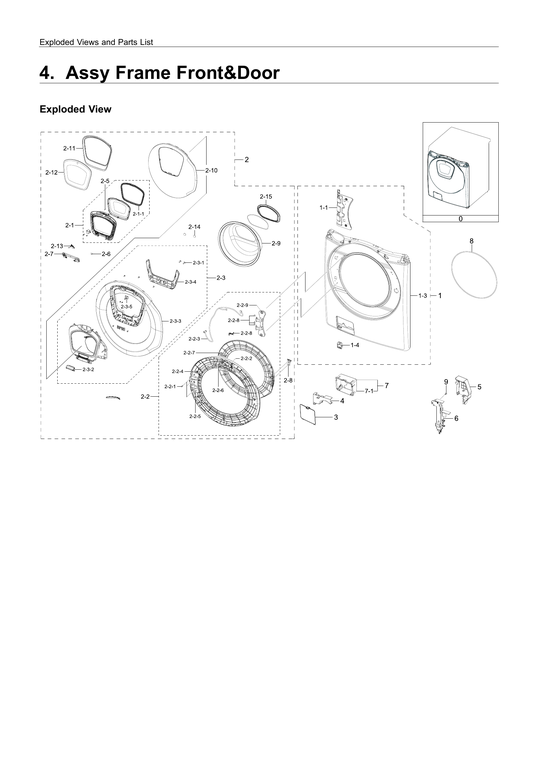

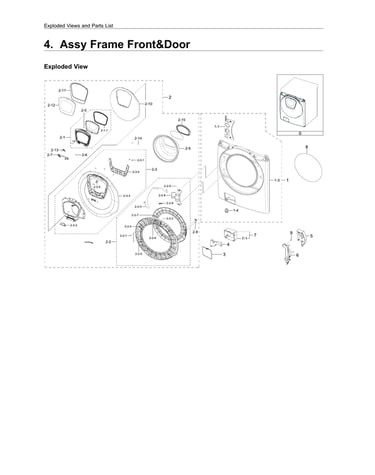

Front frame & door parts diagram

Washer door boot spring clamp

Part #DC97-04973B

BEST SELLER
$10.94 |
15% OFF Phone Price : $12.94
In Stock
Washer Door Lock Switch (replaces Dc6400519b) DC64-00519D
#6

Front frame & door parts diagram

Washer door lock switch (replaces dc6400519b)

Part #DC64-00519D

BEST SELLER
$106.34 |
10% OFF Phone Price : $118.34
In Stock
Washer Suspension Spring DC61-01257N
#5

Frame & cover parts diagram

Washer suspension spring

Part #DC61-01257N

BEST SELLER
$31.70 |
16% OFF Phone Price : $37.70
In Stock
Washer Door Boot Spring Clamp DC97-04981F
#7-3

Tub & drum parts diagram

Washer door boot spring clamp

Part #DC97-04981F

BEST SELLER
$18.75 |
10% OFF Phone Price : $20.75
In Stock
