Whirlpool
Bottom-Mount Refrigerator

Model # GX5FHDXVD00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool GX5FHDXVD00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

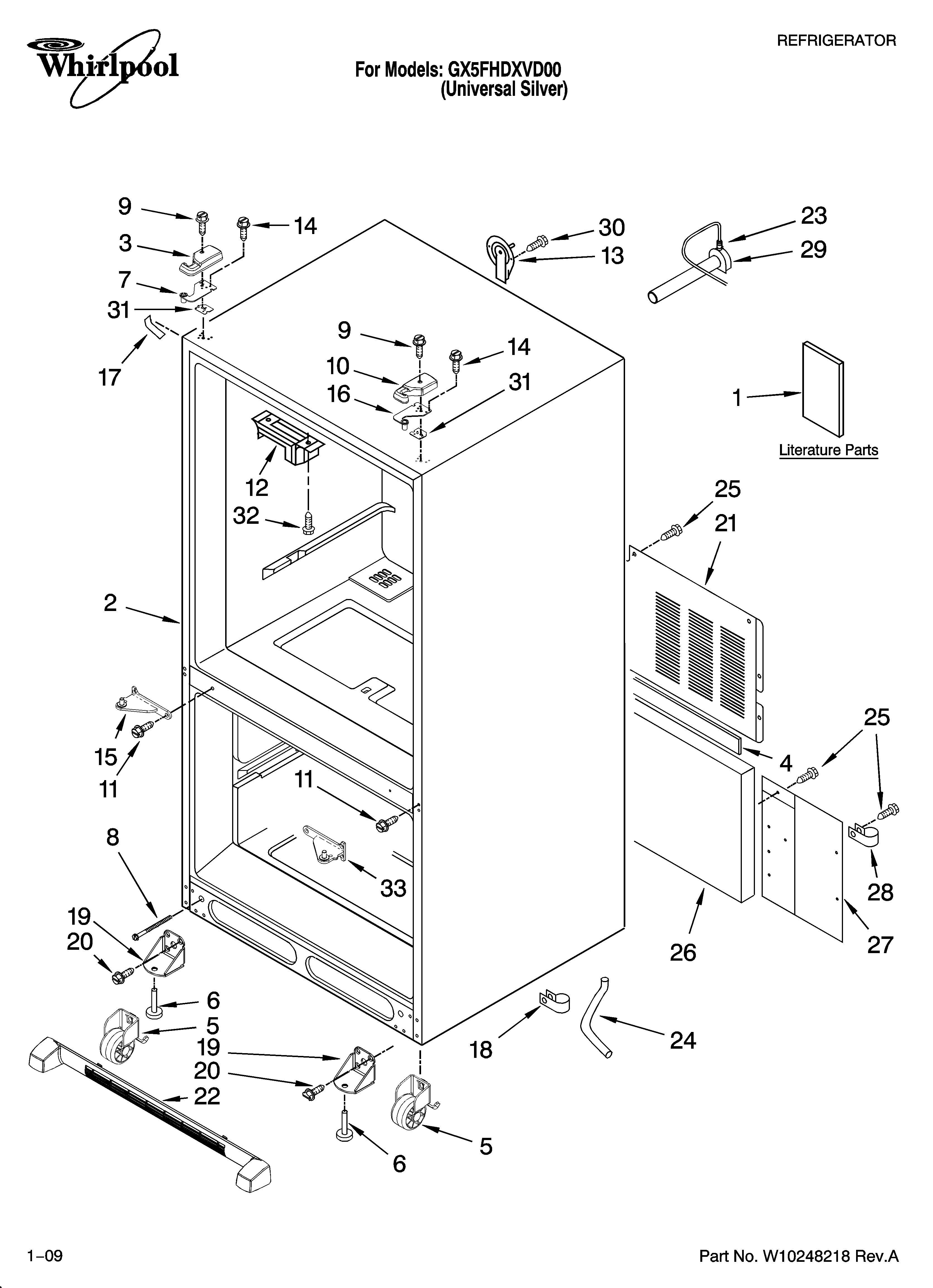

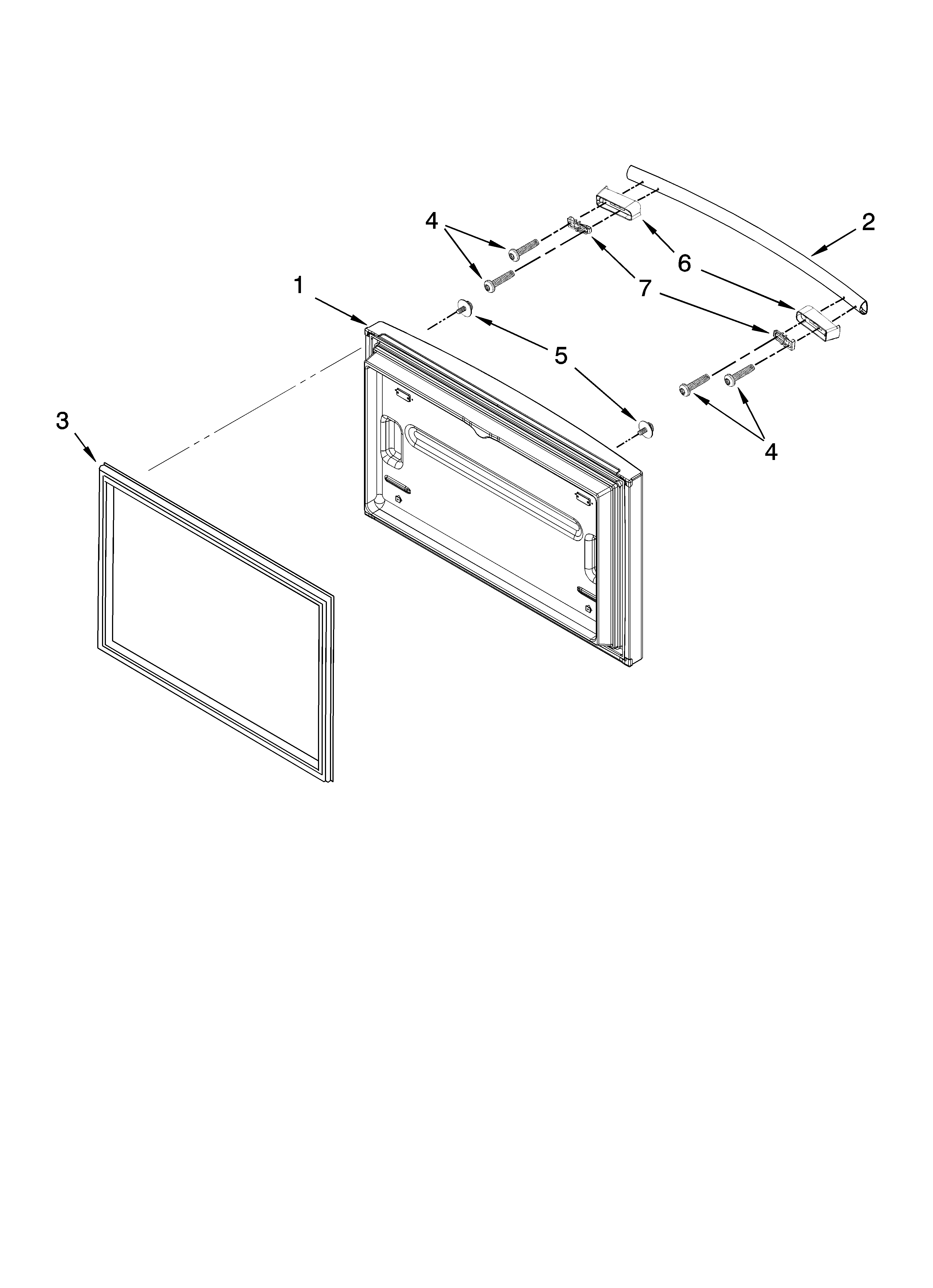

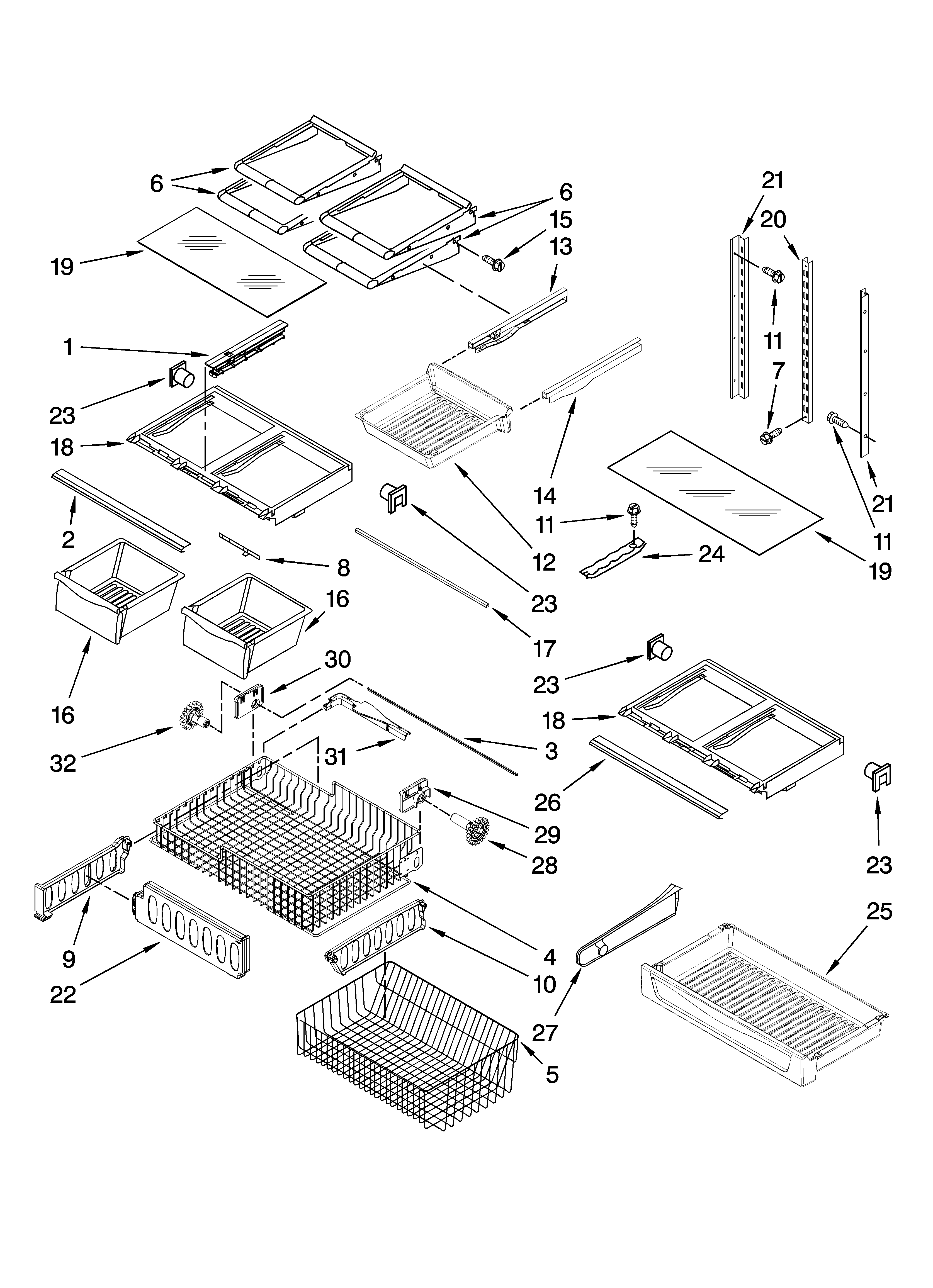

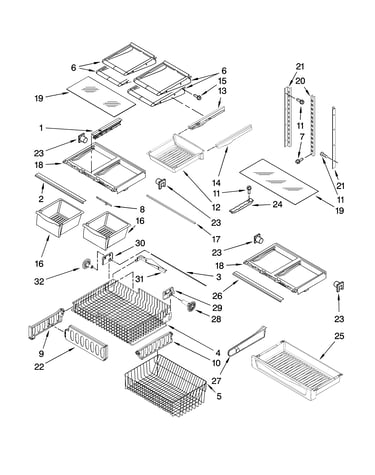

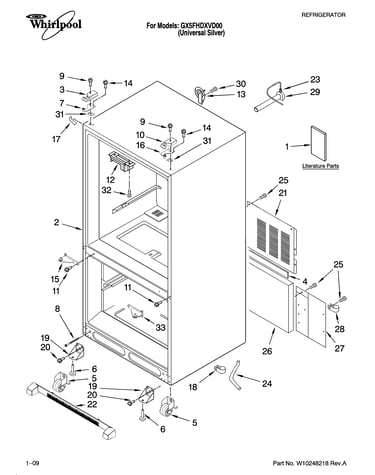

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 200 parts  |
Refrigerator Uv Filter Dryer W10143759
#27

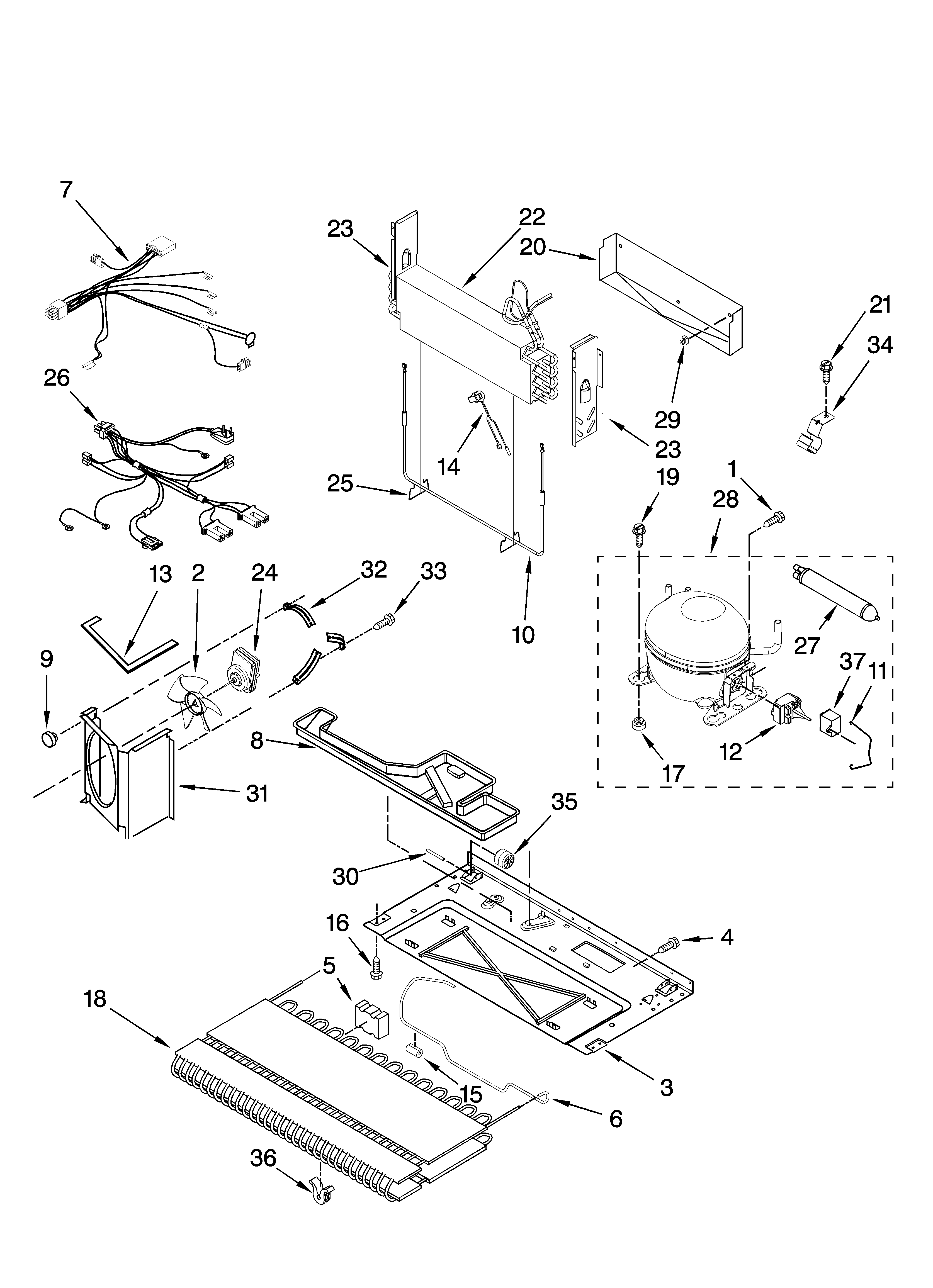

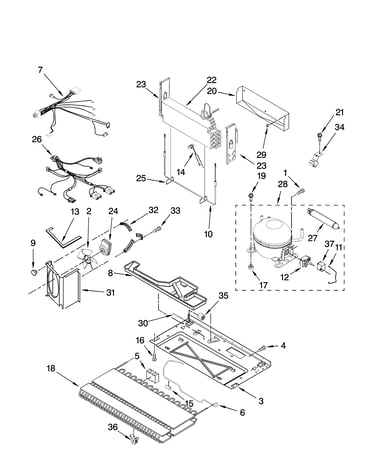

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker D7824706Q
#100

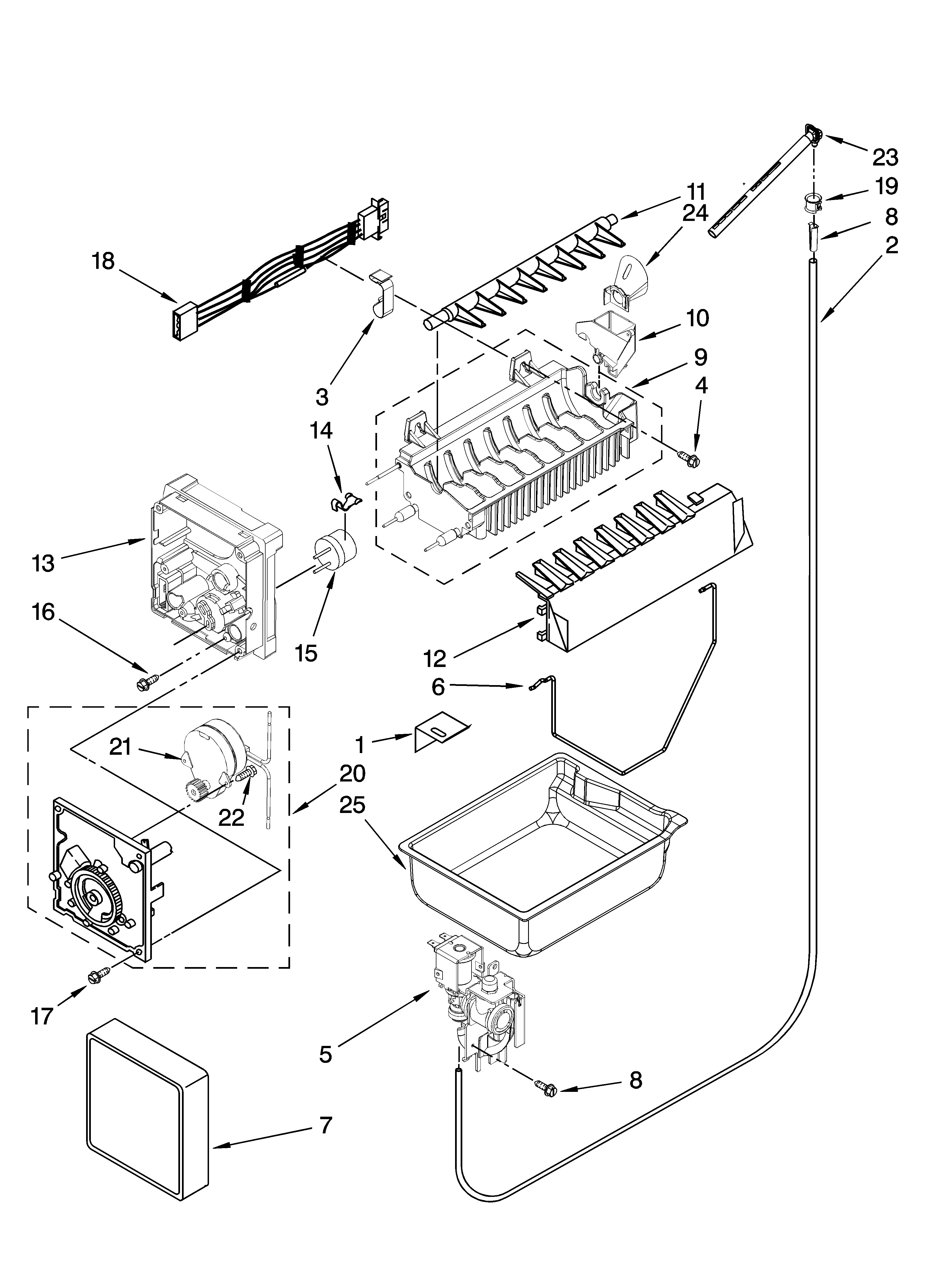

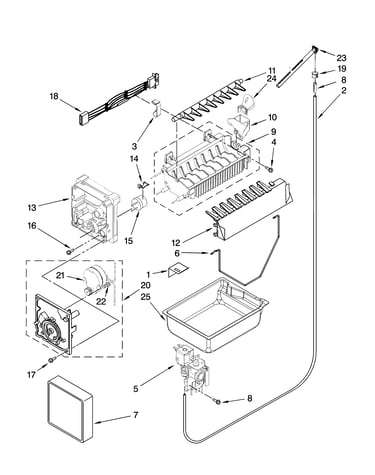

Icemaker parts, optional parts diagram

Refrigerator ice maker

Part #D7824706Q

BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Light Bulb W10194422
Refrigerator light bulb

Part #W10194422

Replaced by #40A15

?
Manufacturer substitution
This part replaces W10194422. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Electronic Control Board W10165748
#5

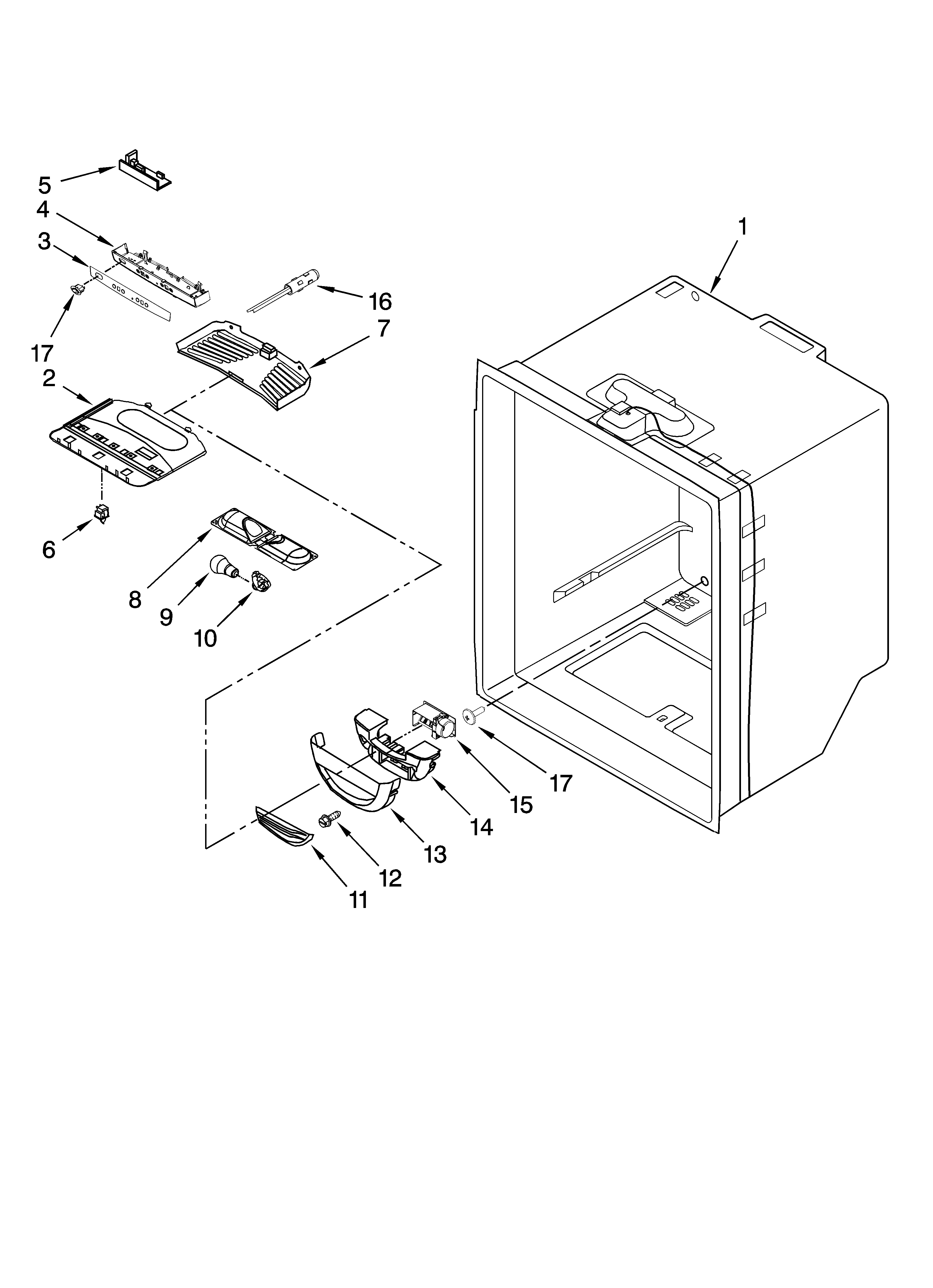

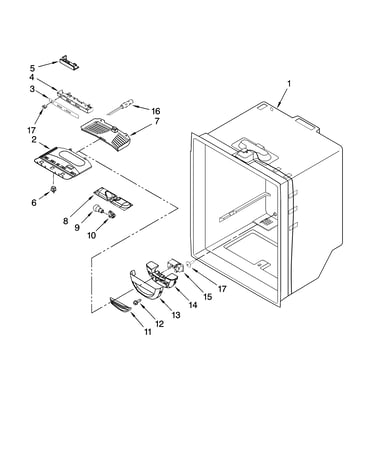

Refrigerator liner parts diagram

Refrigerator electronic control board

Part #W10165748

Replaced by #WPW10503278

?
Manufacturer substitution
This part replaces W10165748. Substitute parts can look different from the original.
BEST SELLER
$159.52 |
7% OFF Phone Price : $171.52
In Stock
Refrigerator Light Switch C3680310
#6

Refrigerator liner parts diagram

Refrigerator light switch

Part #C3680310

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Start Device W10128791
#12

Unit parts diagram

Start device

Part #W10128791

Replaced by #WPW10197428

?
Manufacturer substitution
This part replaces W10128791. Substitute parts can look different from the original.
BEST SELLER
$50.91 |
11% OFF Phone Price : $56.91
In Stock
Refrigerator Light Switch 67005653
#16

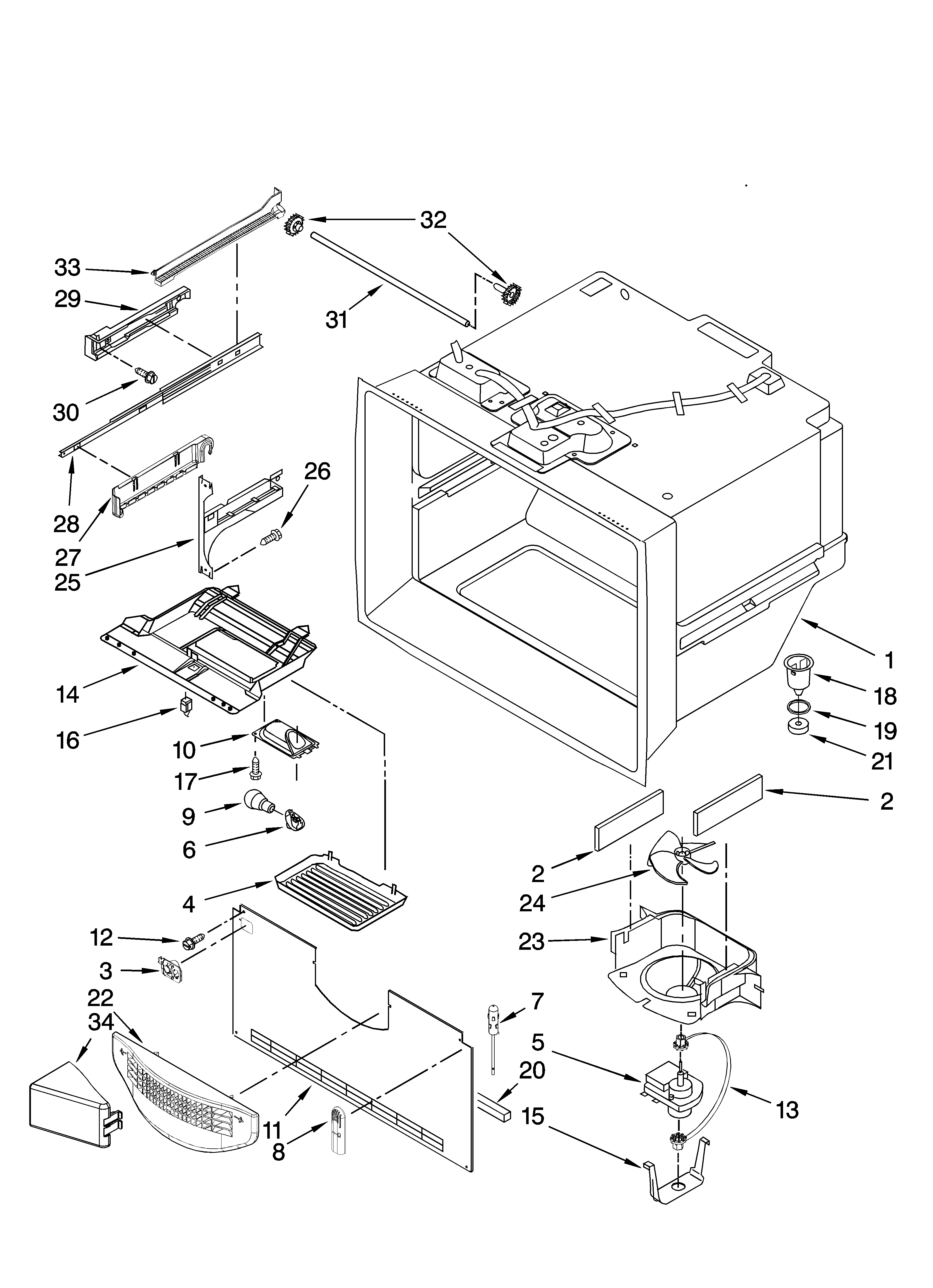

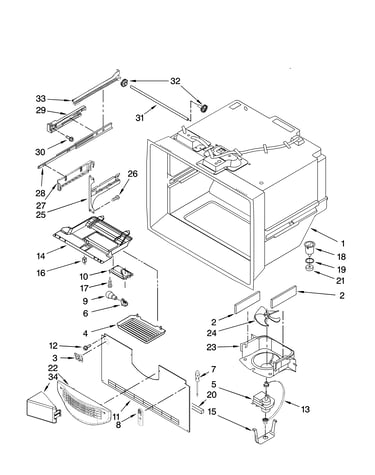

Freezer liner parts diagram

Refrigerator light switch

Part #67005653

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 67005653. Substitute parts can look different from the original.
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Refrigerator Evaporator Fan Motor W10128551
#5

Freezer liner parts diagram

Refrigerator evaporator fan motor

Part #W10128551

Replaced by #WPW10128551

?
Manufacturer substitution
This part replaces W10128551. Substitute parts can look different from the original.
BEST SELLER
$65.76 |
8% OFF Phone Price : $71.76
In Stock
Refrigerator Drawer Slide Rail W10120018
#28

Freezer liner parts diagram

Refrigerator drawer slide rail

Part #W10120018

Replaced by #WPW10120018

?
Manufacturer substitution
This part replaces W10120018. Substitute parts can look different from the original.
BEST SELLER
$118.53 |
9% OFF Phone Price : $130.53
In Stock
Refrigerator Gasket Panel W10163895
#8

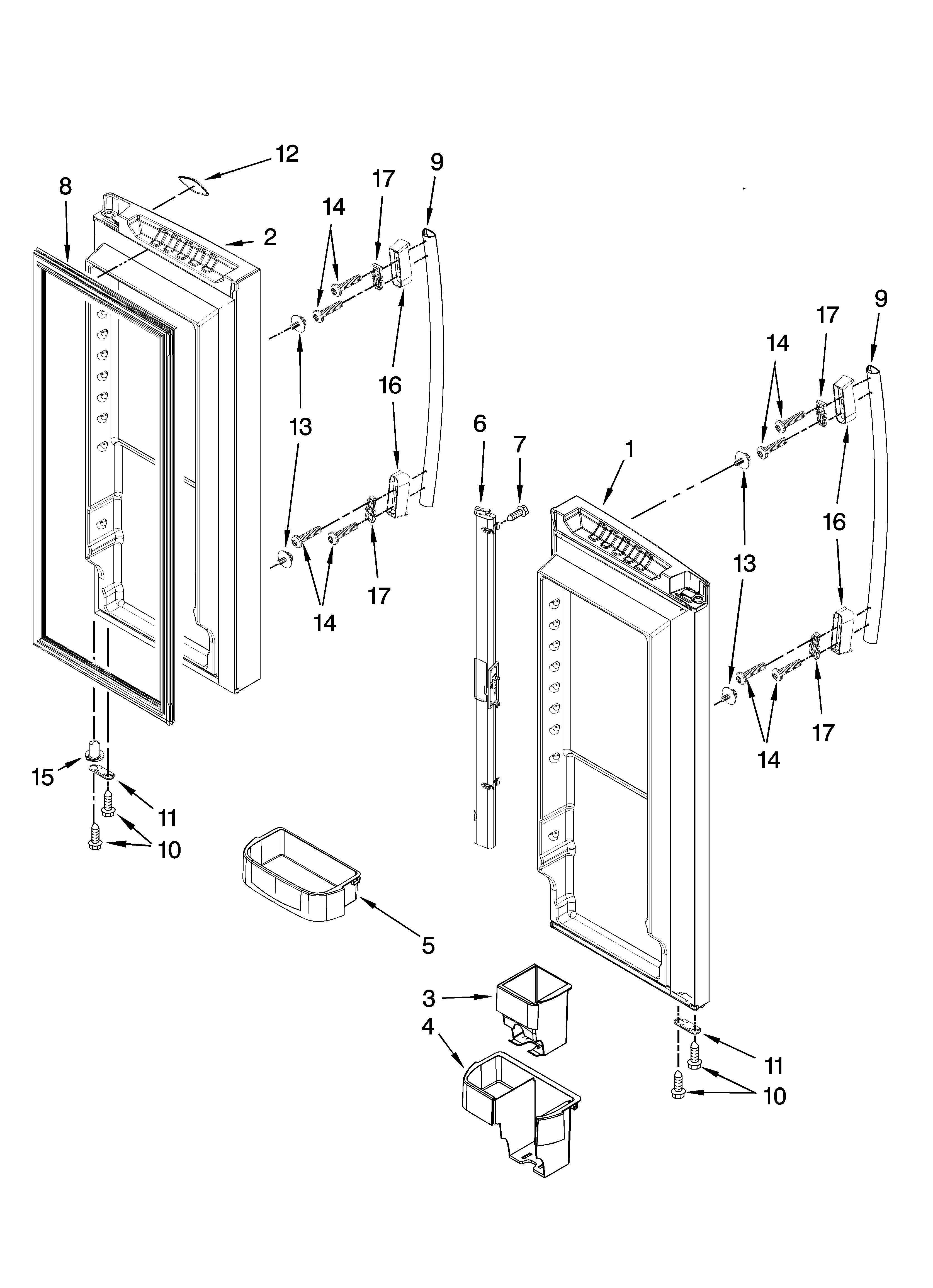

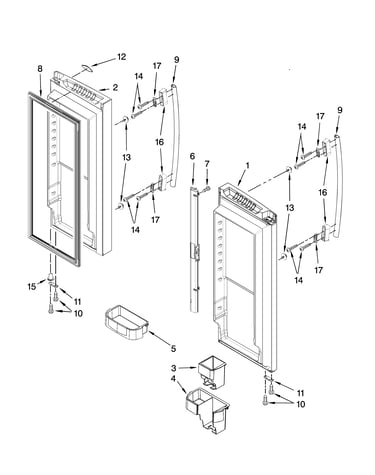

Refrigerator door parts diagram

Refrigerator gasket panel

Part #W10163895

Replaced by #W11368721

?
Manufacturer substitution
This part replaces W10163895. Substitute parts can look different from the original.
BEST SELLER
$121.44 |
9% OFF Phone Price : $133.44
In Stock
