Model # SA-BTT770P Official Panasonic dvd home theater system

Here are the diagrams and repair parts for Official Panasonic SA-BTT770P dvd home theater system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Home Theater System Remote Control N2QAYB000632
#NI

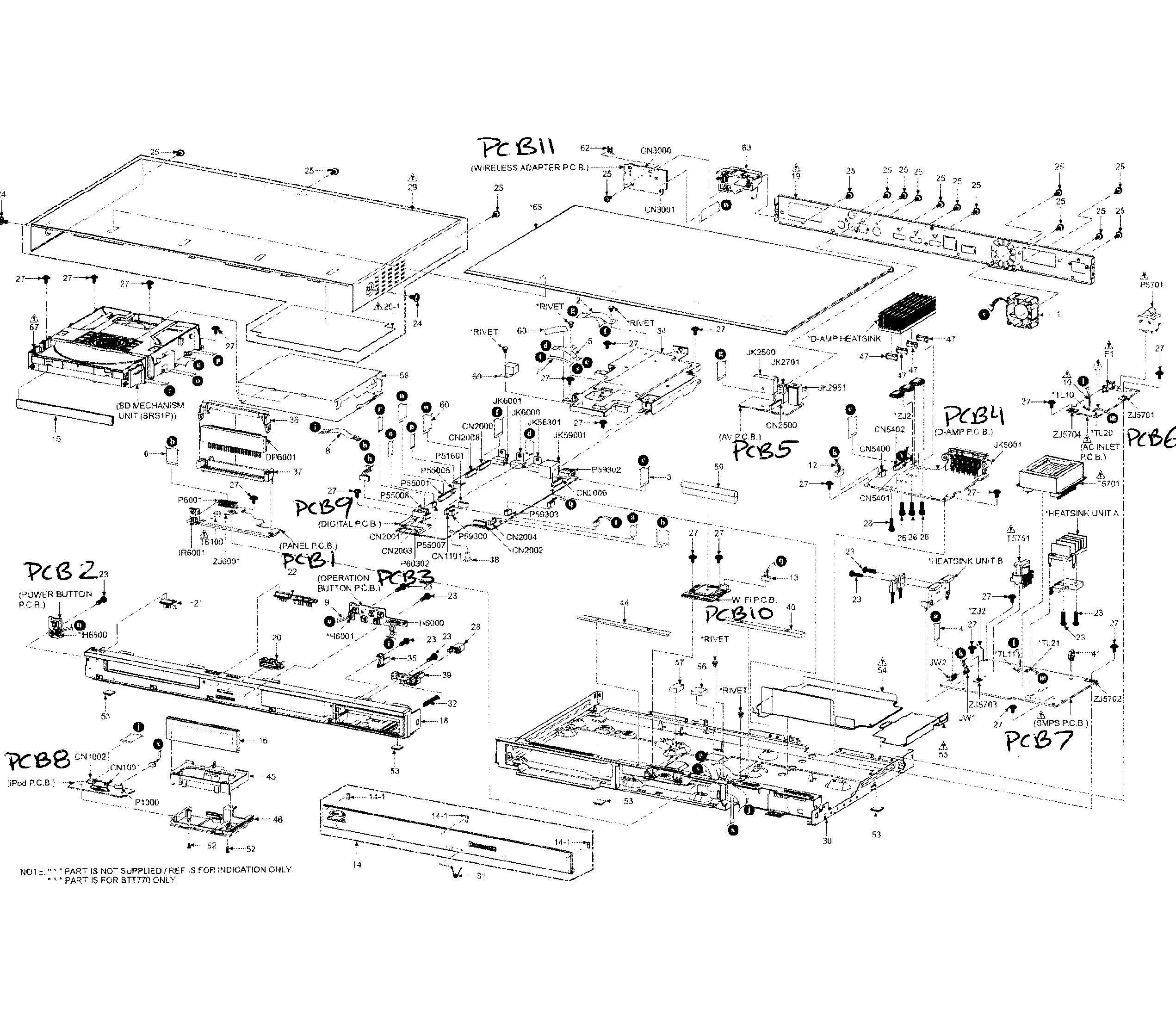

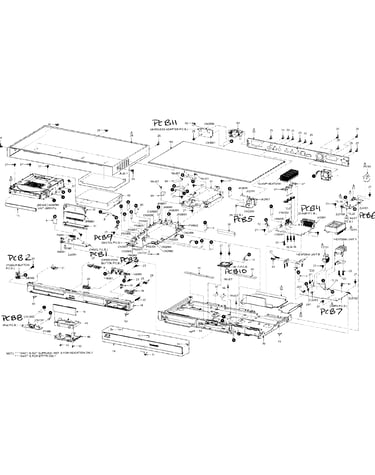

Cabinet parts diagram

Home theater system remote control

Part #N2QAYB000632

The manufacturer no longer makes this part, and there's no substitute part

Thermistor D4CAA2R20001
#NI

Cabinet parts diagram

Thermistor

Part #D4CAA2R20001

The manufacturer no longer makes this part, and there's no substitute part

Cable-1p-b REXX1187
#11

Cabinet parts diagram

Cable-1p-b

Part #REXX1187

The manufacturer no longer makes this part, and there's no substitute part

Cable-4p REXX1202
#12

Cabinet parts diagram

Cable-4p

Part #REXX1202

The manufacturer no longer makes this part, and there's no substitute part

Lever Switch K0L1CB000004
#138

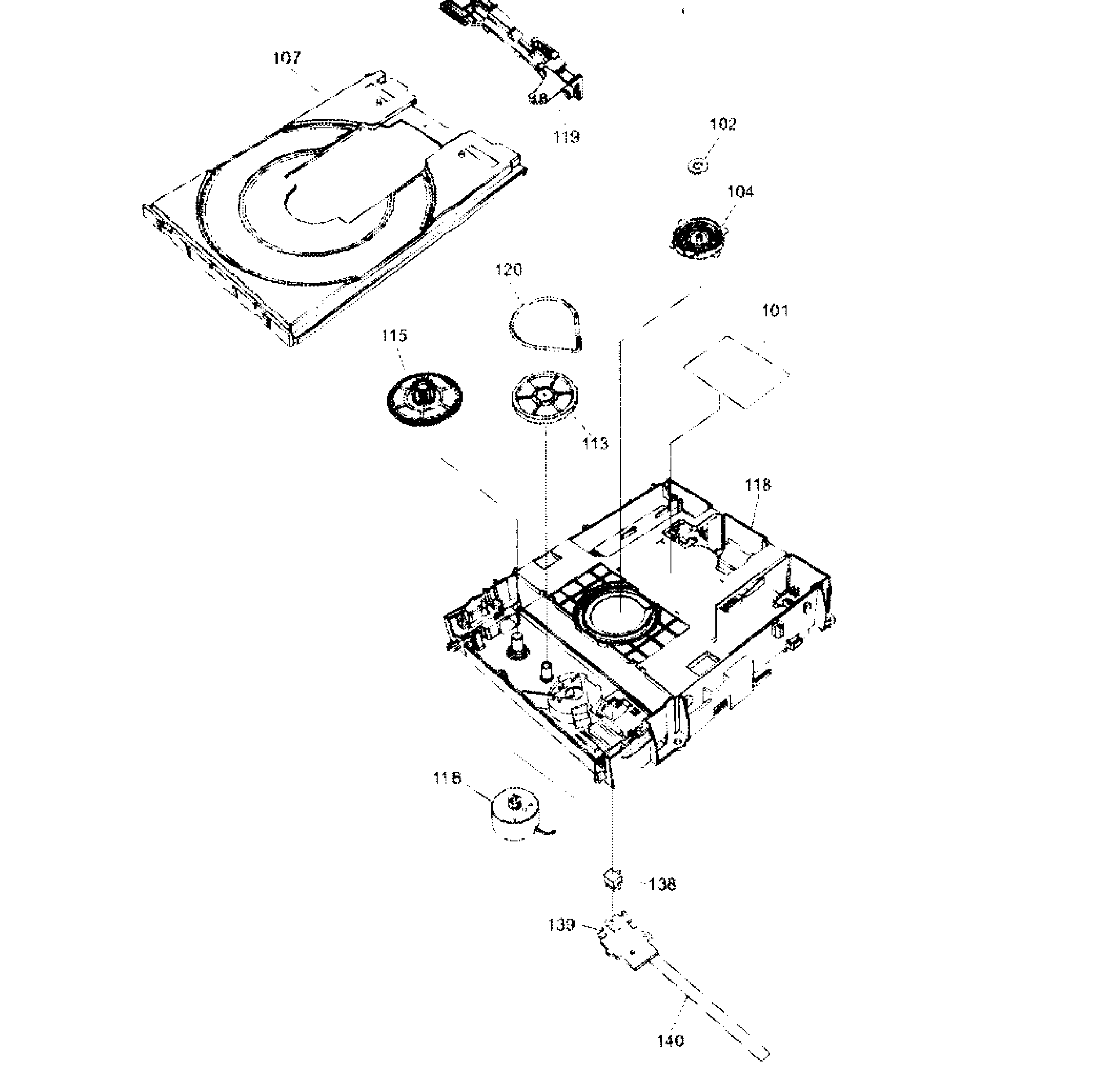

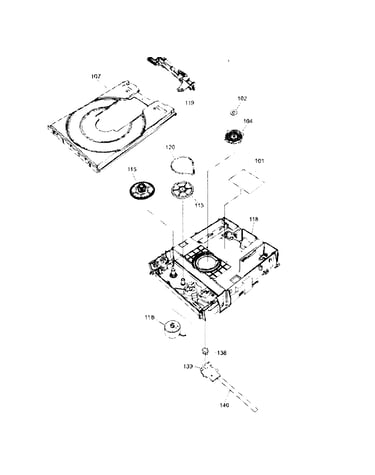

Bd mechanism diagram

Lever switch

Part #K0L1CB000004

The manufacturer no longer makes this part, and there's no substitute part

Relay K6B1AYY00065
#NI

Cabinet parts diagram

Relay

Part #K6B1AYY00065

The manufacturer no longer makes this part, and there's no substitute part

Cap, 1000p F1BAF1020020
#NI

Cabinet parts diagram

Cap, 1000p

Part #F1BAF1020020

The manufacturer no longer makes this part, and there's no substitute part

Cable-10p REEX1230
#4

Cabinet parts diagram

Cable-10p

Part #REEX1230

The manufacturer no longer makes this part, and there's no substitute part

Capacitor F0CAF104A105
#NI

Cabinet parts diagram

Capacitor

Part #F0CAF104A105

The manufacturer no longer makes this part, and there's no substitute part

Panel RFKGBTT770PK
#18

Cabinet parts diagram

Panel

Part #RFKGBTT770PK

The manufacturer no longer makes this part, and there's no substitute part
