Model # UH70405 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH70405 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |

Vacuum Beater Bar 303792001
#33

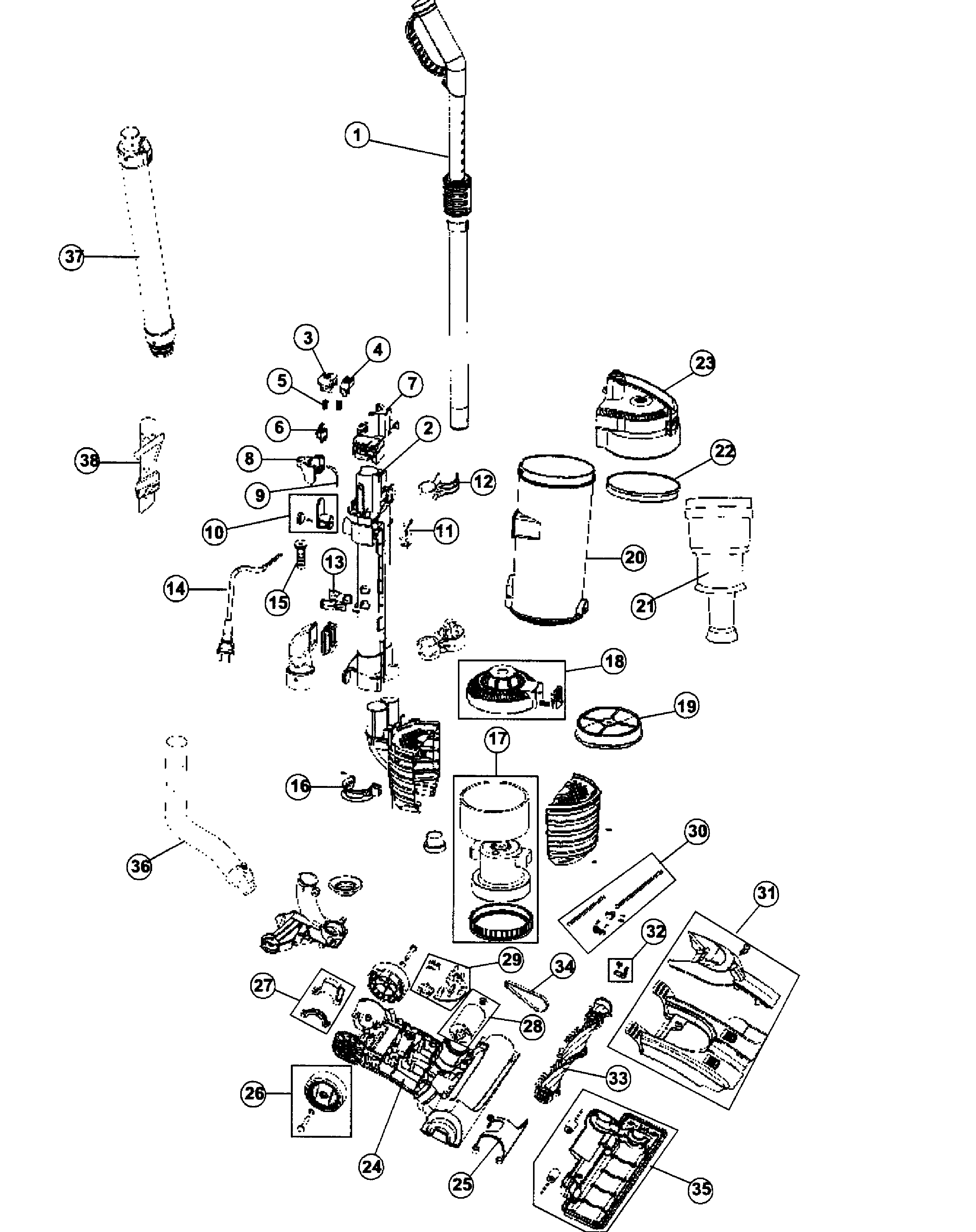

Vacuum diagram

Vacuum beater bar

Part #303792001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Switch 760454001
#6

Vacuum diagram

Vacuum power switch

Part #760454001

The manufacturer no longer makes this part, and there's no substitute part

Harness 290611001
#30

Vacuum diagram

Harness

Part #290611001

The manufacturer no longer makes this part, and there's no substitute part

Upright Vacuum Wand Release Spring And Screw 633541002
#32

Vacuum diagram

Upright vacuum wand release spring and screw

Part #633541002

The manufacturer no longer makes this part, and there's no substitute part

Filter Cover 304143001
#18

Vacuum diagram

Filter cover

Part #304143001

The manufacturer no longer makes this part, and there's no substitute part

Low Handle 522336001
Low handle

Part #522336001

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Base 304147001
#24

Vacuum diagram

Nozzle base

Part #304147001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 562535001
#34

Vacuum diagram

Vacuum beater bar belt

Part #562535001

The manufacturer no longer makes this part, and there's no substitute part

Power Button 522333001
#3

Vacuum diagram

Power button

Part #522333001

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 730174001
#14

Vacuum diagram

Power cord

Part #730174001

The manufacturer no longer makes this part, and there's no substitute part
