Model # 1037166334 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1037166334 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

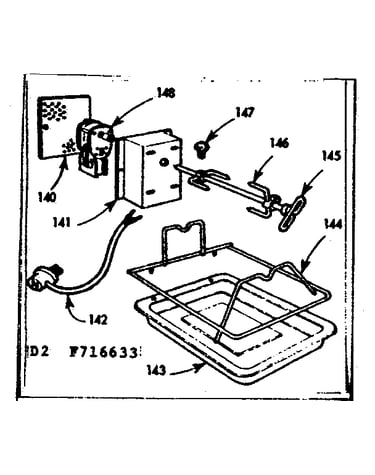

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Lamp Bulb 65973

#NI

All parts diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Support 86931
#50

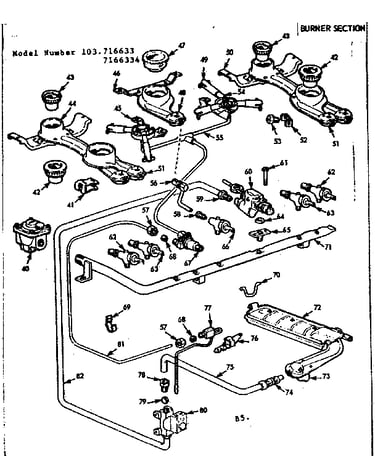

Burner section diagram

Support

Part #86931

This item is not returnable
$2.29
In Stock
Drawer Guide 97820
#113A

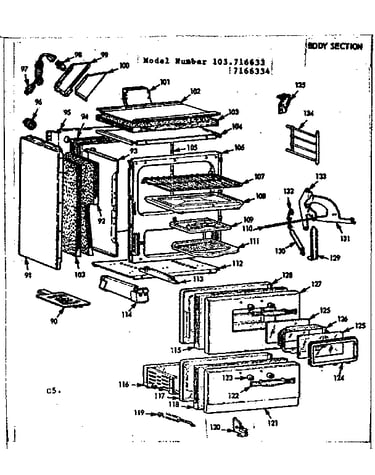

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Loxit Nut 79719
#58

Burner section diagram

Loxit nut

Part #79719

Replaced by #100108370

?
Manufacturer substitution
This part replaces 79719. Substitute parts can look different from the original.
$36.67
In Stock
Retainer 98117
#135

Body section diagram

Retainer

Part #98117

The manufacturer no longer makes this part, and there's no substitute part

Retainer 86999
#124

Body section diagram

Retainer

Part #86999

The manufacturer no longer makes this part, and there's no substitute part

Door Lining 97800
#128

Body section diagram

Door lining

Part #97800

The manufacturer no longer makes this part, and there's no substitute part

Lamp Holder 99570
#5

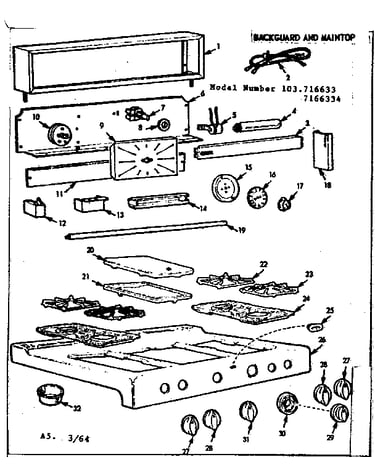

Backguard and maintop diagram

Lamp holder

Part #99570

The manufacturer no longer makes this part, and there's no substitute part

Loxit Nut 72942
#59

Burner section diagram

Loxit nut

Part #72942

The manufacturer no longer makes this part, and there's no substitute part

Oven 95739
#108

Body section diagram

Oven

Part #95739

The manufacturer no longer makes this part, and there's no substitute part
