Model # SRTD420 Official Sylvania tv/dvd/vcr combination

Here are the diagrams and repair parts for Official Sylvania SRTD420 tv/dvd/vcr combination, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Transformer LTT00CPKT136
#NI

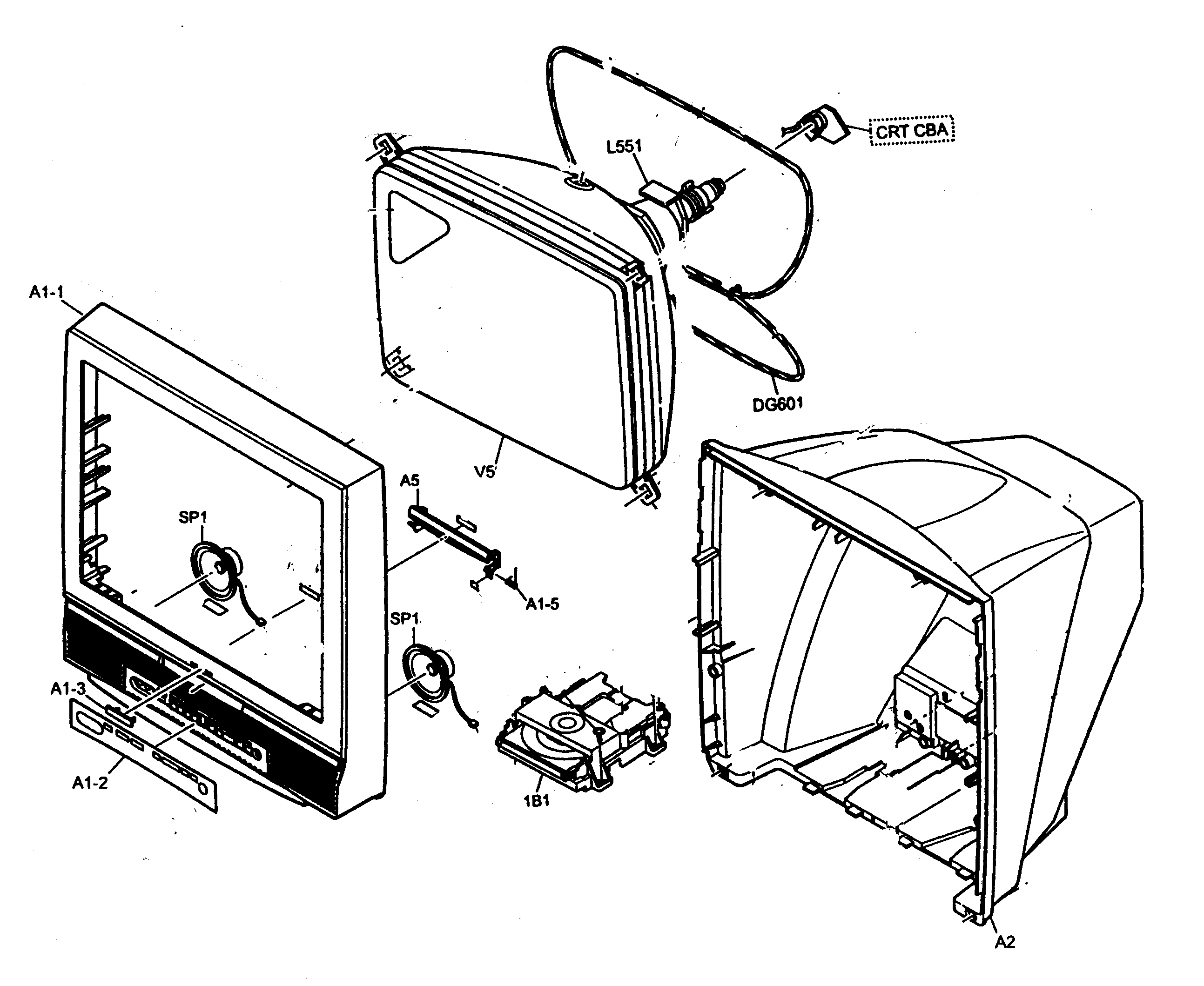

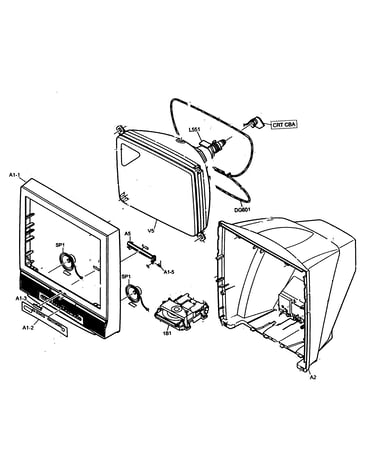

Cabinet parts diagram

Transformer

Part #LTT00CPKT136

The manufacturer no longer makes this part, and there's no substitute part

Mechanism N79U0HVM
#1B1

Cabinet parts diagram

Mechanism

Part #N79U0HVM

The manufacturer no longer makes this part, and there's no substitute part

Emerson Integrated Circuit QSZBA0SSH026
#NI

Cabinet parts diagram

Emerson integrated circuit

Part #QSZBA0SSH026

The manufacturer no longer makes this part, and there's no substitute part

Sylvania Cabinet 0EM000954
#A2

Cabinet parts diagram

Sylvania cabinet

Part #0EM000954

The manufacturer no longer makes this part, and there's no substitute part

Tray Panel 0EM301947
#A5

Cabinet parts diagram

Tray panel

Part #0EM301947

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 0ESA06180
#NI

Cabinet parts diagram

Pcb assembly

Part #0ESA06180

The manufacturer no longer makes this part, and there's no substitute part

Superscan Integrated Circuit QSZAA0SMS015
#NI

Cabinet parts diagram

Superscan integrated circuit

Part #QSZAA0SMS015

The manufacturer no longer makes this part, and there's no substitute part

Funai Cathode Ray Tube Socket JSCC220PK003
#NI

Cabinet parts diagram

Funai cathode ray tube socket

Part #JSCC220PK003

The manufacturer no longer makes this part, and there's no substitute part

Badge 0EM409016
#A1-3

Cabinet parts diagram

Badge

Part #0EM409016

The manufacturer no longer makes this part, and there's no substitute part

Lxi Thermistor QNBZ45BL3R0A
#NI

Cabinet parts diagram

Lxi thermistor

Part #QNBZ45BL3R0A

The manufacturer no longer makes this part, and there's no substitute part
