KitchenAid
Side-By-Side Refrigerator

Model # KSRB25QFBL00 Official KitchenAid side-by-side refrigerator

Here are the diagrams and repair parts for Official KitchenAid KSRB25QFBL00 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

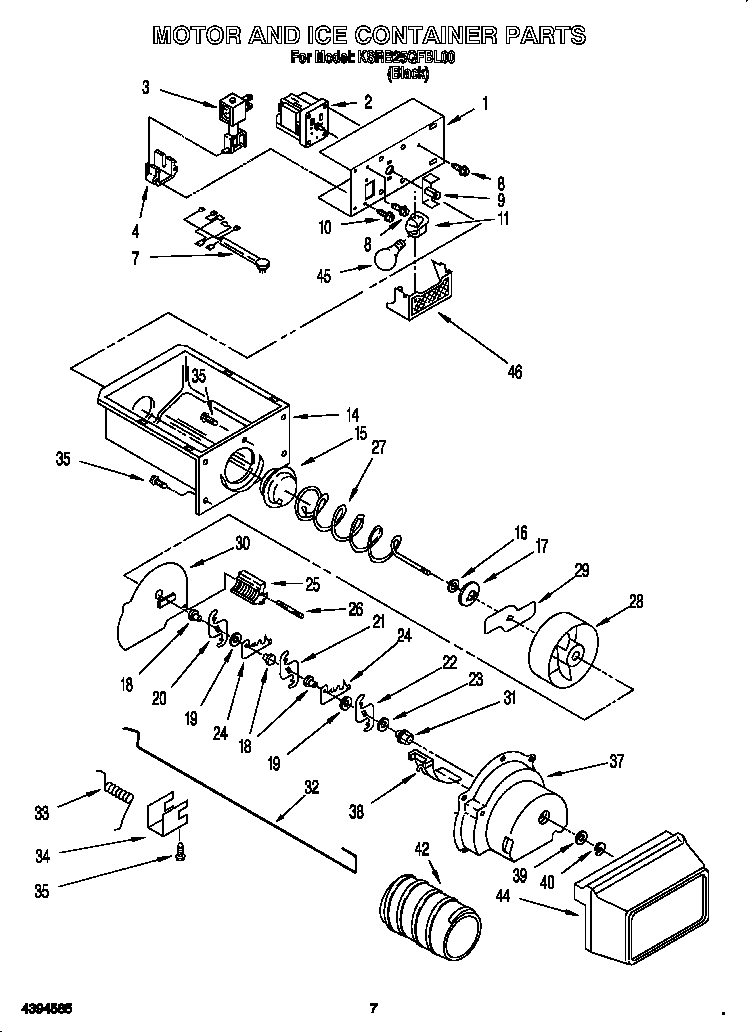

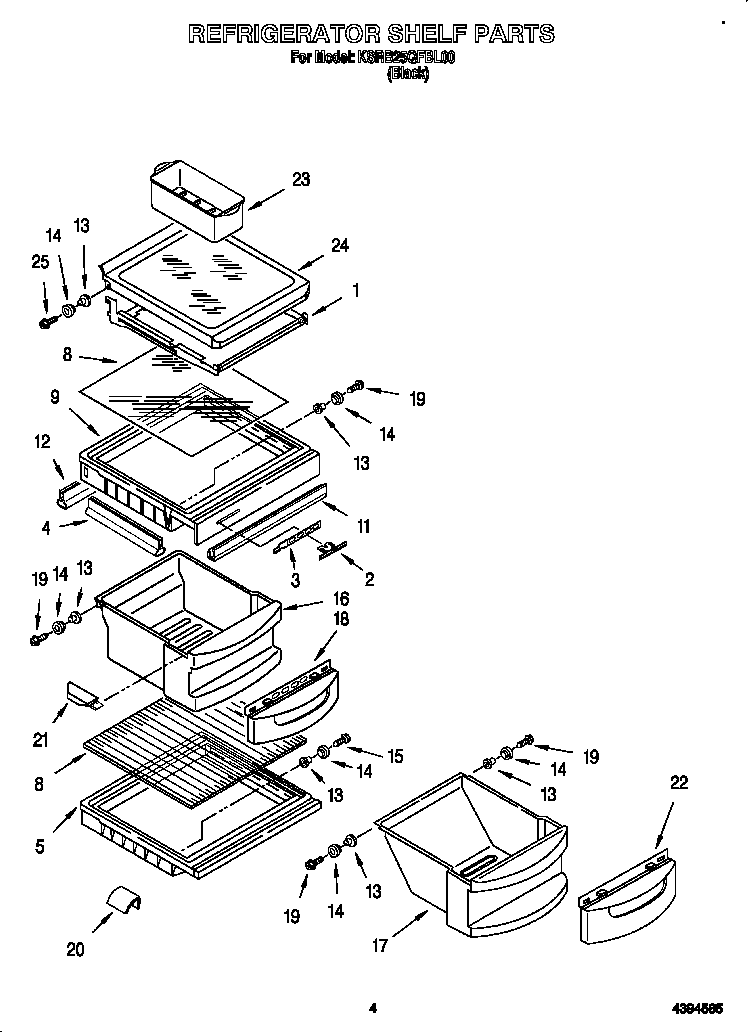

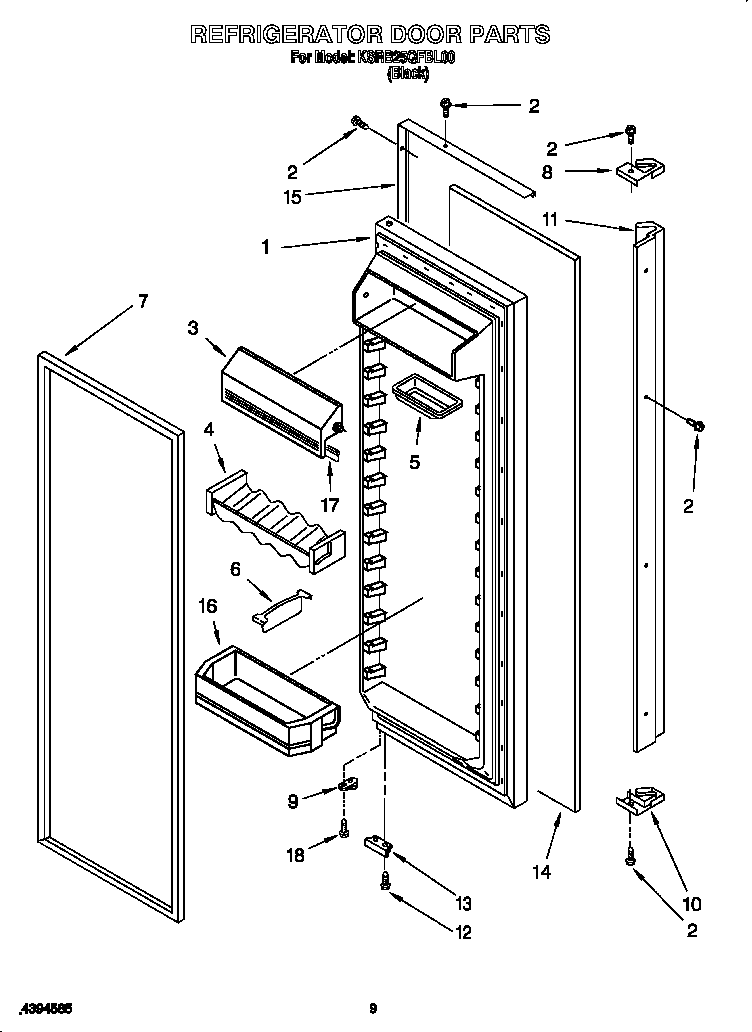

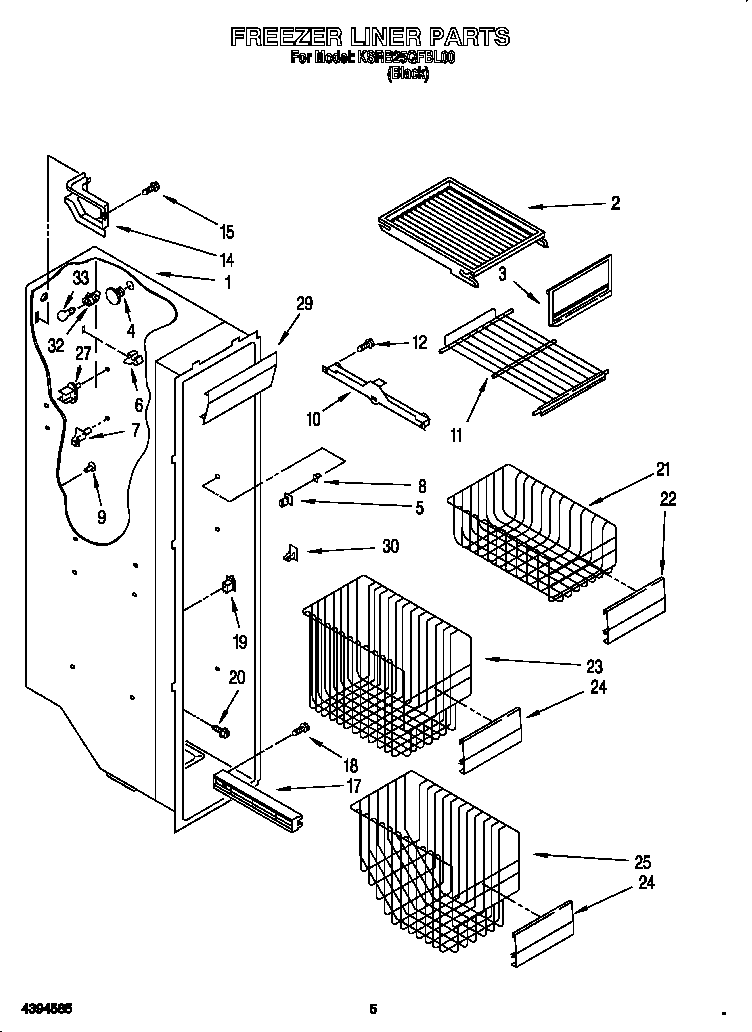

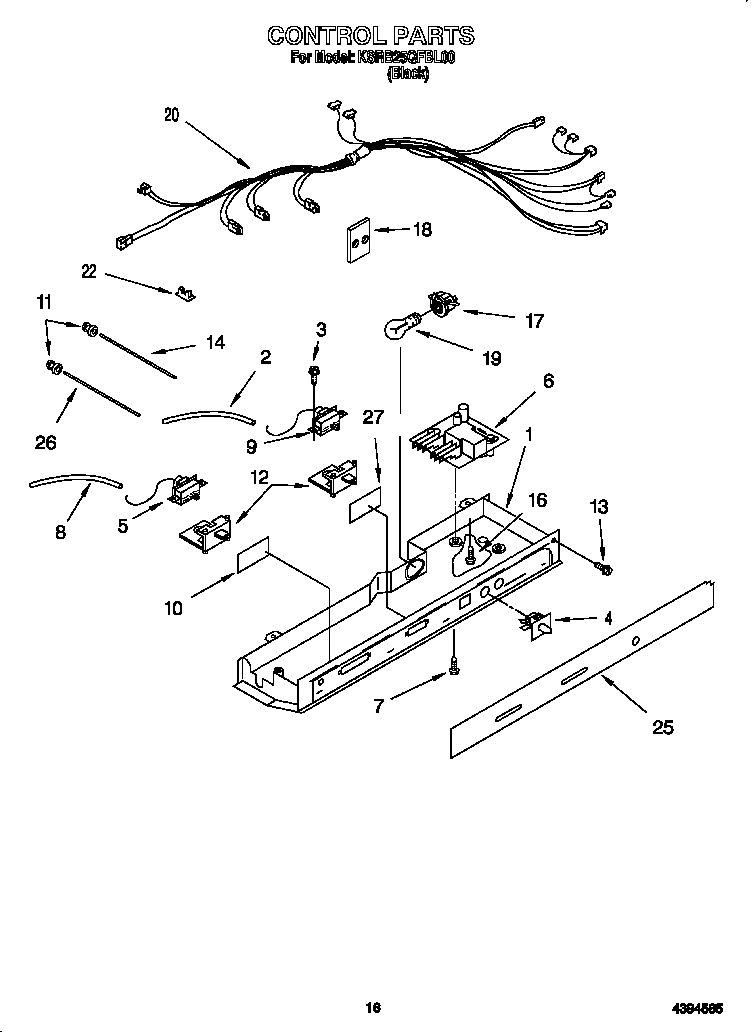

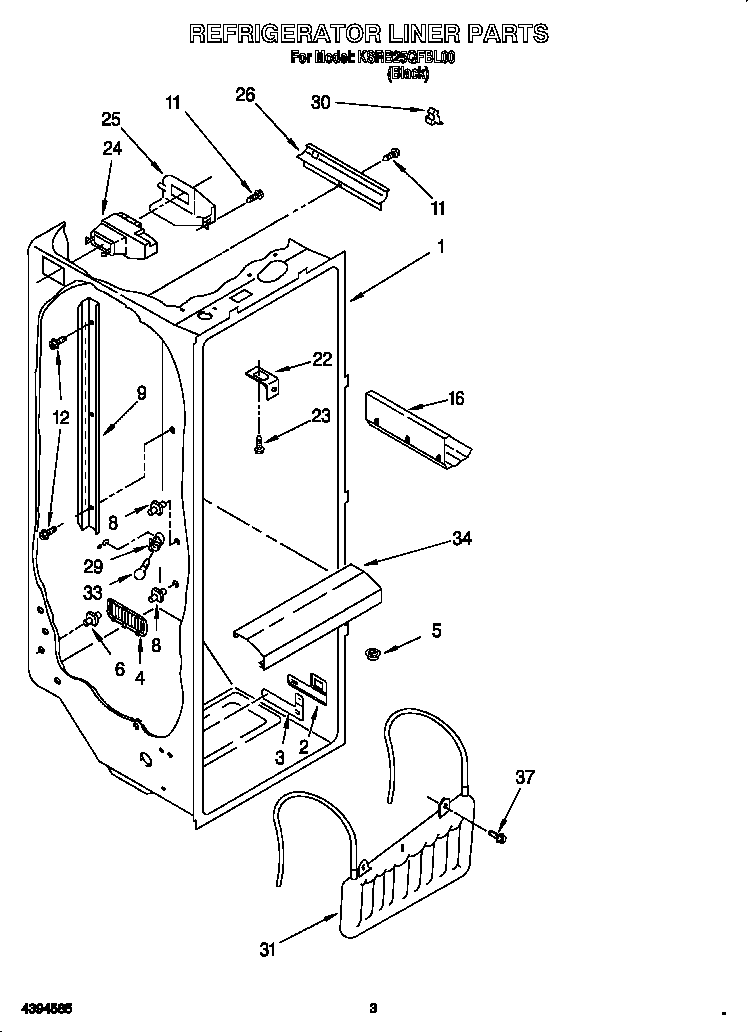

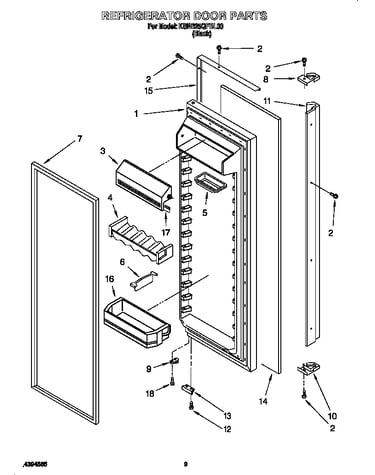

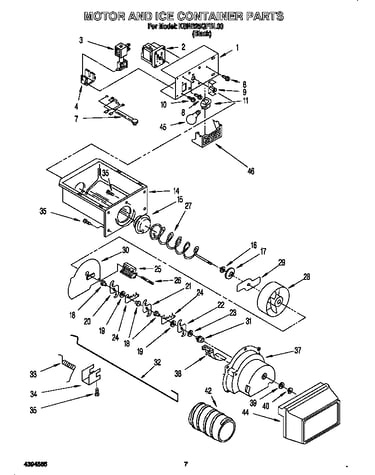

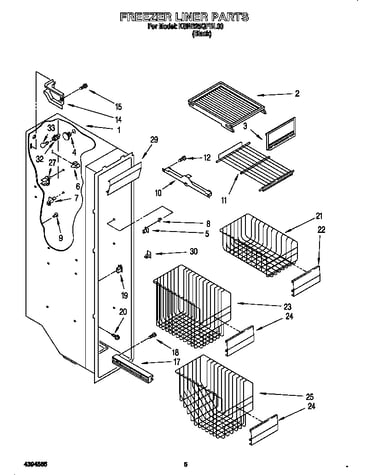

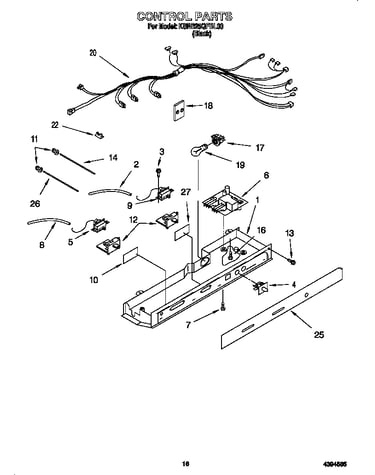

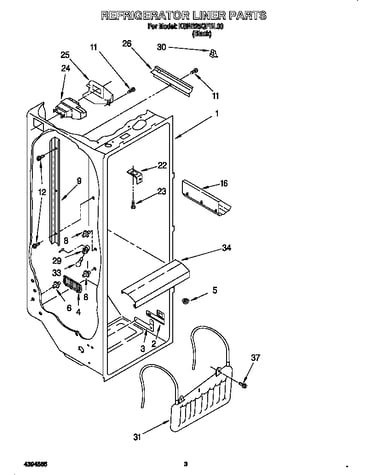

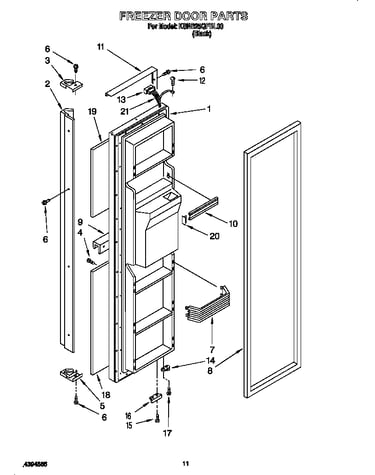

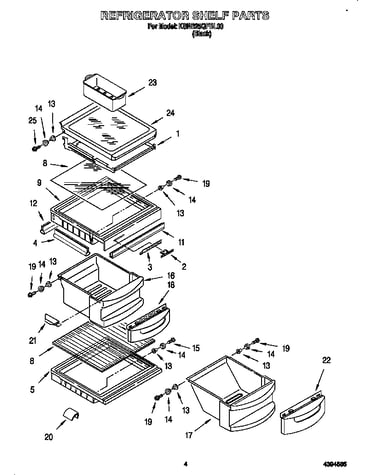

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 329 parts  |
Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, M626687, W10122496, W10190952, W10281545, W10632400) 4317943
#100

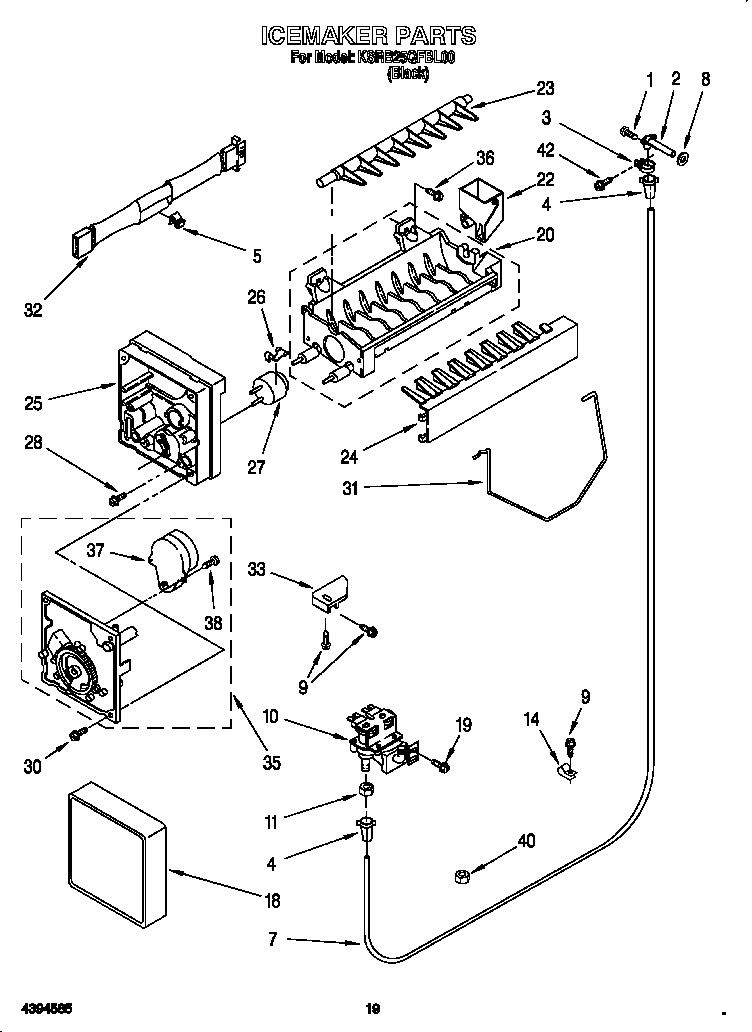

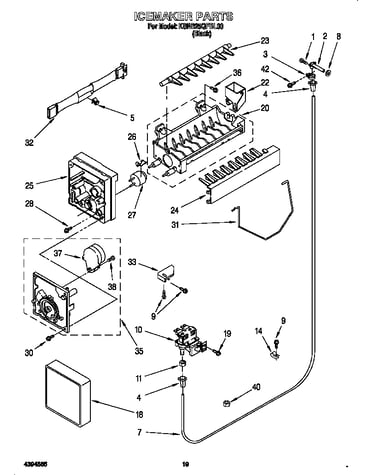

Icemaker diagram

Ice maker assembly - refrigerator ice maker by whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943

BEST SELLER
$96.71 |
11% OFF Phone Price : $108.71
In Stock
Refrigerator Defrost Bi-metal 2176066
#35

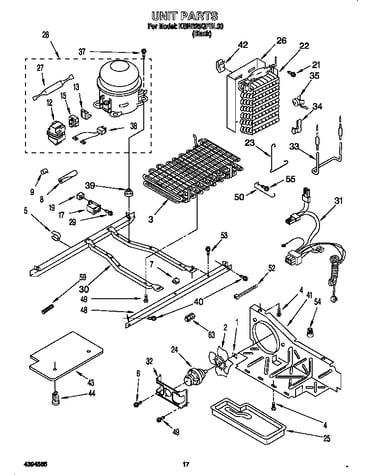

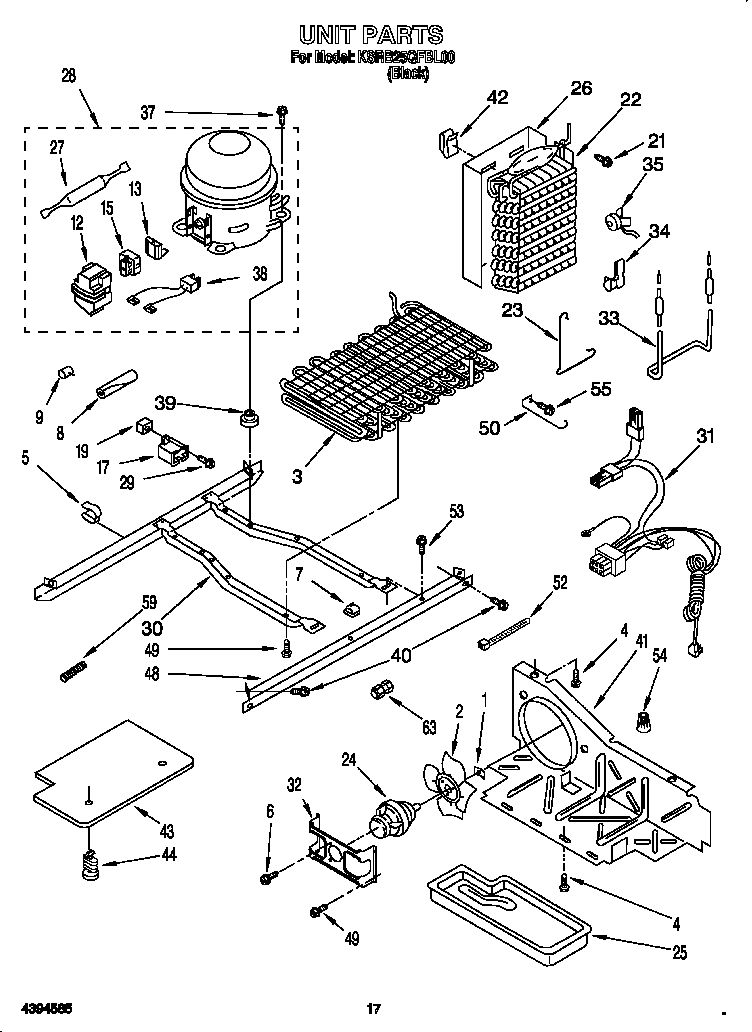

Unit diagram

Refrigerator defrost bi-metal

Part #2176066

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2176066. Substitute parts can look different from the original.
BEST SELLER
$34.02 |
15% OFF Phone Price : $40.02
In Stock
Light Bulb 527949
Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Bracket 2183771
#15

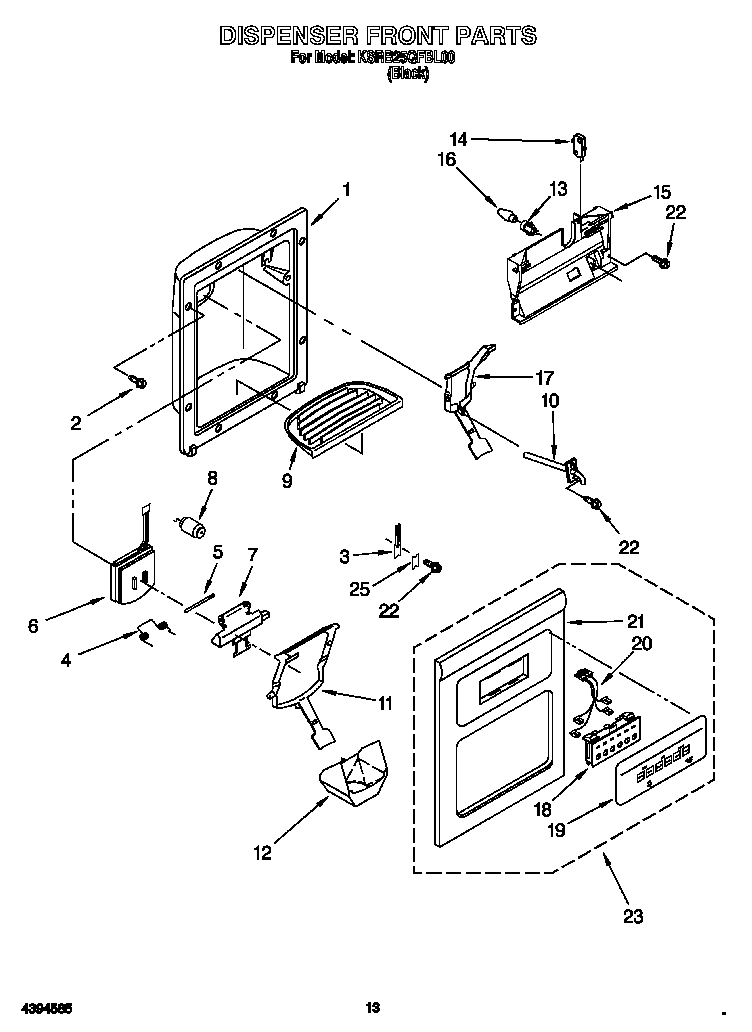

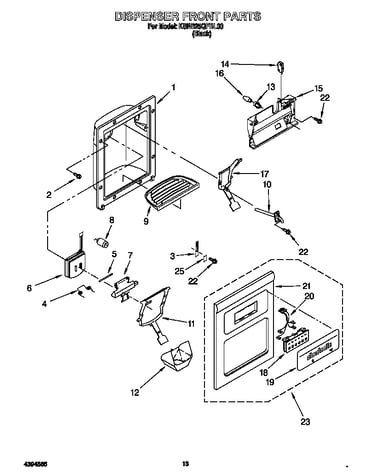

Dispenser front diagram

Refrigerator bracket

Part #2183771

Replaced by #WP2180226

?
Manufacturer substitution
This part replaces 2183771. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Refrigerator Door Closer Cam 2155311
#25

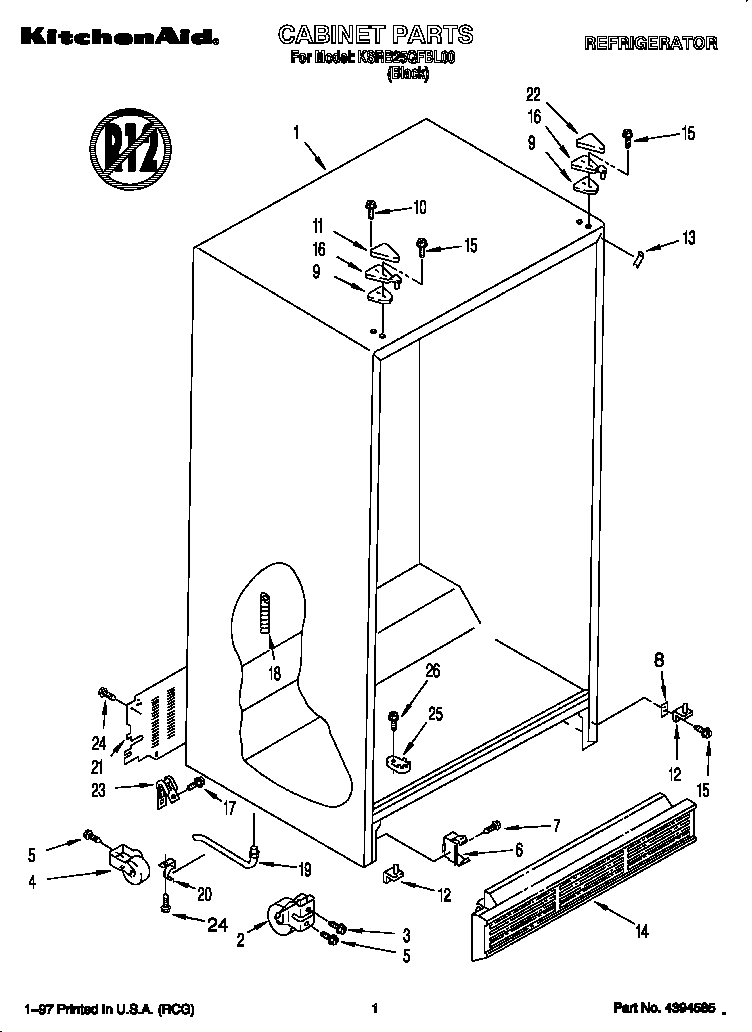

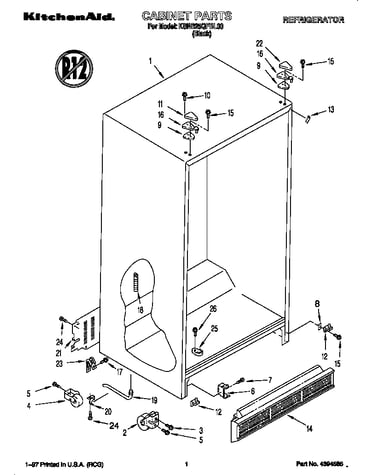

Cabinet diagram

Refrigerator door closer cam

Part #2155311

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
BEST SELLER
$10.86 |
16% OFF Phone Price : $12.86
In Stock
Drier Tube 2164409
#27

Unit diagram

Drier tube

Part #2164409

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2164409. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Evaporator Fan Blade 2169142
#8

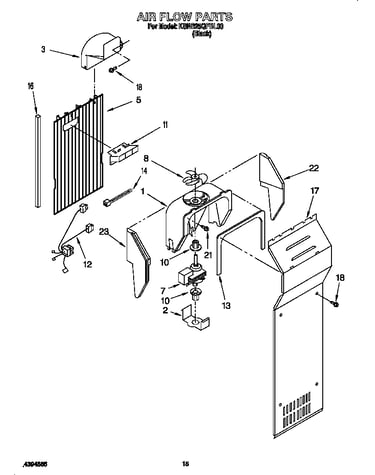

Airflow diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Refrigerator Compressor 2183419
#28

Unit diagram

Refrigerator compressor

Part #2183419

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 2183419. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Refrigerator Heater 2176065
#33

Unit diagram

Refrigerator heater

Part #2176065

Replaced by #WP2323198

?
Manufacturer substitution
This part replaces 2176065. Substitute parts can look different from the original.
BEST SELLER
$44.71 |
12% OFF Phone Price : $50.71
In Stock
Refrigerator Evaporator Motor 2162404
#7

Airflow diagram

Refrigerator evaporator motor

Part #2162404

Replaced by #4389144

?
Manufacturer substitution
This part replaces 2162404. Substitute parts can look different from the original.
BEST SELLER
$59.21 |
9% OFF Phone Price : $65.21
In Stock
