Model # 507456350 Official Sears 20" boys' dirt rage bicycle

Here are the diagrams and repair parts for Official Sears 507456350 20" boys' dirt rage bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Tube 16223
#8

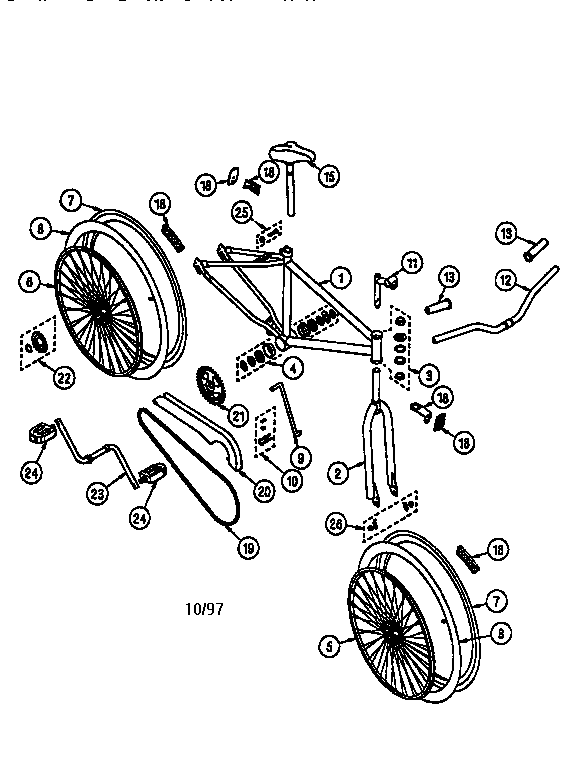

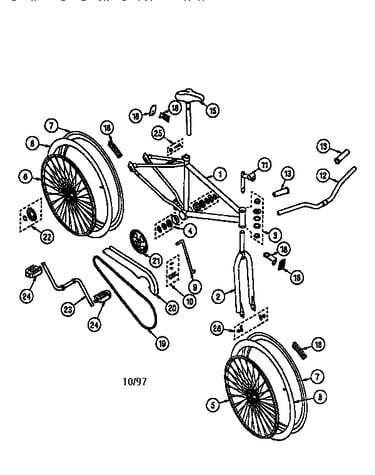

Unit parts diagram

Tube

Part #16223

The manufacturer no longer makes this part, and there's no substitute part

Kit,coaste 3C1386
#22

Unit parts diagram

Kit,coaste

Part #3C1386

The manufacturer no longer makes this part, and there's no substitute part

Tire 20x2. 2C9109-A04
#7

Unit parts diagram

Tire 20x2.

Part #2C9109-A04

The manufacturer no longer makes this part, and there's no substitute part

Refl Kit 3C6810
#18

Unit parts diagram

Refl kit

Part #3C6810

The manufacturer no longer makes this part, and there's no substitute part

Hardware 3C0592
#10

Unit parts diagram

Hardware

Part #3C0592

The manufacturer no longer makes this part, and there's no substitute part

Handlebar 2C9163-3
#12

Unit parts diagram

Handlebar

Part #2C9163-3

The manufacturer no longer makes this part, and there's no substitute part

Kstand Leg 3C5673
#9

Unit parts diagram

Kstand leg

Part #3C5673

The manufacturer no longer makes this part, and there's no substitute part

Stem 3C4519
#11

Unit parts diagram

Stem

Part #3C4519

The manufacturer no longer makes this part, and there's no substitute part

Chain W/link 1C6554
#19

Unit parts diagram

Chain w/link

Part #1C6554

The manufacturer no longer makes this part, and there's no substitute part

Bearing Set 05506-B
#4

Unit parts diagram

Bearing set

Part #05506-B

The manufacturer no longer makes this part, and there's no substitute part
